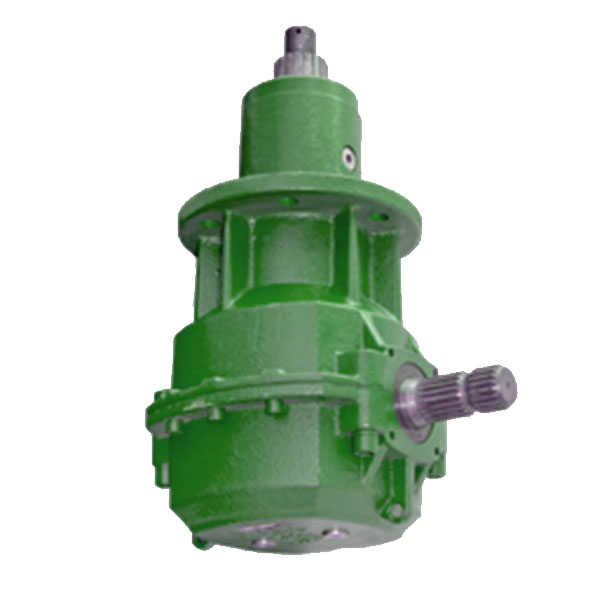

Model RC-145
Rotating the continuous wave input produces the continuous wave output
Gear ratio: 1:1
Input RPM: 540/1000
Output speed: 540/1000
Enter HP: 61-171
Maximum torque: 7,117-19,950 inch pounds.
Input shaft: 1-3/4 "diameter. X 3-7/8 "long 20T spline
Output shaft: 2-1/4" diameter. 18 teeth conical spline W/threaded end. 3-1/4 "total length
Install: 6 holes on 8 "dia. B.c.
Pilot: 5-5/8 "DIA.
Centerline distance: 8.9 "(input shaft to mounting surface)
Dimensions 14-1/2 "x 11" x 11"
The actual weight is 135 pounds.
Shpg. 170 pounds.
