Finished bore sprocket

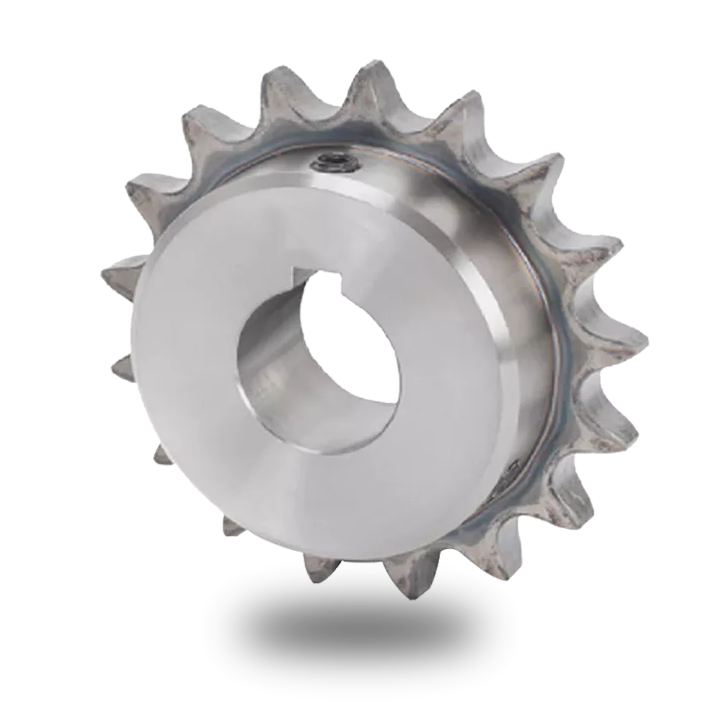

What is a Finished Bore Sprocket?

A finished bore sprocket is a type of sprocket that comes with a pre-machined bore, ready for installation onto a shaft without additional machining. It is designed for easy mounting and is commonly used in power transmission systems where precise alignment and secure fitting are critical. These sprockets are ideal for applications requiring high efficiency and minimal maintenance, such as in conveyor systems, agricultural machinery, and industrial equipment. They are available in various materials, sizes, and tooth configurations to meet diverse operational needs.

Key Features of Our Finished Bore Sprockets

  • Precision Machined Bore: Ensures accurate fit and reduces installation time.
  • High-Quality Materials: Made from durable steel, stainless steel, or cast iron for longevity.
  • Heat Treatment: Hardened teeth for enhanced wear resistance and extended service life.
  • Corrosion Resistance: Options include coatings or materials suited for harsh environments.
  • Wide Range of Sizes: Available in multiple bore diameters and tooth counts to fit various shaft dimensions.
  • Compatibility: Designed to work with standard chains such as ANSI, ISO, or BS specifications.
  • Easy Maintenance: Smooth surface finish reduces friction and simplifies cleaning.

Product Parameters and Specifications

Our finished bore sprockets are engineered to meet industry standards and customer requirements. Below is a detailed table of common specifications.

Parameter Description Available Options
Bore Diameter The inner diameter of the sprocket bore, measured in inches or millimeters. From 0.5 inches to 6 inches (12.7 mm to 152.4 mm)
Number of Teeth The count of teeth on the sprocket, affecting speed and torque transmission. Range: 6 to 120 teeth
Pitch The distance between the centers of two adjacent teeth, standardized for chain compatibility. Common pitches: 0.25 inch, 0.375 inch, 0.5 inch, 0.625 inch, 0.75 inch, 1 inch, etc.
Material The base material used for manufacturing the sprocket. Carbon steel, stainless steel, cast iron, plastic (nylon), or aluminum
Hardness Surface hardness of the teeth, often achieved through heat treatment. 40-60 HRC (Rockwell C scale) for steel variants
Weight The mass of the sprocket, which can impact system inertia. Varies by size and material; e.g., 0.5 lb to 50 lbs (0.23 kg to 22.68 kg)
Standards Compliance Adherence to international standards for dimensions and performance. ANSI B29.1, ISO 606, BS 228, or custom specifications

Applications of Finished Bore Sprockets

Finished bore sprockets are versatile components used in numerous industries. They are essential in systems requiring reliable power transmission, such as:

  • Conveyor belts in manufacturing and logistics.
  • Agricultural machinery like combines and tractors.
  • Automotive assembly lines for precise movement.
  • Food processing equipment where hygiene and corrosion resistance are vital.
  • Mining and construction machinery for heavy-duty operations.

Advantages of Using Our Finished Bore Sprockets

  • Reduced Installation Time: Pre-machined bore eliminates the need for on-site drilling or reaming.
  • Enhanced Performance: Precision engineering ensures smooth operation and reduces energy loss.
  • Durability: High-quality materials and treatments provide resistance to wear, tear, and environmental factors.
  • Cost-Effective: Long service life and low maintenance requirements lower total ownership costs.
  • Customization: Options for special sizes, materials, or coatings to meet specific application needs.

Finished Bore Sprocket FAQ

What is the difference between a finished bore sprocket and a plain bore sprocket?
A finished bore sprocket has a pre-machined bore that is ready to fit onto a shaft without additional work, whereas a plain bore sprocket may require machining to achieve the desired bore size or keyway.

How do I select the right finished bore sprocket for my application?
Consider factors such as shaft diameter, number of teeth needed for speed ratio, chain pitch compatibility, material based on environment (e.g., corrosion-resistant for wet conditions), and load capacity. Always refer to manufacturer specifications and industry standards.

Can finished bore sprockets be used in high-temperature environments?
Yes, if made from materials like heat-treated steel or stainless steel with appropriate hardness. However, always check the maximum temperature rating for the material and consider potential thermal expansion effects on the bore fit.

What maintenance is required for finished bore sprockets?
Regular inspection for wear, proper lubrication of the chain, and ensuring the bore remains clean and free of debris. Replace the sprocket if teeth show significant wear or damage to prevent chain slippage or failure.

Are finished bore sprockets interchangeable with other types?
They can be interchangeable if the bore size, tooth count, pitch, and mounting specifications match. However, always verify compatibility with the existing system to avoid misalignment or performance issues.

How do I install a finished bore sprocket correctly?
Ensure the shaft is clean and free of burrs. Align the keyway (if present) and slide the sprocket onto the shaft. Use appropriate fasteners such as set screws or locking collars to secure it in place, and check for proper alignment with other components.

What is the typical lifespan of a finished bore sprocket?
Lifespan varies based on usage, load, environment, and maintenance. Under normal conditions with regular upkeep, they can last several years. High-stress applications may require more frequent inspections and replacements.

Can I get custom finished bore sprockets made to specific dimensions?
Yes, many manufacturers offer custom services for bore size, tooth profile, material, and other parameters. Provide detailed specifications and requirements for accurate quoting and production.

View as

ASA 3v 5v 8v 3l 4l a 5l Single Combination Groove Finished Bore B Iron Belts Sheaves Pulley With Split Taper Bushings

ASA 3v 5v 8v 3l 4l a 5l Single Combination Groove Finished Bore B Iron Belts Sheaves Pulley With Split Taper Bushings

Raydafon Group's ASA 3v 5v 8v 3l 4l a 5l Single Combination Groove Finished Bore B Iron Belts Sheaves Pulley With Split Taper Bushings delivers unmatched durability and precision for your machinery needs. Crafted from high-quality iron with innovative split taper bushings, it ensures smooth, reliable performance in industrial applications like conveyors and drives. Ideal for engineers and maintenance professionals, this pulley enhances efficiency, reduces downtime, and offers superior value. Experience the Raydafon difference with a product that stands out for its robust design and easy installation.
Promotional Various Durable Using Finished Bore chain & sprocket in steel and stainless steel

Promotional Various Durable Using Finished Bore chain & sprocket in steel and stainless steel

Upgrade your machinery with Raydafon Group's promotional various durable using finished bore chain & sprocket in steel and stainless steel—built to last and enhance efficiency for industrial users.
