Product Description

1BJX Series Agricultural Compact Model Disc Harrow

Warning/Disclaimer

This product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.View more

Product Description

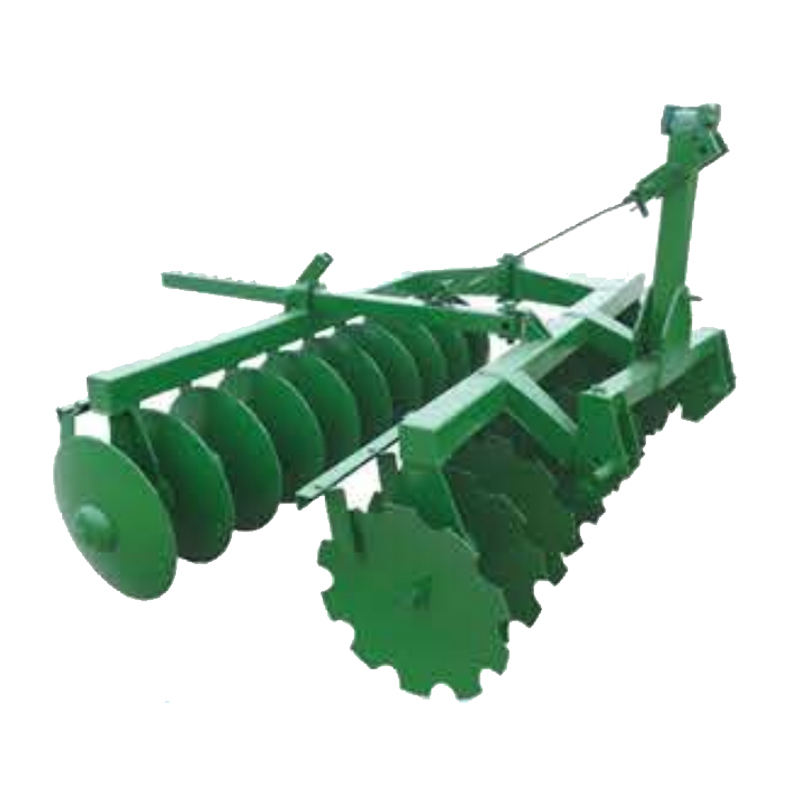

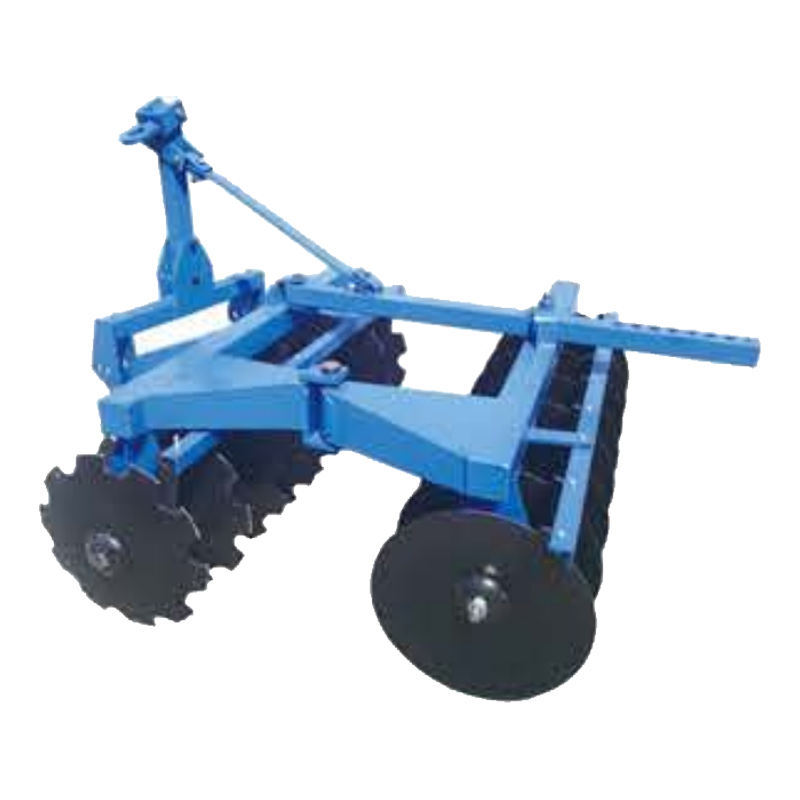

Compact Model Disc Harrow 1BJX Series

Compact model disc harrow is used in open field working for the superficial ploughing, for the shattering of clods, preparation of
soil for sowing, burial of organic substances and remains. It can be used in both forms i.e. mounted as well as trailed.

This series of disc harrows are designed and developed by our company according to the requirements of foreign customers. The machine is matched with four-wheel tractors and can be connected to the tractor in two different ways: suspension or towing. It has the characteristics of high operating efficiency, reasonable power utilization, strong ability to penetrate and crush the soil. After harrowing, the surface is flat and the soil is loose. It has strong adaptability to heavy soil, wasteland and plots with many weeds.

Model	1BJX-1.4A	1BJX-1.6A	1BJX-1.8A	1BJX-2.0A	1BJX-2.3A	1BJX-2.5A	1BJX-2.7A
Working width (mm)	1400	1600	1800	2000	2300	2500	2700
Working Depth (mm)	140
Disc Dia (mm)	560/610
Disc Qty	12	14	16	18	20	22	24
Weight (kg)	440	490	550	590	620	650	720
Tractor power (hp)	30	40	50-60	60-70	70-80	80-100	90-110
Linkage	Mounted Cat II

* The disc harrow blade has a diameter of 61 centimeters and a thickness of 6 millimeters, with a high soil penetration capacity. * The maximum working depth can reach 14 centimeters. * Through the combination of a large penetration angle and a powerful rake blade, the disc harrow is able to achieve a comprehensive and consistent stubble removal effect at a working depth of 7 cm. * The maintenance-free radial thrust ball bearings of the disc harrow blades require no maintenance, thus significantly reducing maintenance costs. * The bearings are ideally sealed against dust and water, and in addition to the external sealing, a 6-fold filter seal is fitted internally. This special form of bearing shell reduces wear and prevents tangling.

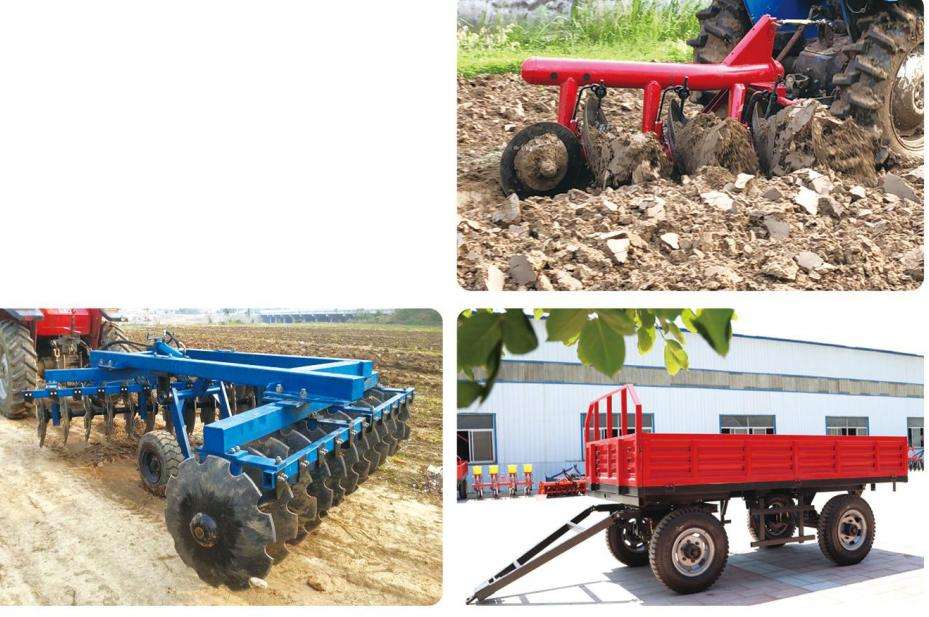

Applications

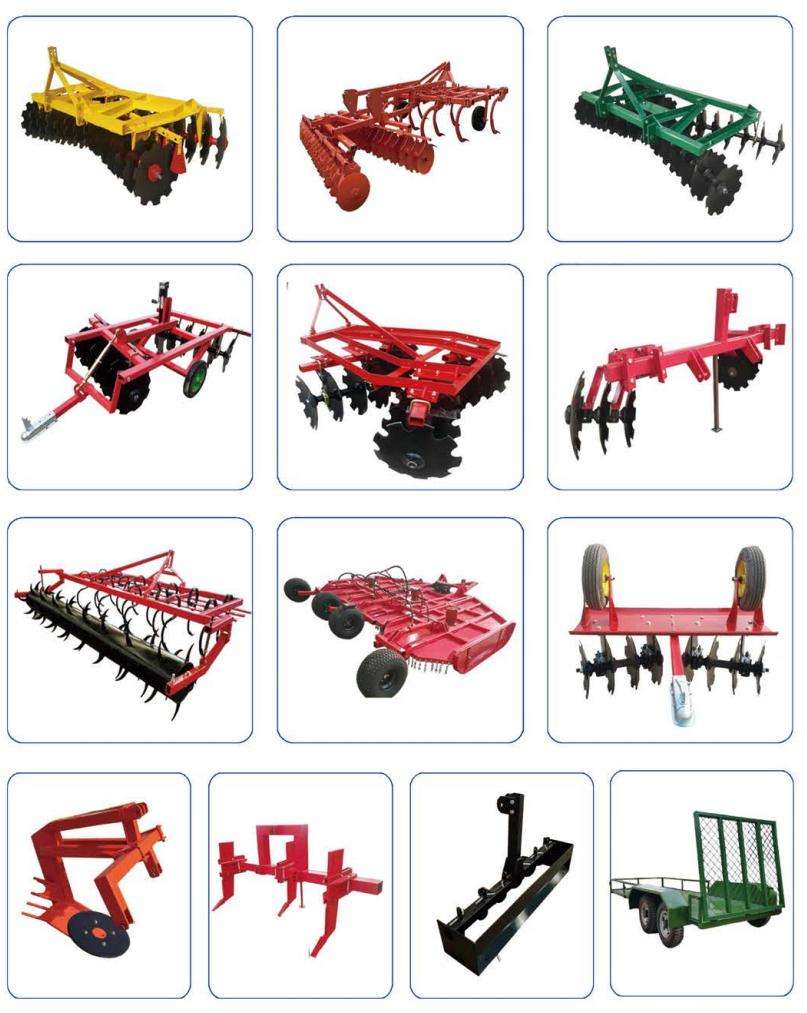

Related Products

Knife Guard

Heavy Duty Part

Fodder Feed Mixer Knife Blade

Cla as Agricultural Machinery Knives For Harvest

Fodder Feed Mixer Knife Blade

Knife Section

Plough Share

Company Profile

Every power is an agricultural machinery enterprise specializing in the research and development, production, sales, and service of agricultural machinery. Founded in 2012, we have over 60 employees, covering an area of 22000 square meters, with a processing plant of 6000 square meters and advanced production processes such as machining, welding, forging, shaping, and heat treatment. The main products include disc harrows, disc plows, ridgers, cultivators, plows, seeders, trailers, rotary tillers, lawn mowers and other complete machines, as well as agricultural machinery accessories such as harrows, plows, loosening shovels, square shafts, harrow sets, rake teeth, loosening shovels, box cutters, etc. Especially in the production of rake blades, we have accumulated rich experience and our products have won wide recognition from customers with excellent craftsmanship and reliable quality.

FAQ

1. Q: Are your products fully compatible with original accessories? A: Yes, our products are strictly quality tested and verified to ensure full compatibility with original accessories. You can rest assured that our accessories are consistent with original accessories in size, performance and function, and will not affect the normal operation of your agricultural machinery. 2. Q: How is the quality of your accessories? A: All our accessories are produced with high-quality materials and advanced manufacturing processes, in line with international quality standards. We have also passed a number of quality certifications, such as ISO 9001:2015, to ensure that every product can meet or even exceed customer requirements. In addition, we also provide warranty services to ensure that the accessories you purchase are free of quality problems. 3. Q: Does it require professional skills to install your accessories? A: In most cases, the installation of our accessories is relatively simple, and users can complete it by themselves by referring to the detailed installation guide we provide. If you encounter any problems during the installation process, our technical support team is always available to help you. 4. Q: Will the use of your accessories affect the warranty of my agricultural machinery? A: Using our accessories will not affect your agricultural machinery warranty. According to the warranty policy of most manufacturers, as long as the accessories are high-quality products that meet the standards and are properly installed and used, they will not affect the warranty terms. However, to ensure that everything is safe, we recommend that you consult your agricultural machinery manufacturer or dealer before use. 5. Q: Do you provide after-sales service? A: Yes, we provide comprehensive after-sales service. If you encounter any problems during use, you can contact us through our customer service hotline, email or online chat. Our technical support team will solve the problem for you as soon as possible. 6. Q: Are your accessories suitable for different brands of agricultural machinery? A: Yes, our accessories are suitable for multiple brands of agricultural machinery. We fully consider the compatibility of different brands and models during the design and production process to ensure that our accessories can be widely used in various agricultural machinery equipment.
