BRC IEC Series Flange Mounted Aluminum Alloy Housing Helical Gear Unit Gear Reducer

BRC IEC Series Flange Mounted Aluminum Alloy Housing Helical Gear Unit Gear ReducerProduct DescriptionBRC IEC series helical gear reducerThe high degree of modularity is a designfeature of BRC helical gearboxes range . It can be connected respectively with motors such as normal motor , brake motor .......

Send Inquiry

Product Description

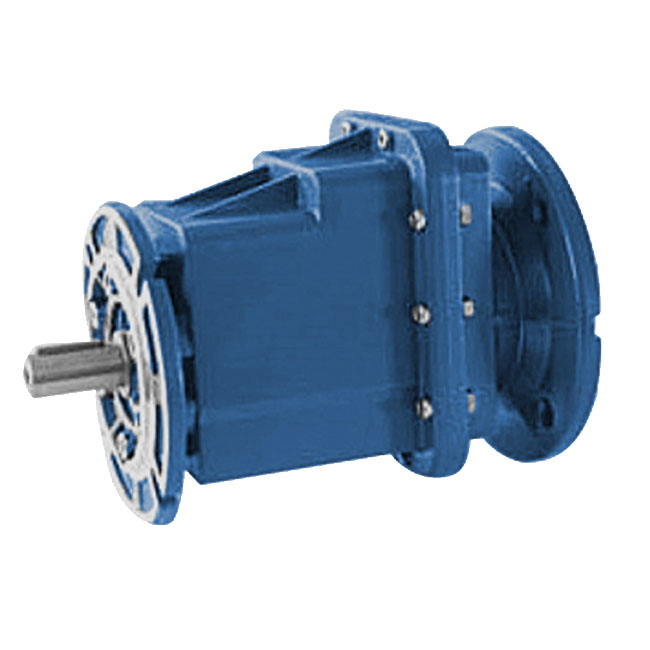

BRC IEC Series Flange Mounted Aluminum Alloy Housing Helical Gear Unit Gear Reducer

Product Description

BRC IEC series helical gear reducer

The high degree of modularity is a designfeature of BRC helical gearboxes range . It can be connected respectively with motors such as normal motor , brake motor . explosion-proof motor , frequency conversion motor , servo motor . IEC motor and so on . This kind of product is widely used in drive fields such astextile , foodstuff , ceramics packing , logistics plastics and so on . It is possible to set up the version required using flanges or feet.

Housing	Aluminum Alloys
Gears	Hardened Helical Gears
Input Configurations	Hollow Shaft with IEC Normalized Motor Flange /Solid Shaft Input
Applicable Motors	IEC-normalized Motors and Brake Motors/Explosion-proof Motors/Inverter Motors/Servo Motors
Output Configurations	Solid Shaft with B5 Output Flange/Solid Shaft with B14 Output Flange
Models	RC(Foot-mounted): RC01,RC02,RC03,RC04 RCF(B5 Flange-mounted): RCF01,RCF02,RCF03,RCF04 RCZ(B14 Flange-mounted): RCZ01,RCZ02,RCZ03,RCZ04
Input Speed	1400rpm
Input Power	0.12kw~4kw
Ratio	3.66~54

Features:
1. Modular design, dismountable frame foot, optional different frame sizes and flanges
2. Aluminum housing, compact structures, light weight
3. Carburizing and grinding hardened gears, sturdy and durable
4. Multiple mounting positions
5. Low noise
