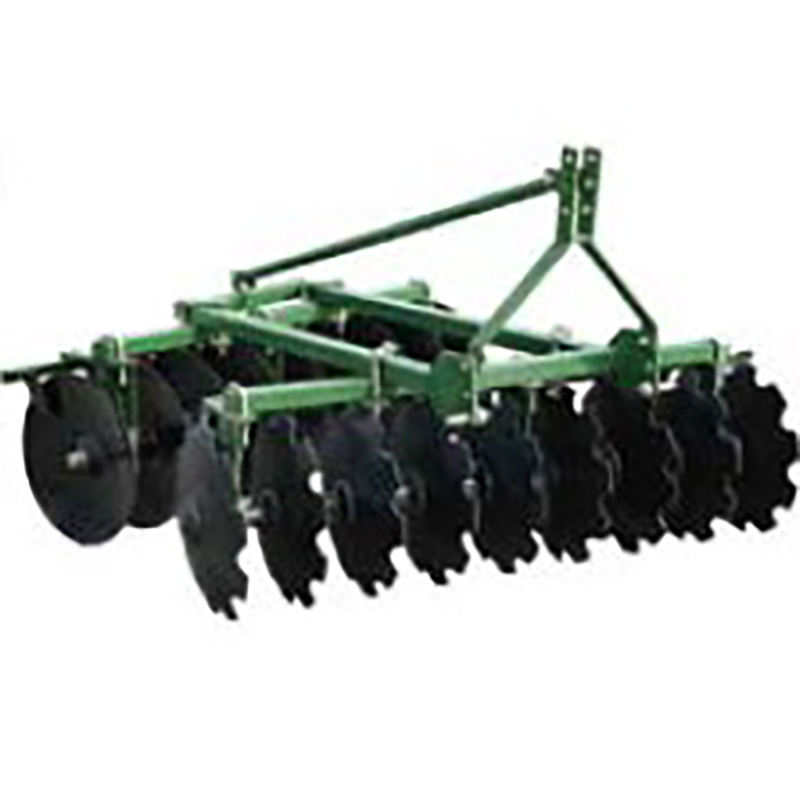

China manufacturers 1BJX series 18 Pcs 3-point mounted mid-size disc harrow for agricultural tractors

Products Description

The 1BJX series mounted mid-size disc harrow is mainly applicable for breaking up the clods of farmland(light
and medium soil) after furrow,loosening soil and mixing soil and fertilizer before sewing.It has the fetures of simple
structure,strong ability and ground flat after working and it can meet the requirements of intensive caltivations.

To mount a mid-size disc harrow, follow these general steps: 1. Prepare the Tractor: Ensure that the tractor you will be using is appropriate for mounting the disc harrow. Check the tractor's hitch compatibility and ensure that it has the necessary horsepower and weight capacity to handle the disc harrow. Review the tractor's manual for any specific instructions or recommendations. 2. Position the Disc Harrow: Position the disc harrow behind the tractor, aligning it with the tractor's hitch. The hitch should have the appropriate hitch pin or attachment point to secure the disc harrow. 3. Attach the Disc Harrow: Use the tractor's hydraulic lift system or three-point hitch to raise the disc harrow to the appropriate height. Align the hitch points on the disc harrow with the tractor's hitch and insert the hitch pin or attach the locking mechanism securely. 4. Secure the Connection: Double-check that the hitch pin is securely fastened or the locking mechanism is properly engaged. Ensure that the connection is tight and stable to prevent any movement or dislodging during operation. 5. Verify Leveling: Once the disc harrow is attached, verify that it is level. Adjust the hydraulic lift system or three-point hitch as necessary to achieve a level position. A level disc harrow will ensure uniform cutting and performance across the working width. 6. Check Hydraulic Connections: If the disc harrow has any hydraulic components, such as folding wings or depth adjustment systems, connect the hydraulic lines to the tractor's hydraulic system. Ensure that the connections are secure and free from leaks. 7. Safety Precautions: Prioritize safety during the mounting process. Follow all safety guidelines and recommendations provided by the disc harrow manufacturer and tractor manufacturer. Be aware of any potential hazards, such as moving parts, hydraulic lines, and heavy equipment, and take appropriate precautions to prevent accidents. 8. Perform Operational Checks: Before operating the mounted disc harrow, perform a thorough inspection of all components. Check for any loose bolts or fasteners, ensure that the disc blades are properly aligned and sharp, and confirm that any adjustment mechanisms are functioning correctly. 9. Operate with Caution: When using the mounted disc harrow, operate at a safe speed, and pay attention to the terrain and conditions. Follow best practices for disc harrow operation, such as adjusting the working depth and angle of the disc blades based on the desired tillage results. Remember to consult the specific manufacturer's instructions and guidelines for your mid-size disc harrow model, as the mounting process may vary slightly depending on the design and features of the equipment.

Models	Unit	1BJX-1.7	1BJX-2.0	1BJX-2.2	1BJX-2.4	1BJX-2.5	1BJ-4.4
Working width	mm	1700	2000	2200	2400	2500	4000
working depth	cm	140-160
no. of disc	pcs	16	18	20	22	24	40
Dia. of blades	mm	22 / 560
Weight	kg	400	434	463	604	760	1850
Linkage		Three-pointed mounted						Hydraulic traction
Matched power	hp	40	50-60	55-65	65-70	70-80	80-120

How to select mounted mid-size disc harrow?

Selecting a mounted mid-size disc harrow involves considering several factors to ensure that the equipment is suitable for your specific needs and conditions. Here are some key considerations to help you in the selection process: 1. Field Size and Terrain: Assess the size of the fields you will be working on. Mid-size disc harrows are typically designed for medium-sized fields. Consider the width of the disc harrow and ensure it is suitable for the field dimensions. Additionally, evaluate the terrain characteristics, such as soil type, slope, and obstacles, to choose a disc harrow with the appropriate features and capabilities to handle those conditions. 2. Tractor Compatibility: Determine the compatibility between the disc harrow and your tractor. Consider the tractor's horsepower, hitch type, and weight capacity. Ensure that the tractor can adequately handle the weight and pulling requirements of the disc harrow. Review the tractor's specifications and consult the tractor and disc harrow manufacturer's recommendations for compatibility guidelines. 3. Disc Size and Configuration: Evaluate the disc size and configuration options available for the mid-size disc harrows you are considering. The disc diameter and thickness will affect the cutting performance and penetration ability of the harrow. Consider the number of discs, their spacing, and the angle at which they are set. These factors impact the tillage results and the ability to handle different soil conditions. 4. Adjustability and Depth Control: Check the adjustability features of the disc harrow. Look for depth control mechanisms that allow you to set and maintain the desired working depth. Some disc harrows may offer adjustable gang angles, allowing you to customize the aggressiveness of the tillage. Adjustable components can enhance versatility and adaptability to varying soil and crop requirements. 5. Frame Construction and Durability: Evaluate the frame construction and overall build quality of the disc harrow. Look for sturdy and durable materials, such as high-quality steel, that can withstand the rigors of fieldwork and provide long-lasting performance. Consider factors such as frame thickness, reinforcement, and weld quality to ensure the disc harrow can withstand the demands of your specific conditions. 6. Maintenance and Serviceability: Consider the ease of maintenance and serviceability of the disc harrow. Look for features such as greaseable bearings, easily replaceable parts, and access points for maintenance and inspection. A disc harrow that is designed for easy maintenance can save time and effort in the long run. 7. Manufacturer Reputation and Support: Research the reputation and customer reviews of the disc harrow manufacturers you are considering. Look for manufacturers known for producing reliable and high-quality equipment. Additionally, consider the availability of spare parts, technical support, and warranty options provided by the manufacturer. 8. Budget: Determine your budget for the disc harrow purchase. Compare the prices of different models and consider the value offered by each option. Balance your budget with the desired features, quality, and durability of the disc harrow. By carefully considering these factors, you can select a mounted mid-size disc harrow that meets your specific requirements, performs well in your field conditions, and provides long-term value for your investment. It is also recommended to consult with local agricultural experts, dealers, or fellow farmers who have experience with disc harrows to gather additional insights and recommendations.

For more details, please click here to contact us！
