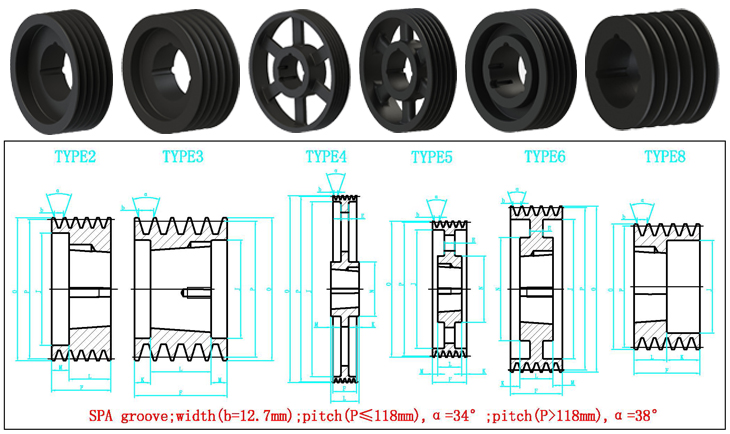

Belt pulley Type drawing & Dimension

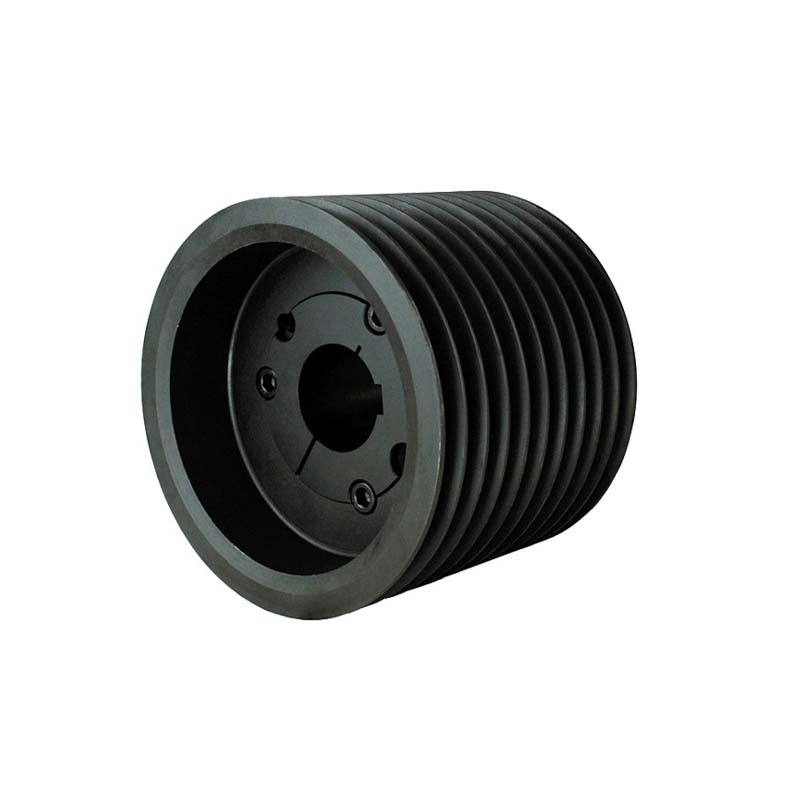

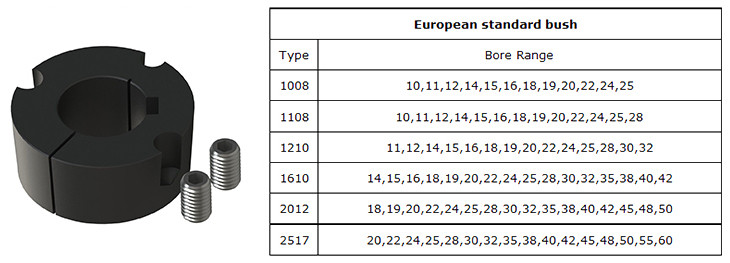

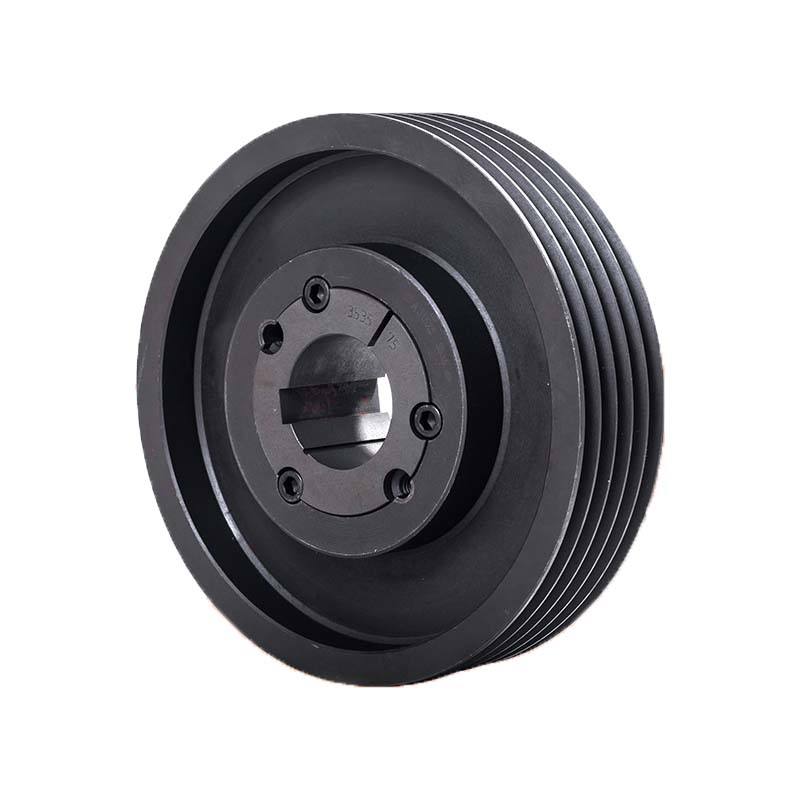

Equipped with Taper Bush:
CPT Pulley Features:
| CPT Pulley Range | power transmission grooved v belt pulleys (U groove pulley), timing pulleys, poly-v belt pulleys, adjustable pulleys |
| Material | steel, cast iron, ductile cast iron, alloy |
| Bore Type | prebore, finished bore, pilot bore, taper bore, bore with keyway |
| Pulley Type | solid, web, spoke |
| Pulley Groove Number | 1 ~ 12 or customer requirment |
| Outside Diameter | 10mm ~ 1900mm |
| Belt Section | SPA, SPB, SPC, SPZ metric pulleys A, B, C, D, TA, TB, TC, 3V, 5V, 8V inch pulleys |
| Balance | Static balance, Dynamic balance |
| Surface Treatment | Black electrophoresis, Grey electrophoresis, Black phosphating, Black oxide, Powder coating |
| Marking Method | Laser marking, Pneumatic marking |
