farm disc harrow for 120hp lovol tractor

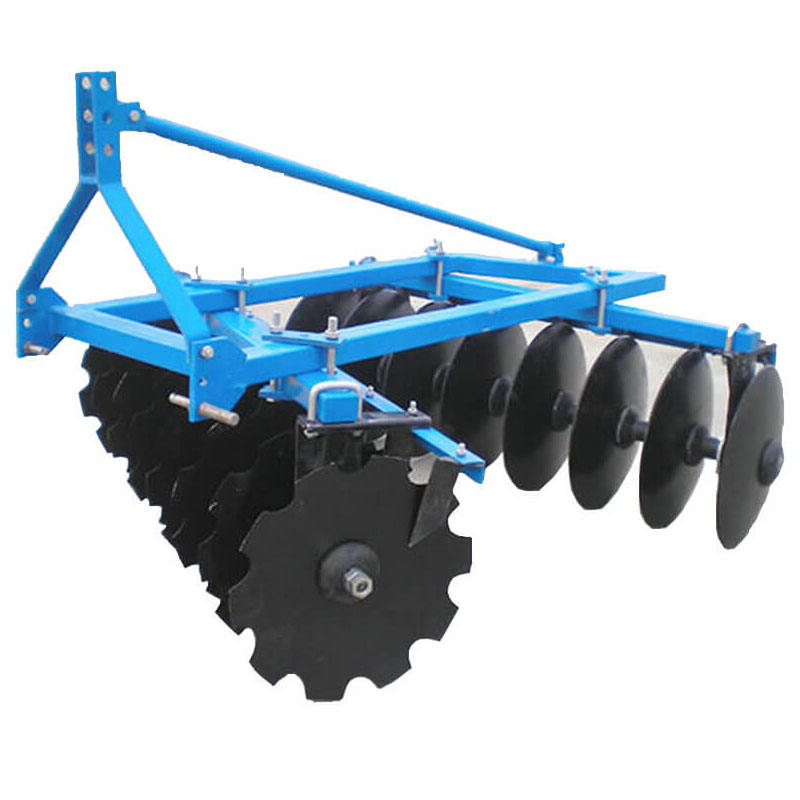

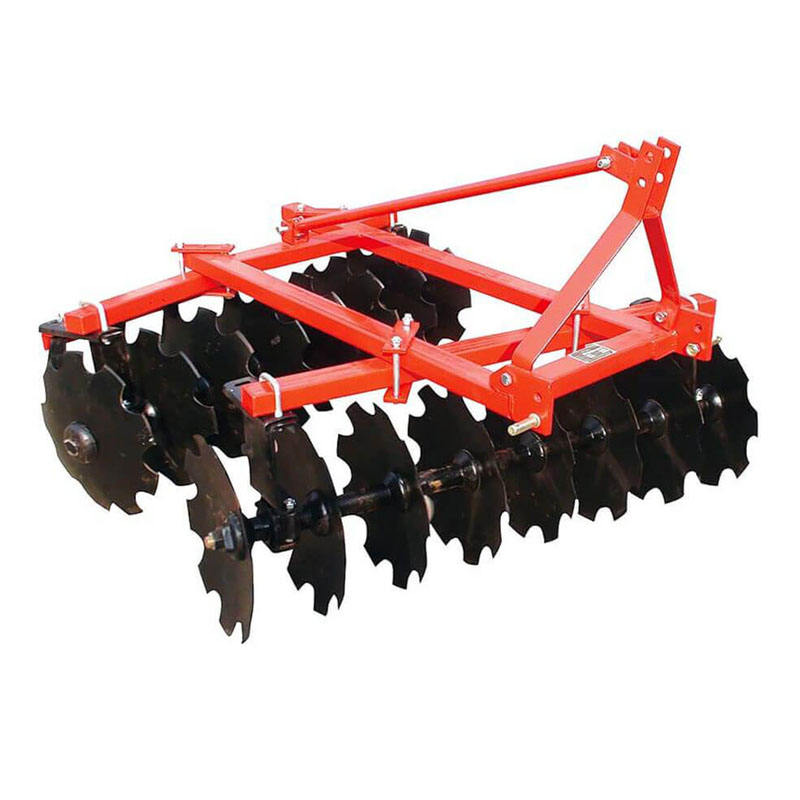

{heavy harrows for sale} 1BJX series Middle duty disc harrow specification is as following :
| Model | 1BJX-1.3 | 1BJX-1.6 | 1BJX-1.8 | 1BJX-2.0 | 1BJX-2.2 | 1BJX-2.4 | 1BJX-2.5 |
| Working width (mm) | 1300 | 1600 | 1800 | 2000 | 2200 | 2400 | 2500 |
| Working depth (cm) | 12-16 | 14-16 | 16-18 | 18-20 | 18-20 | 18-20 | 18-20 |
| No, of disc (pcs) | 12 | 14 | 16 | 18 | 20 | 22 | 24 |
| Diameter of disc (mm / inch) | 560/22 | 560/22 | 560/22 | 560/22 | 560/22 | 560/22 | 560/22 |
| Weight (kg) | 330 | 370 | 400 | 440 | 465 | 520 | 760 |
| Matched power (hp) | 35-40 | 40-45 | 45 | 50-55 | 55-60 | 60-65 | 75-100 |

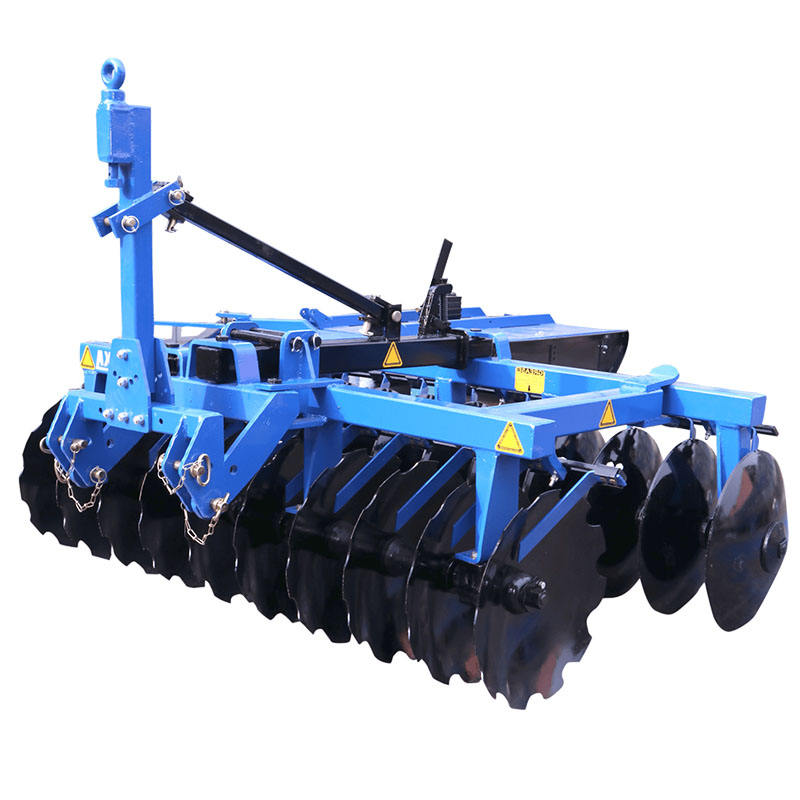

{heavy harrows for sale} 1BZ series heavy duty disc harrow specification is as following :
| Model | 1BZ-1.8 | 1BZ-2.0 | 1BZ-2.2 | 1BZ-2.5 | 1BZ-3.0 | 1BZ-3.4 | 1BZ-3.8 |
| Working width (mm) | 1800 | 2000 | 2200 | 2500 | 3000 | 3400 | 3800 |
| Working depth (cm) | 20-25 | 20-25 | 20-25 | 20-25 | 25-28 | 25-30 | 25-30 |
| No, of disc (pcs) | 16 | 18 | 20 | 24 | 28 | 32 | 36 |
| Diameter of disc (mm / inch) | 660/26 | 660/26 | 660/26 | 660/26 | 660/26 | 660/26 | 660/26 |
| Weight (kg) | 1150 | 1250 | 1350 | 1500 | 1600 | 1800 | 2100 |
| Matched power (hp) | 60-70 | 70-80 | 80-90 | 90-100 | 100-120 | 120-140 | 140-180 |
