Fully Automatic Roll Seal Ultrasonic Granule Powder Packing Machine 30-40bags/minutes

Fully Automatic Roll Seal Ultrasonic Granule Powder Packing Machine 30-40bags/minutesProducts DescriptionApplicationFuly Automatic Roll Seal Ultrasonic Granule Packing MachineThis machine is suitable for medical, heath care、 food, daily chemical and other industries, such as Chinese medicine aranule......

Send Inquiry

Product Description

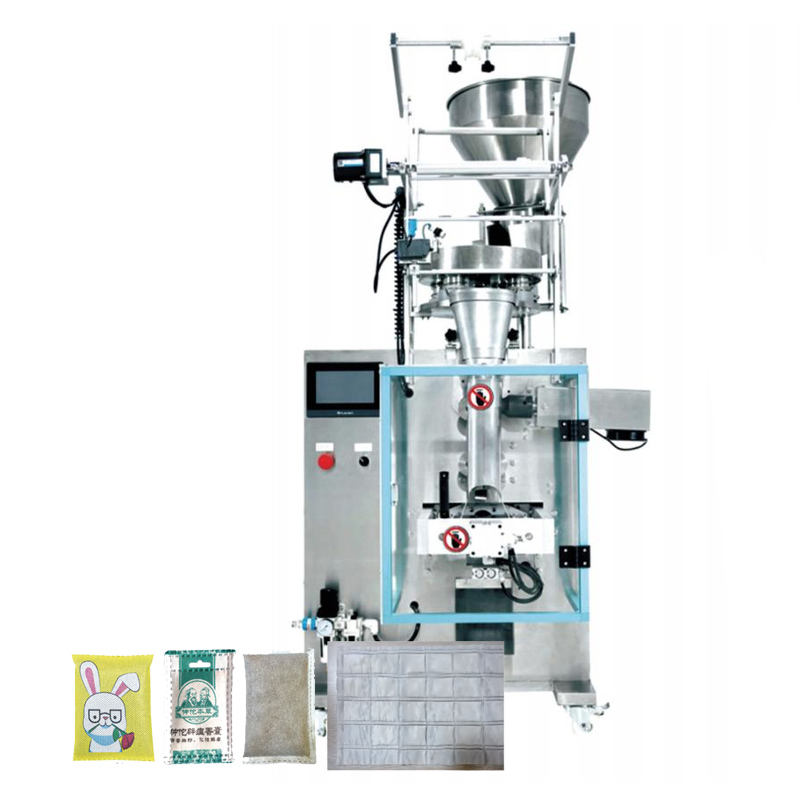

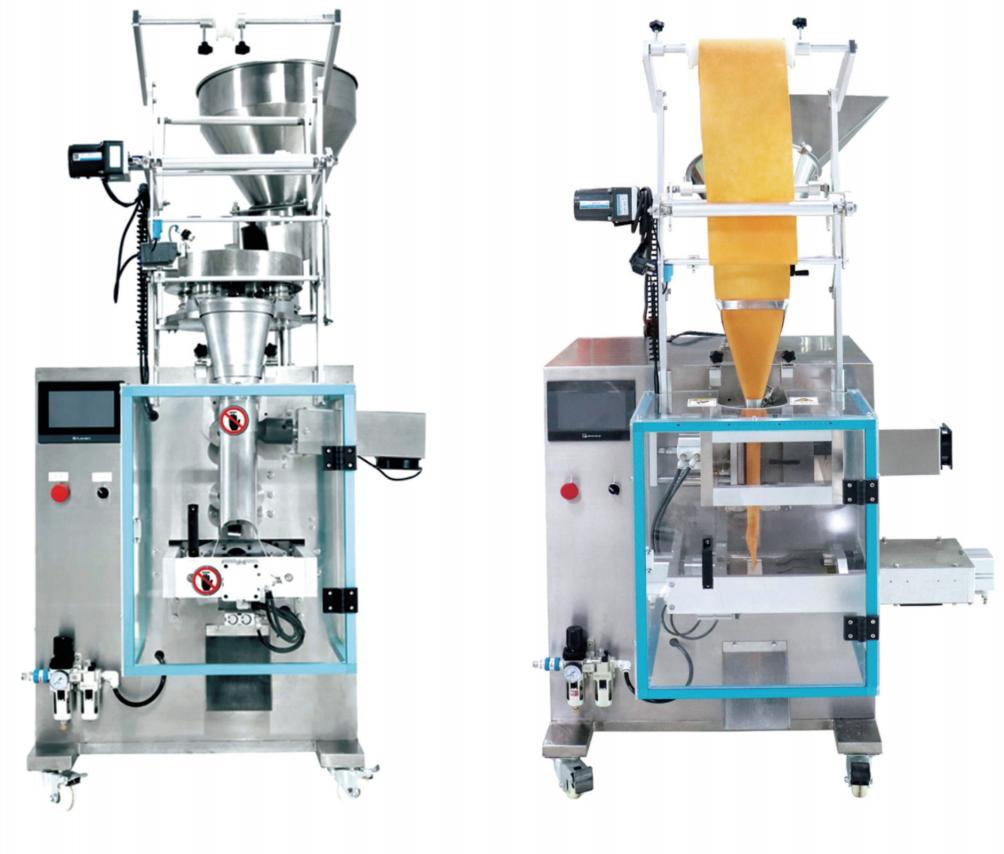

Fully Automatic Roll Seal Ultrasonic Granule Powder Packing Machine 30-40bags/minutes

Products Description

Application

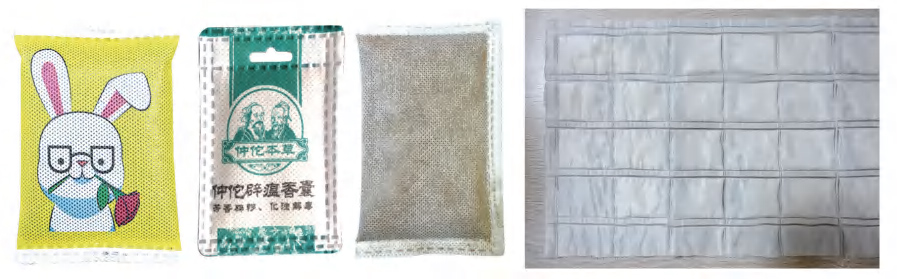

Fuly Automatic Roll Seal Ultrasonic Granule Packing Machine This machine is suitable for medical, heath care、 food, daily chemical and other industries, such as Chinese medicine aranules、 Chinese herbal medicine granules、 wormwood velvet, marinade packs、 foot bath packs、 activatedcarbon、 desiccant granules、 sachets、 coffee beans、 bamboo charcoal adsorbents、 high Potassium manga manganateparticles、 diatomaceous earth particles etc.

Fully Automatic Roll Seal Ultrasonic Powder Packing Machine This machine is suitable for medical, health care、 food, daily chemical and other industries, such as Chinese medicine powder、 Chinese herbal medicine powder、 wormwood powder、 marinade package、 foot bath package、 desiccant powder、 sachet, coffce powder、 heating powder、 five-spice powder、 ginger Powder、 anti-mite、 bactericidal powder、 bamboo charcoal powder、 de humidification powder.Lum powder, etc.

Equipment Characteristic

1. Combined with the feeding hopper, distributor, automatic cold sealing cutting part, and control box as a whole, it is easy to operate, of good quality, safe and durable 2. The control system for both Chinese and English display screens can automatically optimize and match various actions by setting the required parameters (such as filling amount, bag length, etc.) in the setting unit that can be displayed And achieve packaging speed 3. A good electronic color code control system that automatically and accurately tracks the cursor on the packaging film, allowing the bag to obtain a complete and beautiful icon 4. The cutting blade is equipped with a control gear function, which allows for the selection of cutting two or more bags at once. The automatic packaging machine can automatically measure, bag, and fill during the packaging process All tasks including sealing, cutting counting, and printing character codes 5. Stepper motor control, high precision, no need to adjust other components to change bag length, and accurate and error free 6. Roller sealing, bag length can be adjusted freely and infinitely long 7. The contact area between the bag roller and the ultrasonic oscillator is small, resulting in low impact force and minimal damage to the ultrasonic waves, thus extending their service life 8. The packaging film adopts a self weight motor pressure film feeding structure, which doubles the length of the packaging film feeding and makes the bag making smooth and has good edges 9. The sealing form is ultrasonic cold sealing, suitable for packaging materials such as non-woven fabric, nylon film, and DuPont paper. The sealing is neat, perfect, and firm

Basic Parameters

Product name	300GCK	300GCF
Filling volume range	1-50g	1-50g
Bag width	(back seal)L:50mm;W:50-140mm (side seal)L:50mm;W:50-150mm
Dose range	turntable measuring cups	screw feeder
Control system	PLC Control system
Voltage	220V50-60HZ/2KW
Speed	30-40bag/min
Weight	300KG
Dimension	L850W1250H1900 mm
Packing material	Non-woven fabric Nylon Dupont Paper

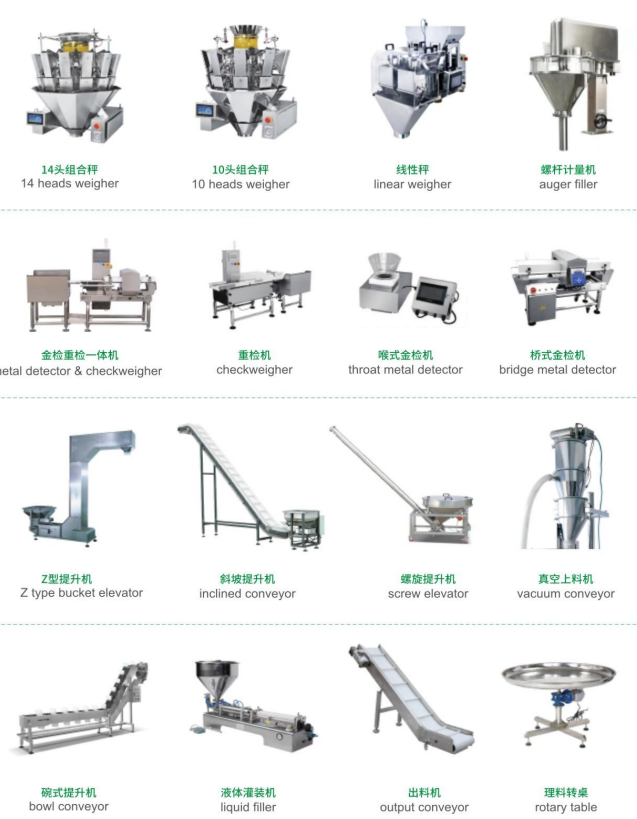

Products List
