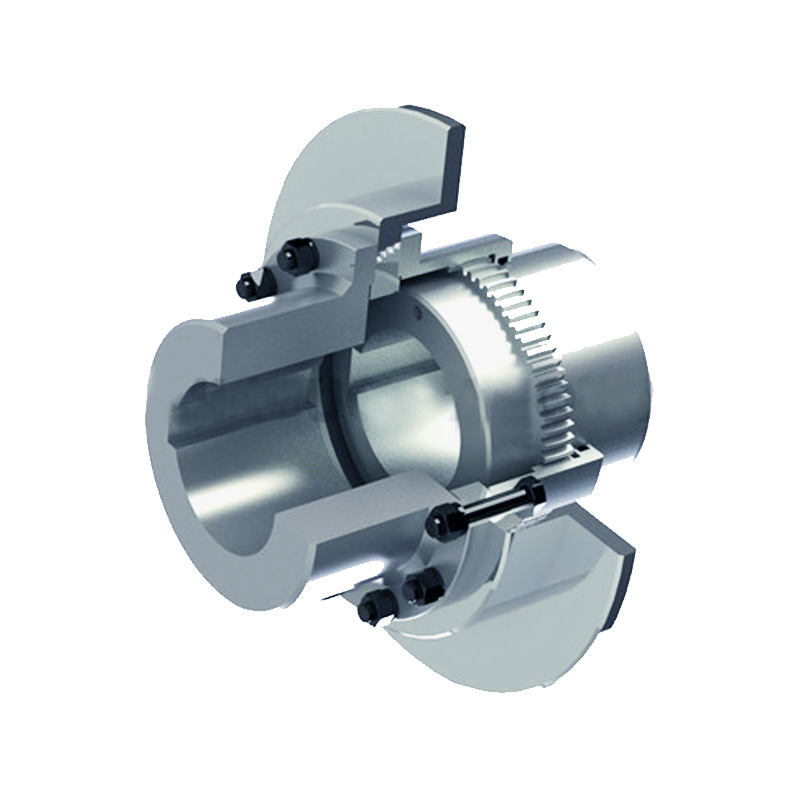

GAP Type Flexible Drum Gear Coupling With Brake Disc for Large Axis Offset

Raydafon Guoup GAP Type Flexible Drum Gear Coupling With Brake Disc for Large Axis Offset excels in high-torque applications, offering superior flexibility and durability. Ideal for industries with misaligned shafts, it ensures smooth operation, reduces downtime, and enhances efficiency. Experience reliable performance and innovative design that sets it apart from competitors, empowering your machinery with confidence and precision.
Send Inquiry
Product Description

GAP Type Flexible Drum Gear Coupling With Brake Disc for Large Axis Offset

GAP Type Flexible Drum Gear Coupling With Brake Disc for Large Axis Offset
Products Description
GAP Type Flexible Drum Gear Coupling With Brake Disc for Large Axis Offset
GAP Type Drum Gear Coupling
With brake disc, single drumtype gear

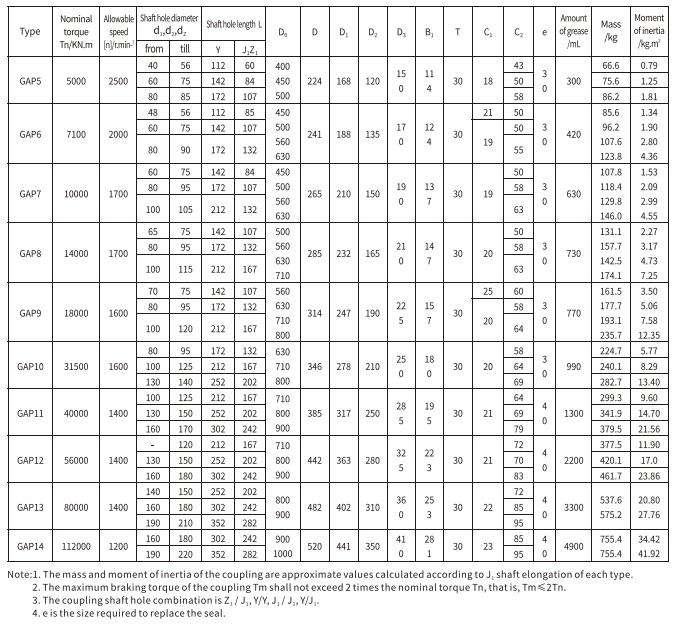

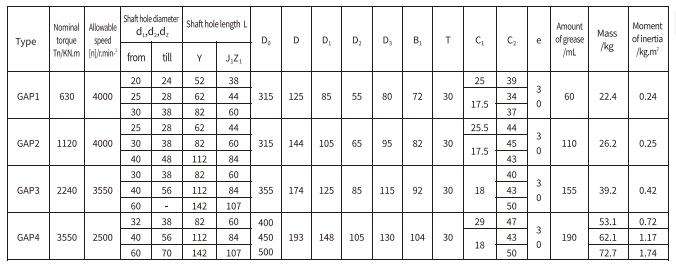

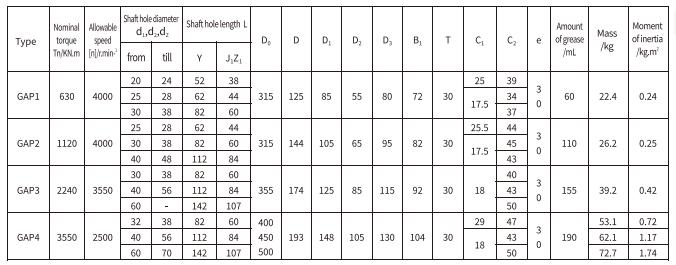

Maximum torque: 112,000 N.m Maximum shaft hole: 220mm Maximum Diameter of brake disc: 1,000 mm

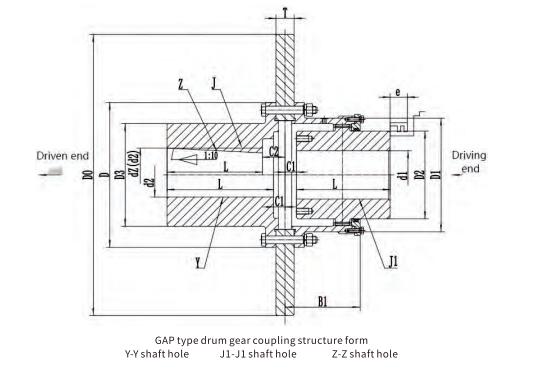

GAP type with brake disc drum gear coupling,the inner toothring is wider,can compensate fo the larger axis offset, suitable for matching with disc brake occasions, allowing positive and reverse direction rotation.Under normal circumstances, the GAP type coupling should be GBZ and GAZ type coupling pair, the outer tooth sleeveend is connected with the intermediate shaft, and the two ends of the half coupling are respectively connected with theworking machine shaft and the power machine shaft, Because the brake disc is connected with the half coupling, the weightof the brake disc and the working brake load and vibration are fully borne by the half coupling, which improves the meshingperformance of the drum teeth during braking, so it is suitable for heavy-duty occasions, and the nominal torque is 630.112000N-m.
GAP Type Flexible Drum Gear Coupling With Brake Disc for Large Axis Offset
GAP Type Flexible Drum Gear Coupling With Brake Disc for Large Axis Offset
GAP Type Flexible Drum Gear Coupling With Brake Disc for Large Axis Offset

GAP Type Flexible Drum Gear Coupling With Brake Disc for Large Axis Offset
Application
GB Type Drum Gear Coupling is widely used in multiple industries and is particularly suitable for the following application scenarios: ---Metallurgical industry: such as rolling mills, continuous casting machines, etc., to ensure stable and reliable transmission performance. ---Mining machinery, such as crushers, conveyors, etc., are suitable for harsh working environments. ---The power industry, such as generators, fans, etc., provides efficient energy transfer. ---Chemical industry: such as reaction vessels, pump equipment, etc., to ensure safe and reliable operation. ---Other heavy machinery, such as cranes, port equipment, etc., are suitable for various occasions that require high-precision transmission.
Click the following picture to learn more
GAP Type Flexible Drum Gear Coupling With Brake Disc for Large Axis Offset
GAP Type Flexible Drum Gear Coupling With Brake Disc for Large Axis Offset
Hot Tags: GAP Type Flexible Drum Gear Coupling, Brake Disc Coupling, Large Axis Offset Coupling, Raydafon Transmission, Raydafon, Raydafon Power, Supplier, Manufacturer, Factory, China
