KZD 1-1/2 inch BSP/NPT Thread female /male bass hydraulic couplers for tractors

KZD 1-1/2 inch  BSP/NPT Thread female /male bass  hydraulic couplers for tractors

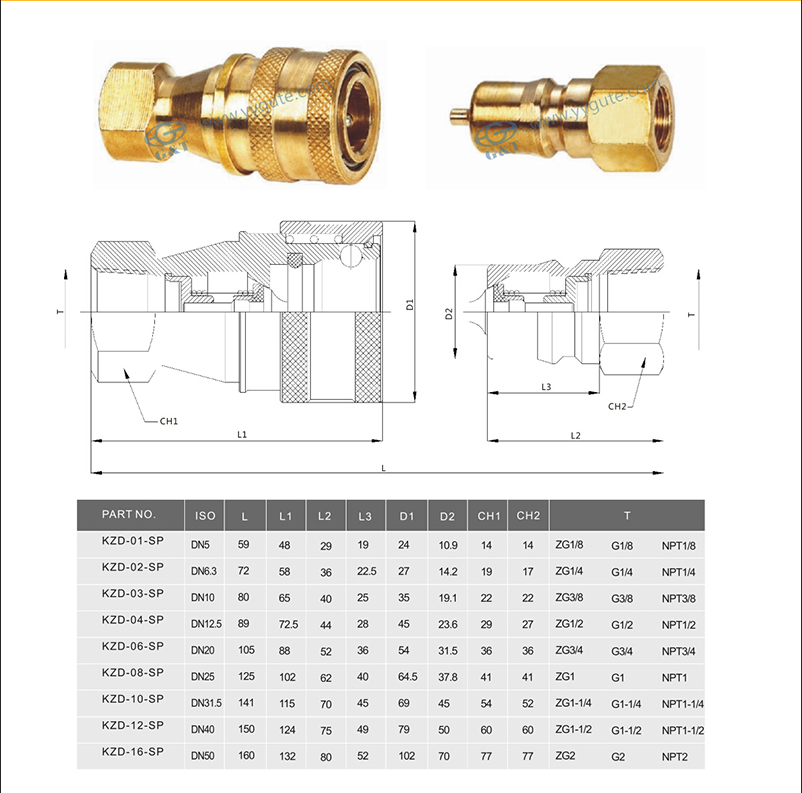

KZD MEDIUM-PRESSURE HIGH PERFORMANCE PNEUMATIC AND HYDRAULICQUICK COUPLER(BRASS)

We produce products according to international standards such as SAE, DIN, ISO and BSP

. In addition, customization and OEM are also available.

1.Application: KZD couplings, are used across the spectrum of hydraulic application.These Double Shut-Off couplings can be found any where that fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment, and a loss of fluid is undersirable.Primarily used with hydraulic fluid. KZD couplings are also used with chemicals, water, steam, and some gases.

2. Features: a. Poppet values available to prevent uncoupled leakage

                      b. Poppet values open automatically when coupled, with in ralted working pressure ,to   keep the flow expeditely.

                      c. Dependable ball-locking mechanism holds the mating halves together

                      d.Socket and plug are preoision maohined from solider bar stock

                      e. Compatiblewith PARKER6600 Series,FASTER ANV Series, AEROQUP 5600 Series  and HANSEN HA15000 SERIES
