1.Features of 2020 new design 1325 acrylic Veneer/wood/MDF/die board/plywood laser cutting machine
1) Customers could choose equipment and solutions such as flat worktable, honeycomb worktable, aluminium blade worktable and so on.
2) USB data interface, use MSF can deposit multi-files at one time, can work offline and convenient for mass production.
3) With the drawer and the funnel design for collecting remnant material, it is convenient to use.

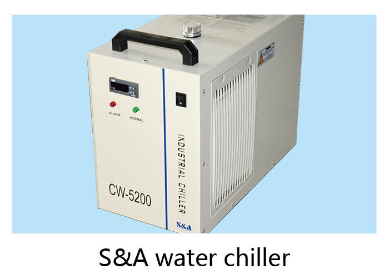

4) High quality water cooler, protect stable radiation and prolong the lift-span of laser

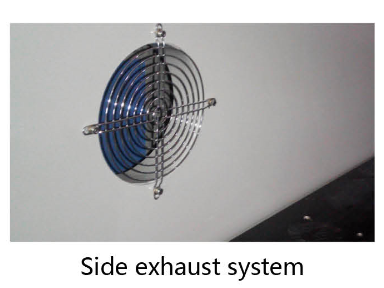

Detail images of2020new design 1325 acrylic Veneer/wood/MDF/die board/plywood laser cutting machine
2. Parameter of2020new design 1325 acrylic Veneer/wood/MDF/die board/plywood laser cutting machine
Model | EP-1325 |
Working area | 130cm*250cm |
Laser power | 100w/150W/180W |
Laser type | CO2 sealed laser tube,water-cooled |
Cutting speed | 0-40000mm/min |
Laser Output | 1-100%software setting |
Resetting positioning accuracy | ≤±0.01mm |
Power supply | 220V/50HZ , 110V/60HZ |
Operating temperature | 0 - 45°C |
Operating humidity | 5 - 95% |
Min. shaping character | English 1.0 x 1.0mm |
Graphic format supported | BMP, PLT, DST, DXF, AI |
Software supported | CorelDraw, PhotoShop, AutoCAD,TAJIMA |
Driving system | Panasonic servo motor |
Net Weight | 1000kg |
3.Applicabe material
Double color sheets,MDF boards, acryl, perspex, glass, wood, stone, marble, gravestone, rubber, leather,fabric, paper, cltoh, dual-colour boards.etc
