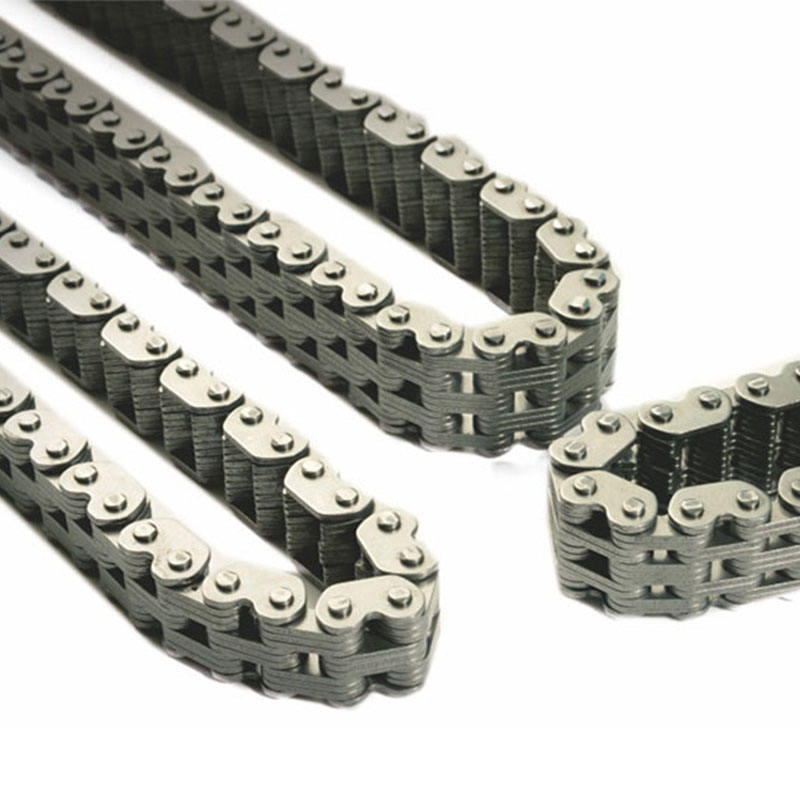

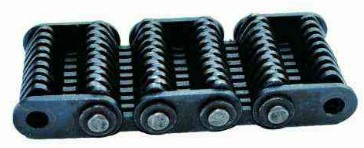

Middle Side Guide Inverted Tooth Contact Silent Chain for 03C C4-120 C4-123 C4-129 C4-132 C4-138 C4-150 C4-320 C4-323

Product Description

Toothed chain, also known as silent chain, is a form of transmission chain. China's national standard is GB/T10855-2003 Toothed Chain and Sprocket. Toothed chain is composed of a series of toothed chain plates and guide plates alternately assembled and connected by pin or combined hinge elements, and the adjacent pitch is hinge joint. According to the guide type, it can be divided into external guided toothed chain, internal guided toothed chain and double internal guided toothed chain.

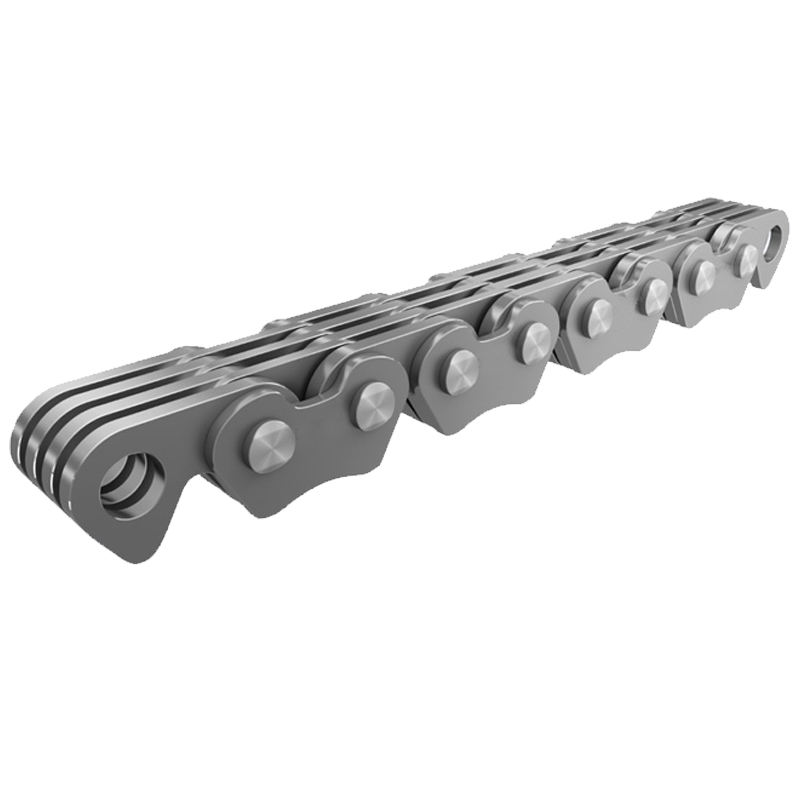

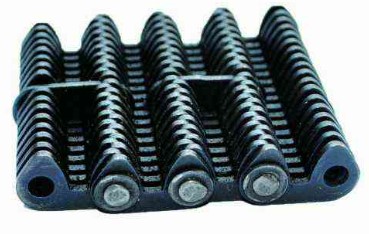

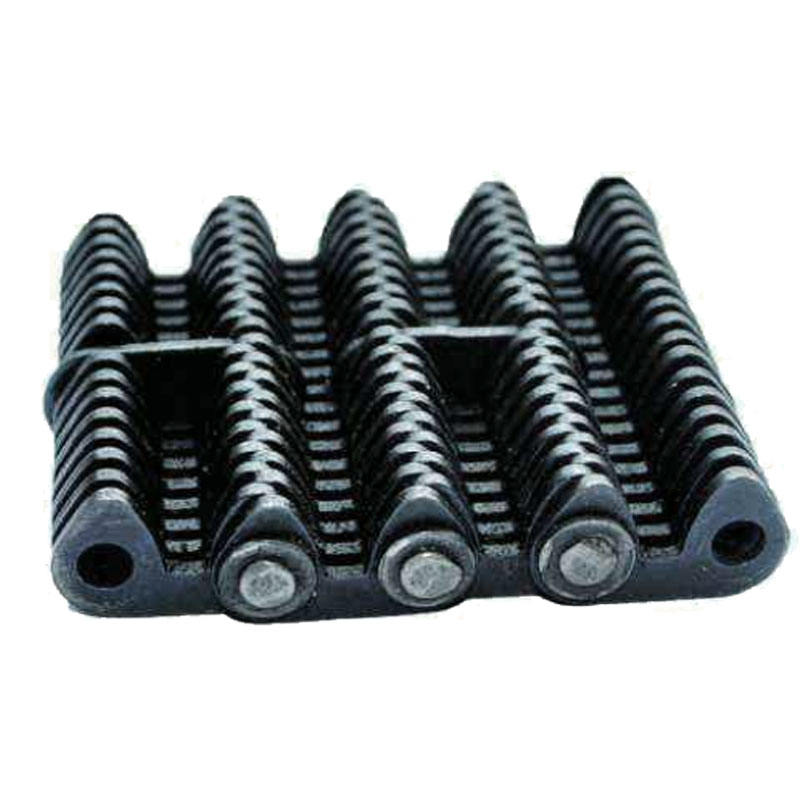

Middle guide

Side guide

Chain No.	Chain width	Pin length			Guide type	Number of plates	Litimete tensile strenght	Average tensile strenght	Weight per meter
	b max	Lc max	L max		n	Q min Kn/lbf	Q0 KN	q kg/m
03C	10.2	16.7	15.2	inside
C4-120	19.5	26	24.5			13	20/4545	22.2	1.2
C4-123	22.5	29	27.5			15	23/5227	25.5	1.37
C4-129	28.5	35	33.5			19	28.5/6477	31.6	1.72
C4-132	31.5	38	36.5			21	31.5/7159	34.9	1.89
C4-138	37.5	44	42.5			25	38/8636	42.1	2.22
C4-150	49.5	56	54.5			33	50/11363	55.5	2.9
C4-320	19.5	26	24.5	outside	13	20/4545	22.2	1.21
C4-323	22.5	29	27.5			15	23/5227	25.5	1.38
C4-329	28.5	35	33.5			19	28.5/6477	31.6	1.73
C4-332	31.5	38	36.5			21	31.5/7159	34.9	1.9
C4-338	37.5	44	42.5			25	38/8636	42.1	2.23

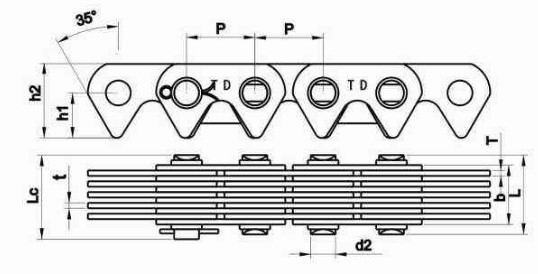

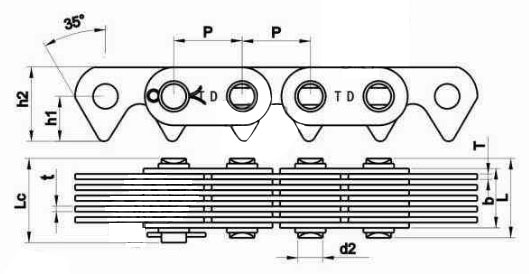

Chain No	Pitch	Pin diameter	Dsitance from hole center to tooth	Plate depth	Plate thickness
	P	d2 max	h1 max	h2 max	t/T max
03C	4.76	1.62	1.9	4.9	0.6
C4-120	12.7	4.45	6.62	12.1	1.5
C4-123
C4-129
C4-132
C4-138
C4-150
C4-320	12.7	4.45	6.62	12.1	1.5
C4-329
C4-332
C4-338

Main features:

1. The noise small tooth chain transmits power through the meshing of the involute tooth profile of the working
chain plate and the sprocket teeth. Compared with the roller chain and sleeve chain, the polygonal effect is significantly
reduced, and the impact is small, the movement is stable, and the meshing noise is small.

2. The chain link of the tooth chainwith high reliability is a multi-piece structure. When a single chain link is damaged in the work, it will not affect the work of the whole chain, so that people can find and replace it in time. If it is necessary to increase the bearing capacity, it only needs to be smaller in the width direction (increase the number of chain link rows).

3. High kinematic accuracy The wear and elongation of each link of the toothed chain are uniform, which can maintain high kinematic accuracy. The so-called silent chain is a toothed chain, also known as a tank chain. It looks like a chain track. It is riveted by multiple steel plates. The better the meshing with the sprocket, the less noise when entering the teeth, the more resistant to stretching, and can effectively reduce the noise of the chain. Now more and more chain engines use this silent chain for timing chain and oil pump chain.

Main application scope of toothed chain: toothed chain is mainly used in textile machinery, centerless grinder and conveyor belt mechanical equipment.

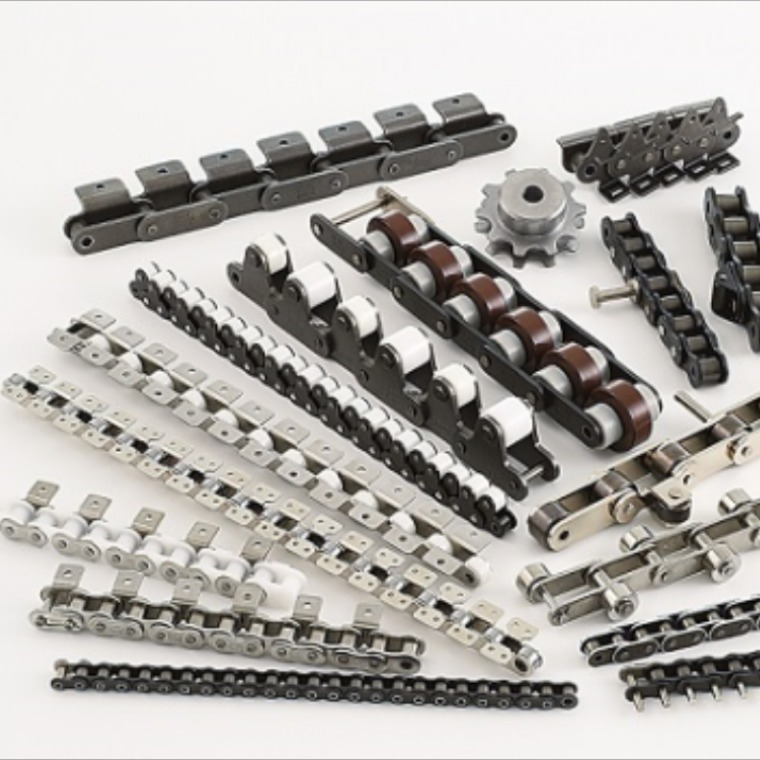

^{For more types，Please click here！}

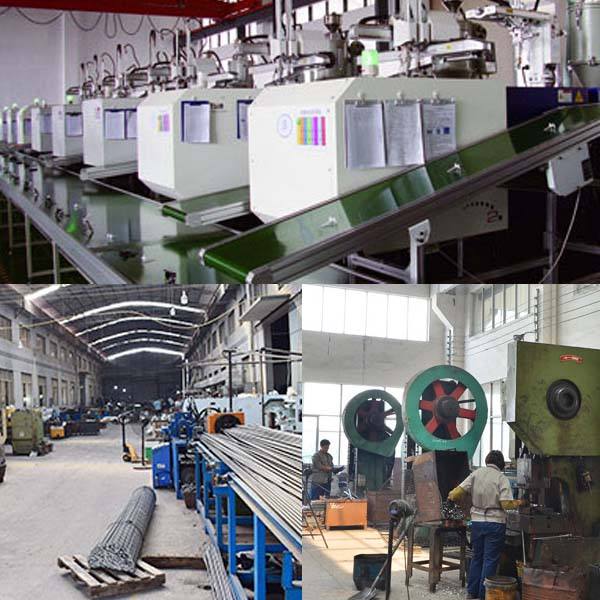

Why Choose Us

Heat treatment process

Through excellent standard and excellent heat treatment and quenching process, the hardness, strength, toughness, tensile strength and service life of parts can be improved

Pin screen

Each pin shaft has been strictly selected manually, without cutting corners

Chip screening

Customize the thickness from the raw material chain plate without cutting corners

Surface treatment

Add chemical raw materials with a grinder, and the surface shall be smooth and free of burrs after the long sealing room is fully polished

Surface electroplating

Each zero cow is fully electrolyzed, the surface thickness is uniform, and the service life is improved

Accessory process

Each roller is made by turning process, and its surface is smooth and free of burrs
