Middle Side Guide Inverted Tooth Flank Contact Silent Chain for Glass industry SC3 SC4 SC5 SC6 SC8 SC10

Middle Side Guide Inverted Tooth Flank Contact Silent Chain for Glass industry SC3 SC4 SC5 SC6 SC8 SC10Product DescriptionToothed chain has become one of the excellent transmission products in many industries such as automobile engine, automobile production line, machine tool, steel rolling transmis......

Send Inquiry

Product Description

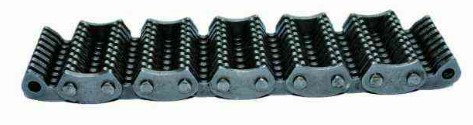

Middle Side Guide Inverted Tooth Flank Contact Silent Chain for Glass industry SC3 SC4 SC5 SC6 SC8 SC10

Product Description

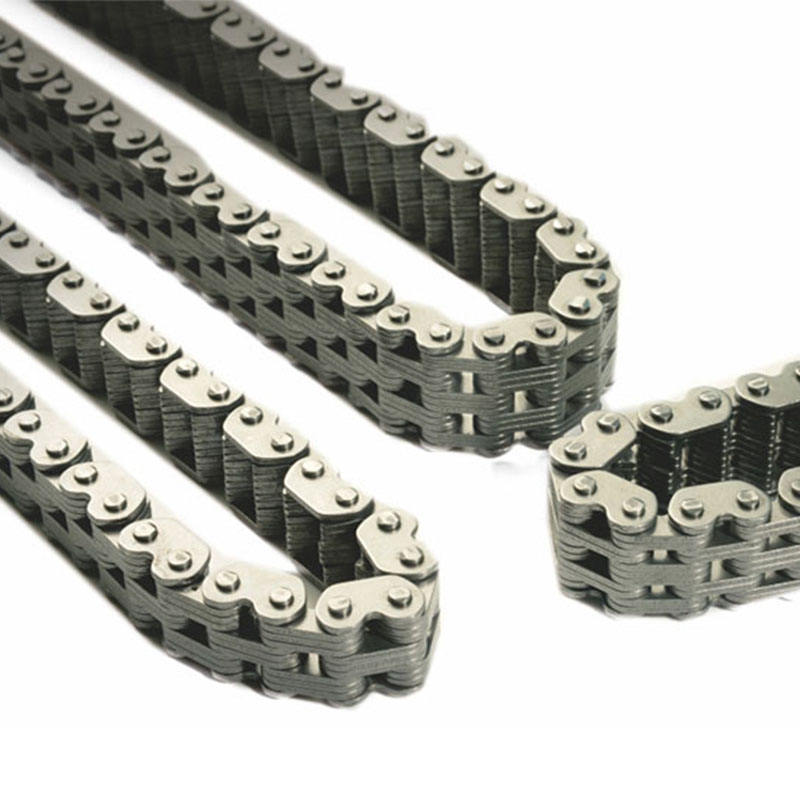

Toothed chain has become one of the excellent transmission products in many industries such as automobile engine, automobile production line, machine tool, steel rolling transmission device, industrial pump, steam turbine, petroleum machinery, textile machinery and so on because of its excellent performance such as heavy load, quiet, high speed and durability. Toothed chains are also called silent chains or silent chains.

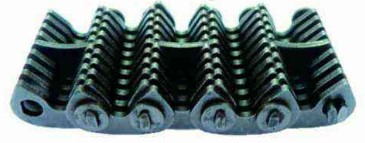

Middle guide

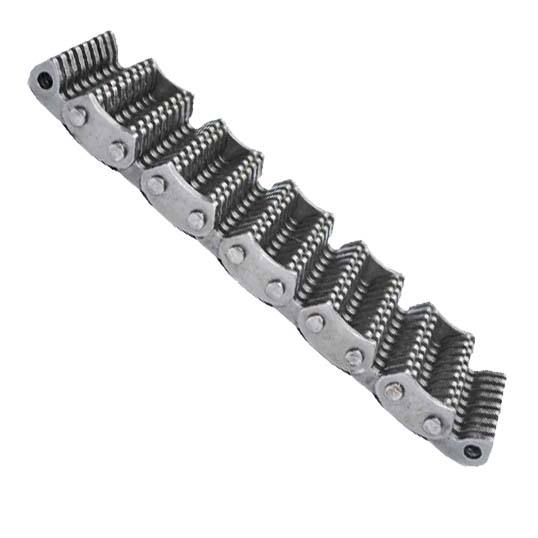

Side guide

Chain No.	Chain width	Pin length			Guide type	Number of plates	Litimete tensile strenght	Average tensile strenght	Weight per meter
	b max	L max	Lc max		n	Q min Kn/lbf	Q0 KN	q kg/m
SC3	13.5	18.5	20	outside	9	10/2272	11.2	0.6
		16.5	21.5	23	outside	11	12.5/2840	14	0.73
		19.5	24.5	26	outside	13	15/3409	16.8	0.85
		22.5	27.5	29	outside	15	17.5/3997	19.6	1
		28.5	33.5	35	inside	19	22.5/5114	25.2	1.26
SC4	19.5	24.5	26	outside	13	23.4/5318	26.2	1.15
		22.5	27.5	29	outside	15	27.4/6627	30.6	1.33
		25.5	30.5	32	outside	17	31.3/7114	35	1.5
		28.5	33.5	35	inside	19	35.2/8000	39.4	1.68
		34.5	39.5	41	inside	23	43.0/9772	48.1	2.04
		40.5	45.5	47	inside	27	50.8/11364	56.8	2.39
		46.5	51.5	53	inside	31	58.6/13318	65.6	2.74
		52.5	57.5	59	inside	35	66.4/15091	74.3	3.1
SC5	30	37	38.2	inside	15	45.6/10364	50.6	2.21
		38	45	46.2	inside	19	58.6/13318	65	2.8
		46	53	54.2	inside	23	71.7/16295	79.5	3.39
		54	61	62.4	inside	37	84.7/19250	94	3.99
		62	69	70.4	inside	31	97.7/22204	108.4	4.58
SC6	38	45	46.5	inside	19	70/15909	77.6	3.37
		46	53	54.5	inside	23	86/19545	95.4	4.08
		54	61	62.8	inside	27	102/23182	113.2	4.78
		62	69	70.8	inside	31	117/26591	129.8	5.5
		70	77	78.8	inside	35	133/30227	147.6	6.2
SC8	45	52	53.5	inside	15	111/25227	123.2	5.31
		51	58	59.5	inside	17	125/28409	138.7	6.02
		57	64	65.5	inside	19	141/32045	156.5	6.37
		69	76.2	77.7	inside	23	172/39091	190.9	8.15
		81	88.2	89.7	inside	27	203/46163	225.3	9.57
		93	100.2	101.7	inside	31	235/53409	260.8	10.98
SC10	57	66.6	69.6	inside	19	165/37500	183.1	8.42
		69	78.6	81.6	inside	23	201/45681	223.1	10.19
		81	90.6	93.6	inside	27	237/53863	263.2	11.96
		93	102.6	105.6	inside	31	273/62045	303	13.73
		105	114.6	117.6	inside	35	310/70454	341	15.5
		117	126.6	129.6	inside	39	346/78636	380.6	17.27

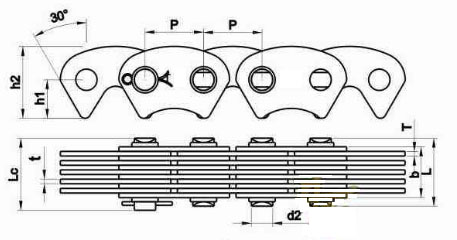

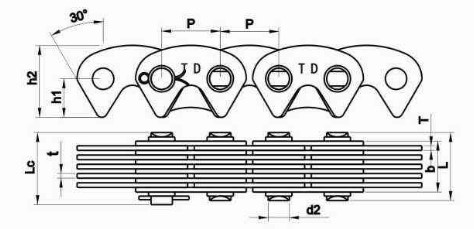

Chain No	Pitch	Pin diameter	Dsitance from hole center to tooth	Plate depth	Plate thickness
	P	d2 max	h1 max	h2 max	t/T max
SC3	9.525	3.28	5.3	10	1.5
SC4	12.7	4.45	7	13.4	1.5
SC5	15.875	5.92	8.7	16.7	2
SC6	19.05	6.9	10.5	20	2
SC8	25.4	8.9	14	26.7	3
SC10	31.75	10.84	17.5	33.4	3

^{For more types，Please click here！}

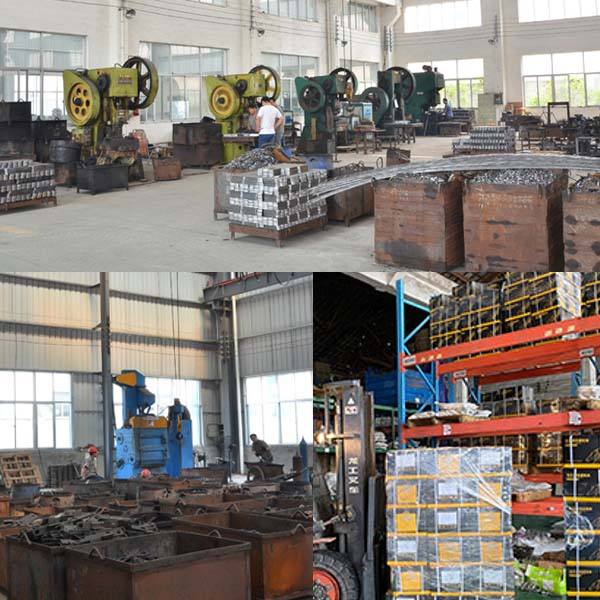

Why Choose Us
