SI...T/K Series SI6T/K M6*1.0 Male/Female Thread Joint Rod End Bearing

SI...T/K Series SI6T/K M6*1.0 Male/Female Thread Joint Rod End BearingProduct DescriptionSI...T/K Rod End Bearing--Rod body with left or right-hand female thread --Sliding contact sarfaces: steel/PTFE--Surface of rod body zinc plated * Easy to use: easy to install and disassemble, the bearing can ......

SI...T/K Series SI6T/K M6*1.0 Male/Female Thread Joint Rod End Bearing

Product Description
SI...T/K Series SI6T/K M6*1.0 Male/Female Thread Joint  Rod End Bearing

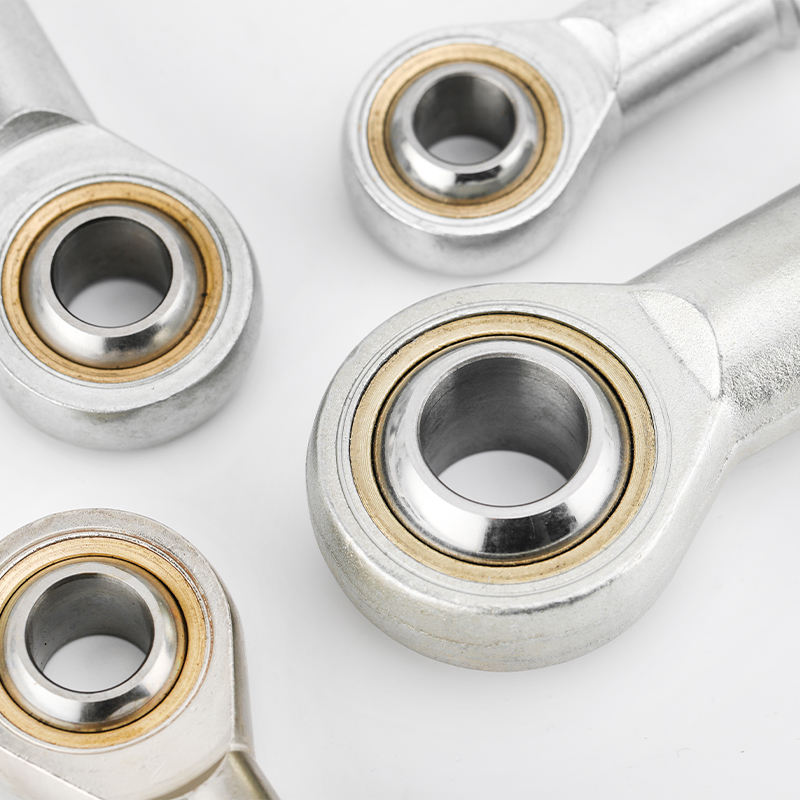

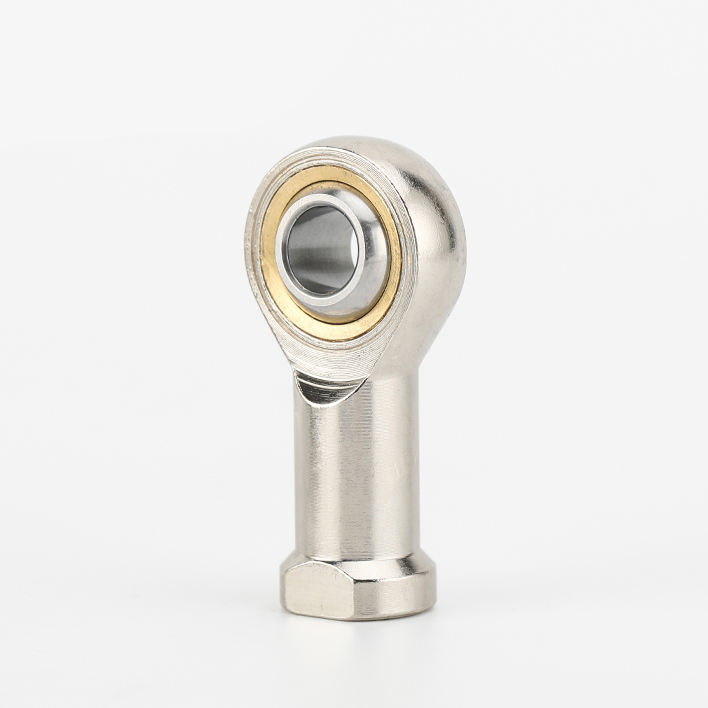

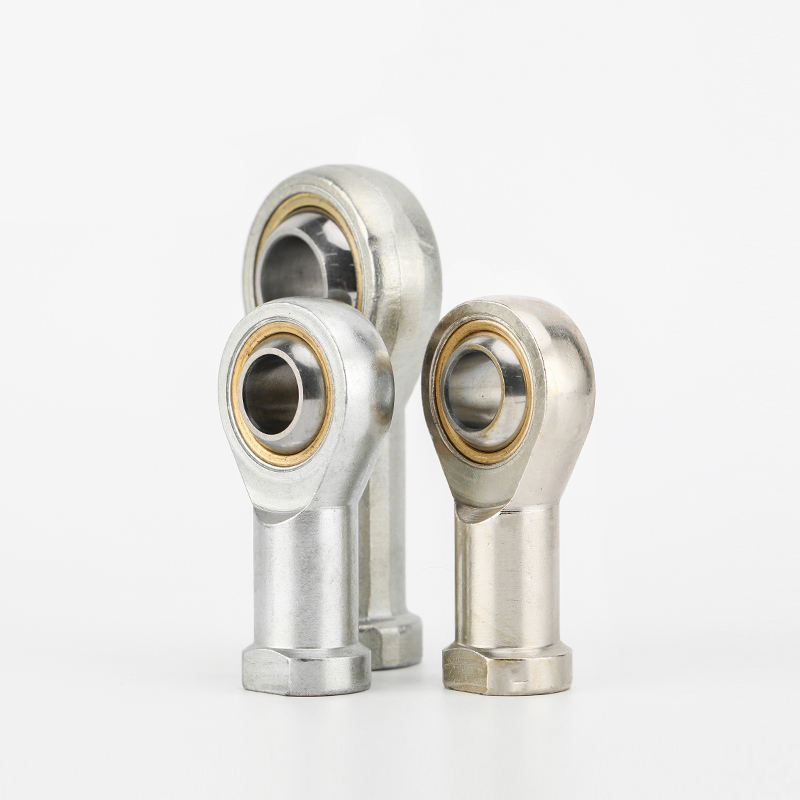

SI...T/K  Rod End Bearing
--Rod body with left or right-hand female thread
--Sliding contact sarfaces: steel/PTFE
--Surface of rod body zinc plated

* Easy to use: easy to install and disassemble, the bearing can produce self-lubrication during work, no maintenance required
* Features: The rod end bearing is a spherical sliding bearing, which can rotate and swing at any angle during motion
* Applicable to instrumentation, construction machinery, mining and mineral processing, industrial fans, etc.

Specification
SI...T/K Series SI6T/K M6*1.0 Male/Female Thread Joint  Rod End Bearing
SI...T/K Series SI6T/K M6*1.0 Male/Female Thread Joint  Rod End Bearing

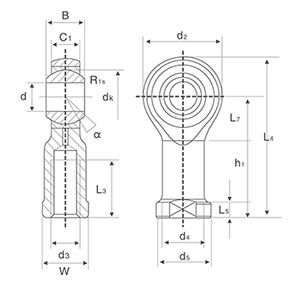

Part Number
Dimensions(mm)
Load ratings(KN)
Weight(g)
d
d3
B
dyn.c
stat.c0
SI5T/K
5
M5*0.8
8
5.7
6
17.5
SI6T/K
6
M6*1.0
9
7.2
7.65
25
SI8T/K
8
M8*1.25
12
11.6
12.9
49
SI10T/K
10
M10*1.5
14
14.5
18
74.6
SI10-1T/K
10
M10*1.25
14
14.5
18
77
SI12T/K
12
M12*1.75
16
17
24
107
SI12-1T/K
12
M12*1.25
16
17
24
107
SI14T/K
14
M14*2.0
19
24
31
163
SI14-1T/K
14
M14*1.5
19
24
31
163
SI16T/K
16
M16*2.0
21
28.5
39
216
SI16-1T/K
16
M16*1.5
21
28.5
39
216
SI18T/K
18
M18*1.5
23
42.5
47.5
303
SI20T/K
20
M20*1.5
25
42.5
57
386
SI22T/K
22
M22*1.5
28
57
68
500
SI25T/K
25
M24*2.0
31
68
85
645
SI28T/K
28
M27*2.0
35
86
107
714
SI30T/K
30
M30*2.0
37
88
114
1105
SI30-1T/K
30
M27*2.0
37
88
114
1105
SI35T/K
35
M36*2.0
43
101
206
1600
SI40T/K
40
M42*2.0
49
124
280
2400
SI50T/K
50
M48*2.0
60
308
485
5000
●For left-hand thread,please and surffix“L”,e.g. SIL 18 T/K。
●If need the stainless steel material please to add “S”in front of the model for example:SS 18 T/K。
SI...T/K Series SI6T/K M6*1.0 Male/Female Thread Joint  Rod End Bearing
Related Products
SI...T/K Series SI6T/K M6*1.0 Male/Female Thread Joint  Rod End Bearing
Company Profile
SI...T/K Series SI6T/K M6*1.0 Male/Female Thread Joint  Rod End Bearing

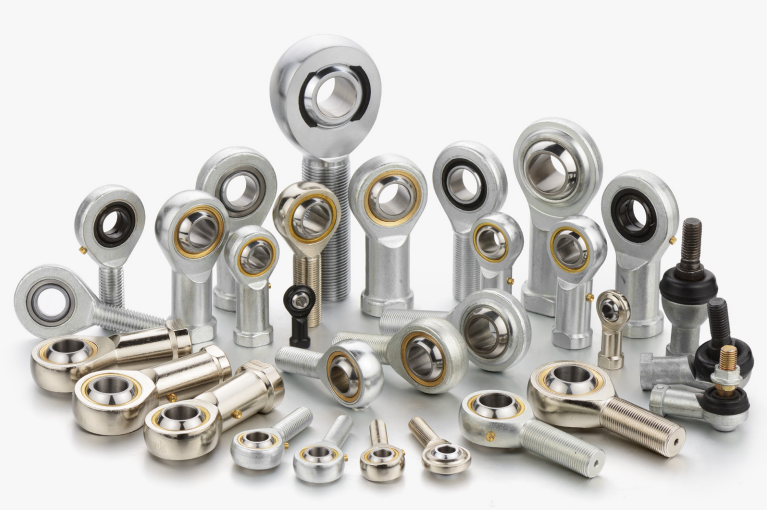

Ever-power Bearing Industry Co., Ltd. was established in 2003. It is a joint-stock company integrating R&D, manufacturing and import and export trade. The company's main products are rod ends, radial spherical bearings, linear bearings, linear slides, needle rollers, ball screws and linear guide mechanical parts. We not only design and produce various standard bearings, but also customize various non-standard bearings according to customer needs.
