SQ..RS Series Spherical Plain Bearing Ball Joint Rod End Bearing SQ5RS SQ22RS

SQ..RS Series Spherical Plain Bearing Ball Joint Rod End Bearing SQ5RS SQ22RSProduct Description SQ..RS Rod End Bearing--Ball joint housing with right or left hand thread--Ball joint housing made of zinc base alloy--With rubber dust seal * Easy to use: easy to install and disassemble, the bearing c......

SQ..RS Series Spherical Plain Bearing Ball Joint Rod End Bearing SQ5RS SQ22RS

Product Description
SQ..RS Series Spherical Plain Bearing Ball Joint Rod End Bearing  SQ5RS SQ22RS

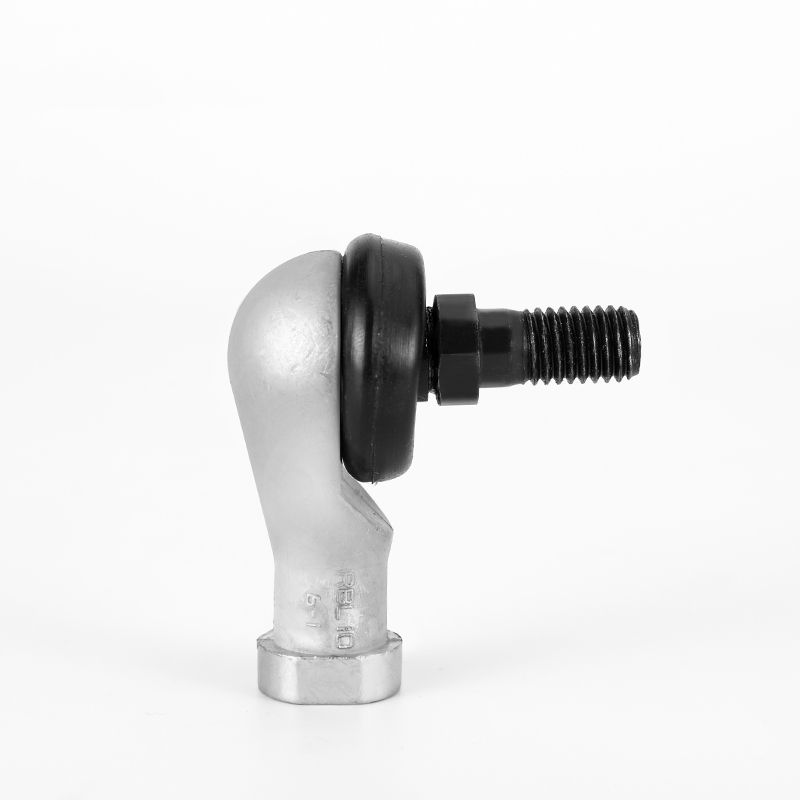

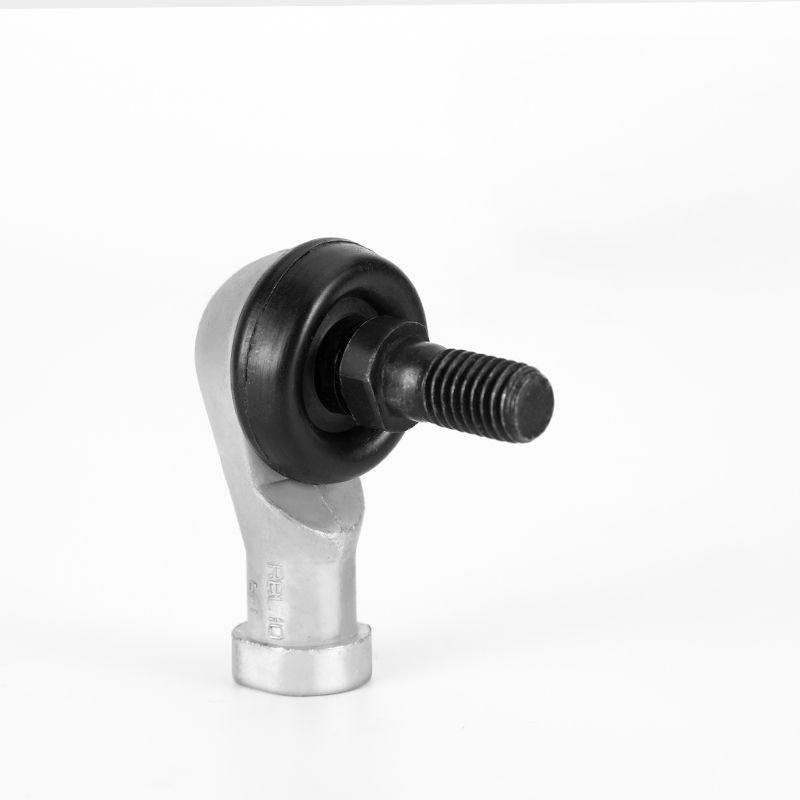

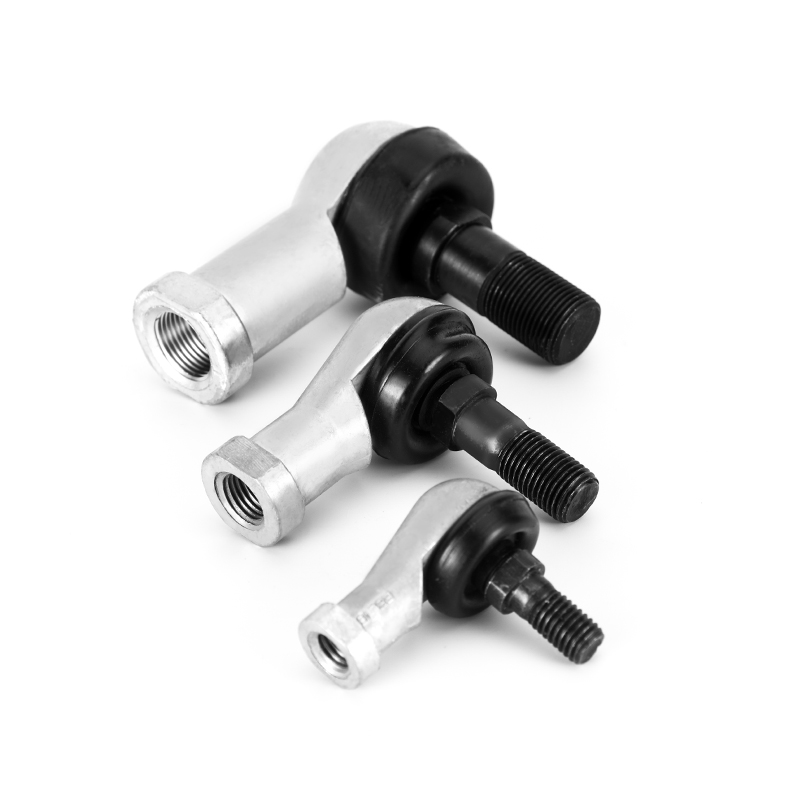

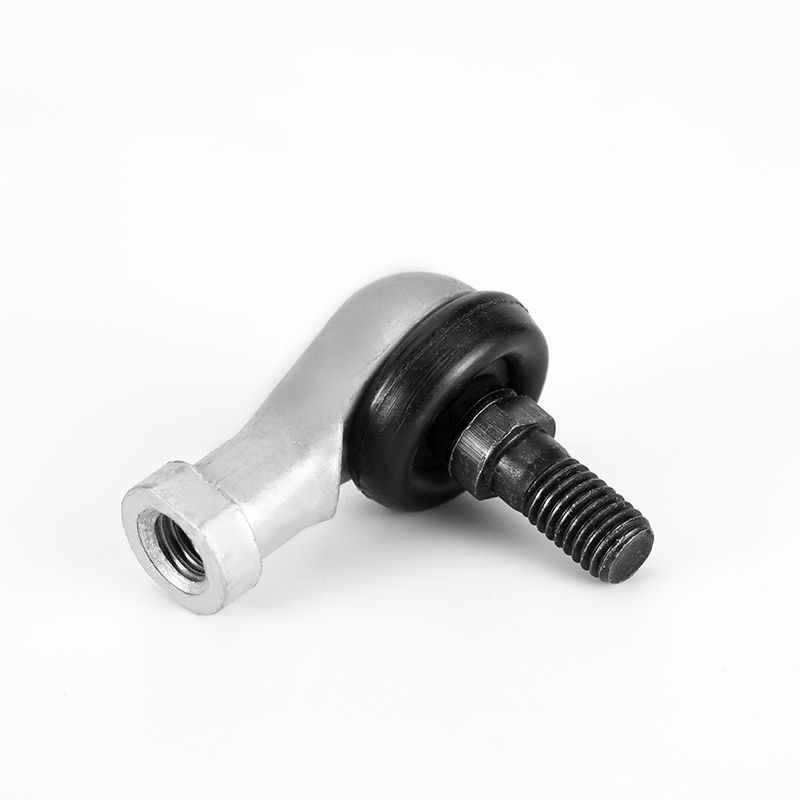

 SQ..RS Rod End Bearing
--Ball joint housing with right or left hand thread
--Ball joint housing made of zinc base alloy
--With rubber dust seal

* Easy to use: easy to install and disassemble, the bearing can produce self-lubrication during work, no maintenance required
* Features: The rod end bearing is a spherical sliding bearing, which can rotate and swing at any angle during motion
* Applicable to instrumentation, construction machinery, mining and mineral processing, industrial fans, etc.

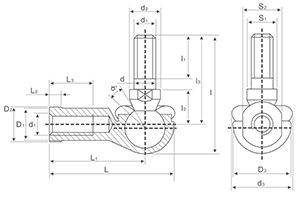

Specification
SQ..RS Series Spherical Plain Bearing Ball Joint Rod End Bearing  SQ5RS SQ22RS
SQ..RS Series Spherical Plain Bearing Ball Joint Rod End Bearing  SQ5RS SQ22RS
Part Number
Dimensions(mm)

Load ratings(KN)
Weight(g)
d
d3
B
α
SQ 5RS
5
M5×0.8
9
25
2.2
26
SQ 6RS
6
M6×1.0
10
25
3.5
39
SQ 8RS
8
M8×1.25
12
25
6.6
68
SQ 10RS
10
M10×1.25
14
25
10
112
SQ 10RS-1
10
M10×1.5
14
25
10
112
SQ 12RS
12
M12×1.25
17
25
16
164
SQ 12RS-1
12
M12×1.75
17
25
16
164
SQ 14RS
14
M14×1.5
19
25
19
254
SQ 14RS-1
14
M14×2.0
19
25
19
254
SQ 16RS
16
M16×1.5
22
20
26
336
SQ 16RS-1
16
M16×2.0
22
20
26
336
SQ 18RS
18
M18×1.5
23
20
33
464
SQ 20RS
20
M20×1.5
27
20
45
538
SQ 22RS
22
M22×1.5
27
16
48
713
-For left-hand thread of the ball joint housing ,please add suffix "L'in added to bearing number ,e.g.SQL 6RS
-The type number of ball joints without seal is SQ...
SQ..RS Series Spherical Plain Bearing Ball Joint Rod End Bearing  SQ5RS SQ22RS

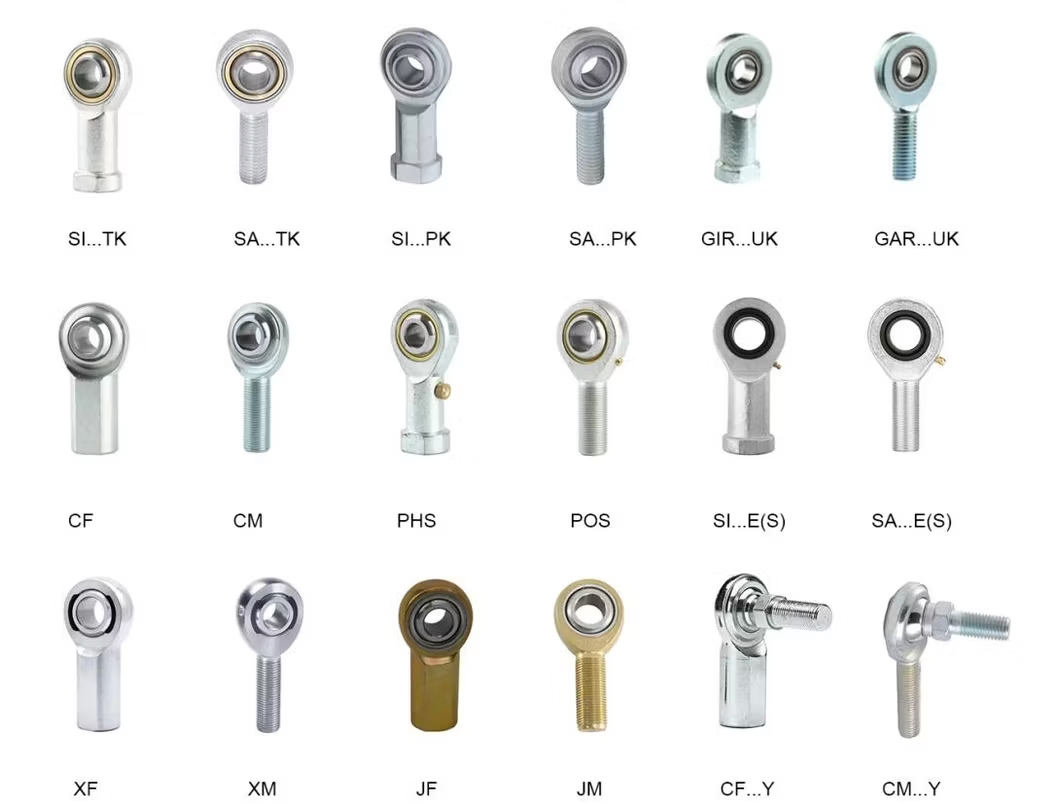

Related Products
