Product Description

SS812/815G SS802/805G SS881G SS881TAB-G Stainless Steel Flat Top Chains With Rubber Top

Product Description

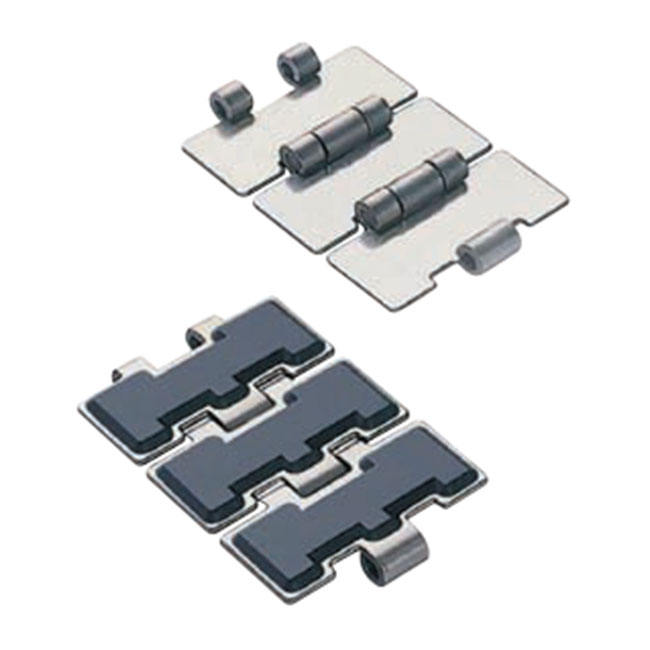

SS812/815G WITH RUBBER TOP
Chain No.	Width ( W )
Chain No.		mm	inch
SS812/815 - K325G	82.6	3.25
SS812/815 - K450G	114.3	4.50
SS812/815 - K750G	190.5	7.50

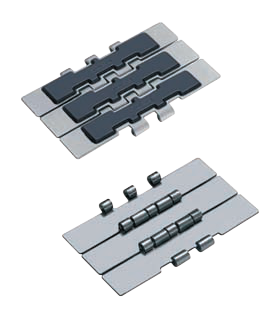

SS802/805G WITH RUBBER TOP
Chain No.	Width (W)		inch
Chain No.		mm	inch
SS802/805 - K750G	190.5	7.50
SS802/805 - K1000G	254	10.00
SS802/805 - K1200G	304.8	12.00

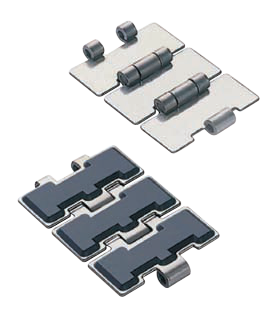

SS881G WITH RUBBER TOP
Chain No.	Width ( W )
Chain No.		mm	inch
SS881 - K325G	82.6	3.25
SS881 - K450G	114.3	4.50
SS881 - K600G	152.4	6.00
SS881 - K750G	190.5	7.50

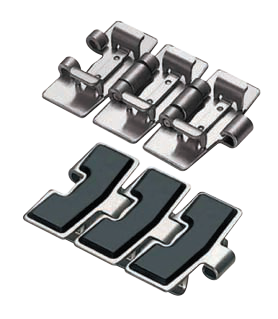

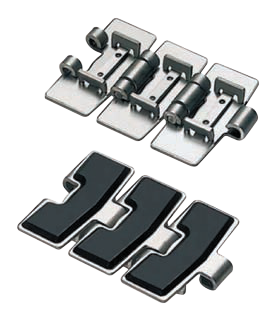

SS881TAB-G WITH RUBBER TOP
Chain No.	Width ( W )
Chain No.		mm	inch
SS881TAB - K325G	82.6	3.25
SS881TAB - K450G	114.3	4.50
SS881TAB - K600G	152.4	6.00
SS881TAB - K750G	190.5	7.50
SS881TAB - K1000G	254	254
SS881TAB - K1200G	304.8	12.00

Introduction Flat top chains, also called flat top chain plate, slat top chain, table top chain plate, it is an efficient chain plate used in the glass industry, food industry, wine and other industries for conveying. The flat top chains can be made of carbon steel, stainless steel or galvanized steel for high tensile strength and bearing load. Compared with balanced weave belt, it supplies a flat and smooth surface for high performance conveying. We can supply you all kinds of flat top chains in different specs and materials. We can customize the flat top chains, according to your equipment and requirements. Flat top chain plate types

Standard flat top chains are not curved, which is suitable for straight conveying machine. But in some workshops, the space is limited, so the conveying line will be made into an L shape, U shape or rectangular shape. So it need adjust the machine for smooth conveying. Here we can supply not only the standard flat top chains, but the side flex flat top chains.

--Straight running flat top chains. Straight flat top chains supply high loading capacity and smooth surface in the straight conveying machines. It is combined with several regular rectangular chain plates and high pins.

--Side flex flat top chains. Side flex flat top chains are suitable for flex machine, which maybe L shape, U shape or rectangular shape. The side flex flat top chains can ensure fast, smooth and steady conveying. Chain plates of side flex flat top chains have two types: flat edge chain plates and bevel edge chain plates.

--Flat edge chain plates. It combines with flat edge chain plates and hinge pins. Flat edge chain plates can complete side flex conveying through increase the clearance between high pins. In this way, the neighbor chain plate can permit a certain turning angle to achieve smooth side flex conveying. The flat edge chain plate can not only ensure the smooth and steady side flex conveying, but also the normal conveying for straight running.

--Bevel edge chain plates. The chain plates are made of chain plates with symmetrical bevel edges. The bevel edge can eliminate the interference during side flexing conveying and ensure smooth and high efficient conveying. Additionally, there has no any gap when it is used in the flex position. The angle of bevel plate and the pin clearance decide the turning radius.

Chain No.	Width ( W )			Weight			Working load
Chain No.		mm	inch	kg/m	lbs/ft	N
STEEL TOP PLATE / STEEL BASE CHAIN
1874 TAB - K325G	82.6	3.25	3.33	2.24	4500
1874 TAB - K450G	114.3	4.50	4.00	2.69	4500
1874 TAB - K600G	152.4	6.00	4.00	2.95	4500
1874 TAB - K750GG	190.5	7.50	4.80	3.22	4500
STAINLESS STEEL TOP PLATE / STAINLESS STEEL BASE CHAIN
1874 TAB SS- K325G	82.6	3.25	3.33	2.24	3400
1874 TAB SS - K450G	114.3	4.50	4.00	2.69	3400
1874 TAB SS - K600G	152.4	6.00	4.40	2.95	3400
1874 TAB SS - K750G	190.5	7.50	4.80	3.22	3400
