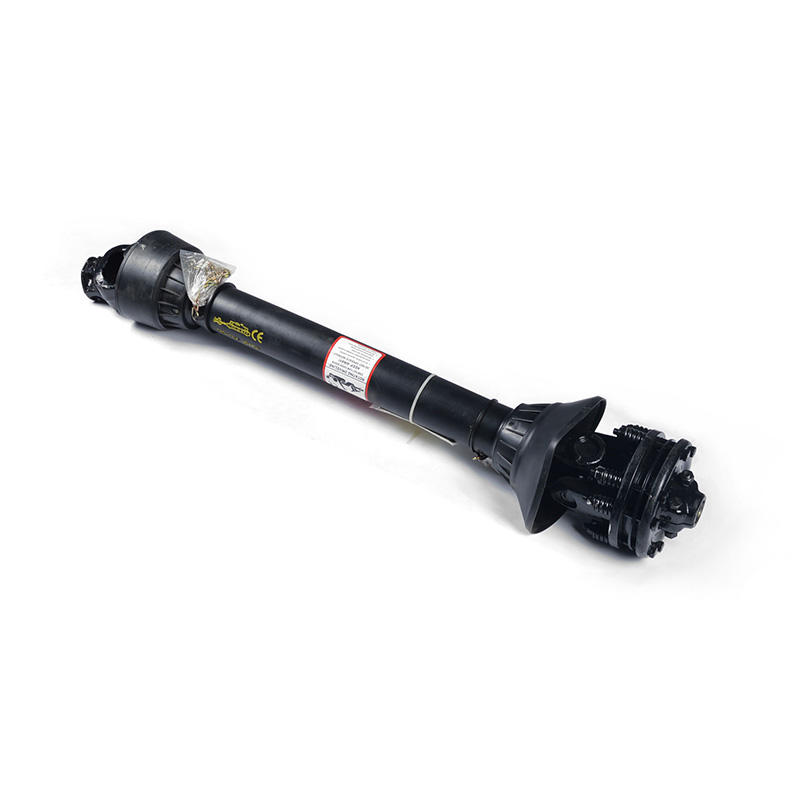

The vertical shaft bearings PTO drive shaft is a complete assembly that transmits tractor engine power to the implement input shaft. This T60 series shaft is built for John Deere tractor applications and also fits compatible Case, New Holland and other agricultural machinery that use the same 30.22 × 92 U-joint and T60 tube profile. The splined yoke (101G622138) and tube yokes (inner 102T6245 / outer 103T6254) are machined from 20Cr or 20CrMnTi, then case-hardened to 58–64 HRC at the surface with a ductile core that resists fatigue under cyclic field loads.
The shaft is supplied as a complete assembly or as individual components — U-joint, splined yoke, tube yoke, tube — for replacement and repair. Tell us which part you need and we will quote the matching item with the same part numbers listed above.
| Component | Part Number | Function |
|---|---|---|
| U-Joint (Cross) | 30.22 × 92 | Allows angular misalignment between tractor and implement |
| Joint Simple — Inner | 4006001 | Inner joint assembly of the telescopic section |
| Joint Simple — Outer | 4006002 | Outer joint assembly of the telescopic section |
| Splined Yoke | 101G622138 | Connects to tractor PTO splined shaft |
| Tube Yoke — Inner | 102T6245 | Welded to inner telescopic tube |
| Tube Yoke — Outer | 103T6254 | Welded to outer telescopic tube |
| Tube — Inner | 301T454 | Inner telescopic tube (sliding length) |
| Tube — Outer | 301T544 | Outer telescopic tube (guide length) |
| Machine Brand | Typical Model Range | Fit Notes |
|---|---|---|
| John Deere | 5E, 5M, 6M series and equivalent | Direct fit with T60 / 30.22 × 92 configuration |
| Case IH | Farmall, Maxxum, Puma series | Confirm PTO spline count before order |
| New Holland | T4, T5, T6 series | Confirm PTO spline count before order |
| Other brands | T60 / 30.22 × 92 U-joint compatible | Send the tractor model and PTO spline count |
Fitment depends on the tractor PTO spline count (usually 6 or 21 splines) and the implement input shaft. Send us your tractor model, PTO spline count and implement input shaft photo before ordering, and we will confirm the correct yoke before the shaft is built.
Transmits full tractor PTO torque to rotary tillers, power harrows and cultivators. The 830 Nm rating at 540 rpm covers typical 60–100 hp tractor applications without torque limiting.
Handles the continuous load of mower gearboxes over long field passes. The 30.22 × 92 U-joint absorbs the angular misalignment between tractor and mower deck as the implement rides over uneven ground.
Delivers power to baler gearboxes under cyclic shock loads. The 20CrMnTi option offers a harder surface for high duty-cycle baler operation where 20Cr shafts wear faster.
Matches the PTO input of spreader gearboxes on dairy and arable farms. The telescopic inner/outer tube pair allows the shaft length to change as the spreader follows the tractor over uneven ground.
Transmits power to tedder and rake rotors at both 540 and 1000 rpm PTO speeds. The 710 Nm rating at 1000 rpm suits higher-speed hay-making equipment where the tractor PTO runs at 1000 rpm.
Drives sprayer pumps where continuous low-load operation is required. The core hardness of 20CrMnTi (33–48 HRC) resists fatigue under the long continuous duty of sprayer operation.
Standard material for general PTO drive shaft applications. Carburized and hardened to 58–64 HRC at the surface, with a 25–45 HRC core. Balanced surface wear resistance and core toughness for typical agricultural duty cycles.
Higher-alloy carburizing steel for heavy-duty PTO applications. Same 58–64 HRC surface hardness, but a harder 33–48 HRC core that resists fatigue under high-torque cyclic loads. Recommended for balers, heavy mowers and 1000 rpm implement drives.
Confirm the tractor model, PTO spline count, implement input shaft and total shaft length. We confirm the correct T60 configuration against your tractor and implement.
Standard material 20Cr or upgrade to 20CrMnTi for heavy-duty applications. U-joint, yokes and tubes are machined and heat-treated to 58–64 HRC surface hardness, then assembled and inspected.
Carton or pallet packing. Shafts are wrapped and boxed to prevent damage in transit. Customized brand markings and packing marks available for OEM orders.
Standard delivery time 45–50 days from order confirmation. CE certificate available. Shipping by sea or air depending on order size and destination.
Raydafon manufactures PTO drive shafts and driveline components for agricultural OEM and aftermarket customers. The yokes, tubes and U-joints are produced in-house, which means consistent tolerances on repeat orders and lead times that do not depend on third-party suppliers. OEM and private-label production available. You can review our factory, inspection equipment and why customers choose us.
Will this T60 PTO drive shaft fit my John Deere tractor directly?
The T60 series with 30.22 × 92 U-joint fits John Deere 5E, 5M and 6M series tractors when the PTO spline count matches. Most John Deere tractors use a 6-spline or 21-spline PTO shaft. Send us your tractor model and PTO spline count and we will confirm the correct splined yoke (101G622138 variant) before you order.
What is the difference between 20Cr and 20CrMnTi material?
Both materials are carburized to 58–64 HRC at the surface. The difference is core hardness: 20Cr has a 25–45 HRC core, 20CrMnTi has a 33–48 HRC core. For light and general-duty implements (tillers, mowers, spreaders) the 20Cr option performs well. For heavy-duty cyclic loads (balers, 1000 rpm implement drives) the 20CrMnTi option resists fatigue better and lasts longer.
Can I order individual components instead of the complete shaft?
Yes. Individual components are available with the same part numbers: U-joint (30.22 × 92), Joint Simple (4006001 / 4006002), Splined Yoke (101G622138), Tube Yokes (102T6245 / 103T6254) and Tubes (301T454 / 301T544). Tell us which part you need and the quantity, and we will quote the replacement item.
What is the MOQ and lead time for this PTO drive shaft?
MOQ is 50 sets for standard configuration. Delivery time is 45–50 days from order confirmation. For OEM orders with custom branding or packing, confirm the requirements before placing the order so we can adjust the production schedule.
Do you provide samples before bulk order?
Yes. Sample can be supplied for evaluation before bulk order. Send us your tractor model and implement input shaft details, and we will confirm the sample shaft configuration, cost and delivery time.
Can the PTO drive shaft be supplied under our own brand?
Yes. OEM and private-label production is available. We can apply your brand nameplate, custom packing marks and branded cartons. Share your branding requirement and we will confirm feasibility and additional lead time.
Send us your tractor model, PTO spline count, implement input shaft details and destination port. We will reply with the correct shaft configuration, unit price, MOQ and lead time.
