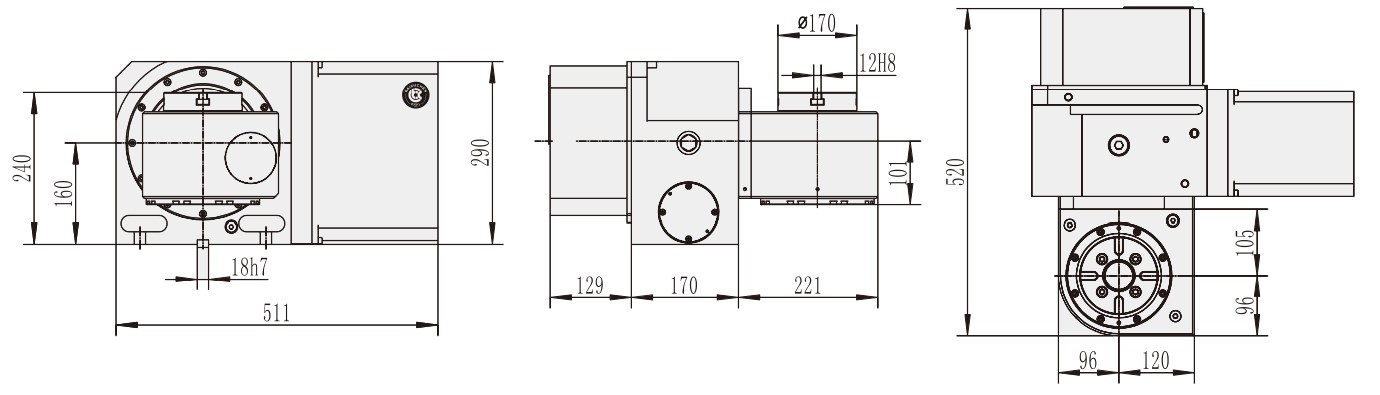

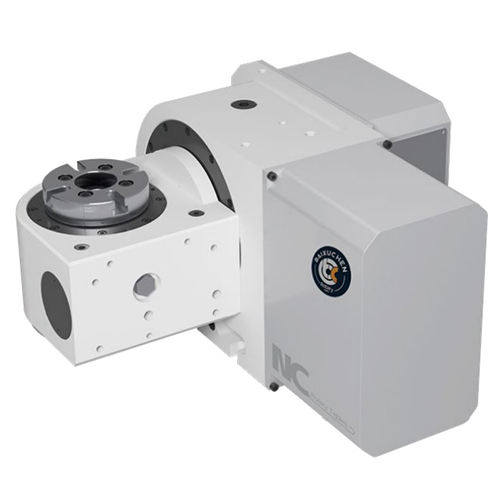

Product Model | WT-RT170 | Servo motor (optional) | Rotation axis β4i HF-54;Tilt axis β8i HF-104 |
Panel Size | Φ170mm | Reduction Ratio | Rotation axis 1:90 ;Tilt axis 1:120 |
Disk Aperture | Φ50mm | Maximum Rotation Speed Of Worktable | Rotation axis 55.5r.p.m;Tilt axis 33.3r.p.m |
Center Trough Hole | Φ45mm | Minimum Setting Angle | 0.001°deg |
Disk Height | 240mm | Segmentation Accuracy | Rotation axis 15″sec;Tilt axis 30″sec |
Disk T-Slot | 12H8mm | Repeat Positioning Accuracy | Rotation axis 4″sec;Tilt axis 4''sec |
Positioning Button | 18H7mm | Locking Method | Rotation axis pressure 5Kg/cm²;Tilt axis oil pressure 35Kg/cm² |
Tilt Axis Angle Range | -45 ~110° | Brake Torque | Rotation axis 31Kg/m ;Tilt axis 140Kg/m |
Net Weight (about) | 120Kg | Allowable Cutting Force | Rotation axis 18Kg.m;Tilt axis 55Kg.m |
Horizontal placement | 75KG | Placement | 40KG |
