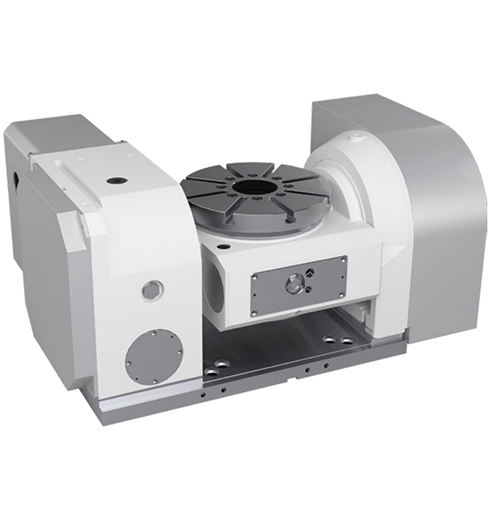

Product Model | WT-S250 | Servo motor (optional) | Rotation axis β8i HF-104;Tilt axis β12i HF-154 |
Panel Size | Φ250mm | Reduction Ratio | Rotation axis 1:120 ;Tilt axis 1:120 |
Disk Aperture | Φ80mm | Maximum Rotation Speed Of Worktable | Rotation axis 33.3r.p.m ;Tilt axis 33.3r.p.m |
Center Trough Hole | Φ50mm | Minimum Setting Angle | 0.001°deg |
Disk Height | 294mm | Segmentation Accuracy | Rotation axis15″sec;Tilt axis 50″sec |
Disk T-Slot | 12H8mm | Repeat Positioning Accuracy | Rotation axis 4″sec;Tilt axis 8''sec |
Positioning Button | 18H7mm | Locking Method | Rotation axis oil pressure 35Kg/cm²;Tilt axis oil pressure 35Kg/cm² |
Tilt Axis Angle Range | -45 ~110° | Brake Torque | Rotation axis 70Kg/m ;Tilt axis 140Kg/m |
Net Weight (about) | 290Kg | Allowable Cutting Force | Rotation axis 55Kg.m ;Tilt axis 55Kg.m |
Horizontal placement | 100Kg | Placement | 75KG |
