2158_E8333 Rotating Drive Piston Oil Lubrication Pump for Mch-ale V660 F5500/F5600 Round Baler Replacement of 10138503/AZU/AZUL
  • 2158_E8333 Rotating Drive Piston Oil Lubrication Pump for Mch-ale V660 F5500/F5600 Round Baler Replacement of 10138503/AZU/AZUL2158_E8333 Rotating Drive Piston Oil Lubrication Pump for Mch-ale V660 F5500/F5600 Round Baler Replacement of 10138503/AZU/AZUL
  • 2158_E8333 Rotating Drive Piston Oil Lubrication Pump for Mch-ale V660 F5500/F5600 Round Baler Replacement of 10138503/AZU/AZUL2158_E8333 Rotating Drive Piston Oil Lubrication Pump for Mch-ale V660 F5500/F5600 Round Baler Replacement of 10138503/AZU/AZUL
  • 2158_E8333 Rotating Drive Piston Oil Lubrication Pump for Mch-ale V660 F5500/F5600 Round Baler Replacement of 10138503/AZU/AZUL2158_E8333 Rotating Drive Piston Oil Lubrication Pump for Mch-ale V660 F5500/F5600 Round Baler Replacement of 10138503/AZU/AZUL
  • 2158_E8333 Rotating Drive Piston Oil Lubrication Pump for Mch-ale V660 F5500/F5600 Round Baler Replacement of 10138503/AZU/AZUL2158_E8333 Rotating Drive Piston Oil Lubrication Pump for Mch-ale V660 F5500/F5600 Round Baler Replacement of 10138503/AZU/AZUL
  • 2158_E8333 Rotating Drive Piston Oil Lubrication Pump for Mch-ale V660 F5500/F5600 Round Baler Replacement of 10138503/AZU/AZUL2158_E8333 Rotating Drive Piston Oil Lubrication Pump for Mch-ale V660 F5500/F5600 Round Baler Replacement of 10138503/AZU/AZUL

2158_E8333 Rotating Drive Piston Oil Lubrication Pump for Mch-ale V660 F5500/F5600 Round Baler Replacement of 10138503/AZU/AZUL

2158_E8333 Rotating Drive Piston Oil Lubrication Pump for Mch-ale V660 F5500/F5600 Round Baler Replacement of 10138503/AZU/AZULProduct DescriptionEALP-O2 Series Grease Electric Drive Piston Lubrication PumpOutput rate: max. 0,06 cm³ per stroke and outlet; Input max. 600 r.p.m. at 8.16:1 speed:......

2158_E8333 Rotating Drive Piston Oil Lubrication Pump for Mch-ale V660 F5500/F5600 Round Baler Replacement of 10138503/AZU/AZUL

Product Description
2158_E8333 Rotating Drive Piston Oil Lubrication Pump for Mch-ale V660 F5500/F5600 Round Baler Replacement of 10138503/AZU/AZUL

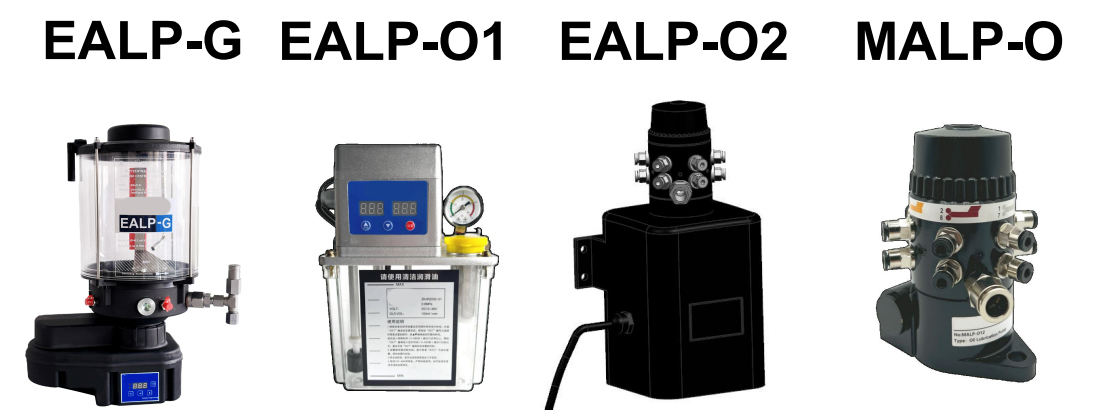

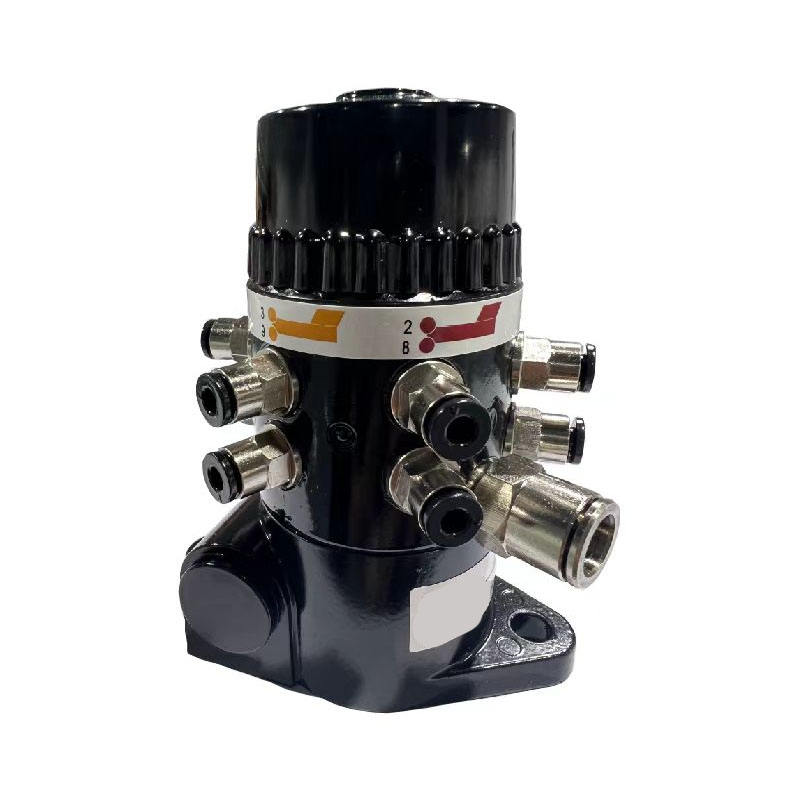

EALP-O2 Series Grease Electric Drive Piston Lubrication Pump
Output rate: max. 0,06 cm³ per stroke and outlet; Input max. 600 r.p.m. at 8.16:1 speed:
Suction height: max. 600 mm;
Operating pressure: max. 10bar
Lubricant: oil;
Viscosity range: 25 - 1500 mm /s;
Operating temperature:: -35 - 70 °C
No. of outlets: max. 12
Pump Output rate
Max. 0.06 cm³ per stroke one outlet
Regulation of output
1 - 6 individual outlets
7 - 12 outlets in pairs
Input speed
Std 22 r.p.m (11/42/80 r.p.m OPT)
Operating pressure
Max. 15 bar
Suction height
Max. 2000 mm
Lubricant
Oil
Viscosity range
25 - 1500 mm2 /s
Temperature range
Medium -35 - 70 °C
Ambient -25 - 40 °C Max.
No. of outlets
12
type
See order key
Weight
2,3kg
Varnish
Black (pump body and housing)
Degree of protection
IP 6K9K
Motor
Drive
DC motor
Operational voltage
12/24 V DC
Nominal current
max. 1.5/1.3A
Stall current
max. 4.0/4.5A
Speed (=pump speed)
Std 22 r.p.m (11/42/80 r.p.m OPT).
Electrical connection
see dimensional drawing
Control Unit
Lubrication Time
1-29 Min
Cycle Time
0.5-8 Hour
2158_E8333 Rotating Drive Piston Oil Lubrication Pump for Mch-ale V660 F5500/F5600 Round Baler Replacement of 10138503/AZU/AZUL
2158_E8333 Rotating Drive Piston Oil Lubrication Pump for Mch-ale V660 F5500/F5600 Round Baler Replacement of 10138503/AZU/AZUL

SUMMARY:

Turning the set screw clockwise increases the output rate; Turning counter clockwise reduces it; Less Oil More Oil Set Screws
OPERATION:
1)Take off the screw-on lid, use the set screw;
2)Turn 1/6 rotations of set screw one time;
3)One turn of the set screw reduces the output by ¼ of the total delivery volume;
4)Adjust the desired rate and after that fix the screw-on lid again.
2158_E8333 Rotating Drive Piston Oil Lubrication Pump for Mch-ale V660 F5500/F5600 Round Baler Replacement of 10138503/AZU/AZUL
2158_E8333 Rotating Drive Piston Oil Lubrication Pump for Mch-ale V660 F5500/F5600 Round Baler Replacement of 10138503/AZU/AZUL
The lubrication points are supplied by the progressive distributors in a consecutive way.

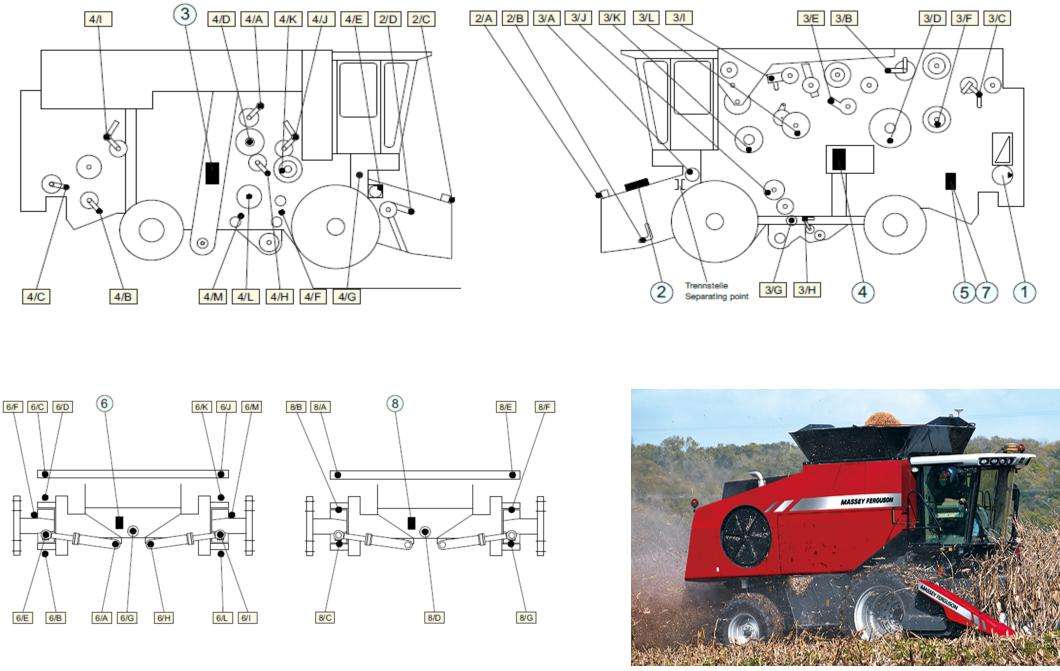

Applications
2158_E8333 Rotating Drive Piston Oil Lubrication Pump for Mch-ale V660 F5500/F5600 Round Baler Replacement of 10138503/AZU/AZUL
KRO NE Big M 420 combine
2158_E8333 Rotating Drive Piston Oil Lubrication Pump for Mch-ale V660 F5500/F5600 Round Baler Replacement of 10138503/AZU/AZUL
CNH Tractor, 33 lubrication points
2158_E8333 Rotating Drive Piston Oil Lubrication Pump for Mch-ale V660 F5500/F5600 Round Baler Replacement of 10138503/AZU/AZUL
JD Sugar Cane Harvester, 71 points

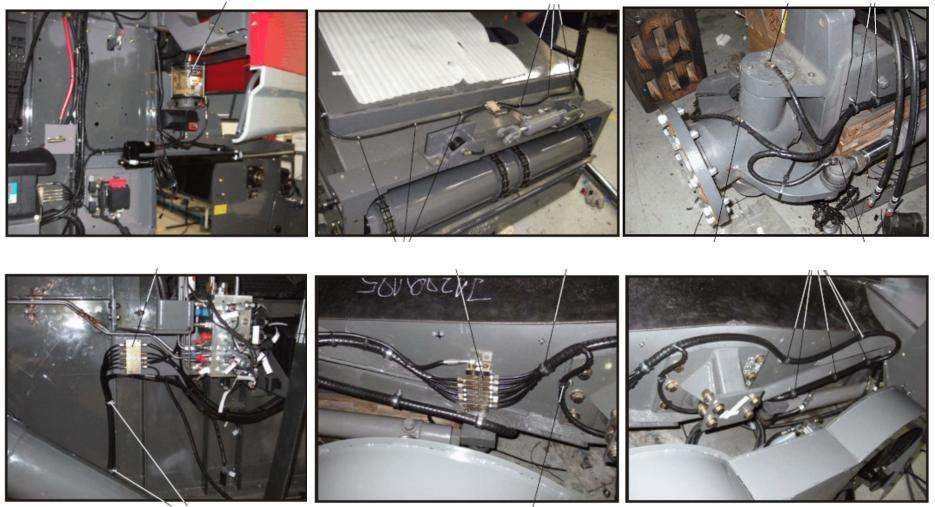

Installation Real Shot
2158_E8333 Rotating Drive Piston Oil Lubrication Pump for Mch-ale V660 F5500/F5600 Round Baler Replacement of 10138503/AZU/AZUL
Specification
Delivery volume per stroke (=1 pump revolution) and outlet
0.125cm³/0.175cm³
(depending on pump element)
Regulation
PE125/175
Reservoir capacity (effect.vol.)
4L(2L&3L&6L&8L)
Operating pressure
Max. 350bar
Pressure limiting valve set to
300bar
Pumped medium
greases up to NLGI-cl.2
Operating temperature
-35 ~ +70°C (depending on conveying medium)
Number of outlets
1-4 (Up to 6 exits can be customized)
Type of outlet
Ø 6 mm
Installation position
reservoir vertical,as shown
Degree of protection
IP 6K9K
Weight
5.6KG (w/o pump elements, w/o grease filling)
Motor
Drive
DC motor
Operational voltage
12/24 VDC
Nominal current
max. 3.5/2.2A
Stall current
max. 8.5/6.0A
Speed(=pump speed)
17r.p.m.
2158_E8333 Rotating Drive Piston Oil Lubrication Pump for Mch-ale V660 F5500/F5600 Round Baler Replacement of 10138503/AZU/AZUL
2158_E8333 Rotating Drive Piston Oil Lubrication Pump for Mch-ale V660 F5500/F5600 Round Baler Replacement of 10138503/AZU/AZUL
