3 Axis HTM-II HTM-L CNC Grinder Hob Relieving Lathe for Metal Worm Sprocket Timing Pulley Gear Hobing Milling Cutter
  • 3 Axis HTM-II HTM-L CNC Grinder Hob Relieving Lathe for Metal Worm Sprocket Timing Pulley Gear Hobing Milling Cutter3 Axis HTM-II HTM-L CNC Grinder Hob Relieving Lathe for Metal Worm Sprocket Timing Pulley Gear Hobing Milling Cutter
  • 3 Axis HTM-II HTM-L CNC Grinder Hob Relieving Lathe for Metal Worm Sprocket Timing Pulley Gear Hobing Milling Cutter3 Axis HTM-II HTM-L CNC Grinder Hob Relieving Lathe for Metal Worm Sprocket Timing Pulley Gear Hobing Milling Cutter
  • 3 Axis HTM-II HTM-L CNC Grinder Hob Relieving Lathe for Metal Worm Sprocket Timing Pulley Gear Hobing Milling Cutter3 Axis HTM-II HTM-L CNC Grinder Hob Relieving Lathe for Metal Worm Sprocket Timing Pulley Gear Hobing Milling Cutter
  • 3 Axis HTM-II HTM-L CNC Grinder Hob Relieving Lathe for Metal Worm Sprocket Timing Pulley Gear Hobing Milling Cutter3 Axis HTM-II HTM-L CNC Grinder Hob Relieving Lathe for Metal Worm Sprocket Timing Pulley Gear Hobing Milling Cutter
  • 3 Axis HTM-II HTM-L CNC Grinder Hob Relieving Lathe for Metal Worm Sprocket Timing Pulley Gear Hobing Milling Cutter3 Axis HTM-II HTM-L CNC Grinder Hob Relieving Lathe for Metal Worm Sprocket Timing Pulley Gear Hobing Milling Cutter
  • 3 Axis HTM-II HTM-L CNC Grinder Hob Relieving Lathe for Metal Worm Sprocket Timing Pulley Gear Hobing Milling Cutter3 Axis HTM-II HTM-L CNC Grinder Hob Relieving Lathe for Metal Worm Sprocket Timing Pulley Gear Hobing Milling Cutter

3 Axis HTM-II HTM-L CNC Grinder Hob Relieving Lathe for Metal Worm Sprocket Timing Pulley Gear Hobing Milling Cutter

3 Axis HTM-II HTM-L CNC Grinder Hob Relieving Lathe for Metal Worm Sprocket Timing Pulley Gear Hobing Milling CutterProducts DescriptionThe CNC shovel tooth lathe adopts LYNUC U3E system three-axis and three linkage control;The headboard of the bed adopts a self-made high torque and high rigidity de......

3 Axis HTM-II HTM-L CNC Grinder Hob Relieving Lathe for Metal Worm Sprocket Timing Pulley Gear Hobing Milling Cutter

Products Description
3 Axis HTM-II HTM-L CNC Grinder Hob Relieving Lathe for Metal Worm Sprocket Timing Pulley Gear Hobing Milling Cutter

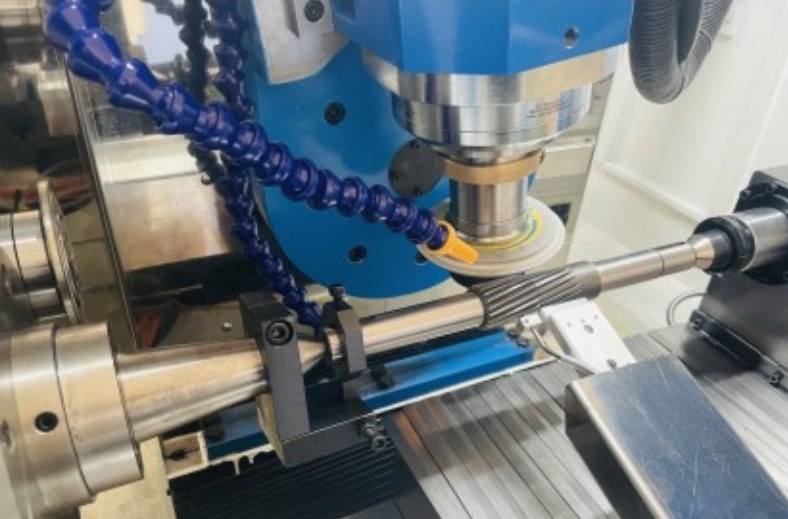

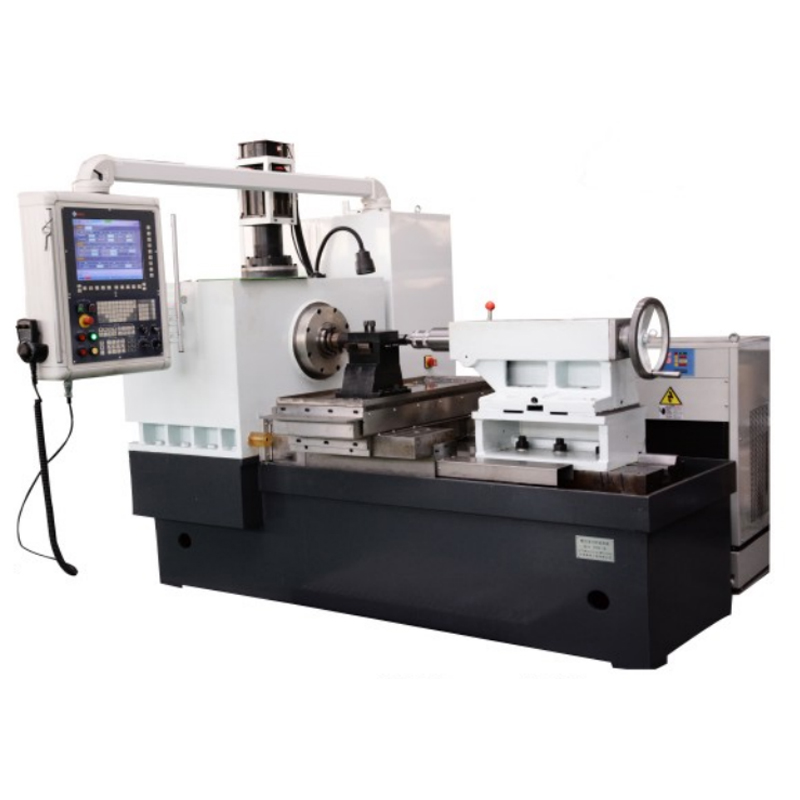

The CNC shovel tooth lathe adopts LYNUC U3E system three-axis and three linkage control; The headboard of the bed adopts a self-made high torque and high rigidity design, and the shovel back adopts a large A linear motor with thrust and equipped with a straight grating, fully closed-loop design, with high speed Featuring high precision, the fastest speed can reach 8 times per second. This machine tool is not only equipped with dry The cutting air cooling system is also equipped with an internal circulation cooling device.
Applicable scope Suitable for rough tooth cutting of gear hobs (precision rolling, pre shaving, pre grinding), worm gear hobs, involute/triangular/rectangular spline hobs, sprocket hobs, synchronous pulleys/die hobs, insert hobs, multi segment arc gear hobs, formed special hobs, and milling cutters.
HTM-II
HTM-L (large specification)
Centre Height
220mm
210mm
Centre Distance
520mm
620mm
Hob Diameter

Φ220mm
Φ400mm
Max. Effective Length
350mm
400mm
Max Module
M1~M12 (≥ M8 requires a separate shovel)
M1~M20 (≥ M12 requires a separate shovel)
Heads
Any
Any
Max.Cam
16mm
25mm
Table Transverse Stroke
Z=500mm
Z=560mm
Wheel Longitudinal Stroke
X=100mm
X=175mm
Spindle(C) Power
7.5kw
11kw
Spindle (C)Interface
Max.50rpm,BT50#
Max.35rpm,BT50#
CNC System
LYNUC U3E
LYNUC U3E
Power
3AC 380V 20KVA
3AC 380V 30KVA
Main Machine Size
2600x1300x1950mm
3600x1600x1950mm
Main Machine Weight
5000kg
9000kg
Related Products
3 Axis HTM-II HTM-L CNC Grinder Hob Relieving Lathe for Metal Worm Sprocket Timing Pulley Gear Hobing Milling Cutter

CNC machines

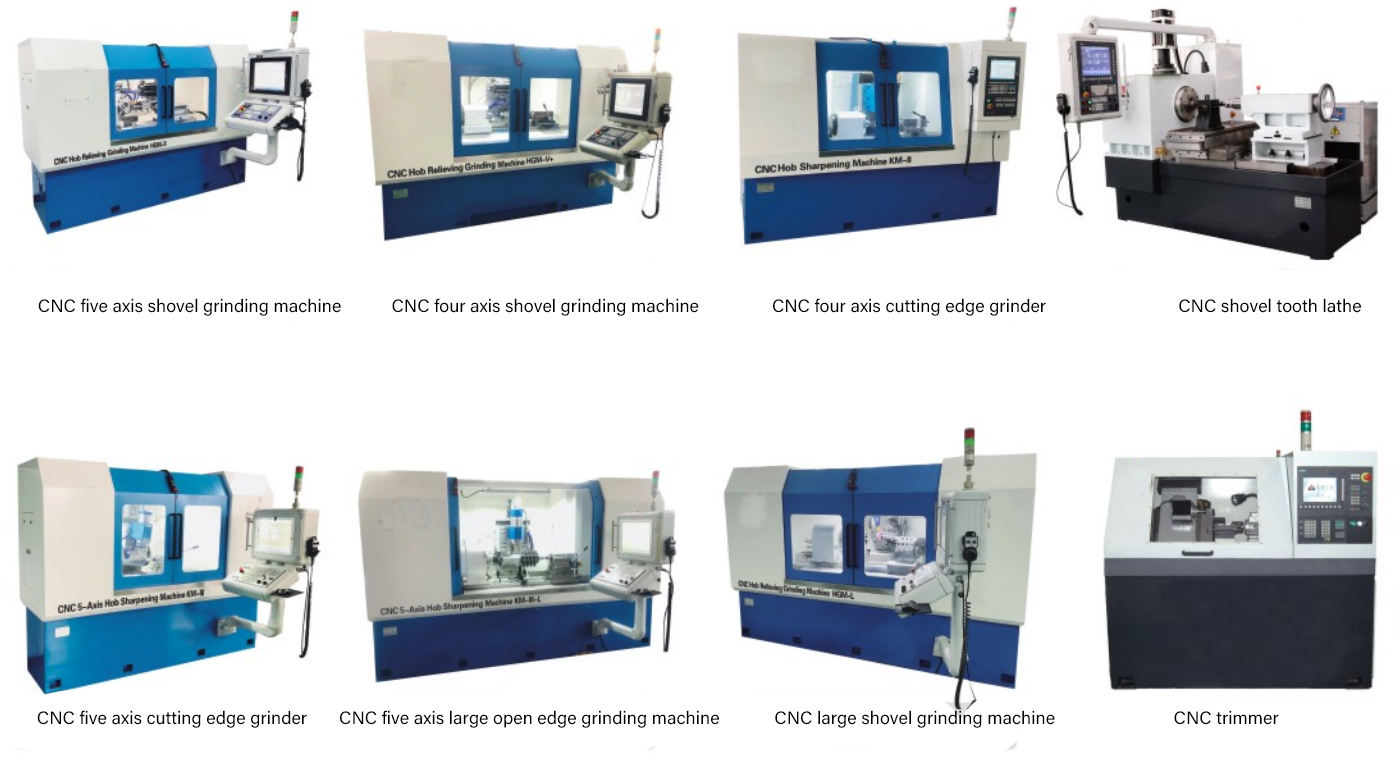

*CNC worm grinding machine *CNC forming gear grinding machine *CNC rolling cutter shovel grinding machine *CNC cutting edge grinder *CNC grinding wheel repair machine *CNC shovel tooth lathe *Fully CNC high-speed gear hobbing machine
