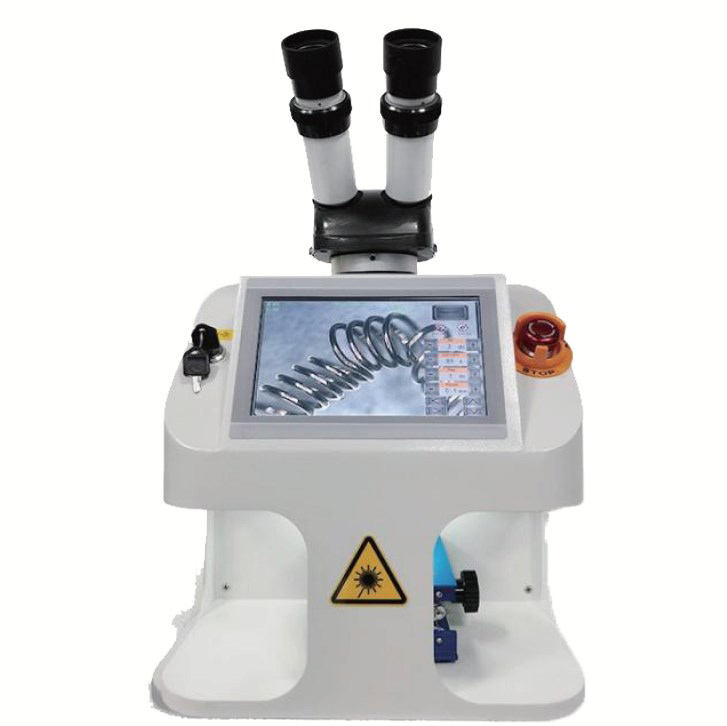

3KW Galvanometer Fiber Laser Welding Machine for Connector Smart Watch

3KW Galvanometer Fiber Laser Welding Machine for Connector Smart WatchProducts DescriptionGalvanometer Fiber Laser Welding MachineProduct advantages-Average power, high frequency and high speed processing-Can weld a variety of materials, such as aluminum or steel-High power stability, long life time......

Send Inquiry

Product Description

3KW Galvanometer Fiber Laser Welding Machine for Connector Smart Watch

Products Description

Galvanometer Fiber Laser Welding Machine

Product advantages

-Average power, high frequency and high speed processing

-Can weld a variety of materials, such as aluminum or steel

-High power stability, long life time

-Integrated system with super welding quality

-Humanized design and easy to operate

-Safety and over temperature protection

Applications

Battery Cap

Connector

Hard Drive Welding

Metal Phone Case

Battery Tabs

Sensor

Metal Capacitor Shell

Smart Watch

Instrument Valve

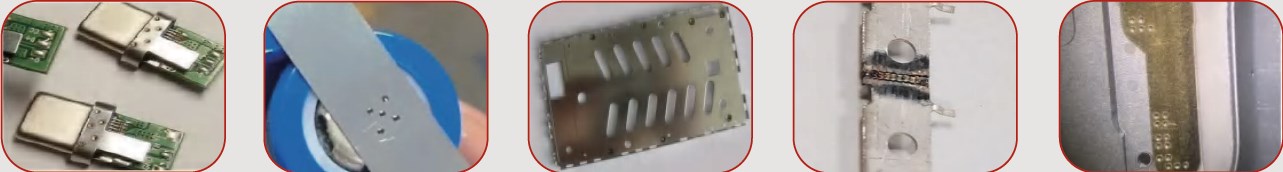

Product samples

For more details, please click here to contact us！

Wavelength	1064nm
Max Welding Thickness	0.1-0.2mm
Total Power	≤3KW
Voltage	110V-240V 50Hz-60Hz
Pulse Width	0.3-20ms
Frequency	1-100Hz
Spot Adjustable Range	0.2-2mm
Positioning	Red Indicator
Repeatability	±0.01mm
Control System	PLC or PC(CNC2000)
Machine Size	660mm770mm1480mm

Key Features and Benefits: 1. Galvanometer Scanning Technology: The Galvanometer Fiber Laser Welding Machine utilizes galvanometer scanners, which are mirror-based scanning systems. These scanners can rapidly and accurately position the laser beam on the workpiece, allowing for precise and controlled welding movements. Galvanometer scanning technology enables fast welding speeds and high positioning accuracy. 2. Fiber Laser Technology: The machine employs a fiber laser as the energy source for welding. Fiber lasers are known for their high power density and excellent beam quality, resulting in efficient energy absorption and precise control over the welding process. Fiber lasers offer high beam stability, allowing for consistent and reliable welding performance. 3. High-Speed Welding: The combination of galvanometer scanning and fiber laser technology enables high-speed welding capabilities. The galvanometer scanners can quickly move the laser beam across the workpiece, resulting in fast welding speeds and increased productivity. This is particularly beneficial for applications that require rapid welding cycles or high-volume production. 4. Precise and Controlled Welding: The Galvanometer Fiber Laser Welding Machine provides precise and controlled welding performance. The galvanometer scanners allow for accurate positioning of the laser beam, enabling fine control over the weld pool and weld bead geometry. This level of precision is crucial for applications that require tight tolerances or intricate weld patterns. 5. Versatile Welding Applications: This machine is suitable for welding a wide range of materials, including metals such as steel, aluminum, copper, titanium, and more. It can handle various thicknesses and shapes of workpieces, making it applicable in industries such as automotive, aerospace, electronics, medical devices, and jewelry manufacturing. 6. Non-contact Welding: The Galvanometer Fiber Laser Welding Machine utilizes a non-contact welding process. The laser beam does not physically touch the workpiece, minimizing the risk of contamination or damage. Non-contact welding is ideal for delicate materials or components that require precise heat input and minimal distortion. 7. Ease of Use and Automation: These machines often feature user-friendly interfaces and control systems, making them easy to operate. They may also be integrated into automated welding systems or production lines, allowing for seamless integration and increased efficiency. 8. Energy Efficiency: Fiber lasers are known for their high energy efficiency, consuming less power compared to other laser technologies. This results in reduced operating costs and a more environmentally friendly solution.
