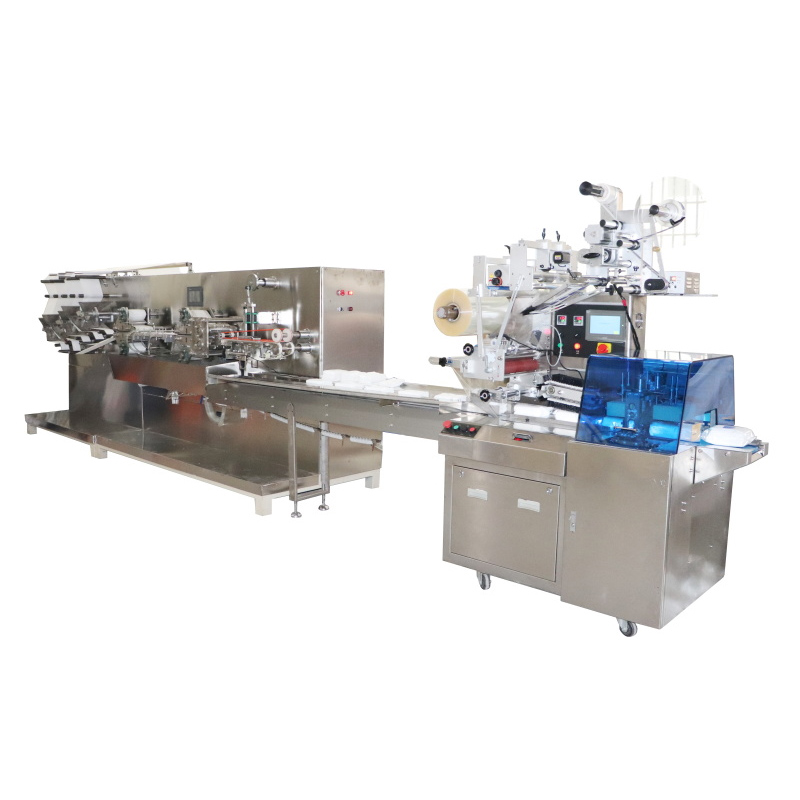

5-head Wet Wipes Tissue Folding Packaging Machine

Products Description

5-head Wet Wipes Tissue Folding Packaging Machine

The equipment adopts a photovoltaic integrated design, PLC centralized control, mature equipment technology, stable performance, simple operation, beautiful packaging of finished products, continuous pneumatic sealing firmly, ensuring the sealing of wet wipes products. It can automatically complete the entire process of non-woven fabric folding, humidification, counting and cutting, automatic feeding, filling, labeling and punching, bag making and sealing, batch number printing, measuring and packaging, and finished product output, saving labor and high degree of automation

Characteristic Performance Introduction: 1. Scientific design, compact structure, easy operation and maintenance 2. Water jet non-woven fabric humidification device: adopts single spray type and secondary centralized spray type 3. Liquid addition system: including stirring device, water addition device, independent return water device, and adjustable water addition amount 4. Raw material cutting system: adjustable length 5. The photoelectric detection can automatically shut down without fabric 6. Packaging form: Mechanical reciprocating transverse seal, with pneumatic insertion angle, optional aircraft port device 7. Position adjustment: The opening position, labeling position, feeding position, and color code position can be directly changed on the touch screen 8. Raw material cutting system: pneumatic toothed knife 9. Labeling system: Dual labeling, which allows two labels to work simultaneously or separately 10. Coding system: Ink wheel coding machine, capable of printing production date and batch number 11. PLC control system, monitoring system 12. Electrical control system: PLC system, human-machine interface, control circuit, power circuit, temperature control and other auxiliary controls

Production process Roll material machine → slitting and folding → conveying → spraying → water jet non-woven fabric machine (finished product) → tail frame automatic synchronous conveying → bag insertion → automatic opening → automatic labeling → bag making → sealing → cutting → product conveying

Basic Parameters

	SN-1L	SN-6L
Wet wipes unfolded size	L*H:100-220×100-240mm	(120-210)X(160-220) (length X width)
Wet wipes folded size	L*H: 80-110×30-90mm	(120-210)X(90-110) (length X width)
Wipes folding method	Vertically folded N/W type	Vertically folded N/W type
Bag size	L*W: 130-160×50-100mm	Single bag: L*W: 130-160×50-100mm
Processing capacity	Single row 40～100 slices/min (single row)	1200-2400 pieces/minute 15-20 packs/minute (80 pieces/pack)
Packaging film	70-130g/㎡ PE&PET OPP&PE , Φ≤400mm, width 200-380mm	70-130g/㎡ PE&PET OPP&PE , Φ≤400mm, width 200-380mm
Raw Material	40-80g Spunlace	40-80g Spunlace
Total power	220V 50Hz 3KW	380V 50HZ 2.15KW
Machine weight	About 810 kg	1400kg
Dimensions	LWH: 4020×720×1320mm	LWH:6000×2500×1800mm
