Product Description

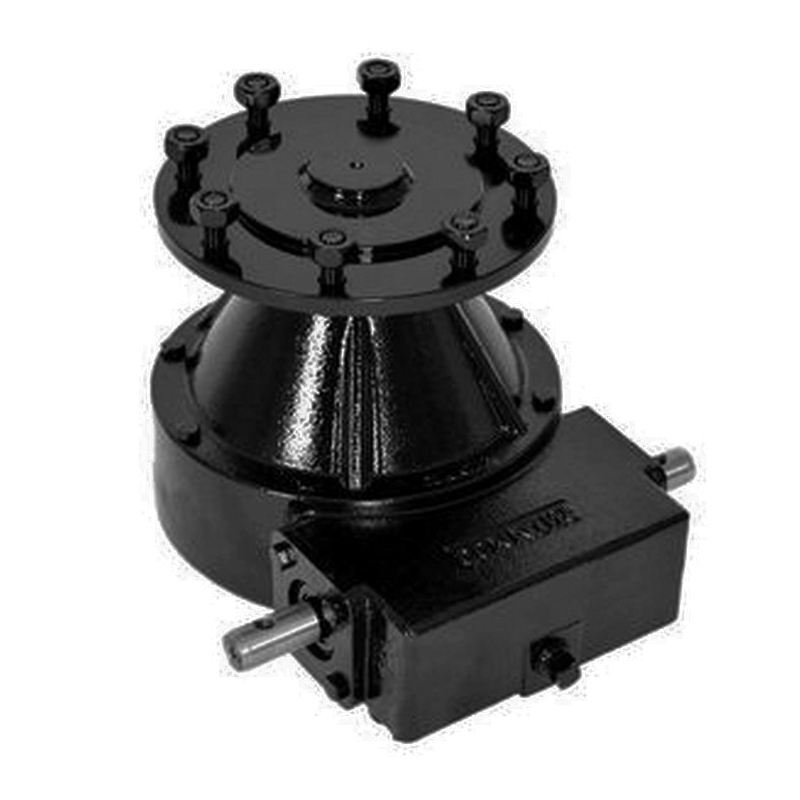

Agricultural Farm Greenhouse Valley Automatic sprinkling Irrigation Gearbox For Center Pivot Irrigation System

Product Description

▍Expand under high temperature and pressure to minimize water condensation.

▍American made and case hardened input and output bearings provide the highest quality and load rating in the industry.

▍Worm gear high strength ductile iron provides longer wear life than steel when combined with cast iron gear.

▍Compared with the normal 14 1/2 ° tooth design, the unique 25 ° tooth angle in the tooth design industry provides 40% longer life and better reliability under adverse conditions.

▍The largest large gear journal and keyway provide strength in the critical load-bearing area.

▍The expansion chamber cover is made of corrosion-resistant cast aluminum; The rubber diaphragm allows the oil to expand and contract during operation. The vent cap prevents pressure build-up and seals from leaking.

▍Threaded end caps allow precise bearing preload to extend bearing life.

▍52:1 transmission ratio full concave tooth design keeps the meshing gears lubricated.

▍High strength cast iron for large gears provides the highest bearing capacity and longest service life in the industry. Optional bronze gears are available for extreme conditions.

▍Multi viscosity gearbox oil exceeds 85w140 Gl5 oil, which is suitable for long gear wear under extreme load conditions.

Click here for more models and latest quotations！

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

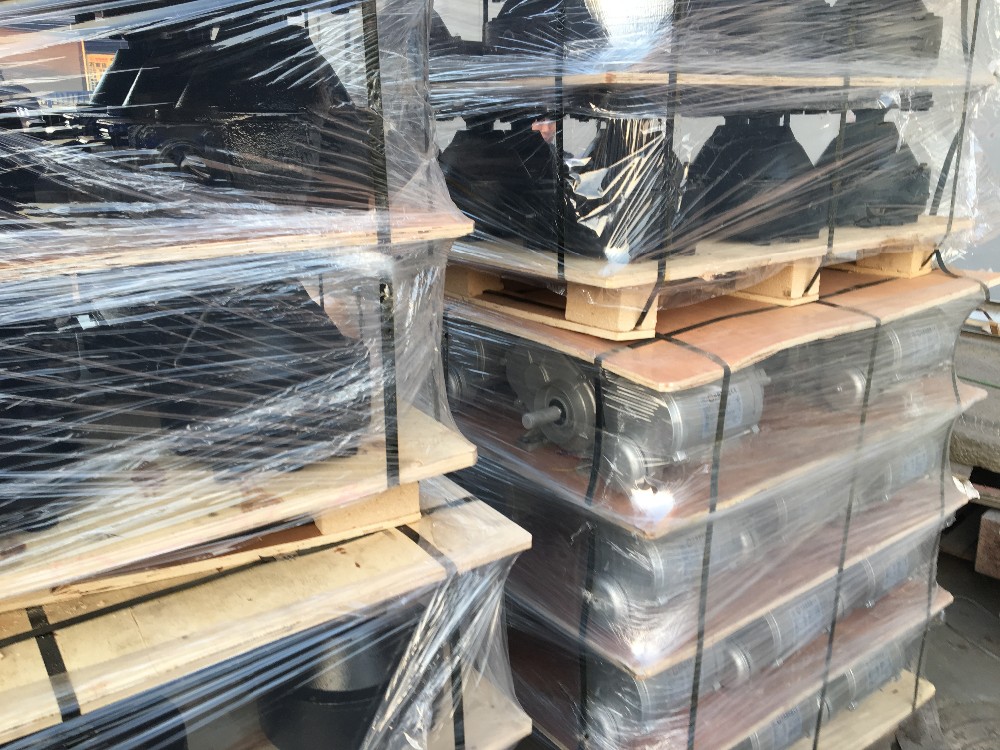

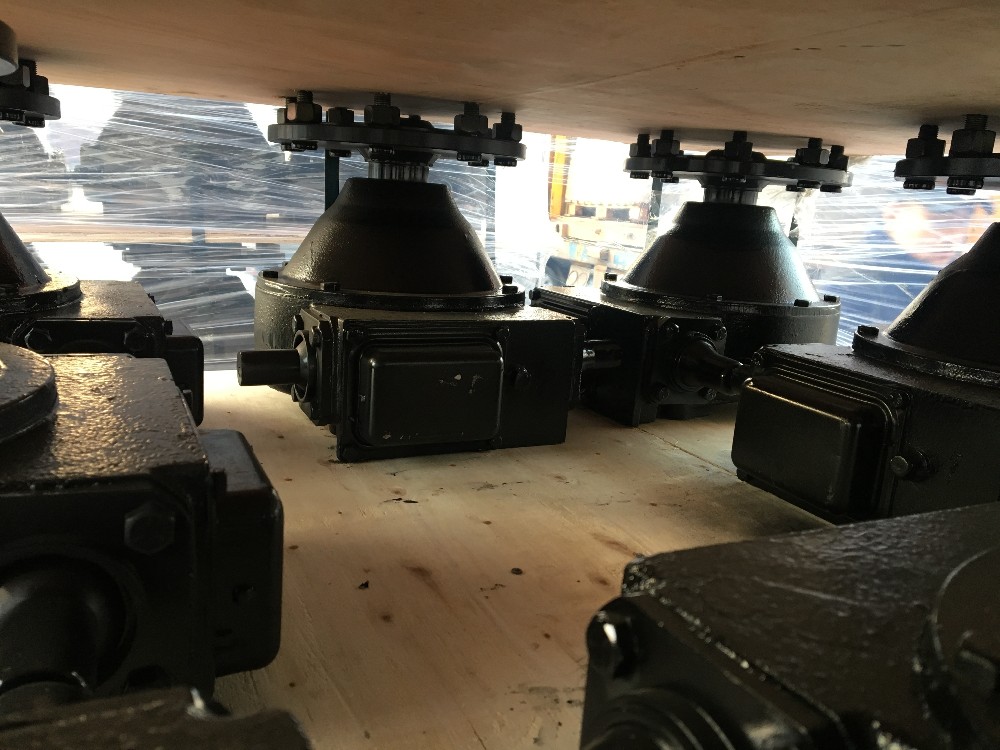

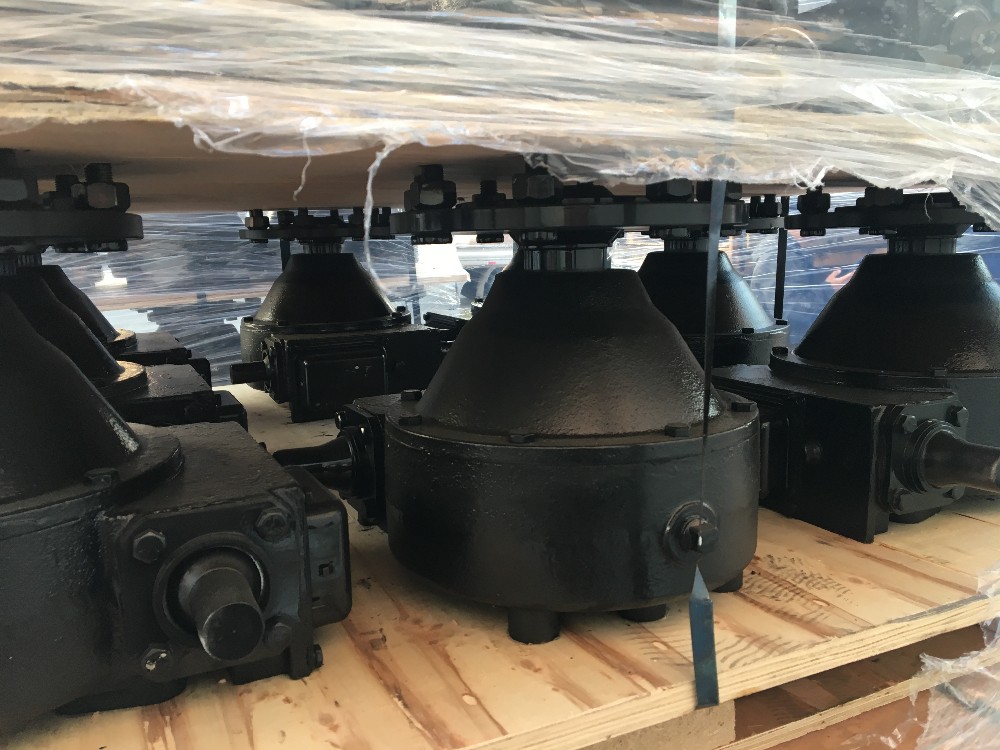

Packaging
Size	120 (L) * 100 (W) * 700 (D)
Weight	0.8 T
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
