Agricultural Tractor Beam Driven Disc Plough for Paddy Field Farming
  • Agricultural Tractor Beam Driven Disc Plough for Paddy Field FarmingAgricultural Tractor Beam Driven Disc Plough for Paddy Field Farming
  • Agricultural Tractor Beam Driven Disc Plough for Paddy Field FarmingAgricultural Tractor Beam Driven Disc Plough for Paddy Field Farming

Agricultural Tractor Beam Driven Disc Plough for Paddy Field Farming

Agricultural Tractor Beam Driven Disc Plough for Paddy Field FarmingWarning/DisclaimerThis product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.View moreProduct DescriptionLYQ series driven disc plow is connected with the rear three-point susp......

Agricultural Tractor Beam Driven Disc Plough for Paddy Field Farming

Warning/Disclaimer
This product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.
Product Description

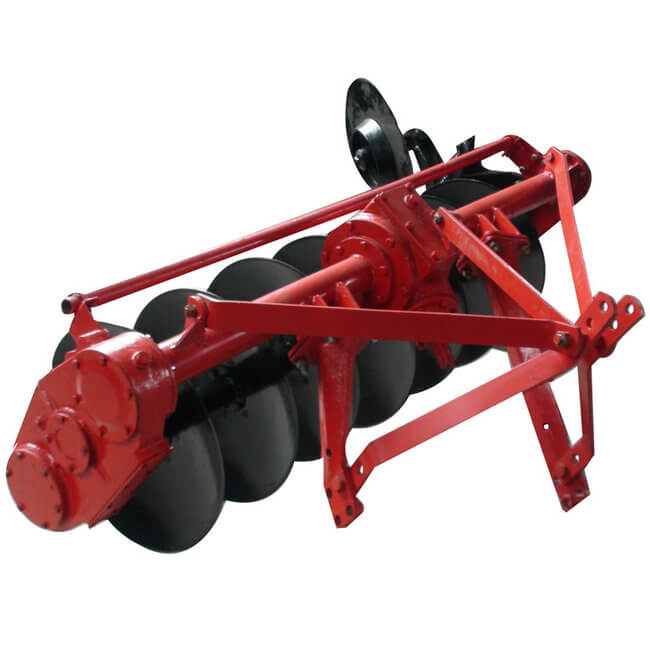

LYQ series driven disc plow is connected with the rear three-point suspension mechanism of the tractor. During operation, the machine transmits power to the disc plow gearbox through the rear power output shaft (PTO) of the tractor to drive the disc plow to rotate. This driven disc plow is mainly suitable for paddy field farming, with the characteristics of no grass entanglement, high operation quality and high work efficiency.
Agricultural Tractor Beam Driven Disc Plough for Paddy Field Farming
Agricultural Tractor Beam Driven Disc Plough for Paddy Field Farming
Model
1LYQ-320
1LYQ-420
1LYQ-520
1LYQ-622
1LYQ-722
1LYQ-822
Tillage width (mm)
660
880
1100
1320
1540
1760
Cultivation depth (mm)
120~200
Number of plow blades
3
4
5
6
7
8
Plowshares (mm)
510x4
560x5
Transmission shaft speed (r/min)
540-720
Weight (kg)
220
240
280
325
360
390
Matching horsepower (hp)
15-20
20-30
25-40
40-50
50-70
70-80
Mounting method
Cat I
Cat II
Agricultural Tractor Beam Driven Disc Plough for Paddy Field Farming

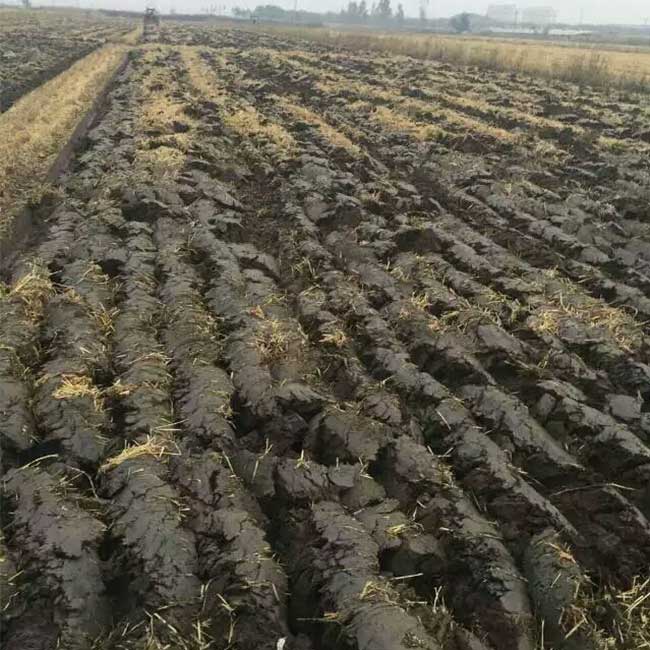

Applications
Agricultural Tractor Beam Driven Disc Plough for Paddy Field Farming
Related Products
Knife Guard
Agricultural Tractor Beam Driven Disc Plough for Paddy Field Farming
Agricultural Tractor Beam Driven Disc Plough for Paddy Field Farming
Heavy Duty Part
Agricultural Tractor Beam Driven Disc Plough for Paddy Field Farming
Fodder Feed Mixer Knife Blade
Agricultural Tractor Beam Driven Disc Plough for Paddy Field Farming
Cla as Agricultural Machinery Knives For Harvest
Agricultural Tractor Beam Driven Disc Plough for Paddy Field Farming
Fodder Feed Mixer Knife Blade
Knife Section
Agricultural Tractor Beam Driven Disc Plough for Paddy Field Farming
Plough Share
Agricultural Tractor Beam Driven Disc Plough for Paddy Field Farming
Company Profile
Agricultural Tractor Beam Driven Disc Plough for Paddy Field Farming
Agricultural Tractor Beam Driven Disc Plough for Paddy Field Farming
Agricultural Tractor Beam Driven Disc Plough for Paddy Field Farming
Agricultural Tractor Beam Driven Disc Plough for Paddy Field Farming
Agricultural Tractor Beam Driven Disc Plough for Paddy Field Farming
Every power is an agricultural machinery enterprise specializing in the research and development, production, sales, and service of agricultural machinery. Founded in 2012, we have over 60 employees, covering an area of 22000 square meters, with a processing plant of 6000 square meters and advanced production processes such as machining, welding, forging, shaping, and heat treatment. The main products include disc harrows, disc plows, ridgers, cultivators, plows, seeders, trailers, rotary tillers, lawn mowers and other complete machines, as well as agricultural machinery accessories such as harrows, plows, loosening shovels, square shafts, harrow sets, rake teeth, loosening shovels, box cutters, etc. Especially in the production of rake blades, we have accumulated rich experience and our products have won wide recognition from customers with excellent craftsmanship and reliable quality.
Agricultural Tractor Beam Driven Disc Plough for Paddy Field Farming
FAQ
1. Q: Are your products fully compatible with original accessories? A: Yes, our products are strictly quality tested and verified to ensure full compatibility with original accessories. You can rest assured that our accessories are consistent with original accessories in size, performance and function, and will not affect the normal operation of your agricultural machinery. 2. Q: How is the quality of your accessories? A: All our accessories are produced with high-quality materials and advanced manufacturing processes, in line with international quality standards. We have also passed a number of quality certifications, such as ISO 9001:2015, to ensure that every product can meet or even exceed customer requirements. In addition, we also provide warranty services to ensure that the accessories you purchase are free of quality problems. 3. Q: Does it require professional skills to install your accessories? A: In most cases, the installation of our accessories is relatively simple, and users can complete it by themselves by referring to the detailed installation guide we provide. If you encounter any problems during the installation process, our technical support team is always available to help you. 4. Q: Will the use of your accessories affect the warranty of my agricultural machinery? A: Using our accessories will not affect your agricultural machinery warranty. According to the warranty policy of most manufacturers, as long as the accessories are high-quality products that meet the standards and are properly installed and used, they will not affect the warranty terms. However, to ensure that everything is safe, we recommend that you consult your agricultural machinery manufacturer or dealer before use. 5. Q: Do you provide after-sales service? A: Yes, we provide comprehensive after-sales service. If you encounter any problems during use, you can contact us through our customer service hotline, email or online chat. Our technical support team will solve the problem for you as soon as possible. 6. Q: Are your accessories suitable for different brands of agricultural machinery? A: Yes, our accessories are suitable for multiple brands of agricultural machinery. We fully consider the compatibility of different brands and models during the design and production process to ensure that our accessories can be widely used in various agricultural machinery equipment.
