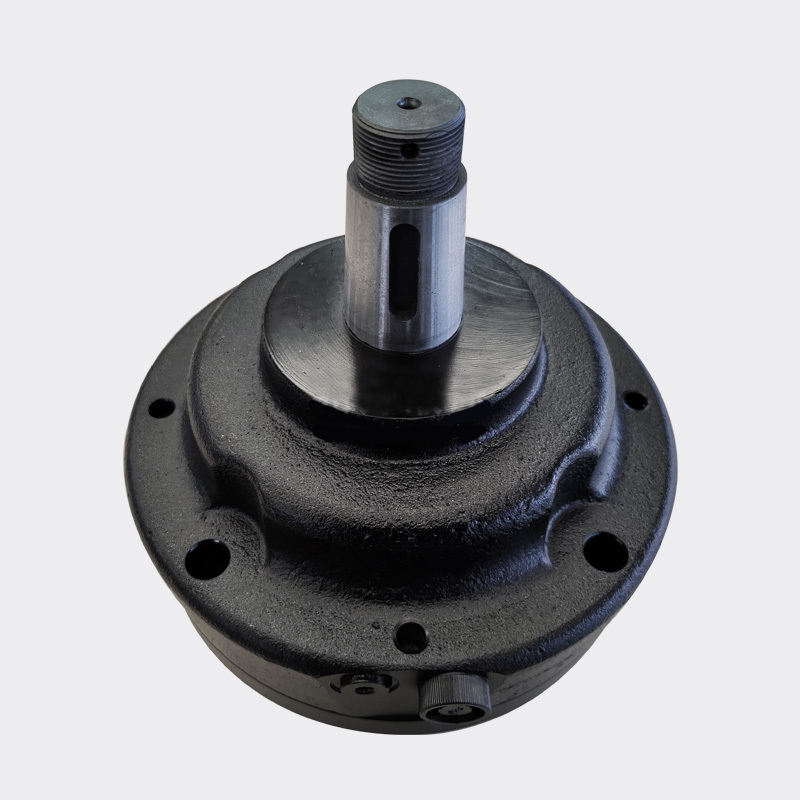

BK10 Series Hydraulic Power Static Wet Hydraulic Brake

Product Description

BK10 series static wet hydraulic brake is a kind of suitable for low speed scissor aerial work platform and agricultural machinery wheel installation. Its characteristics:
• The same heavy-duty roller bearings are used before and after the output shaft, which has a greater radial load-bearing
capacity;
• Optimized disc brake pads and spring loading, with reliable braking and long life;
• Optimize the piston and loading mechanism, with the minimum axial size of the wheel connection;
• Set dual brake release ports to facilitate the discharge of brake cylinder gas or external brake fluid;
• Large braking torque, suitable for static braking.

Specification

Parameter Item	BK10-1	BK10-2
Minimum static torque [Nm]	1150	1700
Minimum oil pressure to release brake [MPa]	2.8
Maximum oil pressure of brake system [MPa]	21
Maximum speed [rpm]	300
Minimum oil quantity to release brake [cm3]	12
Brake chamber lubricating oil volume [cm3]	100~120
Maximum pressure at drain port [MPa]	0.05
Weight [kg]	18	20

How to order

1	Structure Code	1
2	Braking torque	1150
3	Shaft extension	T31: 38 cone axis 1:8. Flat key 7.96X7.96X31.75
4	Stop flange and brake oil port	S1: 4xØ 13 indexing circle φ177.8, round flange Stop Ø 101.6X12.7, Brake port 7/16-20UNF 'O'-ring
5	Lube oil change port	None or 7/16-20UNF ‘O’- ring
6	Paint Options	B: Black paint S: Silver gray paint 00: No paint

Applications

The various products produced by the company can be widely used in mining construction engineering machinery, lifting and transportation equipment, heavy metallurgical machinery, stone. Oil and coal mining machinery, ship deck machinery, machine tools, light industry, plastic machinery, geological drilling equipment, agricultural and forestry machinery, minerals Machinery, construction equipment and work platforms, lawn mowers, special vehicles, fishing winches, machine tools, carpentry and sawmills, rubber In the hydraulic transmission system of various machinery such as machinery. Especially suitable for injection molding machine screw drive, lifting winch, drum drive, Driving of various slewing mechanisms and driving of crawler and wheel traveling mechanisms

Company Profile

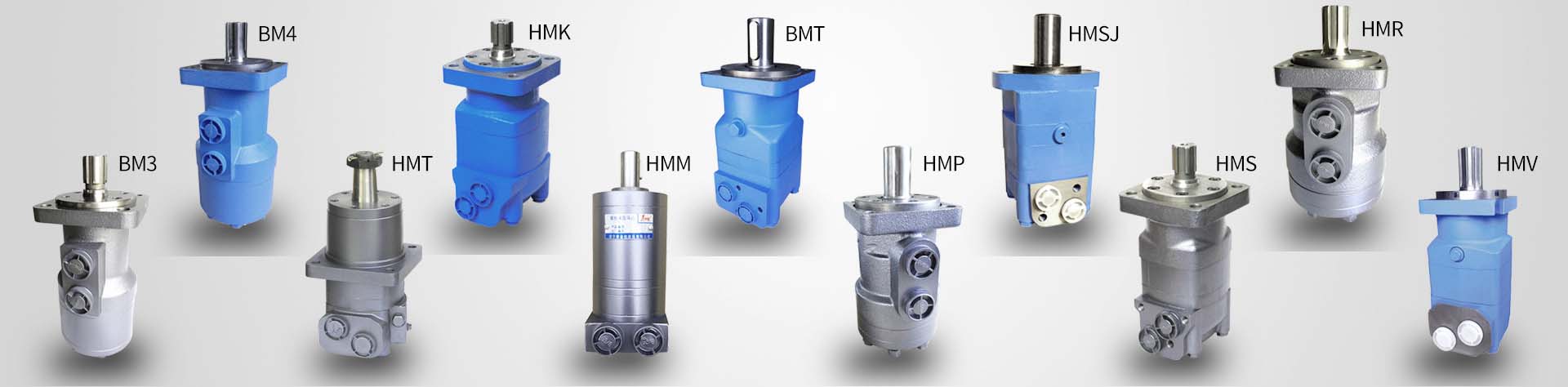

We are a company specializing in the production of BM series cycloidal hydraulic motors, BZZ fully hydraulic steering gears, FK combination valve blocks and other hydraulic components. Our products are widely used in engineering machinery, mining machinery, metallurgy machinery, petroleum machinery, agricultural machinery, injection molding machinery, Fishing machinery, engineering and other fields. Our company has multiple imported equipment and advanced production technology, dozens of high-quality engineering and technical personnel, and its own R&D team to ensure product quality with strong technical strength. We have a relatively complete product quality assurance system from employee recruitment, raw materials entering the factory, parts processing, assembly testing, to product delivery. The products are favored by domestic and foreign users for their high-end quality, affordable prices and thoughtful services. The company successfully passed the ISO9001:2008 quality management system certification in 2013.
