BMH Series Cycloidal Orbit Orbital Hydraulic Motor
  • BMH Series Cycloidal Orbit Orbital Hydraulic MotorBMH Series Cycloidal Orbit Orbital Hydraulic Motor
  • BMH Series Cycloidal Orbit Orbital Hydraulic MotorBMH Series Cycloidal Orbit Orbital Hydraulic Motor

BMH Series Cycloidal Orbit Orbital Hydraulic Motor

BMH Series Cycloidal Orbit Orbital Hydraulic MotorProduct DescriptionBMT series orbital hydraulic motor is an advanced hydraulic motor with end-face flow distribution structure. This series of motors use a column-mounted rotating stator pair, which has the characteristics of high working pressure, h......

BMH Series Cycloidal Orbit Orbital Hydraulic Motor

Product Description

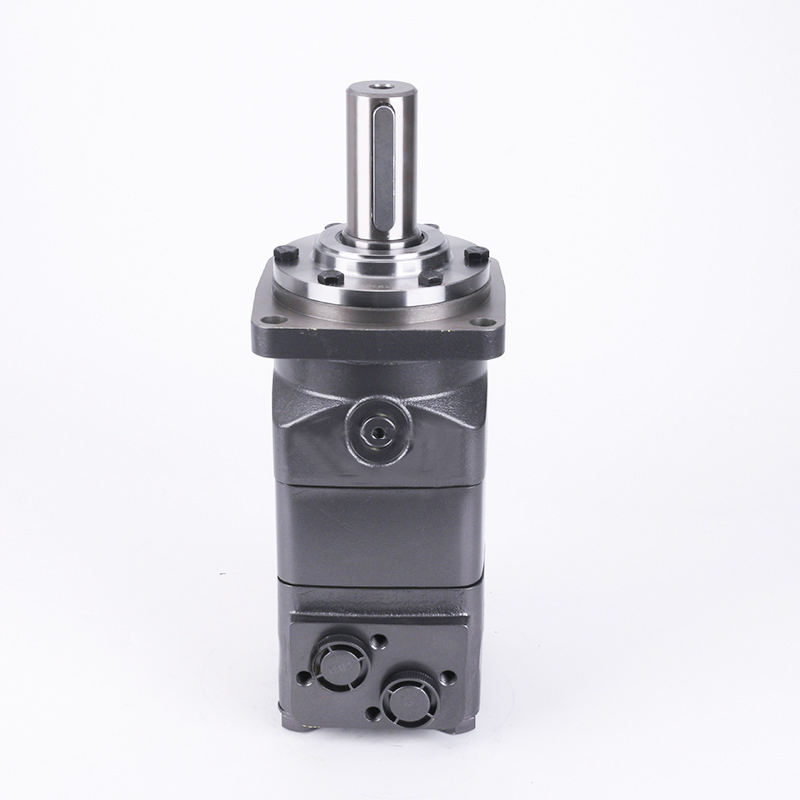

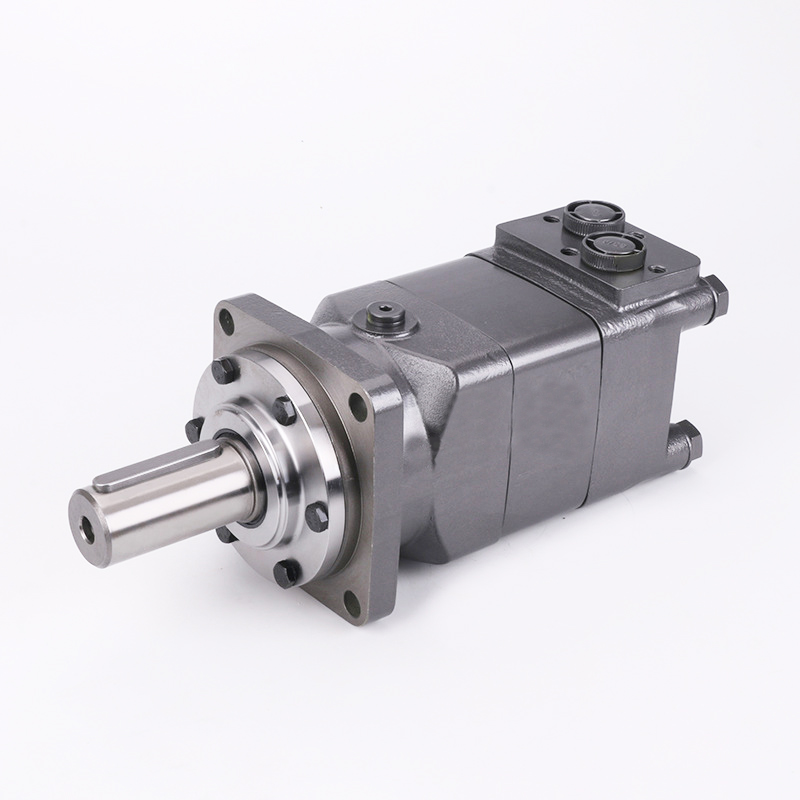

BMT series orbital hydraulic motor is an advanced hydraulic motor with end-face flow distribution structure. This series of motors use a column-mounted rotating stator pair, which has the characteristics of high working pressure, high working efficiency, good efficiency retention of the whole machine and long working life. On the basis of standard structure, multi-functional variant design can be carried out according to user requirements.
BMH Series Cycloidal Orbit Orbital Hydraulic Motor
BMH Series Cycloidal Orbit Orbital Hydraulic Motor
BMT series orbital hydraulic motor is an advanced hydraulic motor with end-face flow distribution structure. This series of motors use a column-mounted rotating stator pair, which has the characteristics of high working pressure, high working efficiency, good efficiency retention of the whole machine and long working life. On the basis of standard structure, multi-functional variant design can be carried out according to user requirements. Its characteristics:
• The use of advanced stator parameter design, low starting pressure, high efficiency and good retention.
• High working pressure and large output torque. Tapered roller bearing structure, bearing shaft, radial load capacity is strong, so that the motor can directly drive the working mechanism, the scope of use is expanded.
• Advanced end face flow distribution structure, so that the motor with high precision, wear after the automatic compensation function is strong, to ensure high volumetric efficiency, motor long life, to ensure that the motor speed is stable, smooth load speed characteristics.
Specification
Type
BMT
BMT
BMT
BMT
BMT
BMT
BMT
BMT
BMTZ
BMTZ
BMTZ
BMTZ
BMTZ
BMTZ
BMTZ
BMTZ
160
200
230
250
315
400
500
630
Actual displacement (cm³/rev.)
166.6
210
234.5
267.9
337
426.7
535.8
672.1
Maximum speed
Rated
455
455
410
358
285
220
180
140
(Rpm)
Continuous
590
580
520
460
365
290
230
182
Intermittent
740
710
630
555
440
350
280
220
Maximum torque
Rated
390
490
535
619
780
930
1080
1170
(N.M)
Continuous
485
613
675
770
980
1120
1245
1400
Intermittent
580
735
825
935
1170
1300
1400
1600
Peak
690
870
965
1100
1385
1500
1680
1800
Maximum output power
Rated
18.7
23.4
23.2
23.2
23.3
21.4
20.4
18.2
(KW)
Continuous
27.7
34.9
34.7
34.5
34.9
31.2
28.8
25.3
Intermittent
32
40
40
40
40
35
35
27.5
Maximum working pressure difference
Rated
16
16
16
16
16
15
14
12
(MPa)
Continuous
20
20
20
20
20
18
16
12
Intermittent
24
24
24
24
24
21
18
16
Peak
28
28
28
28
28
24
21
19
Maximum flow
Rated
80
100
100
100
100
100
100
100
(L/min)
Continuous
100
125
125
125
125
125
125
125
Intermittent
125
150
150
150
150
150
150
150
Maximum allowable oil inlet pressure
Rated
21
21
21
21
21
21
21
21
(MPa)
Continuous
21
21
21
21
21
21
21
21
Intermittent
25
25
25
25
25
25
25
25
Peak
30
30
30
30
30
30
30
30
*Rated speed and torque refer to the output value under rated flow and pressure. *Continuous value refers to the maximum value at which the displacement motor can operate continuously. *Intermittent value refers to the maximum value at which the displacement motor operates for 6 seconds within 1 minute. *The peak value refers to the maximum value at which the displacement motor operates for 0.6 seconds within 1 minute.
How to order
BMH Series Cycloidal Orbit Orbital Hydraulic Motor
BMH Series Cycloidal Orbit Orbital Hydraulic Motor
1
Structure
Code
BMT
2
Displacement
160  200  230   250  315  400  500  630  800
3
Flange, stop
4: 4-φ14 square flange, φ160, stop φ125X9
K6: 4-φ14.5 square flange, φ162, stop φ127X9
4
Shaft extension
M: Straight axis φ40, length 82, flat key 12X8X70,M12
FD: Involute spline shaft φ38.1, length 82,17-DP12/24,M12
FE: Involute spline shaft φ38.1, length 57,17-DP12/24,3/8-16UNC
FG: Involute spline shaft φ38.1, length 114,17-DP12/24, shaft head φ25X26.7
SL: Rectangular spline shaft 6-34.85X28.14X8.64, long 102,M8
G: Straight axis φ38.1, length 82, flat key 9.525X9.525X57.15,3/8-16UNC
G1: Straight axis φ31.75, length 57, flat key 7.96X7.96X40,3/8-16UNC
J: Rectangular spline shaft 6-30X24.8X6, long 46.2,M8
T: Φ45 cone shaft, taper 1:10, cone length 54, flat key 12*8*28, shaft head length 82, shaft end thread M30X2
5
Oil outlet and outlet
D: G3/4,G1/4, plate type 4-M10
M: M27X2,M14X1.5, PLATE 4-M10
S: 1-1/16-12UN 'O'-ring,9/16-18UNF 'O'-ring
S1: 1-1/16-12UN 'O'-ring,7/16-20UNF 'O'-ring
G: G3/4,G1/4
M: 3M27X2,M14X1.5
6
Rotating condition
None: Standard
R: Reverse
7
Paint
Options
00: No paint
None: Blue paint
B: Black paint
S: Silver gray paint
8
Special
Function
None
General
Applications
The various products produced by the company can be widely used in mining construction engineering machinery, lifting and transportation equipment, heavy metallurgical machinery, stone. Oil and coal mining machinery, ship deck machinery, machine tools, light industry, plastic machinery, geological drilling equipment, agricultural and forestry machinery, minerals Machinery, construction equipment and work platforms, lawn mowers, special vehicles, fishing winches, machine tools, carpentry and sawmills, rubber In the hydraulic transmission system of various machinery such as machinery. Especially suitable for injection molding machine screw drive, lifting winch, drum drive, Driving of various slewing mechanisms and driving of crawler and wheel traveling mechanisms
BMH Series Cycloidal Orbit Orbital Hydraulic Motor
BMH Series Cycloidal Orbit Orbital Hydraulic Motor
Company Profile
We are a company specializing in the production of BM series cycloidal hydraulic motors, BZZ fully hydraulic steering gears, FK combination valve blocks and other hydraulic components. Our products are widely used in engineering machinery, mining machinery, metallurgy machinery, petroleum machinery, agricultural machinery, injection molding machinery, Fishing machinery, engineering and other fields. Our company has multiple imported equipment and advanced production technology, dozens of high-quality engineering and technical personnel, and its own R&D team to ensure product quality with strong technical strength. We have a relatively complete product quality assurance system from employee recruitment, raw materials entering the factory, parts processing, assembly testing, to product delivery. The products are favored by domestic and foreign users for their high-end quality, affordable prices and thoughtful services. The company successfully passed the ISO9001:2008 quality management system certification in 2013.
BMH Series Cycloidal Orbit Orbital Hydraulic Motor
BMH Series Cycloidal Orbit Orbital Hydraulic Motor
Hot Tags: BMH Series Hydraulic Motor, Cycloidal Orbit Motor, Orbital Hydraulic Motor Supplier, Hydraulic Motor Manufacturer China, Raydafon Transmission
