Product Description

China Manufacturer XTH25 Weld-On Hubs for XTB25 Bushings

Products Description

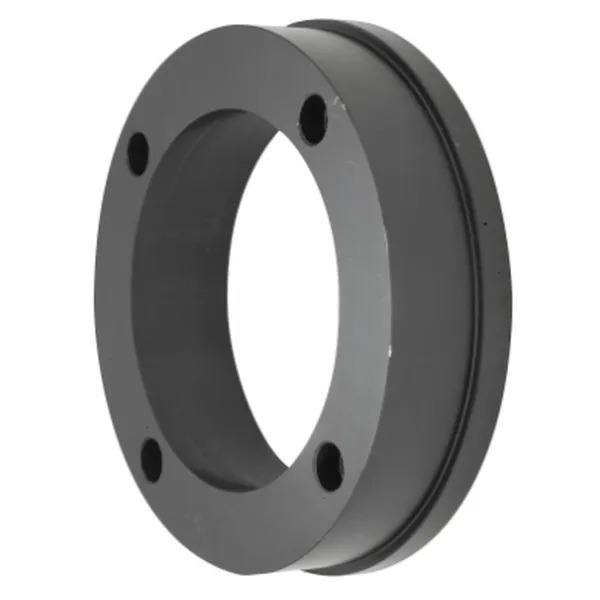

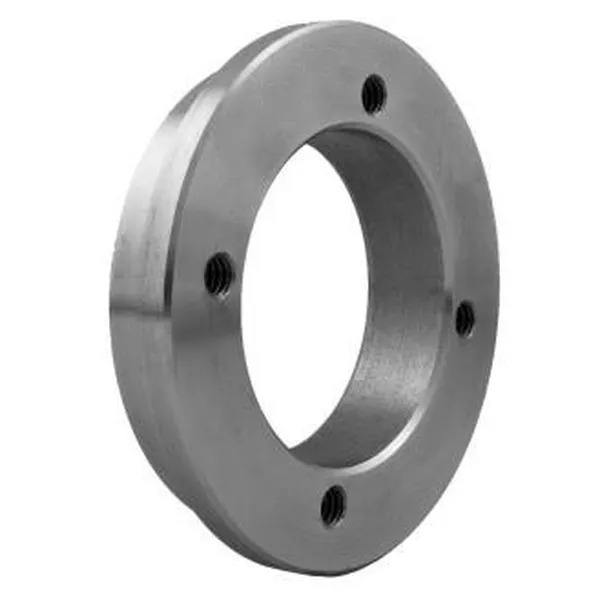

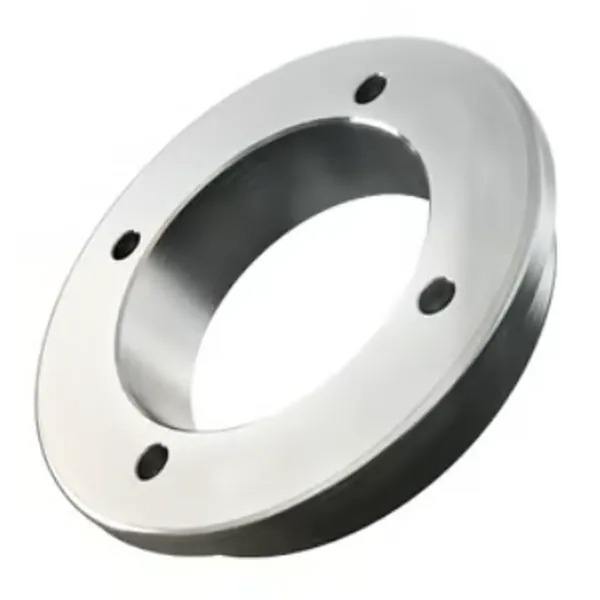

XTH25 weld-on hubs are a proprietary product or a specialized type of hub specific to a certain manufacturer or industry.

The installation procedure for XTH25 weld-on hubs may vary depending on the specific design and manufacturer's instructions.It's crucial to follow the specific instructions provided by the manufacturer or consult their technical support for the accurate installation procedure for XTH25 weld-on hubs. They will have precise guidelines and recommendations based on their product design and specifications. Additionally, ensure that you comply with any applicable safety regulations and use proper welding techniques when performing the installation.

XTH25 Weld-On Hubs Dimensions:

Part No.			XTH25 Hubs (Type 1 Hubs)
Dimensions	O.D.	4 3/4"
		A	13/16"
		B	3.188"
		C	4 3/8"
		V	3 3/4"
		X	1 1/8"
		d	1 1/8"
		No.	4
		Size	3/8" - 16UNC
Wt lbs.			2.5

How To Install XTH25 Weld-On Hubs? 1.Prepare the Shaft: Ensure that the shaft surface where the weld-on hub will be installed is clean and free from any dirt, debris, or rust. Use appropriate cleaning methods, such as degreasing or sanding, if necessary. 2.Verify Fit: Check that the bore size of the XTH25 weld-on hub matches the diameter of the shaft. It should provide a precise fit to ensure proper alignment and concentricity. 3.Align the Hub: Position the XTH25 weld-on hub onto the shaft, aligning it in the desired location. Ensure that it is centered and level on the shaft. 4.Welding Process: Follow proper welding techniques and safety precautions. The specific welding process will depend on the material of the weld-on hub and the shaft. Consult the manufacturer's instructions or seek professional guidance if needed. Weld the hub to the shaft, ensuring a strong and secure bond. Be careful not to overheat the hub or shaft during the welding process. 5.Cooling and Inspection: Allow the welded assembly to cool down. Once cooled, inspect the weld joint for any signs of defects or cracks. Ensure that the hub is firmly and securely attached to the shaft. 6.Post-Installation Checks: After installation, check the alignment and concentricity of the hub by rotating the shaft manually or using appropriate measuring tools. Verify that there is no excessive runout or wobbling.

For more details, please click here to contact us！

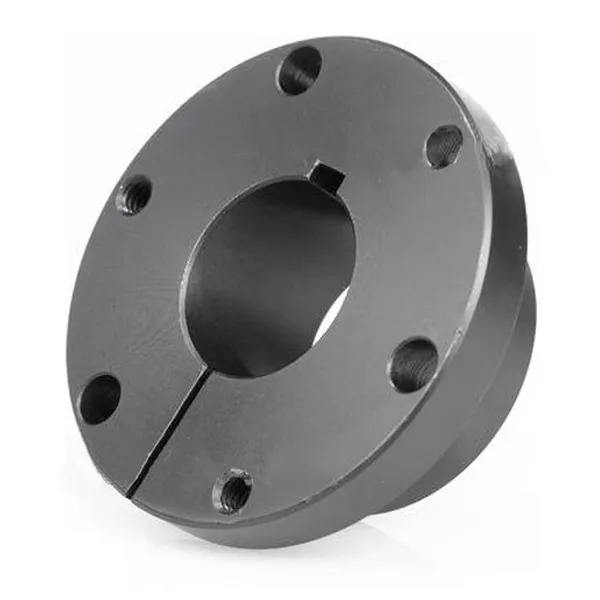

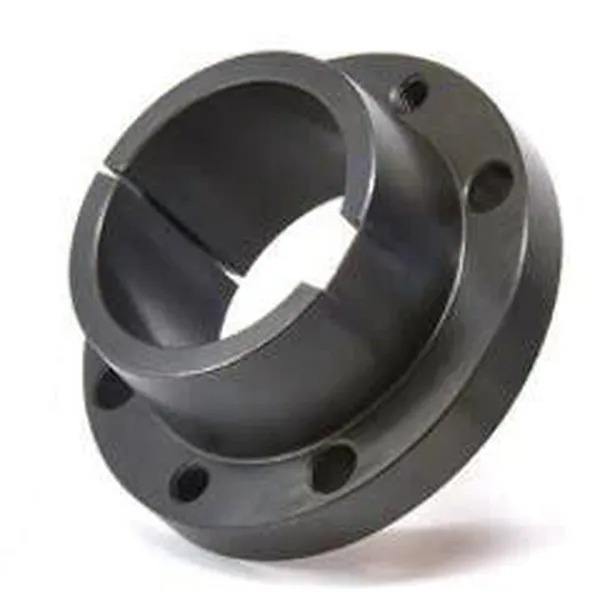

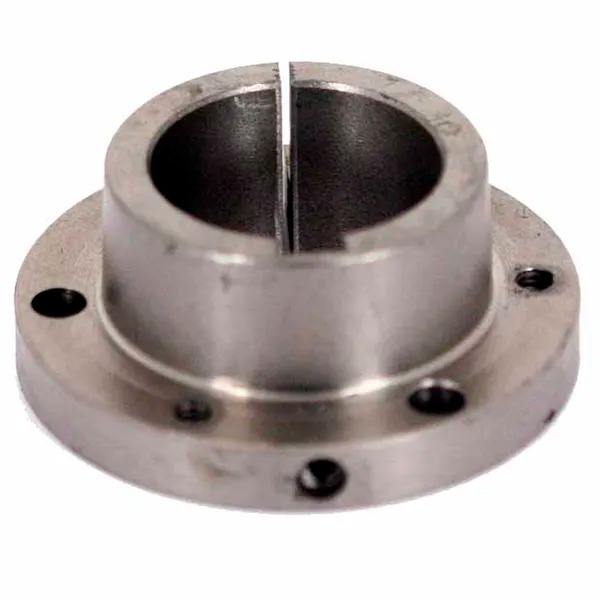

Chinese manufacturer Are you looking for high-quality bushings or steel wheels to meet your industrial or agricultural needs? Just take a look at RAYDAFON and you will know that our comprehensive selection of conical locking bushings, QD bushings, open conical bushings, FHPK bushings, XT bushings, steel wheels for open conical bushings, XH wheels, QD welded wheels, and welded wheels for conical bushings will be suitable for all your typical application needs, including sprocket, pulley, and pulley applications. The basic purpose of the bushing is to connect the components to the shaft. Whether you are facing space, time, or size limitations, our bushings can meet your needs, and due to these reasons, we usually use bushings instead of drilled wheels according to size. In addition, with our extensive inventory of bore diameters, including a large number of standard inch and metric bore bushings, you can be confident that we will provide suitable bushings for your application.
