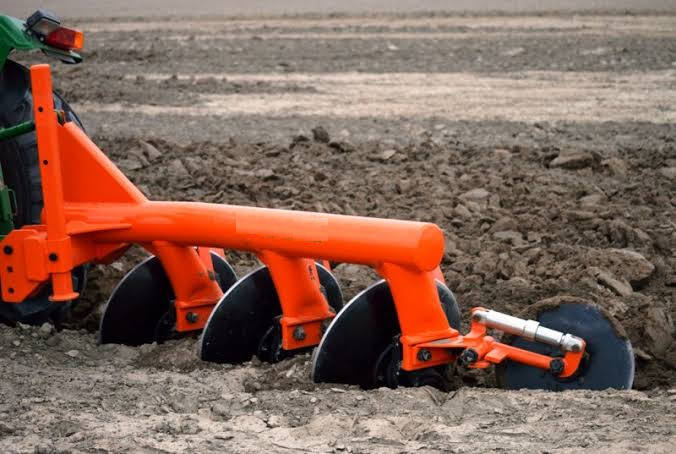

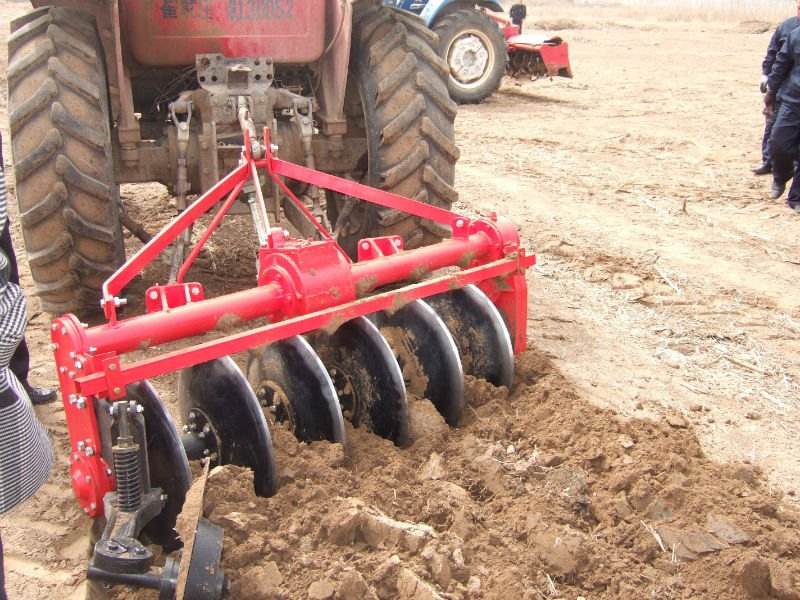

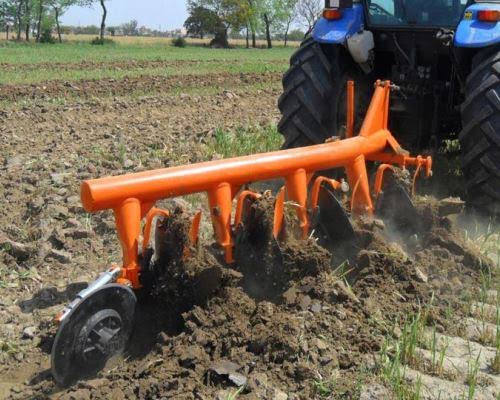

Disc Harrow Plow/3 point hitch plow/farm tractor plow
Good passability and penetration ,complete inversion and coverage.Small draft resistance, easy operation and adjustment all these satisfy the agricultural requirements of fine cultivation.
If you are interested in our product , kindly send your enquiry to me.I will give you more details.
| Item | Unit | 1LYQ-220 | 1LYQ-320 | 1LY-325 | 1LY-425 | 1LY-525 |
Workingwidth | mm | 400 | 600 | 750 | 1000 | 1250 |
Working depth | mm | 200 | 200 | 250 | 250 | 250 |
Dia. of disc | mm | 500 | 500 | 650 | 650 | 650 |
No. of disc | pcs | 2 | 3 | 3 | 4 | 5 |
Matched power | hp | 18~20 | 25~30 | 50~55 | 60~80 | 80~100 |
Weight | kg | 160 | 190 | 410 | 470 | 530 |

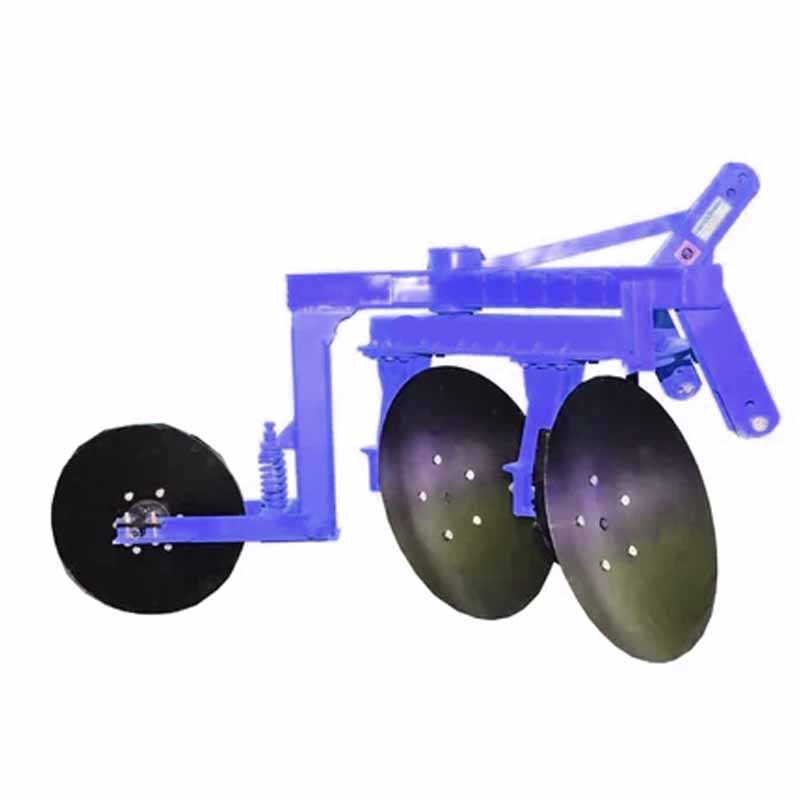

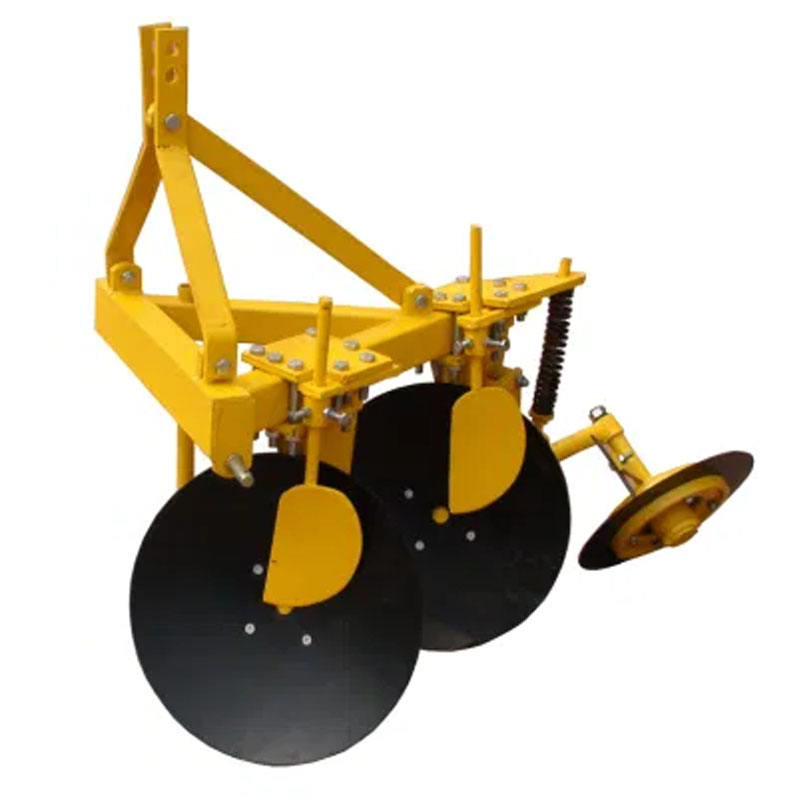

1LYQ-320 light duty disc plow with 3pcs blade :

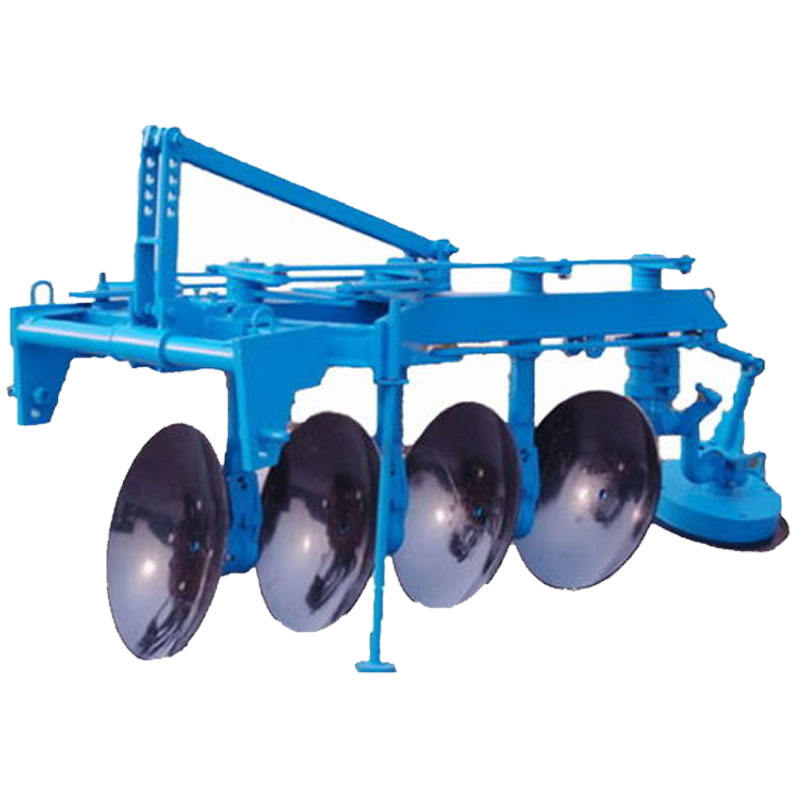

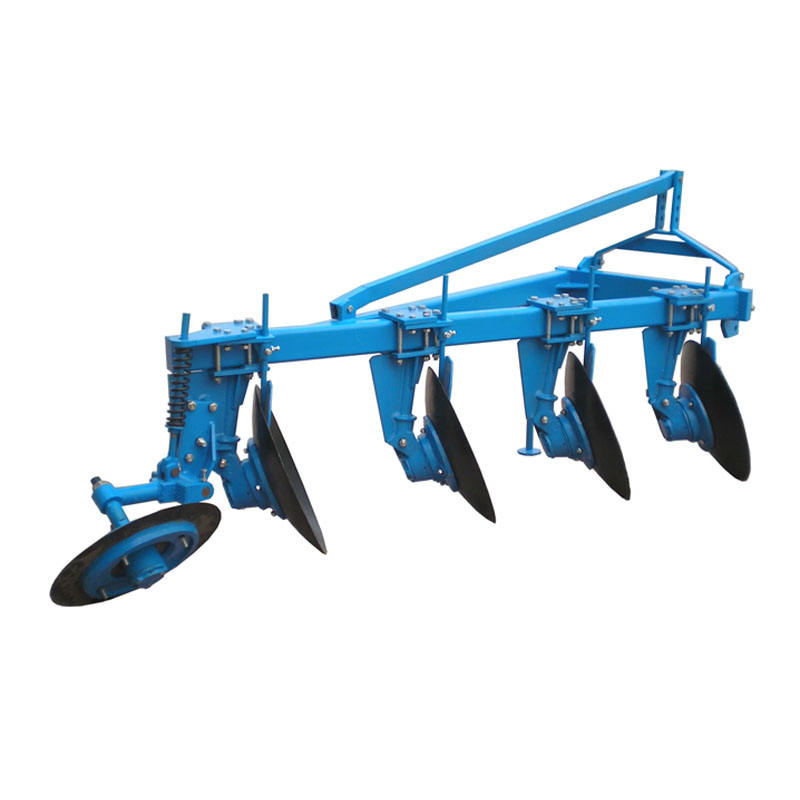

1LYQ-420 light duty disc plow with 4pcs blade :
1. Plough disc blade Material : 65Mn Srping steel or Boron Steel .
We adopt large steel mills steel as raw materials to ensure product quality at source.
Exquisite production technology , Advanced production equipment .
Our disc blade produce with tempering and quenching , the hardness will be 38-46HRC ( 65Mn Spring Steel ) and 48-55HRC ( Boron Steel ) , the disc blade surface with steel shot blasting and spraying plastics . So the surface will be very beautiful , also can have the long service time.
2. Plough hub is not fragile iron casting , look at the following :
1. Warranty time
1.We can supply samples for customers.
2.We supply you 2 years warranty time.
2. Spare Parts
The Easy-damage parts, we will send you together with the Product for free. And in warranty period, if the spare part is not work because of the quality, we will send you new parts for free.
3.Payment way
1. We accept T/T 30% in Advance, and 70% T/T after Shipping.
2. We alos accept L/C at sight
4.More information, please contact us
