Double Pitch Big Roller Conveyor Chain and Sprockets DIN Standard C2052 C08A Roller Chain for Conveying Machinery

Products Description

Product Name	Double pitch big roller conveyor chain roller chain C2052 for conveying machinery
Size (Big Roller)	JIS/ANSI series: C2042,C2052,C2062,C2062H,C2082,C2082HC2102,C2122,C2162
		DIN/ISO series: C208AL,C210AL,C212AL,C216AL,C220AL,C224AL,C232AL
Small Roller	JIS/ANSI series:C2040,C2050,C2060,C2060H,C2080,C2080H,C2100,C2120,C2160
		DIN/ISO series: C208AL,C210AL,C212AL,C216AL,C220AL,C224AL,C232AL
Pitch	25.4mm-101.6mm
Material	A3 steel,40Mn,45Mn ,stainless steel(SS304,SS316)
Standard	ISO DIN GB ANSI
Length	Standard length 1.524M/box or 10 feet/box
Process	Heat Treatment,Carburization,Quenching. Parts ,Tempering,Black Oxide/Bluing

EVER-POWER GROUP offers a full range of both precision roller chain and engineered.
Applications are varied and range from conveyor, elevator transfer to broad general industrial power transmission specialty
applications with attachments and/or special materials are also available.
* BICYCLE CHAIN: 408,410,415
* MOTORCYCLE CHAIN: 04C, 25H, 06C, T3, 270H,415H, 420, 420L, 425, 428, 428H, 520, 525, 530
* ASA ROLLER CHAIN: 35, 40, 41, 50, 60, 60H, 80, 80H, 100, 120, 140, 160, 200, 240 (Catalog)
* CHAIN (BRITISH STANDARD): 05-B, 06-B, 08-B, 10-B, 12-B, 16-B, 20-B, 24-B, 28-B, 32-B, 40-B (Catalog)
* LARGE PITCH CHAIN: 100, 100H, 120, 120H, 140, 140H, 160, 160H, 180, 200, 240
* EXTEND-PITCH PRECISION ROLLER CHAINS: 208A, 208B, 210A, 210B, 212A, 212B, 216A, 216B,220A,220B,224A,224B,228B,232B
* ROLLER CHAINS FOR BEER BOTTLINET CONVEYORS: CK-70S,CK-100S,CK-100SA,CK-100SC,CK-133XA, CK-140X,
CK-140XA,CK-150X,CK-150S,CK-154X,CK-155X,CK-155XA,CK-160X,CK-160XA,CK-160XB,CK-160XC,CK-165X, CK-165XA, CK-169, CK-180X,CK-180XA,CK-200S,CW-102,CW-127

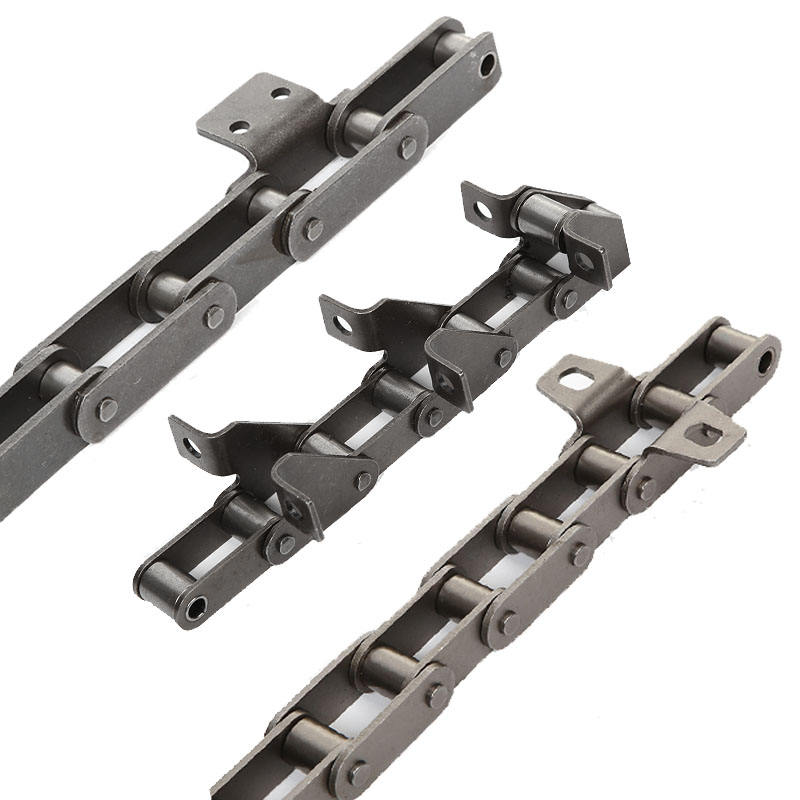

* IMPLEMENT ROLLER CHAINS FOR CONVEYORS: 81X, 81XH,81XHH,CA550,CA555,CA620
* MULTI STRAND SIZES AVAILABLE; UP TO 5 STRANDS, FOR SELECT SIZES STANDARD ATTACHMENTS AVAILABLE
* CHAINS FROM 04B~16B ARE WITH SPRING CLIPS, OTHERS ARE RIVETED; COTTERED DESIGN IS AVAILABLE FOR SIZES 80 to 240
* STAINLESS STEEL AND NICKEL PLATED CHAIN IS AVAILABLE; SPECIAL DESIGN ALSO AVAILABLE (i.e., OVEN CONVEYOR)
* Special Chain size 205, 662, 667H, 667X, 667XC, 667K, 667KC, 667XH, 88K AND FOR OTHER SIZE NOT LISTED PLEASE CHECK WITH OUR
CATALOG

The above represents some of the common chain sizes offered. Other chain sizes can be considered upon request.
