Product Description

Factory Customized WR78 WH78 WR78A WH78A WR82 WH82 WH82A Welled Cranked-Link Mill Chains Sprockets for Grain and oil industry

Product Description

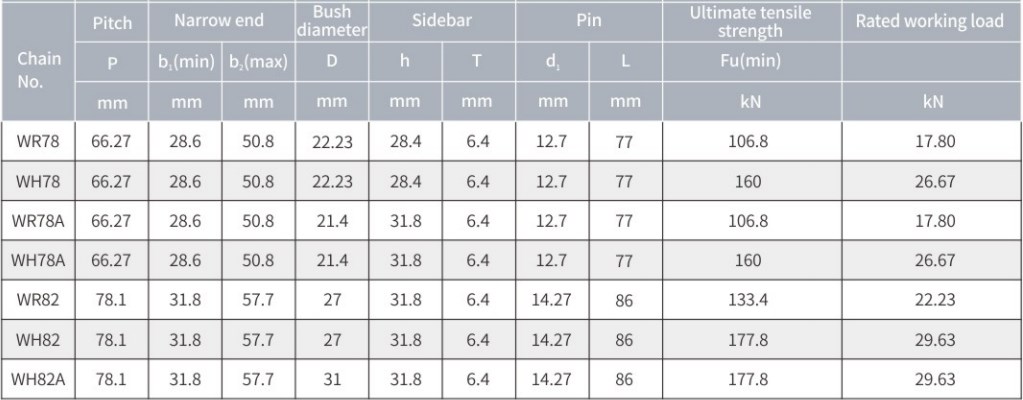

High Quality Customized WR78 WH78 WR78A WH78A WR82 WH82 WH82A Welled Cranked-Link Mill Chains

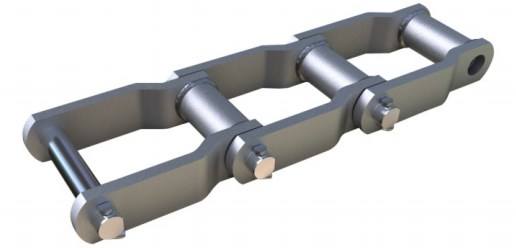

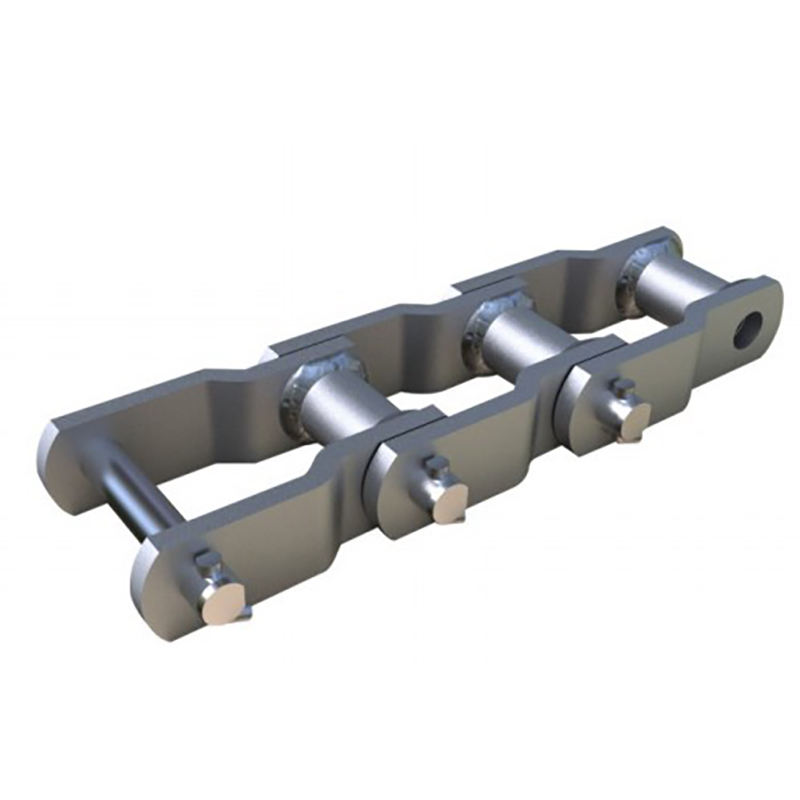

Welded cranked link mill chains are versatile chains with offset or cranked links. They are made of high-quality carbon steel or alloy steel, which makes them strong and tough. These chains are resistant to wear and impact, making them ideal for use in woodworking, grain and oil processing, and paper making.

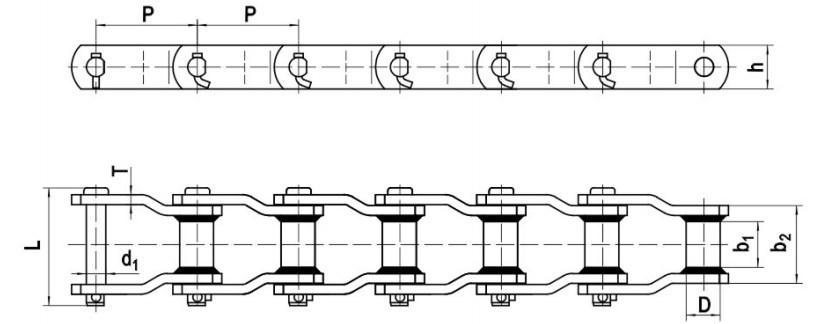

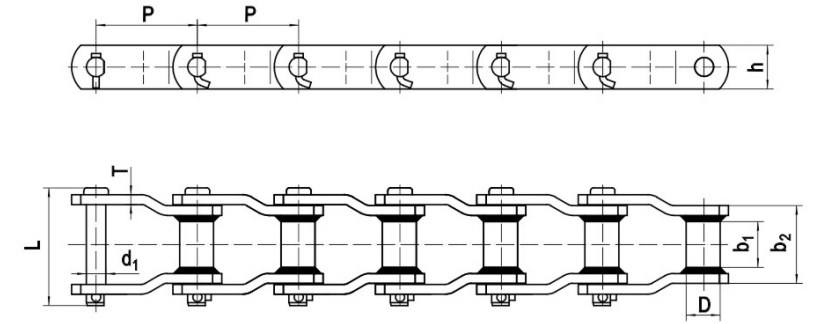

The links in a welded cranked link mill chain are made of:

* Outer links with pins
* Inner links with bushes
* Rotating rollers mounted on the bushes

WR:Chain plate without heat treatment

WH:Heat treatment of all parts of the chain

Contact us: We care about our valued buyers, if you have any questions, our Customer Service staffs will be very glad to help you. We try our best to reply to your emails as soon as possible, however, due to high volume of daily incoming emails and time zone difference, we may not be able to reply your emails immediately. Please allow 24 business hours for us to response.

^{For more types，Please click here！}

Application of Welled Cranked-Link Mill Chains in Grain and oil industry

Welled Cranked-Link Mill Chains find extensive application in the grain and oil industry, where they play a crucial role in material handling, conveying, and processing operations. These specialized chains are specifically designed to meet the demanding requirements of grain and oil production facilities, offering excellent performance, durability, and reliability. Here are some key applications of Welled Cranked-Link Mill Chains in the grain and oil industry: 1. Grain Handling Systems: Welled Cranked-Link Mill Chains are widely used in grain handling systems, such as elevators, silos, and storage facilities. These chains efficiently transport grains, such as wheat, corn, rice, and soybeans, from one location to another, ensuring smooth and continuous material flow. Their robust construction and welled cranked-link design enable them to handle heavy loads and resist the abrasive nature of grains. 2. Conveyor Systems: Within grain and oil processing plants, Welled Cranked-Link Mill Chains are employed in conveyor systems. These chains facilitate the movement of grains, oilseeds, and processed products between different stages of production, including cleaning, sorting, drying, milling, and packaging. The cranked-link configuration allows the chain to navigate around sprockets and smoothly transfer materials, ensuring efficient and reliable conveying. 3. Oil Extraction and Pressing: In the oil industry, Welled Cranked-Link Mill Chains are utilized in oilseed processing plants during the extraction and pressing stages. These chains handle the transportation of oilseeds, such as soybeans, sunflower seeds, and canola seeds, from the cleaning and preparation area to the extraction or pressing equipment. Their strength and durability ensure consistent and uninterrupted operation, contributing to efficient oil extraction processes. 4. Milling and Grinding Equipment: Welled Cranked-Link Mill Chains are also integrated into milling and grinding equipment used in grain processing. These chains drive the movement of various components, such as rollers, grinders, and sifters, ensuring precise and efficient grinding, milling, and separation of grains. Their welled cranked-link design enables them to withstand the high forces and stresses encountered during these processes, providing reliable performance. 5. Bulk Material Handling: Within grain and oil facilities, bulk materials such as grains, meals, and flour are often transported in bulk containers or bags. Welled Cranked-Link Mill Chains are utilized in bulk material handling systems to move these containers or bags, ensuring efficient loading, unloading, and distribution. Their durability and strength enable them to handle the heavy loads associated with bulk material handling operations. Overall, Welled Cranked-Link Mill Chains are essential components in the grain and oil industry, offering reliable and efficient material handling solutions. Their ability to withstand demanding environments and heavy loads makes them indispensable in various stages of grain processing, oil extraction, and bulk material handling.

Welled Cranked-Link Mill Chains Attachments

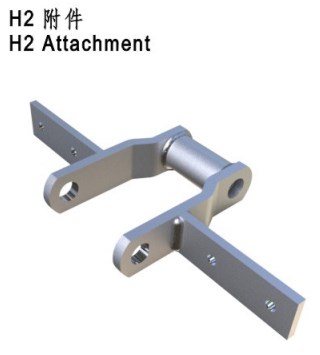

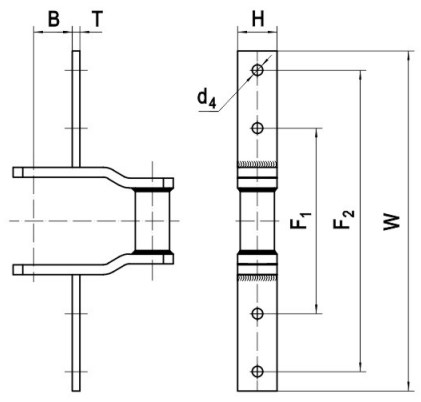

H2 attachmemt

Chain No.	H	T	F1	F2	W	d4	B
Chain No.	Chain No.	mm	mm	mm	mm	mm	mm	mm
WH78	28.4	8	115	195	235	10	16
WH82	31.8	8	120	210	250	10	18
WHX124	38.1	10	150	250	290	12	25
WHX111	44.5	10	170	270	320	12	25
WHX106	38.1	10	175	295	340	12	30
WHX132	50.8	12	200	340	390	14	30
WHX150	63.5	14	200	360	420	14	32
WHX155	63.5	14	220	420	480	14	35
WHX157	63.5	16	220	440	500	14	35
WHX159	76.2	16	225	465	540	16	38

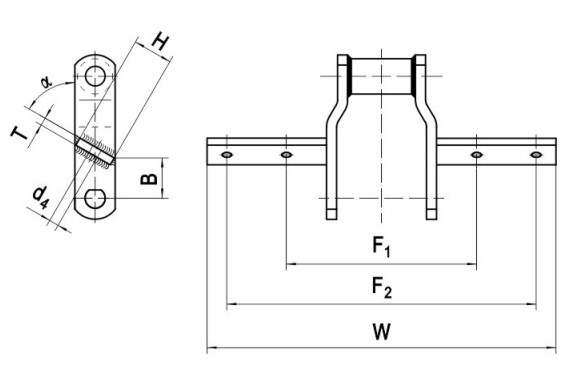

链号	H	T	F1	F2	W	d4	B	α
chain No.	mm	mm	mm	mm	mm	mm	mm	mm
WH78	28.4	8	115	205	245	10	15	60
WH82	31.8	8	120	210	250	10	15	60
WHX124	38.1	10	150	230	270	12	25	60
WHX111	44.5	10	170	270	320	12	25	60
WHX106	38.1	10	175	295	340	12	28	60
WHX132	50.8	12	200	300	350	14	28	60
WHX150	63.5	14	200	310	360	14	30	60
WHX155	63.5	14	210	330	380	14	30	60
WHX157	63.5	16	220	340	400	14	32	60
WHX159	76.2	16	225	355	415	16	35	60

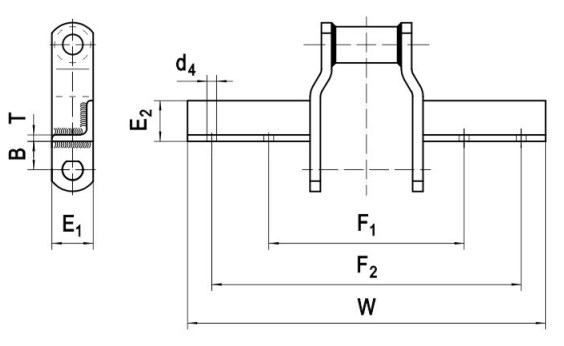

链号	E1	E2	T	F1	F2	W	d4	B
Chain No.	mm	mm	mm	mm	mm	mm	mm	mm
WHX124	38	38	6	150	230	270	12	25
WHX111	45	45	6	170	270	320	12	25
WHx106	38	38	8	175	295	340	12	30
WHX132	50	50	8	200	300	350	14	30
WHX150	63	63	8	200	310	360	14	32
WHX155	63	63	10	210	330	380	14	32
WHX157	63	63	12	220	340	400	14	35
WHX159	75	75	12	225	355	415	16	35

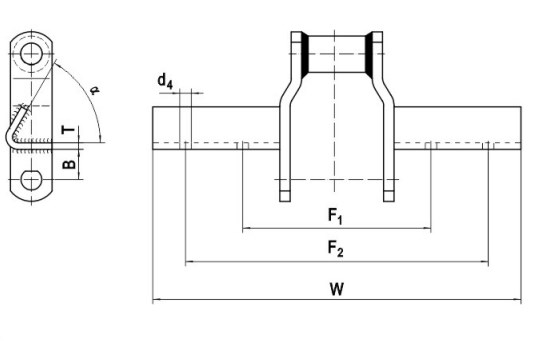

链号	T	F1	F2	W	d4	B	α
Chain No.	mm	mm	mm	mm	mm	mm	mm
WHX124	6	155	235	275	10	25	60
WHX111	6	180	280	330	10	25	60
WHX106	6	170	290	340	10	30	60
WHX132	10	230	350	400	12	30	60
WHX150	10	230	340	380	12	32	60
WHX155	10	240	360	410	12	32	60
WHX157	10	240	400	450	14	35	60
WHX159	12	245	445	500	14	35	60
