FANUC 0i-MF Plus System TN-350 35 KVA CNC High Speed Hobbing Machine for Sale

FANUC 0i-MF Plus System TN-350 35 KVA CNC High Speed Hobbing Machine for SaleProducts DescriptionThe TN-350 CNC high-speed hobbing machine is an advanced equipment designed for efficient and precise production of gears. With its high-speed cutting capability and CNC control system, it delivers super......

Send Inquiry

Product Description

FANUC 0i-MF Plus System TN-350 35 KVA CNC High Speed Hobbing Machine for Sale

Products Description

The TN-350 CNC high-speed hobbing machine is an advanced equipment designed for efficient and precise production of gears. With its high-speed cutting capability and CNC control system, it delivers superior gear quality and surface finish. It finds application in automotive, aerospace, power transmission, and machinery manufacturing industries.
Applicable scope Automotive, aerospace, power transmission, machinery manufacturing, and other industries requiring high-precision gears.

Workpiece

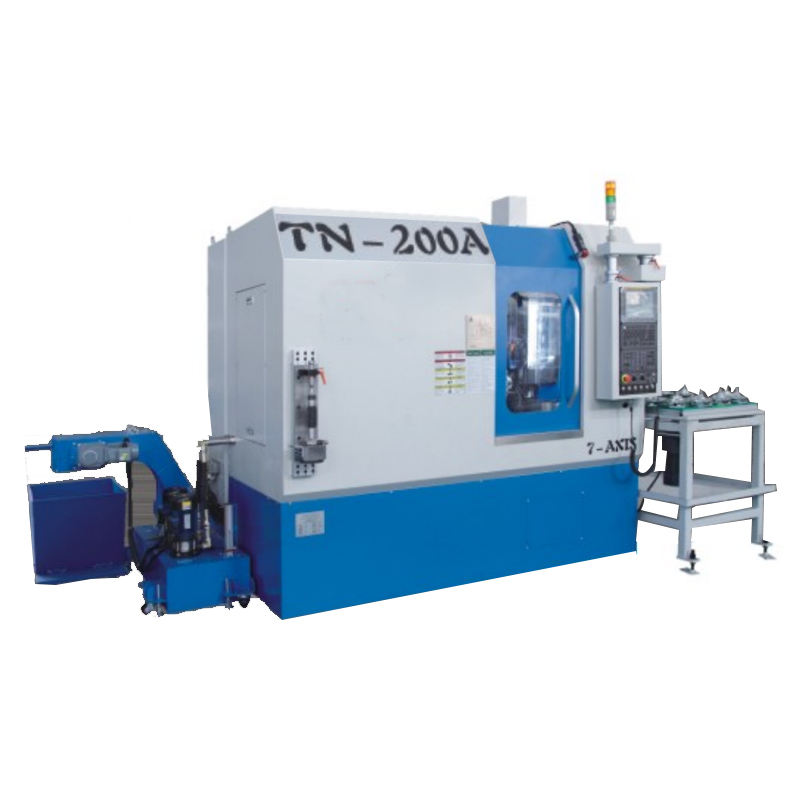

TN-200

TN-350

TN-500

Max. workpiece (OD.x Mod.)

Φ200mm xM6

Φ350mmxM8*4

Φ500mmxM14

Max.helix angel

±45°

±35°/-45°

Table diameter

Φ200mm

Φ260/Φ300mm*5

Φ450mm

Hob

Taper of spindle nose

BT#40

BT#50

Max.Hob Size (OD.X L)

Φ150mmx220mm

Φ200mmx240mm

Max. hob shift travel

180mm

240mm

Motion parameters

Hob spindle ( B axis)

Max.1000rpm

S1=358Nm S3=95.5Nm

Max.1000rpm

S1=35.8Nm S3-95.5Nm

Max.500rpm

S1=52.5Nm S3=118Nm

Table rotation ( C axis )

Max200rpm/300rpm6

Direct drive

900Nm/1000Nm6

Max.200rpm/300rpm

Direct drive

900Nm/1000Nm6

Max.100rpm

Direct drive

2000Nm

Radial Feed ( Xaxis )

Max.12000mm/min

250mm(35-285mm)

Max.12000mm/min

250mm(35-285mm)

Max.5000mm/min

310mm(90-400mm)

Tangential Feed ( Y axis )

Max2500mm/min

180mm(0-180mm)

Max.2500mm/min

180mm(0-180mm)

Max.1500mm/min

240mm(0-240mm)

Axial Feed(Zaxis)

Max.10000mm/min

240mm(150-390mm)

Max10000mm/min

250mm(150-400mm)

Max.3800mm/min

365mm(400-765mm)

Helix angel ( A axis )

Max.720deg/min

±45°

Max.720deg/min

±45°

Max.200deg/min

+35°/-45

Hyd. tailstock ( U axis)

Max.6000mm/min

300mm(340-640mm)

Max.6000mm/min

350mm(340-690mm)

Max.5000mm/min

380mm(250-630mm)

Machine specifications

Main Power

35KVA

40KVA

Control system

FANUC Oi-MF PIus

(L x W x H) Floor space

3950x3450x2750mm(including peripheral layout)

4500x3700x3050mm(including peripheral layout)

Weight ( Approx.)

9.5ton

10.0ton

14.0ton

*4. Non automated processing can process up to 350mm in size, while automated processing can process up to 260mm in size; *5. When placing an order, it is necessary to place it according to the demand; *6. Standard 900Nm Max.200rpm, optional for high-speed and high torque

The TN-350 CNC high-speed hobbing machine offers several advantages in gear manufacturing: 1. High-Speed Cutting: The machine is equipped with high-speed spindles and advanced tooling systems, enabling rapid cutting. This results in shorter cycle times, increased productivity, and reduced lead times. 2. Superior Accuracy: With its CNC control system, the TN-350 ensures precise control over cutting parameters, such as feed rate and depth of cut. This leads to exceptional gear accuracy, ensuring proper meshing and smooth operation. 3. Versatility: The machine can produce a wide range of gears, including spur gears, helical gears, worm gears, and splines. It is capable of hobbing complex gear geometries and performing additional machining operations in a single setup. 4. Excellent Surface Finish: The TN-350 delivers gears with a superior surface finish, meeting the requirements for smooth and quiet gear operation. This reduces friction, enhances efficiency, and extends the lifespan of the gears. 5. Efficiency and Cost-Effectiveness: The high-speed cutting capability of the machine reduces cycle times, increasing overall production efficiency. Additionally, the CNC control system optimizes material utilization, minimizing waste and lowering production costs. 6. Reliable Performance: The TN-350 is built with robust construction and incorporates high-quality components, ensuring long-term reliability and minimal downtime. This promotes continuous and uninterrupted gear production. 7. Industry Applications: The machine finds wide applicability in industries such as automotive, aerospace, power transmission, and machinery manufacturing. It caters to various gear requirements in these sectors, ranging from small precision gears to large gears for heavy-duty applications. In summary, the TN-350 CNC high-speed hobbing machine offers high-speed cutting, superior accuracy, versatility, excellent surface finish, efficiency, and reliable performance. These advantages make it a preferred choice for manufacturers seeking high-precision gears with enhanced productivity and cost-effectiveness.

CNC machines

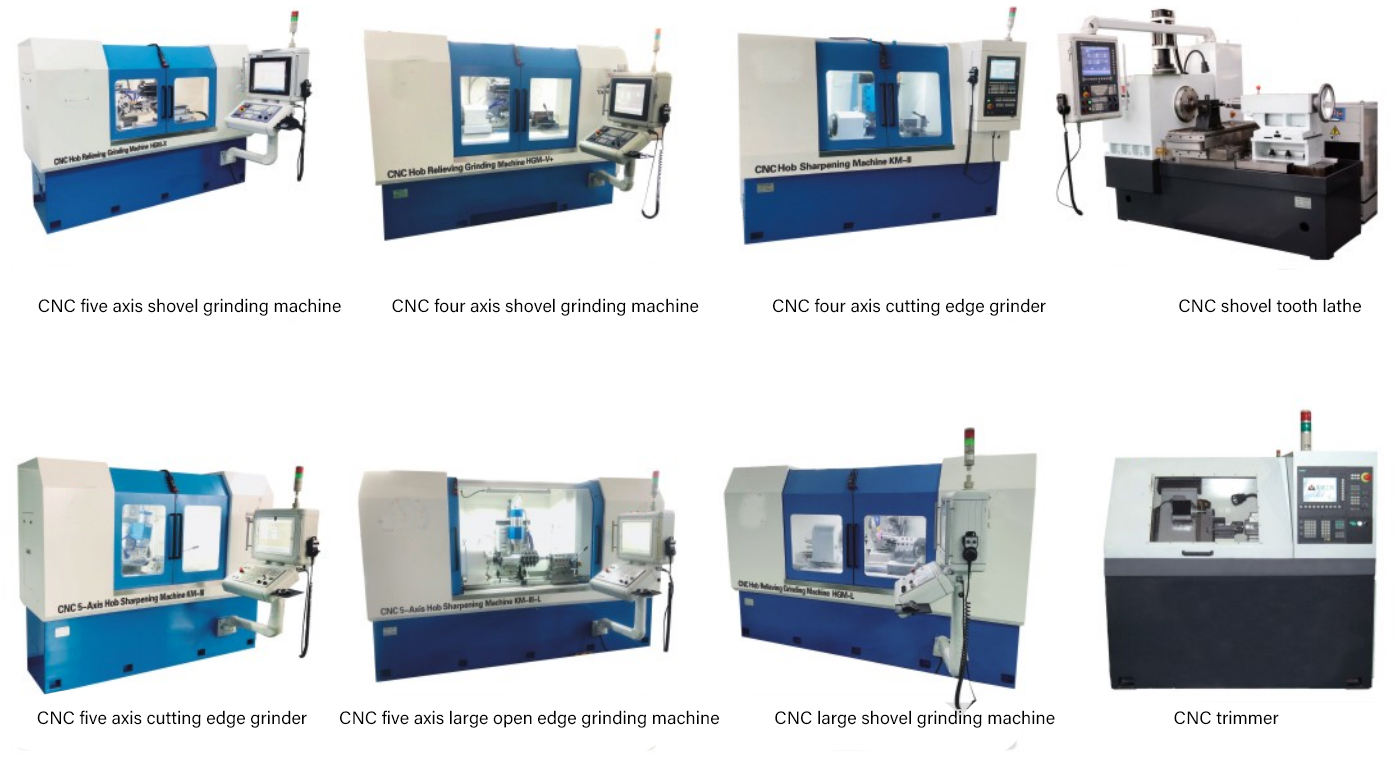

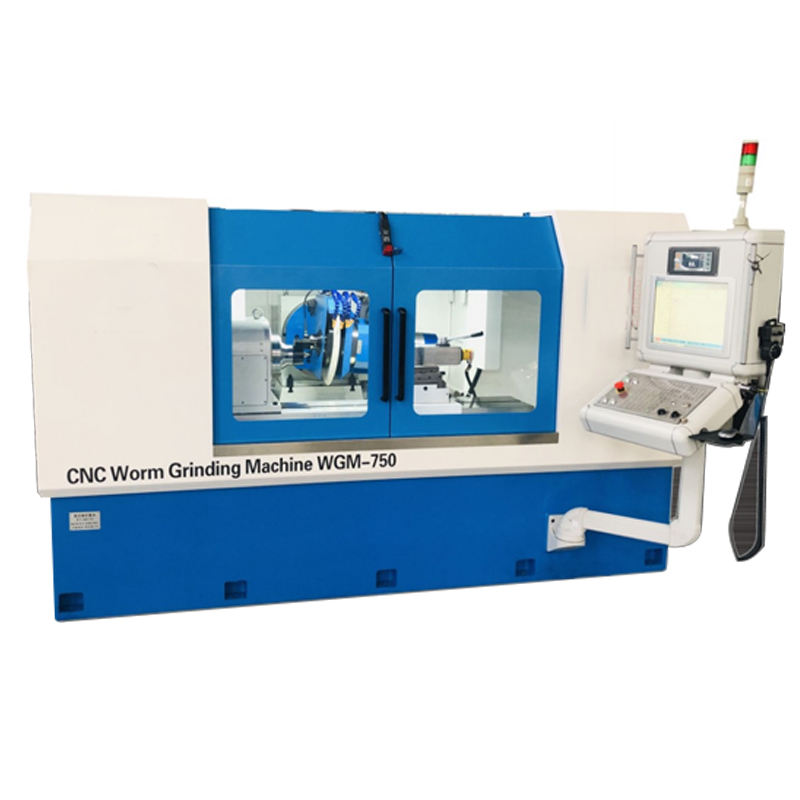

*CNC worm grinding machine *CNC forming gear grinding machine *CNC rolling cutter shovel grinding machine *CNC cutting edge grinder *CNC grinding wheel repair machine *CNC shovel tooth lathe *Fully CNC high-speed gear hobbing machine

Processing tools

*Measuring instruments *Production equipment *Gear hob *Insert gear hob *Gear hob *Worm gear hob *Involute spline hob *Triangular spline hob rectangular spline hob *Sprocket roller cutter *Circular arc gear hob *Synchronous belt roller cutter
