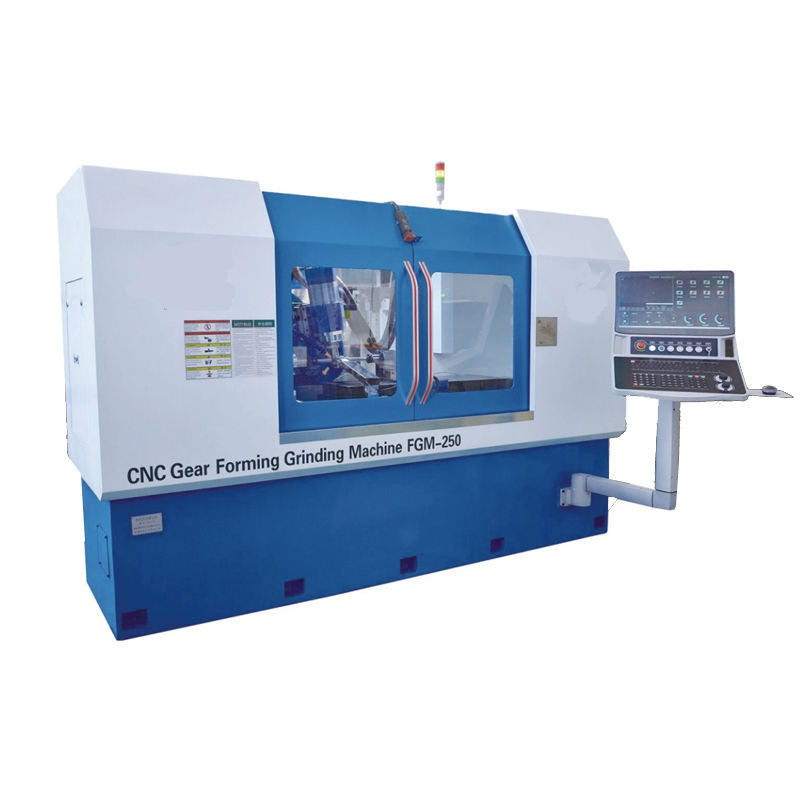

FGM-250 Gear Forming Grinding MachineProducts DescriptionThe CNC forming gear grinding machine adopts FANUC's system of five/six axis three linkage control; The gear grinding motion is completed by the linkage of a high rigidity and high torque torque torque motor (A-axis) and a linear motor (X-......
Send Inquiry
Product Description

FGM-250 Gear Forming Grinding Machine

Products Description
FGM-250 Gear Forming Grinding Machine

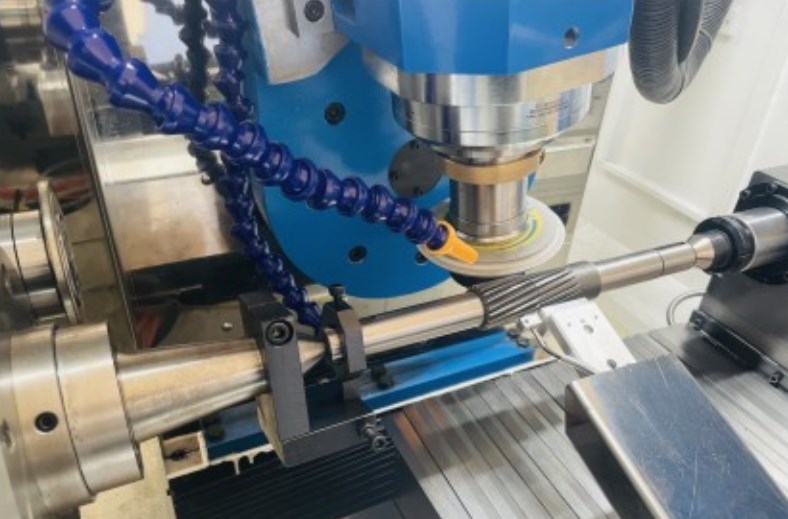

The CNC forming gear grinding machine adopts FANUC's system of five/six axis three linkage control; The gear grinding motion is completed by the linkage of a high rigidity and high torque torque torque motor (A-axis) and a linear motor (X-axis). The torque motor and linear motor simplify the transmission system, not only ensuring efficient forward and reverse continuous grinding, but also ensuring machining accuracy; The diamond roller can be adjusted online for various tooth profiles of the grinding wheel through dual direct drive linear axis (X-axis and Z-axis) interpolation combined with the self-developed GPM modification software. The grinding wheel spindle adopts a high-power and high torque electric spindle to ensure grinding efficiency and quality. This machine tool not only supports standard tooth profile machining, but also supports CAD tooth profile import function for special teeth.
Applicable scope Gear with fewer teeth, oil pump gear, high-precision shaft gear, and high-precision plug gauge, etc.




FGM-250
Center Height
240mm/130mm
Center Distance
700mm
Worm Diameter
Φ250mm
Maximum Effective Length
650mm
Maximum modulus
M0.5-M8
Heads
Any
Lead Angle
±45°
Max.Grind Depth
18mm
Accuracy
DIN3974 Teeth&Helix Level 5
Table Transverse Strokt
X=820mm
WheelLongitudinal Stroke
Z = 340mm
Grinding Spindle
18.5kw, Max.15000rpm
Max.Wheel
Φ250xΦ50x25mm
CNC System
FANUC Oi-MF PIus
Power
3AC 380V 50KVA
Main Machine Size
3000x2000x1900mm
Main Machine Weight
6000kg
Related Products
FGM-250 Gear Forming Grinding Machine

CNC machines

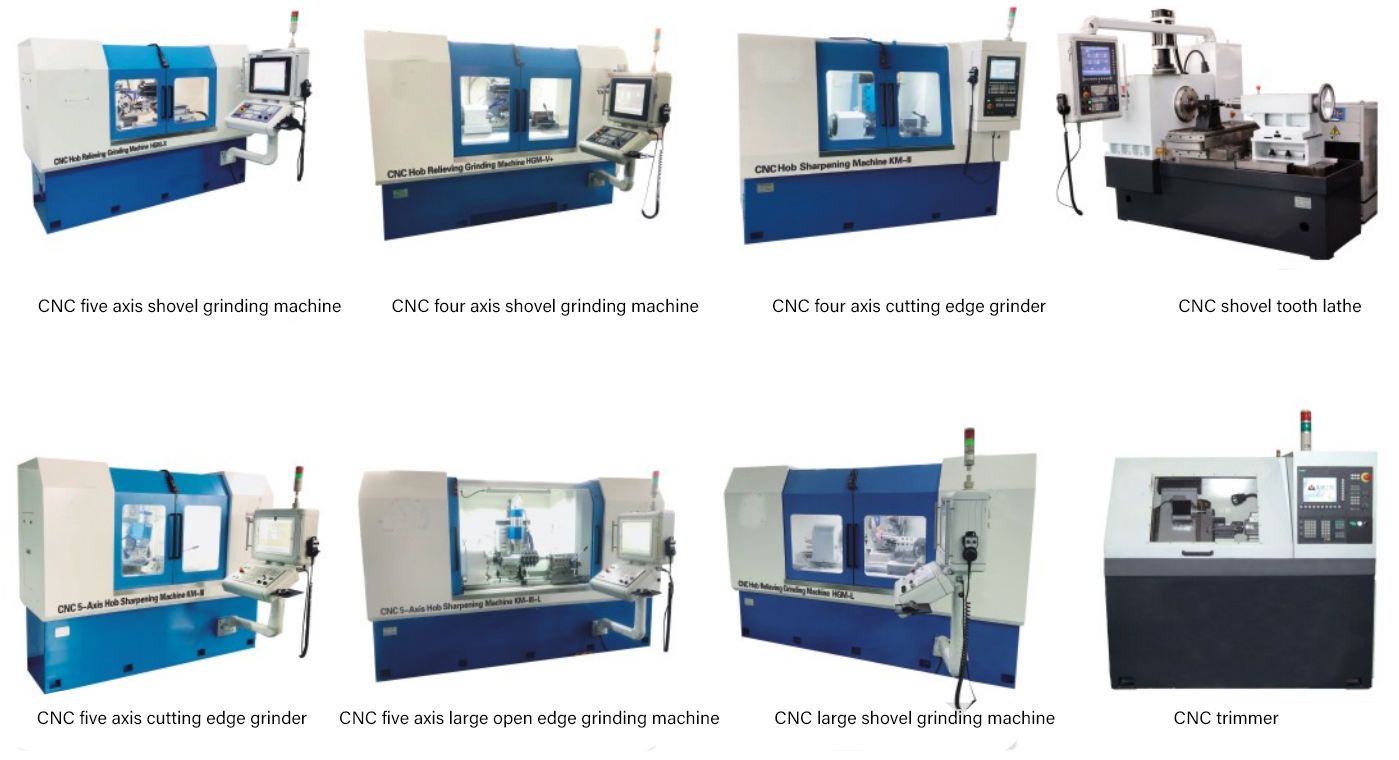

*CNC worm grinding machine *CNC forming gear grinding machine *CNC rolling cutter shovel grinding machine *CNC cutting edge grinder *CNC grinding wheel repair machine *CNC shovel tooth lathe *Fully CNC high-speed gear hobbing machine
