Product Description
Flow Amplifying S45 Series SCU Hydraulic Steering Control Unit for Heavy Engineering Vehicles

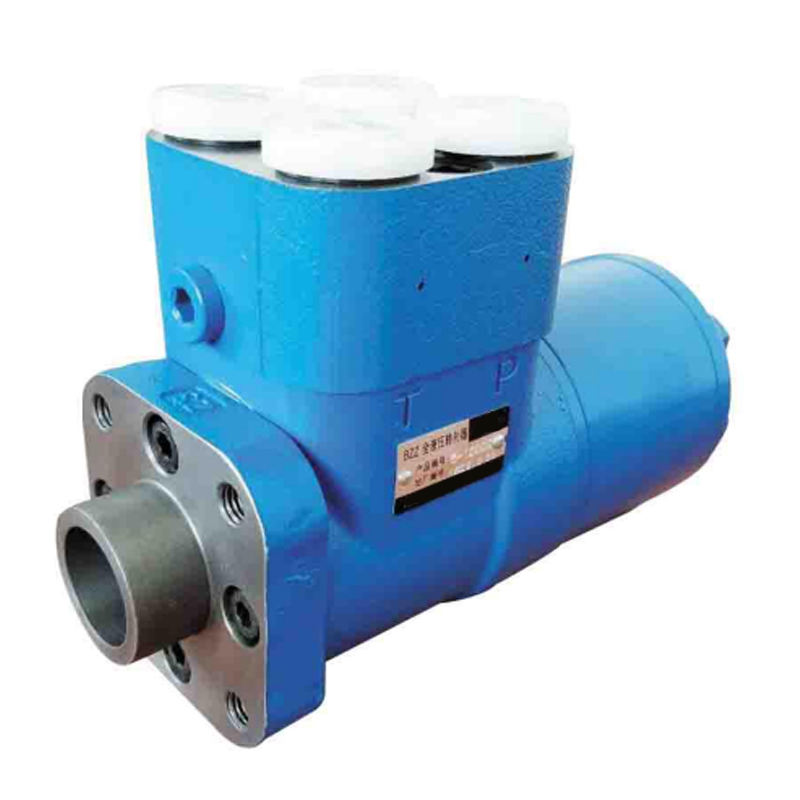

S45 Series Hydraulic Steering Control Unit
he S45 series hydraulic steering control unit is a flow amplification type hydraulic steering control unit.
When turning at low speed, the displacement is small and light; when turning quickly, it has a larger displacement.
Displacement is divided into: 630, 800, 1000, 1250 ml/r. Mainly used for large construction machinery.


---Optimized control rotary valve design, superior performance
---Low hydraulic noise
---Casting inner channel design, small pressure loss
---Three basic types: open core, closed core and load sensing
Main performance parameters
Maximum inlet pressure………………16MPa
Maximum continuous back pressure………………2.1MPa
input torque………………………………2.8-4.0Nm
Maximum system temperature………………93°C
Recommended Oil Cleanliness………ISO 18/13

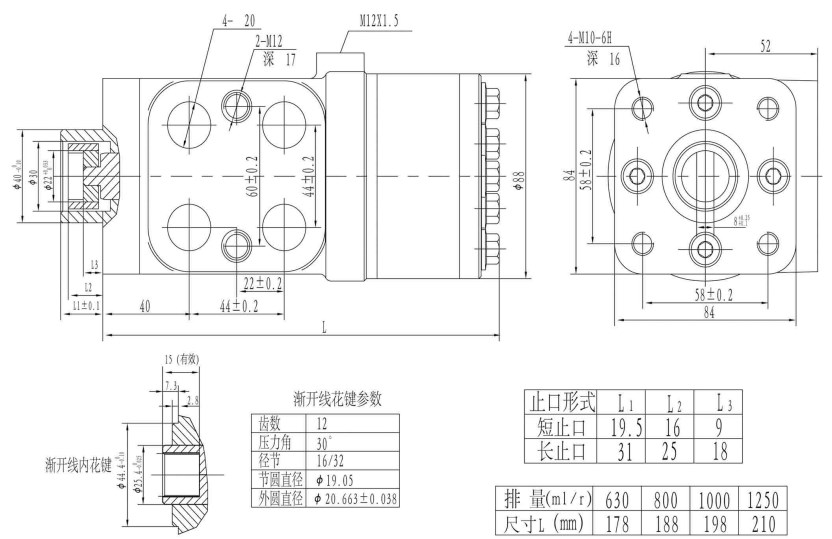

Specification
Flow Amplifying S45 Series SCU Hydraulic Steering Control Unit for Heavy Engineering Vehicles
Product Features
Displacement/No.
Type
Connection
Oil port
630
800
1000
1250
Static signal load sensing flow amplification
Short stop
4-M20X1.5 &M12X1.5
4-M10
2-M12
S40-5101
-5102
-5103
-5104
Long stop
S40-5201
-5202
-5203
-5204
Internal spline
S40-5301
-5302
-5303
-5304
Static signal load sensing flow amplification
Short stop
4-G1/2 &M12X1.5
4-M10
2-M12
S40-5111
-5112
-5113
-5114
Long stop
S40-5211
-5212
-5213
-5214
Internal spline
S40-5311
-5312
-5313
-5314
Dynamic Signal Load Sensing Flow Amplification
Short stop
4-3/4-16UNF ‘O’-ring
&7/16-20UNF ‘O’-ring
4-M10
2-M12
S40-7131
-7132
-7133
-7134
Long stop
S40-7231
-7232
-7233
-7234
Internal spline
S40-7331
-7332
-7333
-7334
Applications
The various products produced by the company can be widely used in mining construction engineering machinery, lifting and transportation equipment, heavy metallurgical machinery, stone. Oil and coal mining machinery, ship deck machinery, machine tools, light industry, plastic machinery, geological drilling equipment, agricultural and forestry machinery, minerals Machinery, construction equipment and work platforms, lawn mowers, special vehicles, fishing winches, machine tools, carpentry and sawmills, rubber In the hydraulic transmission system of various machinery such as machinery. Especially suitable for injection molding machine screw drive, lifting winch, drum drive, Driving of various slewing mechanisms and driving of crawler and wheel traveling mechanisms
Flow Amplifying S45 Series SCU Hydraulic Steering Control Unit for Heavy Engineering Vehicles
Flow Amplifying S45 Series SCU Hydraulic Steering Control Unit for Heavy Engineering Vehicles

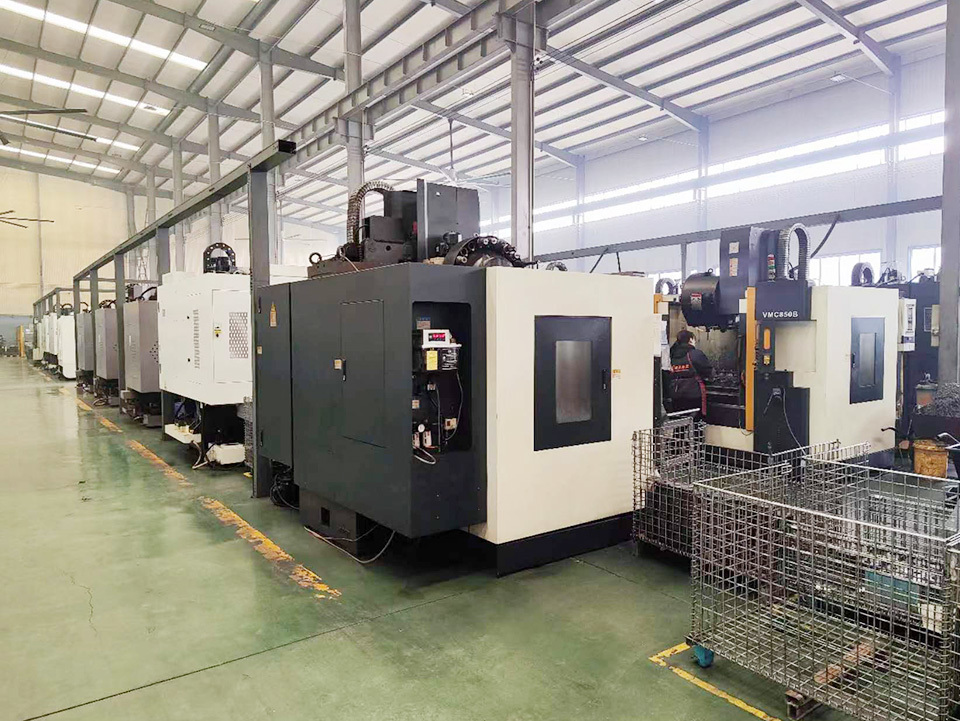

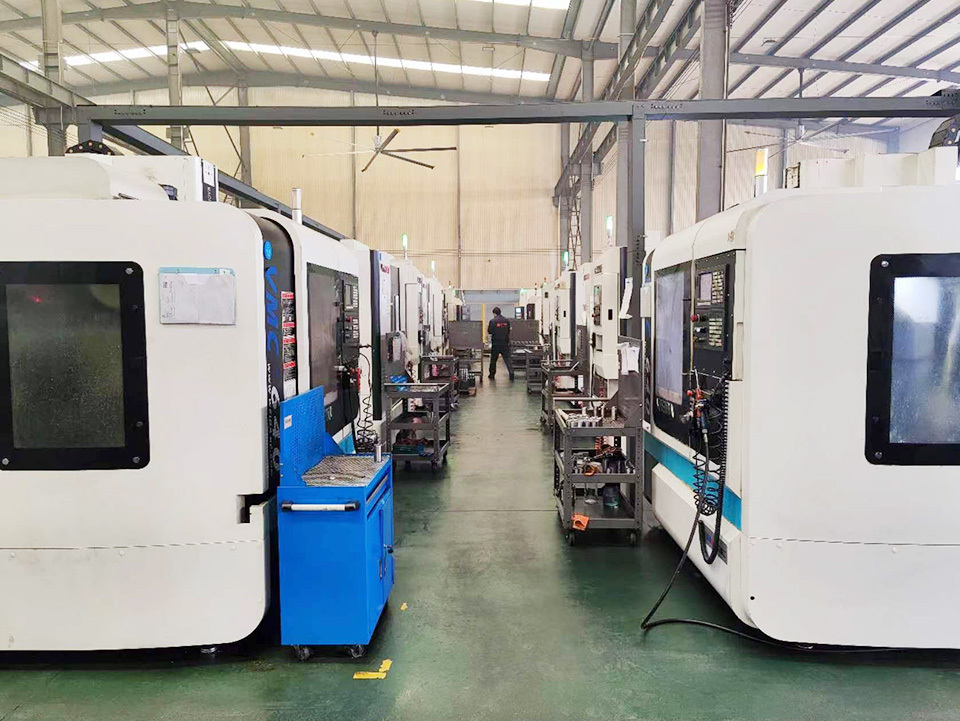

Company Profile
We are a company specializing in the production of BM series cycloidal hydraulic motors, BZZ fully hydraulic steering gears, FK combination valve blocks and other hydraulic components. Our products are widely used in engineering machinery, mining machinery, metallurgy machinery, petroleum machinery, agricultural machinery, injection molding machinery, Fishing machinery, engineering and other fields. Our company has multiple imported equipment and advanced production technology, dozens of high-quality engineering and technical personnel, and its own R&D team to ensure product quality with strong technical strength. We have a relatively complete product quality assurance system from employee recruitment, raw materials entering the factory, parts processing, assembly testing, to product delivery. The products are favored by domestic and foreign users for their high-end quality, affordable prices and thoughtful services. The company successfully passed the ISO9001:2008 quality management system certification in 2013.
