G Series G2 G4 G5 G6 G7 G8 G38 G42 G50 PTO Shaft Spline Tube

Product Description

Series	540 tr./min					1000 tr./min		MP(NM)
Series		Kw	Pk	Nm	Kw	Pk	Nm	MP(NM)
G2	15	21	270	23	31	220	450
G4	26	35	460	40	55	380	780
G5	35	47	620	54	74	520	1050
G6	47	64	830	74	100	710	1450
G7	55	75	970	87	118	830	1800
G8	70	95	1240	110	150	1050	2250
G38	78	105	1380	123	166	1175	2500
G42	79	107	1400	122	166	1175	2500
G50	119	162	2095	182	248	1740	3700

Reliable Tractor PTO Shaft Assemblies and Replacement Parts
At ever power, we have the parts and components you need to keep the PTO drive system in good condition. We also offer new components in various sizes to suit your application. Our inventory is large, including: Tractor PTO shaft: if you need complete assembly, we will provide you with guarantee. We have many choices PTO drive shafts designed in the United States and Italy have the length and spline configuration you need. CV PTO assembly: CV (constant speed) PTO shaft is suitable for most tractors and implements. These products balance the tractor power input and shaft output to provide higher stability when engaged. Cross and bearing kit: the cross and bearing assembly is the universal joint that forms the core of the PTO drive shaft system. This part is the power distribution point from the PTO assembly to the connected equipment. Half shaft assembly: we have a variety of 48 Inch and 60 inch weasler half shaft power take-off assemblies. The center and end length components of the shaft have square and rectangular design options. Other components: if the PTO shaft parts begin to show signs of wear, replacing individual components can save the cost of new components. We have many new protective devices and protective bearings, inner and outer tubes, yokes, pins and universal clutches.

Series	Cross	Joint simple			Splined yoke	Tube yoke			Tube
		Outer	Inner		Outer	Inner	Outer	Inner
	1	2	3	4	5	6	7	8
G2	2.01 (23.8*61.3)	2.0505B+2.01+2.06G	2.0505B+2.01+2.07G	2.0505B	2.06G	2.07G	50*2.5	G35-18
G4	4.01 (27*74.6)	4.0505B+4.01+4.06G	4.0505B+4.01+4.07G	3.0505B	4.06G	4.07G	50*2.5	G35-18
G5	5.01 (30.2*80)	5.0505B+5.01+5.06G	5.0505B+5.01+5.07G	5.0505B	5.06G	5.07G	60*3	G40-14
G6	6.01 (30.2*92)	6.0505B+6.01+6.06G	6.0505B+6.01+6.07G	6.0505B	6.06G	6.07G
G7	7.01 (30.2*106.5)	7.0505B+7.01+7.06G	7.0505B+7.01+7.07G	7.0505B	7.06G	7.07G
G8	8.01 (35*106.5)	8.0505B+8.01+8.06G	8.0505B+8.01+8.07G	8.0505B	8.06G	8.07G	65*3.5	G45-16
G38	38.01 (38*105.6)	38.0505B+38.01+38.06G	38.0505B+38.01+38.07G	38.0505B	38.06G	38.07G	65*3.5	G45-16
G42	2600 (42*104.5)	42.0505B+42.01+42.06G	42.0505B+42.01+42.07G	42.0505B	42.06G	42.07G	75*4	G55-20
G50	50.01 (50*118)	50.0505B+50.01+50.06G	50.0505B+50.01+50.07G	50.0505B	50.06G	50.07G	75*4	G55-20

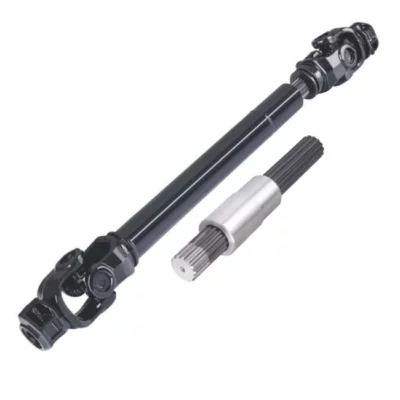

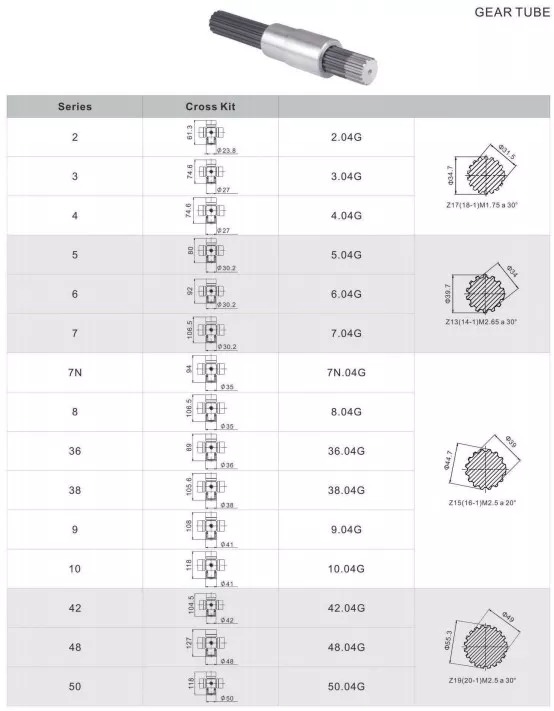

Spline tube

How to cut the power take-off shaft into proper size You can cut the PTO shaft to prevent it from touching the bottom, so that there will be no conflict between the tractor and the gearbox. Follow the following five steps to complete this process. 1. Find part number The first step in cutting the PTO shaft to adjust the size is to know the part number of the specification provided. Look at the label on the shaft and find yours. An example part number is 14006127. In this example, 1400 is the name of the complete shaft. Six means it is a Bondy LD axis. One is the serial number, and 27 is the inch measurement from one tip of the shaft to the other. 2. Connect the parts of the shaft to the tractor and gearbox To measure the cutting shaft, remove it, hang one tube and shield on the tractor, and connect the other to the gearbox. Make sure that both parts are straight in order to obtain the most accurate measurement. 3. Measure the distance between parts Next, measure the shortest distance between the tractor and the gearbox. Make sure to measure along a straight line to obtain an accurate reading. This measurement is the maximum compression length of the PTO shaft that the tractor can operate. 4. Determine how much to cut Using the optimal length of the PTO shaft obtained in step 3, calculate how many shafts need to be cut to work effectively. Take the measured value given in the last few digits of the part number and subtract the maximum allowable length from it. This calculation will provide you with the amount of cutting you need to match the shaft with the operation of the tractor. For example, if the maximum compression length of the tractor shaft is 23 inches, and you have a 27 inch shaft, you need to remove 4 inches to work properly. 5. Cut the shaft and shield to the correct length The last step is to cut the shaft to the correct length. Separate the shaft so that the outer shield and the inner tube can be accessed. You can cut materials with a hacksaw or reciprocating saw. If there are two tubes of equal length in the shaft, the two tubes and the two shields need to be cut to the appropriate length. If the tubes are not equal, only the longer part and shield can be shortened. Once you put your shaft back together, it should be right to shorten the length around it.

We Also Supply PTO Shafts:https://planetary-gearboxes.en.Raydafon.com/productgrouplist-823550845/PTO_Drive_Shaft.html?spm=a2700.shop_pl.98.14

Click here for more details！
