GAR...C GAR..ET 2RS Series Steel Joint Rod End with Left or Right Hand Female Thread GAR6C GAR30C

Raydafon Group's GAR...C GAR..ET 2RS Series Steel Joint Rod End ensures superior precision in mechanical applications, featuring durable steel construction, left or right hand female thread options like GAR6C and GAR30C, ideal for engineers and DIYers seeking reliable performance and enhanced control.

GAR...C GAR..ET 2RS Series Steel Joint Rod End with Left or Right Hand Female Thread GAR6C GAR30C

Product Description
GAR...C GAR..ET 2RS Series Steel Joint Rod End with Left or Right Hand Female Thread GAR6C GAR30C

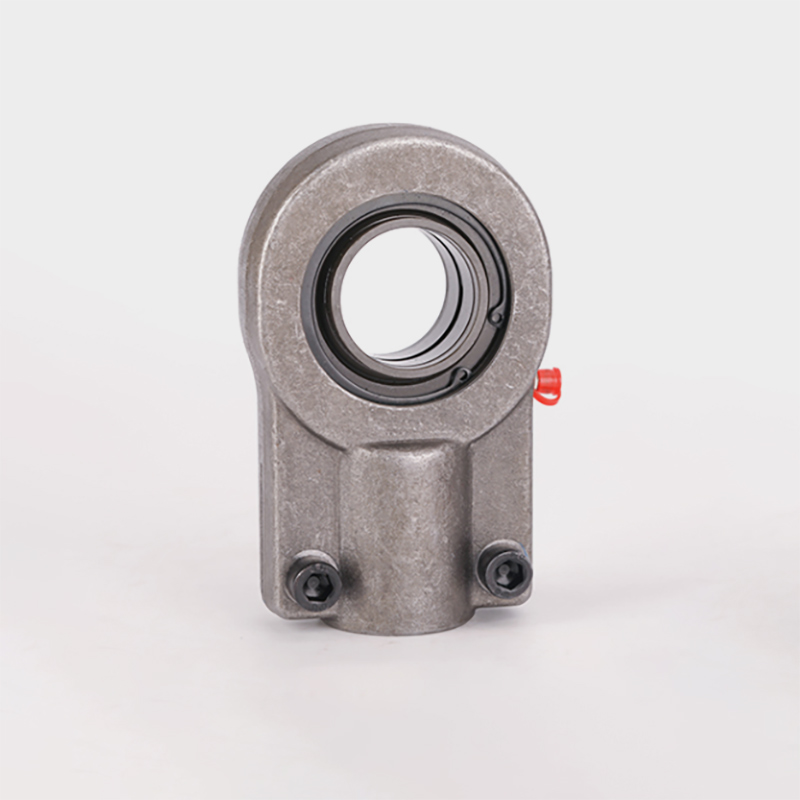

GIHN-K..LO Rod End Bearing
Maintenance required,with female thread and locking nuts
--Rod end housing with right or left-hand female thread
--It is made up of a radial spherical plain bearing GE..LO and rod end housing

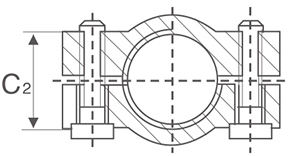

--With locking slot and nut
--Rod end housing with a lubricating hole or grease nipple

* Easy to use: easy to install and disassemble, the bearing can produce self-lubrication during work, no maintenance required
* Features: The rod end bearing is a spherical sliding bearing, which can rotate and swing at any angle during motion
* Applicable to instrumentation, construction machinery, mining and mineral processing, industrial fans, etc.

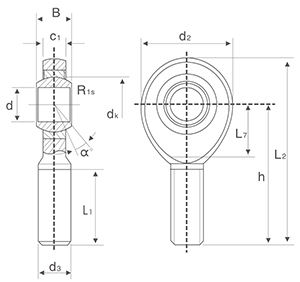

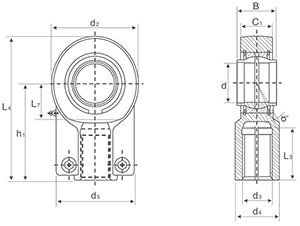

Specification
GAR...C GAR..ET 2RS Series Steel Joint Rod End with Left or Right Hand Female Thread GAR6C GAR30C
GAR...C GAR..ET 2RS Series Steel Joint Rod End with Left or Right Hand Female Thread GAR6C GAR30C
Part Number
Dimensions(mm)
Load ratings(KN)
Weight(g)
d
B
C1
d3
6g
dyn.c
stat.c0
GIHN-K 12LO*
12
12
11
M12x1.25
10.8
24.5
100
GIHN-K 16LO
16
16
14
M14x1.5
17.6
36.5
200
GIHN-K 20LO
20
20
17
M16x1.5
30
48
400
GIHN-K 25LO
25
25
22
M20x1.5
48
78
660
GIHN-K 32LO
32
32
28
M27x2.0
67
114
1200
GIHN-K 40LO
40
40
33
M33x2.0
100
204
2100
GIHN-K 50LO
50
50
41
M42x2.0
156
310
4400
GIHN-K 63LO
63
63
53
M48x2.0
255
430
7600
GIHN-K 70LO
70
70
57
M56x2.0
315
540
9500
GIHN-K 80LO
80
80
66
M64x3.0
400
695
14500
GIHN-K 90LO
90
90
72
M72x3.0
490
750
17000
GIHN-K 100LO
100
100
84
M80x3.0
610
1060
28000
GIHN-K 110LO
110
110
88
M90x3.0
655
1200
32000
GIHN-K 125LO
125
125
102
M100x3.0
950
1430
43000

GAR...C GAR..ET 2RS Series Steel Joint Rod End with Left or Right Hand Female Thread GAR6C GAR30C
GAR...C GAR..ET 2RS Series Steel Joint Rod End with Left or Right Hand Female Thread GAR6C GAR30C
Company Profile
GAR...C GAR..ET 2RS Series Steel Joint Rod End with Left or Right Hand Female Thread GAR6C GAR30C
Raydafon Bearing Industry Co., Ltd. was established in 2003. It is a joint-stock company integrating R&D, manufacturing and import and export trade. The company's main products are rod ends, radial spherical bearings, linear bearings, linear slides, needle rollers, ball screws and linear guide mechanical parts. We not only design and produce various standard bearings, but also customize various non-standard bearings according to customer needs.
