Guaranteed Quality TN-100 30 KVA CNC High Speed Hobbing Machine With FANUC Oi-MF Plus System

Products Description

A CNC high-speed hobbing machine is a type of machine tool used for the production of gears through the process of hobbing.
Hobbing is a gear cutting process that involves using a specialized cutting tool called a hob to generate the gear teeth.
Applicable scope CNC high-speed hobbing machines, in general, find application in various industries that require the production of gears.

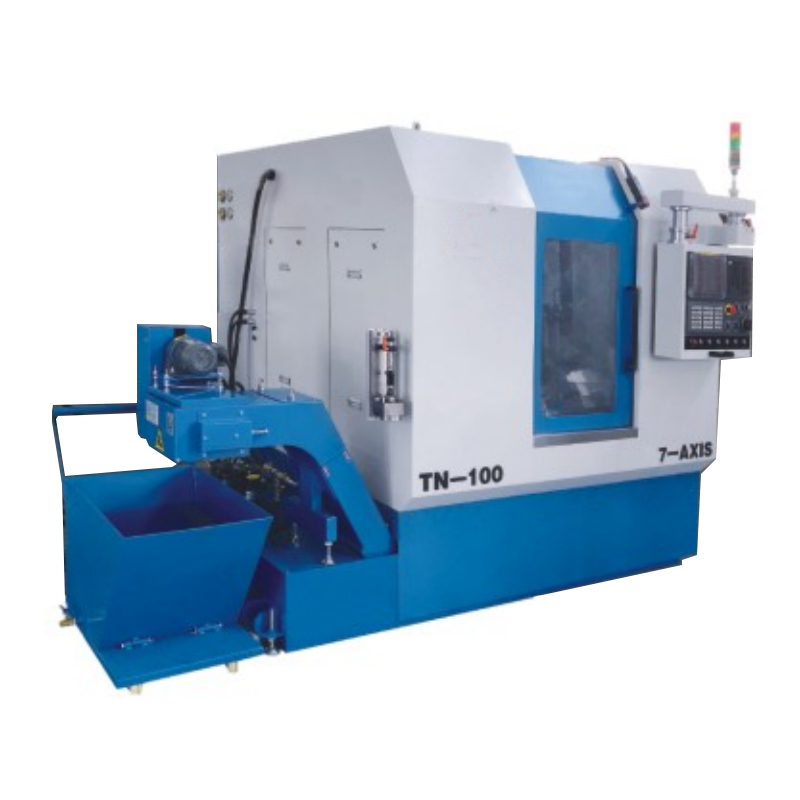

Workpiece	TN-100			TN-150
Max. workpiece (OD.x Mod.)	Φ100mm xM3		Φ150mm xM4
Max.helix angel	+65°1-90°		±45°
Table diameter	Φ90mm		Φ150mm
Hob
Taper of spindle nose	BT#30		BT#40
Max.Hob Size (OD.X L)	Φ65mm x 100mm“1		Φ120mm x200mm
Max. hob shift travel	100mm		180mm
Motion parameters
Hob spindle ( B axis)	4000rpm/6000rpm*2	S1=22Nm S3-54Nm	2500rpm	S1=115Nm S3=143Nm
Table rotation ( C axis )	1000rpm/2000rpm*3	Direct drive 60Nm	600rpm	Direct drive 600Nm
Radial Feed ( Xaxis )	Max.6500mm/min	80mm (15-95mm)	Max.12000mm/min	180mm(15-195mm)
Tangential Feed ( Y axis )	Max.3000mm/min	100mm (50-150mm)	Max.4000mm/min	180mm(0-180mm)
Axial Feed(Zaxis)	Max.10000mm/min	300(80-380mm)	Max.12000mm/min	235mm(1650-400mm)
Helix angel ( A axis ]	Max.720deg/min	+65°1-90	Max.720deg/min	±45°
Hyd. tailstock ( U axis)	Max.10000mm/min	250(130-380)	Max.6000mm/min	250(130-380)
Machine specifications
Main Power	30KVA		30KVA
Control system	FANUC Oi-MF PIus		FANUC Oi-MF PIus
(L x W x H) Floor space	3970x2760x2380mm (including peripheral layout)		3600x 3200 x2480mm (including peripheral layout)
Weight ( Approx.)	5.0ton		8.0ton

*1. The outer diameter of the milling cutter can reach up to 100mm *2. 6000rpm is an optional version *3. 4000rpm is an optional version

CNC machines

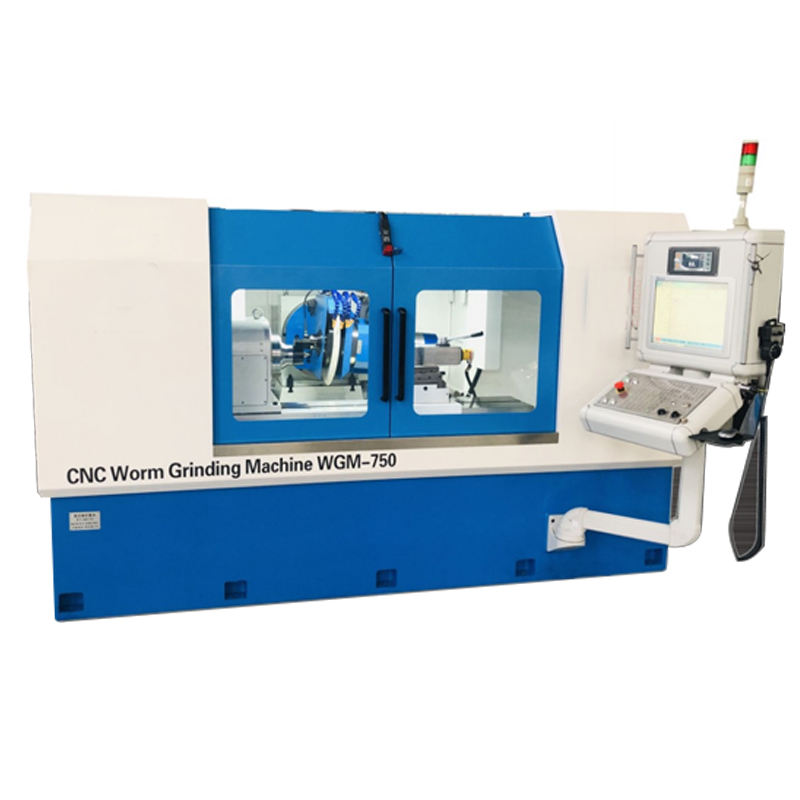

*CNC worm grinding machine *CNC forming gear grinding machine *CNC rolling cutter shovel grinding machine *CNC cutting edge grinder *CNC grinding wheel repair machine *CNC shovel tooth lathe *Fully CNC high-speed gear hobbing machine

Processing tools

*Measuring instruments *Production equipment *Gear hob *Insert gear hob *Gear hob *Worm gear hob *Involute spline hob *Triangular spline hob rectangular spline hob *Sprocket roller cutter *Circular arc gear hob *Synchronous belt roller cutter
