HGH-CA HGH-HA Series Linear Guideway Guide Rail for CNC Machine Tool Lathe

Products Description

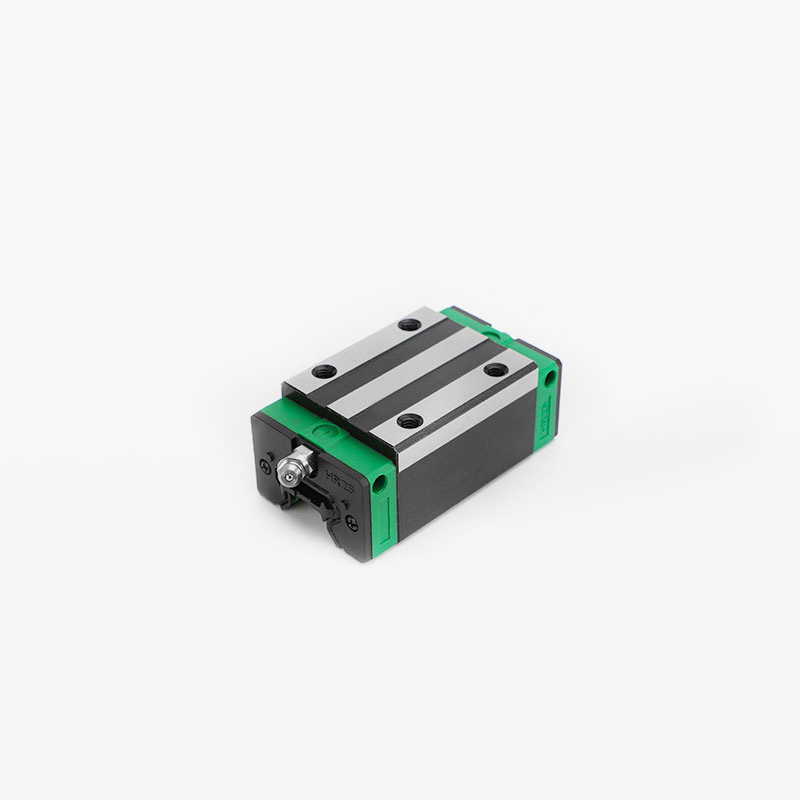

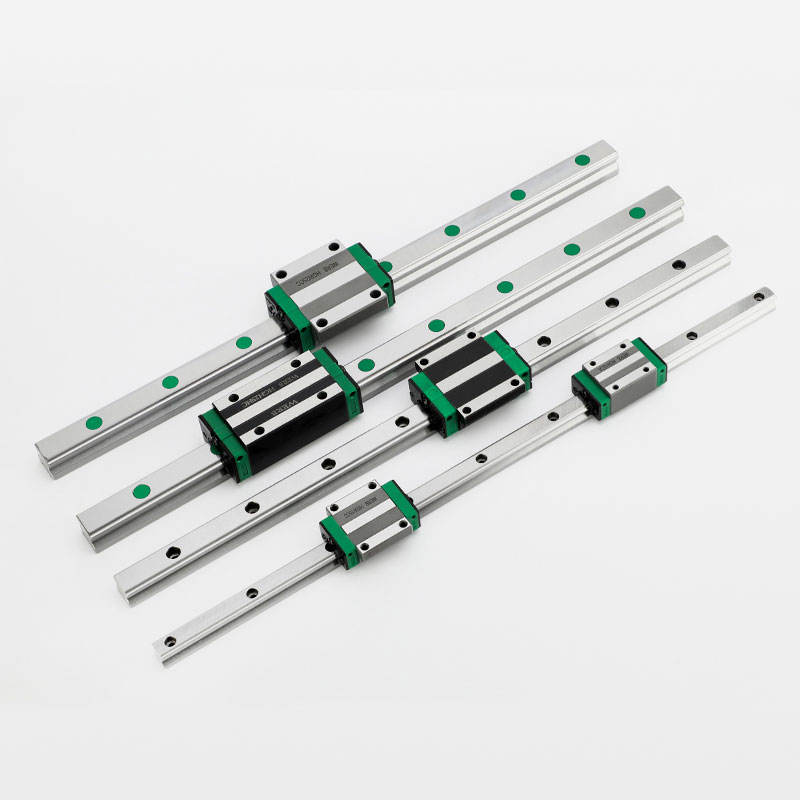

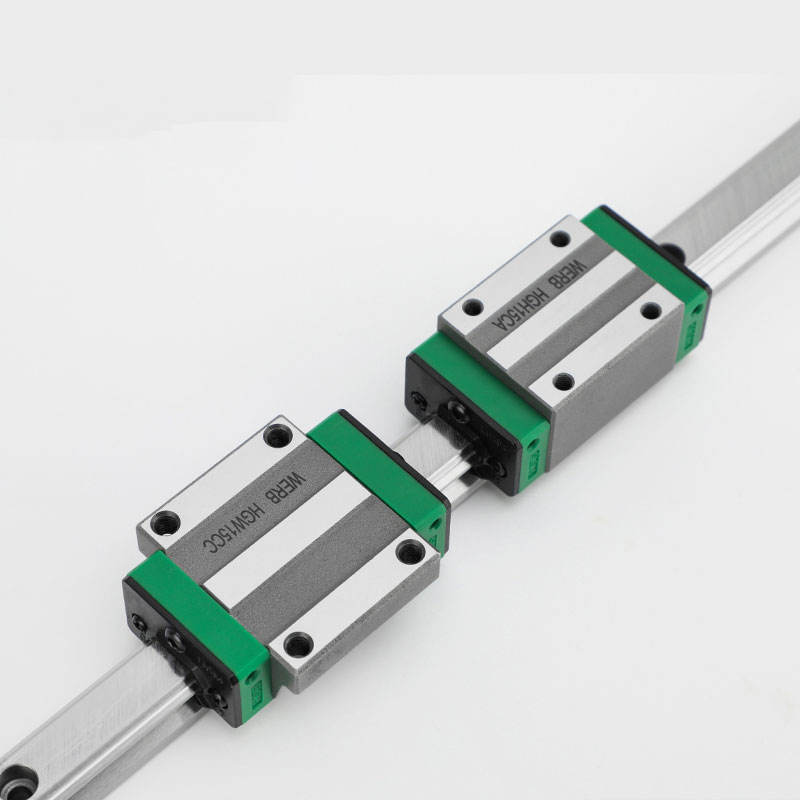

HGH-CA/HGH-HA Linear Guideway

Linear Guideway is a high-precision linear motion system widely used in various industrial equipment that requires precise linear motion. It achieves low friction and high load-bearing capacity by rolling balls or rollers between the guide rail and slider, ensuring smooth and accurate linear motion.

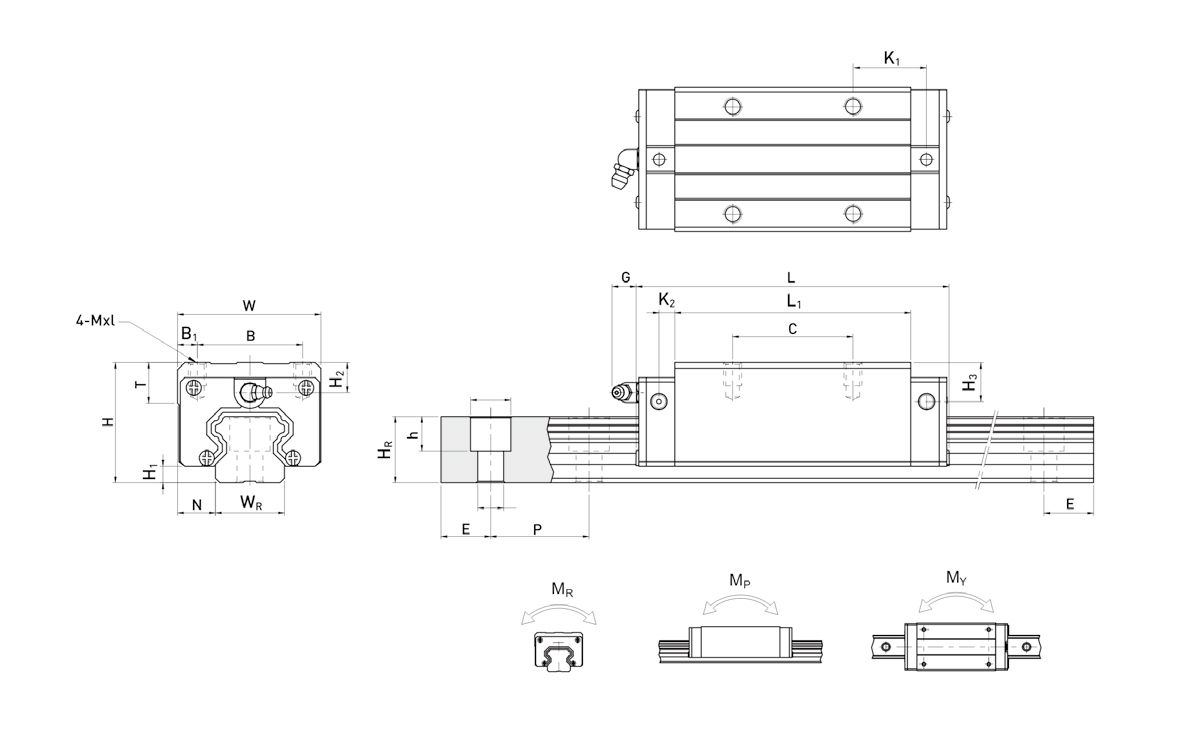

Model No.	Dimensions of					mounting	Basic	Basic	Weight
		Assembly (mm)					Bolt for	Dynamic			Static
							Rail	Load			Load
								Rating			Rating
		H	H1	N	(mm)	C(kN)	CO(kN)	Block	Rail
		H	H1	N	(mm)	C(kN)	CO(kN)						kg	kg/m
HGH15CA	28	4.3	9.5	M4x16	11.38	16.97	0.18	1.45
HGH20CA	30	4.6	12	M5x16	17.75	27.76	0.3	2.21
HGH20HA	30	4.6	12	M5x16				2.21		21.18	35.9	0.39
HGH25CA	40	5.5	12.5	M6x20	26.48	36.49	0.51	3.21
HGH25HA	40	5.5	12.5	M6x20				3.21		32.75	49.44	0.69
HGH30CA	45	6	16	M8x25	38.74	52.19	0.88	4.47
HGH30HA	45	6	16	M8x25				4.47		42.27	69.16	1.16
HGH35CA	55	7.5	18	M8x25	49.52	69.16	1.45	6.3
HGH35HA	55	7.5	18	M8x25				6.3		60.21	91.63	1.92
HGH45CA	70	9.5	20.5	M12x35	77.57	102.71	2.73	10.41
HGH45HA	70	9.5	20.5	M12x35				10.41		94.54	136.46	3.61
HGH55CA	80	13	23.5	M14x45	114.44	148.33	4.17	15.08
HGH55HA	80	13	23.5	M14x45				15.08		139.35	196.2	5.49
HGH65CA	90	15	31.5	M16x50	163.63	215.33	7	21.18
HGH65HA	90	15	31.5	M16x50				21.18		208.36	303.13	9.82
Note: 1kgf=9.81N

Basic structure of GGB series

Application

Application area

Linear Guideway is widely used in multiple industries, including but not limited to: ---Machine tools: CNC machine tools, machining centers, etc., ensure precise positioning of cutting tools and workpieces. ---Automation equipment: robot arms, conveyor systems, etc., providing stable linear motion. ---Electronic manufacturing industry: semiconductor production equipment, SMT surface mount machines, etc., ensuring high-precision assembly and testing. ---Medical devices: imaging diagnostic equipment, surgical robots, etc., achieve precise movement control. --Packaging machinery: packing machines, palletizing machines, etc., to improve production efficiency and product quality.
