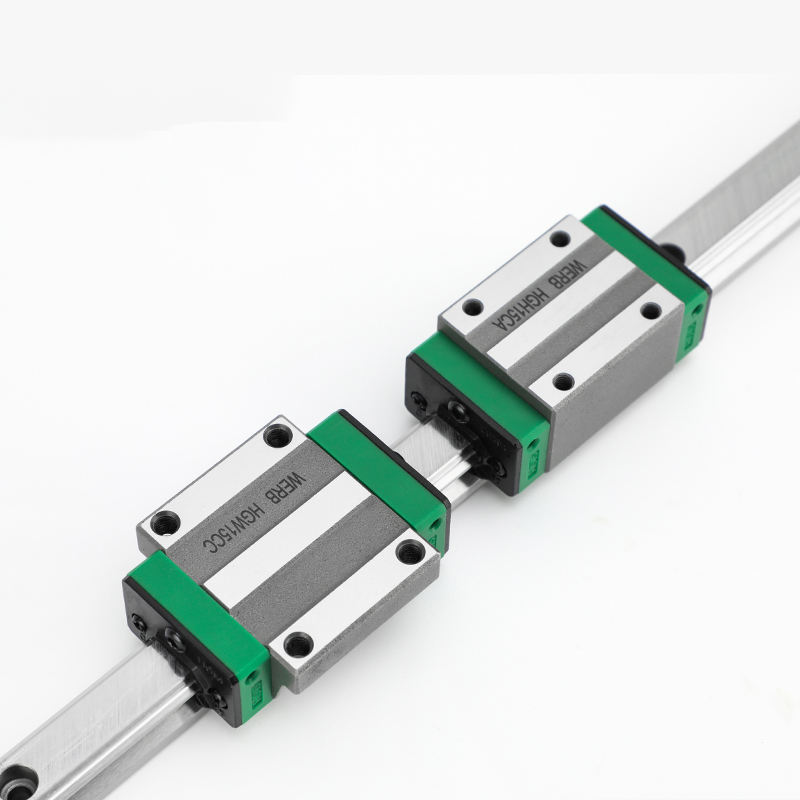

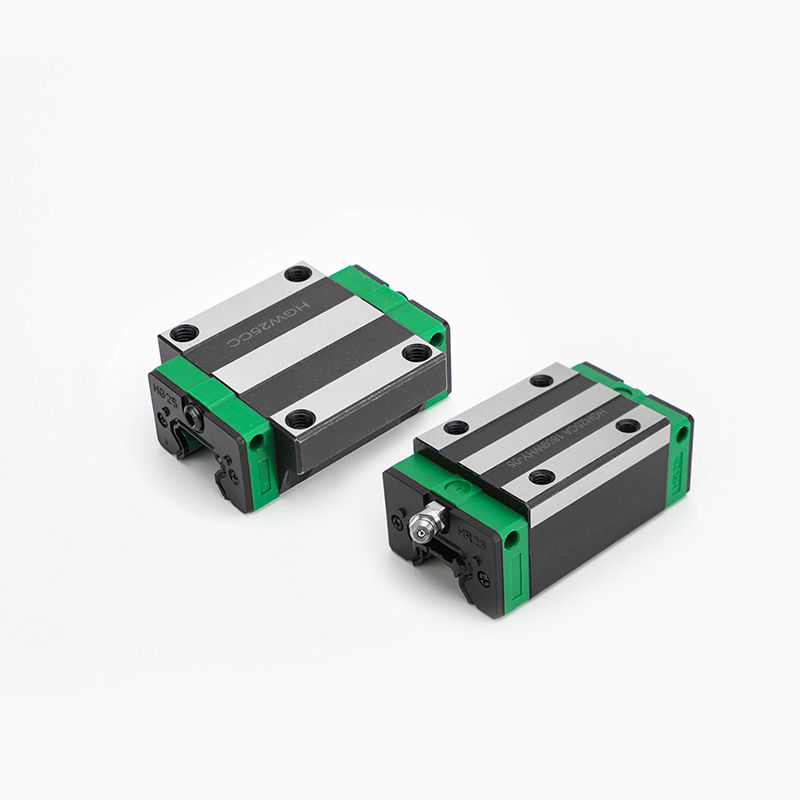

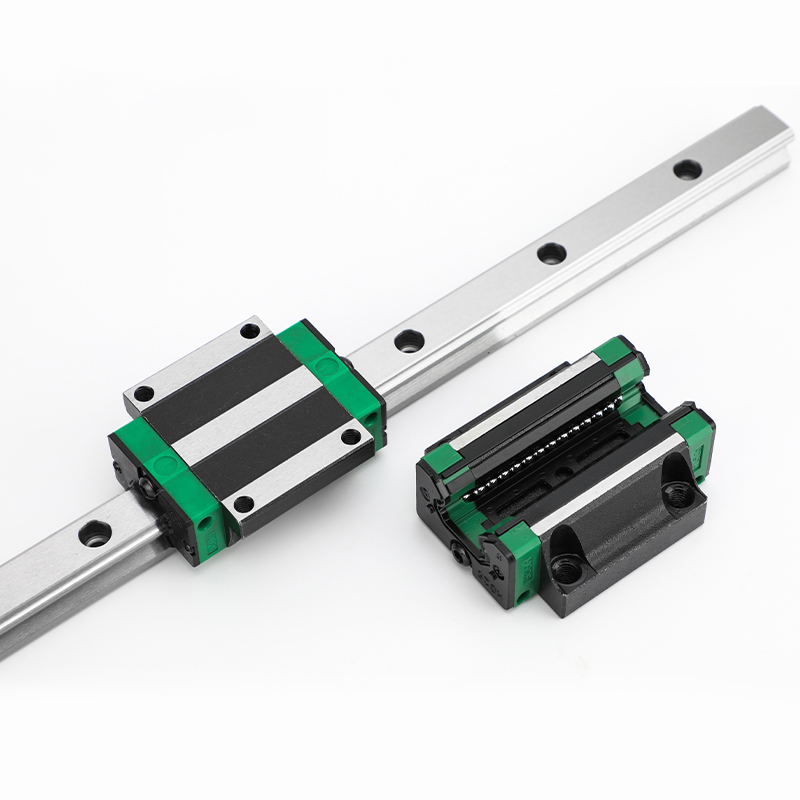

HGW-CC HGW-HC Series Guide Rail Linear Guideway for CNC Machine Tool Lathe

Products Description

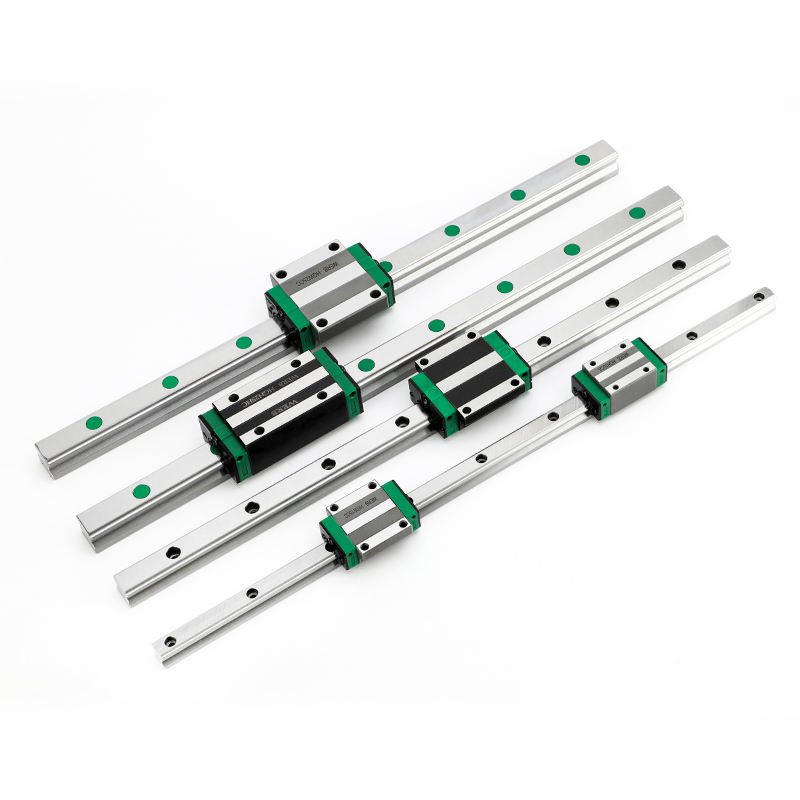

HGW-CC HGW-HC Linear Guideway

Linear Guideway is a high-precision linear motion system widely used in various industrial equipment that requires precise linear motion. It achieves low friction and high load-bearing capacity by rolling balls or rollers between the guide rail and slider, ensuring smooth and accurate linear motion.

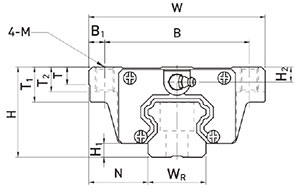

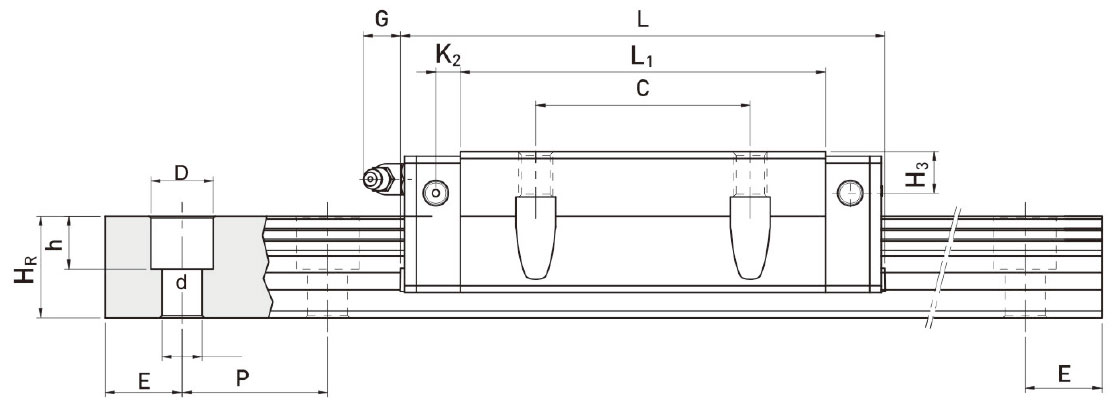

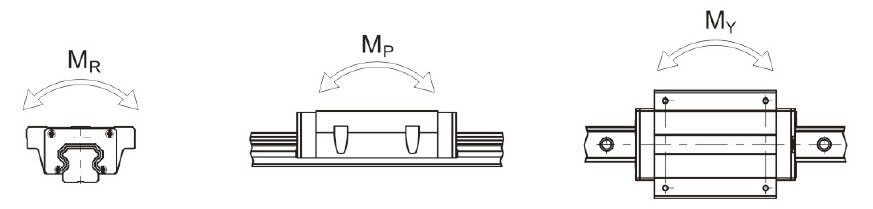

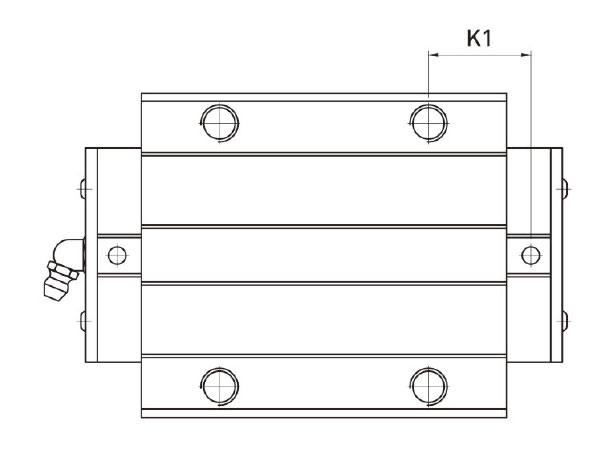

Model No.	Dimensions of					Mounting	Basic Dynamic	Basic Static	Weight
		Assombly( mm )					Bolt for Rail	Load Rating	Load Rating	Block	Rail
		H	H1	N	( mm )	C(kN)	CO(kN)	kg	kg/m
HGW15CC	24	4.3	16	M4x16	11.38	16.97	0.17	1.45
HGW20CC	30	4.6	21.5	M5x16	17.75	27.76	0.4	2.21
HGW20HC	30	4.6	21.5	M5x16				2.21		21.18	35.9	0.52
HGW25CC	36	5.5	23.5	M6x20	26.48	36.49	0.59	3.21
HGW25HC	36	5.5	23.5	M6x20				3.21		32.75	49.44	0.8
HGW30CC	42	6	31	M8x25	38.74	52.19	1.09	4.47
HGW30HC	42	6	31	M8x25				4.47		47.27	69.16	1.44
HGW35CC	48	7.5	33	M8x25	49.52	69.16	1.56	6.3
HGW35HC	48	7.5	33	M8x25				6.3		60.21	91.63	2.06
HGW45CC	60	9.5	37.5	M12x35	77.57	102.71	2.79	10.41
HGW45HC	60	9.5	37.5	M12x35				10.41		94.54	136.46	3.69
HGW55CC	70	13	43.5	M14x45	114.44	148.33	4.52	15.08
HGW55HC	70	13	43.5	M14x45				15.08		139.35	196.2	5.96
HGW65CC	90	15	53.5	M16x50	163.63	215.33	9.17	21.18
HGW65HC	90	15	53.5	M16x50				21.18		208.36	303.13	12.89

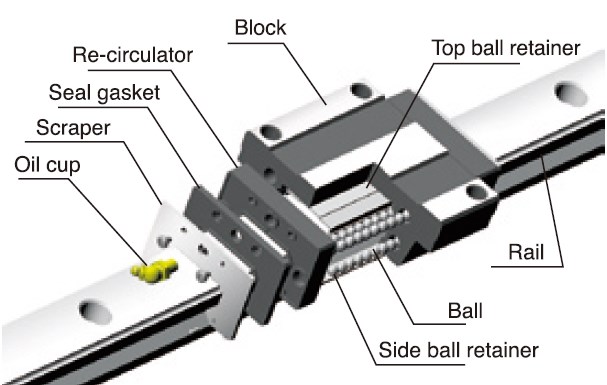

Basic structure of GGB series

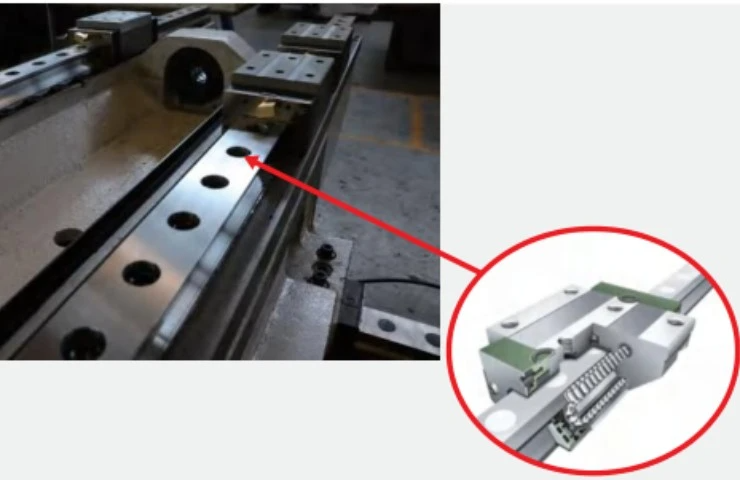

Application

Application area

Linear Guideway is widely used in multiple industries, including but not limited to: ---Machine tools: CNC machine tools, machining centers, etc., ensure precise positioning of cutting tools and workpieces. ---Automation equipment: robot arms, conveyor systems, etc., providing stable linear motion. ---Electronic manufacturing industry: semiconductor production equipment, SMT surface mount machines, etc., ensuring high-precision assembly and testing. ---Medical devices: imaging diagnostic equipment, surgical robots, etc., achieve precise movement control. --Packaging machinery: packing machines, palletizing machines, etc., to improve production efficiency and product quality.
