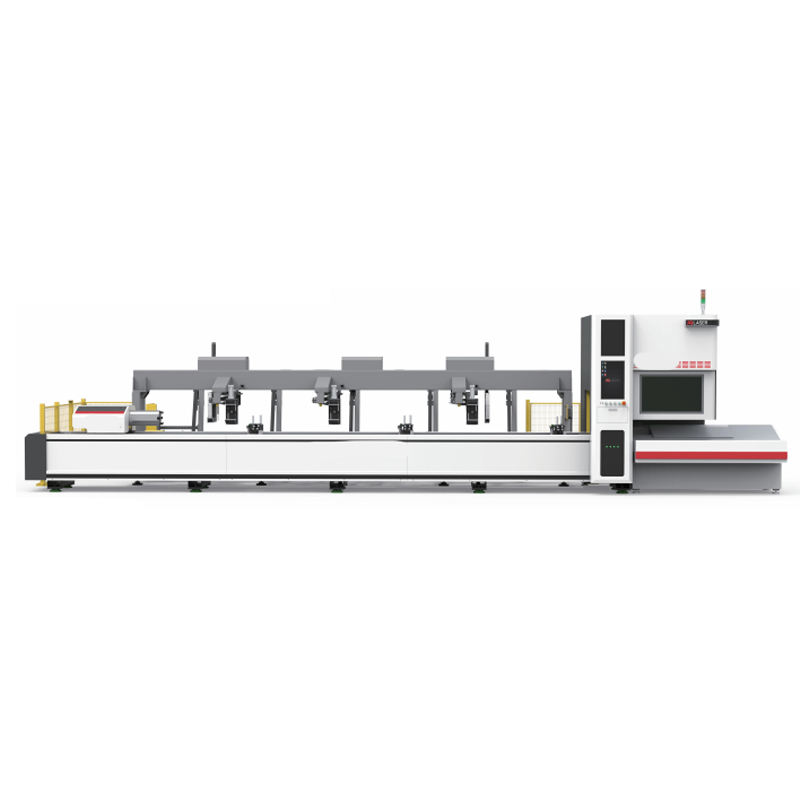

High Precision Big Diameter Hollow square Tube Cutting Machine 6000w Three-chuck Laser Pipe Cutting Machine

High Precision Big Diameter Hollow square Tube Cutting Machine 6000w Three-chuck Laser Pipe Cutting MachineProduct DescriptionAdvantage:* Three chucks mutual shift for fine cutting. * Servo follow-up receving device. * The universal loading device.* Side extraction and sinking combined three-dimens......

High Precision Big Diameter Hollow square Tube Cutting Machine 6000w Three-chuck Laser Pipe Cutting Machine

Product Description
Advantage:
* Three chucks mutual shift for fine cutting. * Servo follow-up receving device. * The universal loading device.
* Side extraction and sinking combined three-dimensional extraction design, with stronger smoke extraction and slag extraction
ability;
* Universal modular design, which can be quickly upgraded according to different scenarios, different pipe diameters, and
different blanking lengths to maximize customer needs;
High Precision Big Diameter Hollow square Tube Cutting Machine 6000w Three-chuck Laser Pipe Cutting Machine
Product Paramenters
NO.
Item
Parameter
Unit
1
Maximum cut pipe length
0~6000 (more than 2.8m need to customize the front joint)
mm
2
Cut pipe diameter
15~350(external circle of workpiece
mm
3
Minimum tail material
≥0 (related to workpiece length and actual cutting)
mm
4
X, Y, Z axis positioning accuracy
±0.05/1000mm
mm
5
X, Y, Z axis repeat positioning accuracy
±0.03/1000mm
mm
6
Acceleration speed
1g
m/s²
7
Max. running speed
75
m/min
8
Maximum load weight
250
kg
9
Max. speed of chuck
120
rpm
10
Weight of loading machine
Approx. 6500
Kg
11
Main machine shape (length, width and height)
Approx. 12435×1940×2400
mm
12
Laser power
3000w/4000w/6000w
w
13
Control system
Pachu 5000A
15
Power supply requirements
380v/50Hz±10%

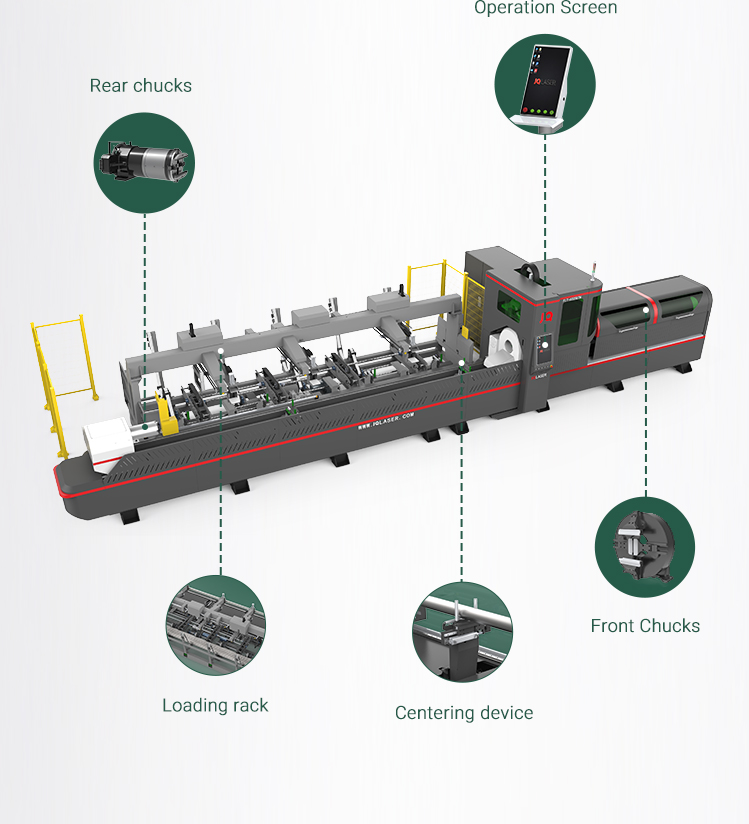

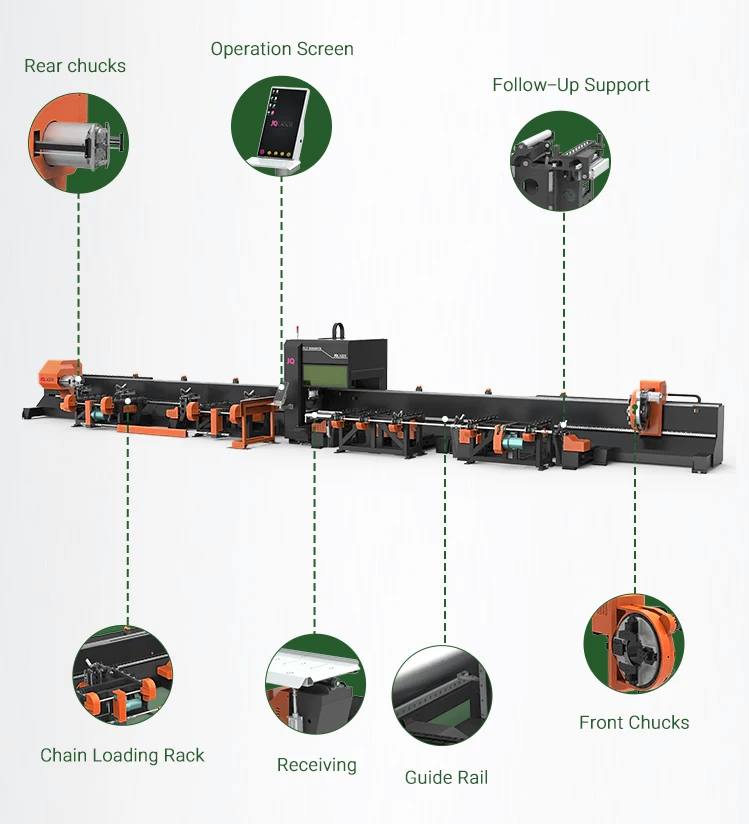

Product Show

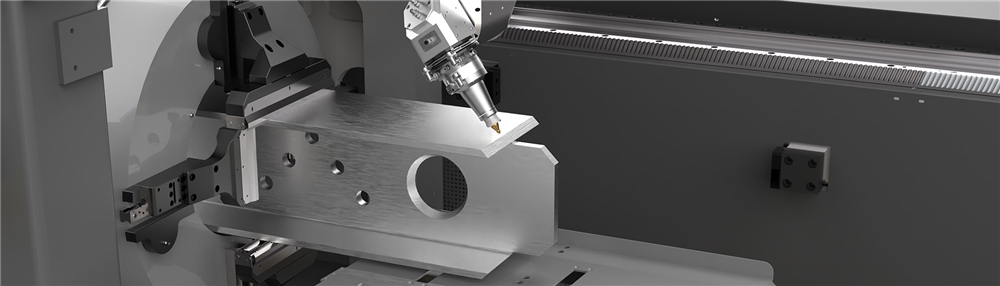

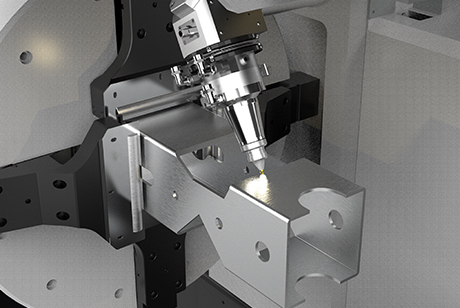

Fully Enclosed Pneumatic Chuck
----Effectively prevent cutting dust pollution
----Full stroke design, high alignment accuracy
----Gear transmission, good rigidity, high transmission precision
----The front chuck and the middle chuck are installed face to face to help achieve zero tailing
The four-jaw guide rail is driven by the guide rail mechanism, which makes the four-jaw straightness and stability higher, and truly achieves the effect of self-centering
High Precision Big Diameter Hollow square Tube Cutting Machine 6000w Three-chuck Laser Pipe Cutting Machine

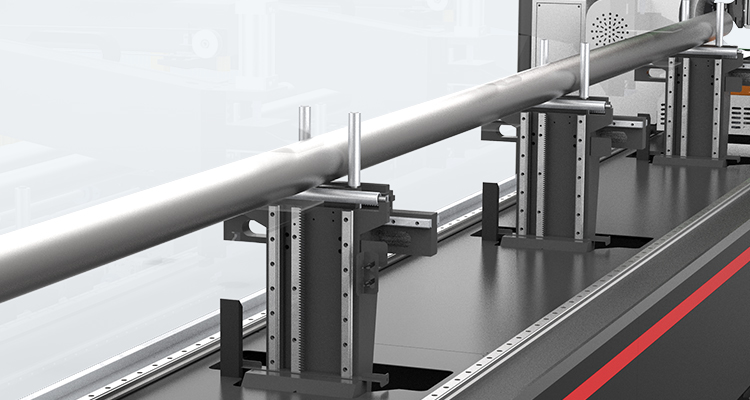

Follow-on support device
It can reduce processing errors, ensure uniform force on the entire metal pipe, and improve cutting accuracy. Real-time feeding to prevent the reduction of cutting accuracy due to pipe distortion.
High Precision Big Diameter Hollow square Tube Cutting Machine 6000w Three-chuck Laser Pipe Cutting Machine

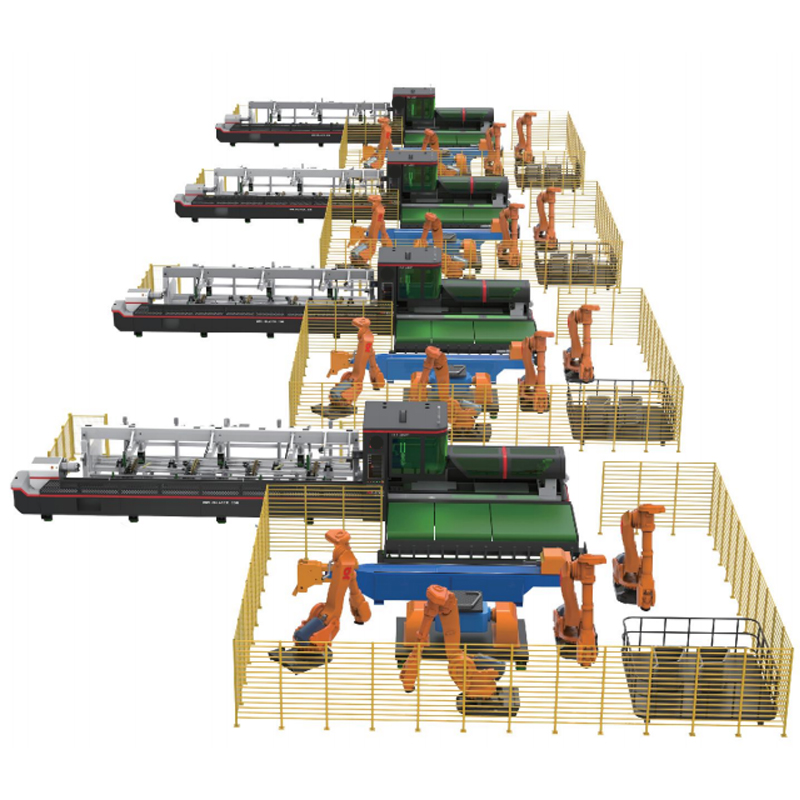

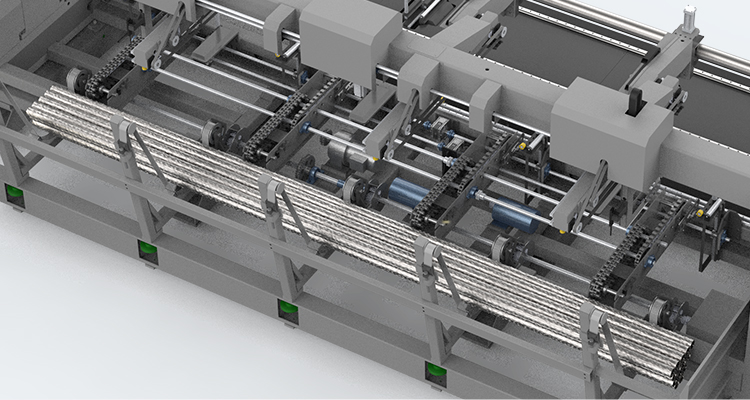

Fully Automatic Loading System
Equipped with a fully automatic loading system to reduce dependence on labor and reduce the labor intensity of operators.
High Precision Big Diameter Hollow square Tube Cutting Machine 6000w Three-chuck Laser Pipe Cutting Machine
Follow-Up Front Splice
The Servo follow-up front receiving device can automatically screen material, divide material, and automatically flip, with high mechanization performance
High Precision Big Diameter Hollow square Tube Cutting Machine 6000w Three-chuck Laser Pipe Cutting Machine
Related Products
CHOOSE YOUR LASERTUBE
Make Your Choice
Lasertube systems are our 2D and 3D laser cutting systems for tubes, bars and profiles, from 15 mm to 350 mm in diameter and up to 12000 mm in length.
High Precision Big Diameter Hollow square Tube Cutting Machine 6000w Three-chuck Laser Pipe Cutting Machine

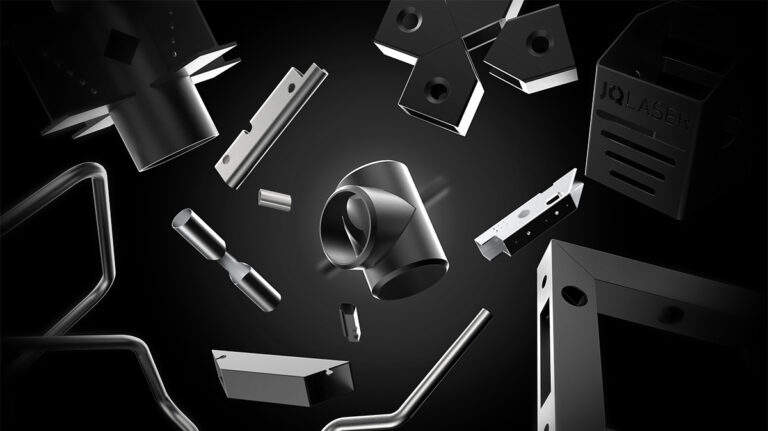

Samples & Applications
High Precision Big Diameter Hollow square Tube Cutting Machine 6000w Three-chuck Laser Pipe Cutting Machine
High Precision Big Diameter Hollow square Tube Cutting Machine 6000w Three-chuck Laser Pipe Cutting Machine
Customer Service
High Precision Big Diameter Hollow square Tube Cutting Machine 6000w Three-chuck Laser Pipe Cutting Machine
High Precision Big Diameter Hollow square Tube Cutting Machine 6000w Three-chuck Laser Pipe Cutting Machine
Company Profile
High Precision Big Diameter Hollow square Tube Cutting Machine 6000w Three-chuck Laser Pipe Cutting Machine
High Precision Big Diameter Hollow square Tube Cutting Machine 6000w Three-chuck Laser Pipe Cutting Machine
High Precision Big Diameter Hollow square Tube Cutting Machine 6000w Three-chuck Laser Pipe Cutting Machine
Certifications & Exhibition
High Precision Big Diameter Hollow square Tube Cutting Machine 6000w Three-chuck Laser Pipe Cutting Machine
High Precision Big Diameter Hollow square Tube Cutting Machine 6000w Three-chuck Laser Pipe Cutting Machine
Packing&Shipping
High Precision Big Diameter Hollow square Tube Cutting Machine 6000w Three-chuck Laser Pipe Cutting Machine
FAQ
Q: Do you have CE document and other documents for customs clearance?A: Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q: Why the machine price not include fiber source?A:Different customers, different requirements, and many different laser power can be optional, that's why we list the price not include fiber source parts.
Q: If we are interested in your machine, how to choose proper power?A:Please tell us the following answer, our professional seller will recommend you proper power. 1. What material you want to cut,stainless steel,carbon steel or other? 2. What thickness do you want to cut?
Q:How can I do if the laser cutting machine goes wrong?A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Q: How about warranty?A: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
Q: Do you have after sales support?A: Yes, we are happy to give advice and we also have skilled technicians available across the world, We need your machines running in order to keep your business running
