High Speed Liquid Packaging Machine for Liquid Paste and Paste Materials

High Speed Liquid Packaging Machine for Liquid Paste and Paste MaterialsProducts DescriptionHigh Speed Liquid Packaging Machine This machine is suitable for liquid. paste and paste materials in medicine, food and dally chemical industries.Such as shampoo, showergel, face cream, fruit juice、 jam, se......

Send Inquiry

Product Description

High Speed Liquid Packaging Machine for Liquid Paste and Paste Materials

Products Description

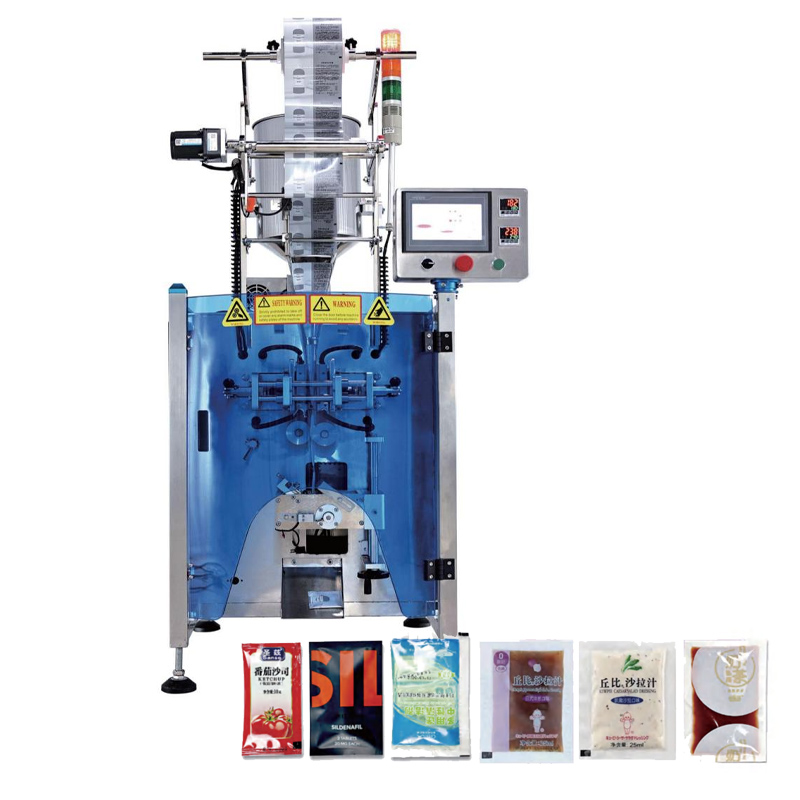

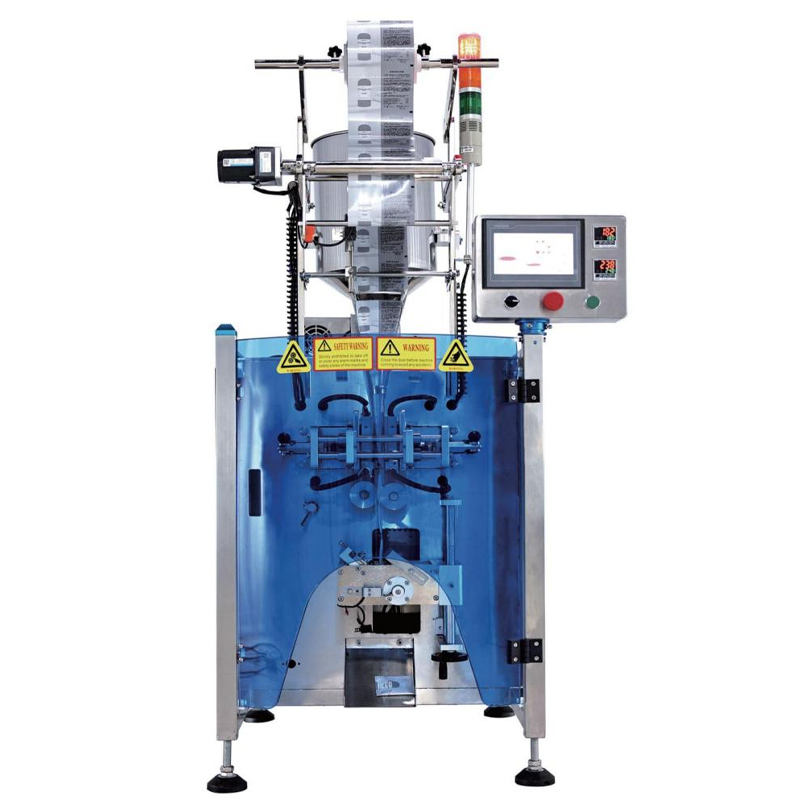

High Speed Liquid Packaging Machine

This machine is suitable for liquid. paste and paste materials in medicine, food and dally chemical industries.Such as shampoo, showergel, face cream, fruit juice、 jam, seasoning sauce, enzyme drink, enzyme jely, loquatextract, whole grain heath cream and variousliguids.

Equipment performance

1. It can automatically complete all tasks such as filling, measuring, bag making, sealing, cutting, hot pressing, batch number, etc. during the packaging process, and the photoelectric marking positioning does not need to be adjusted 2. Pure electric, using a three-step motor, with lighter movement, simpler structure, easy maintenance and upkeep 3. Intelligent control system, Chinese and English LCD display screen. Just set the parameters to precisely control the operation of the system 4. The heat sealer evenly heats and controls the edges of the bag, and the upper and lower sides can be individually adjusted for temperature 5. Replacing the cutting tool can achieve straight and patterned cutting, as well as joint cutting in a straight shape. The bag cutting is smooth and reliable without getting stuck, and the operation is simple. It can be equipped with a wheel type coding machine to print batch numbers, shelf life, etc

Features
1.lt is packaged in the form of back sealing side sealing rounded corners, and the servo motor and servo driver are clamped to make the machine pull the film more accurately and faster. The clamping makes the bick seal and horizontal seal more obedient, and the bag is more beautiful.
2.The shape of the bag can be customized according to the punching knife and horizontal sealing mold
3.The design of long strips with rounded corners, the loading capacitycan be large or small. By setting the bag length value, differentgrammages can be achieved, reducing mold replacement
4.The chassis is customized with 304 stainless steel, non-outsourcing sainless steel plate
5.The equipment is highly compatible, and different specifications canbe realized by changing the mold

Basic Parameters

Model	220GSYB
Measuring range	1-30g
Bag size	(back center seal):L20-45mm W20-100mm （side seal):L20-145mm;W30-100mm
Dose range	Magnelc pump/Rotor pump /piston pumg
Voltage	220V50-60HZ/2KW
Controlsystem	PLC controlling system
Speed	80-150bag/min
Bagtype	Bag center seal/ side seal
Dimension	L900-W700*H1720 mm
Weigh	300KG
Material	BOPP/PE/PET any heat sealing laminated film
