Product Description

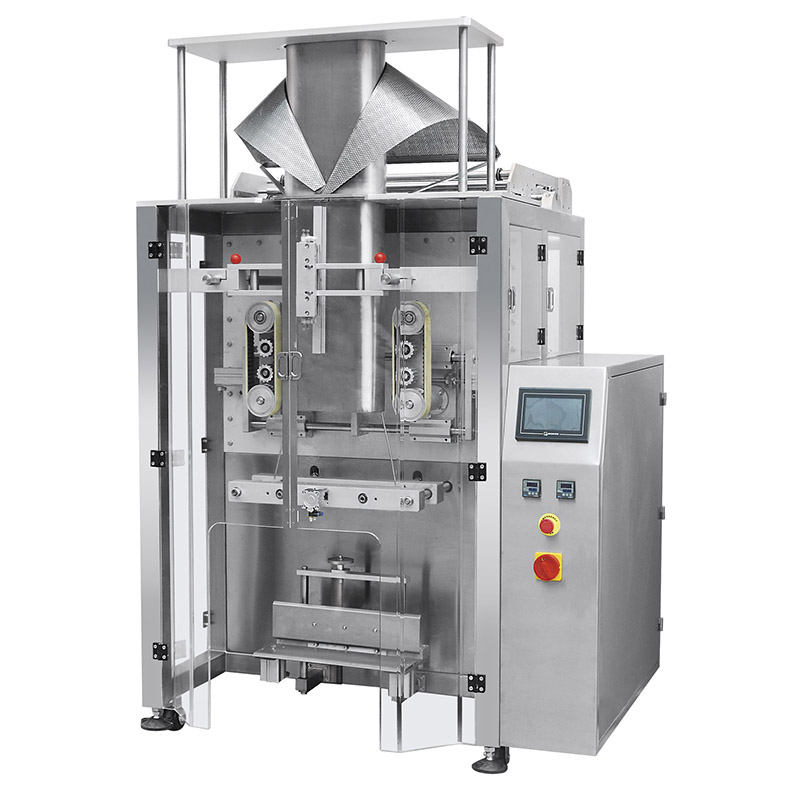

HL720 Vertical Measuring Inflatable Automatic Packaging Machine for Granular Materials 5-30bags/min

Products Description

HL720 Vertical Automatic Packaging Machine

Application Suitable for measuring and packaging irregular block and granular materials, such as candy, puffed food, biscuits, roasted nuts, sugar, frozen food, milk powder, milk tea, starch, seasoning, etc.

Model	HL720
Bag Size	L 100-450mm W 150-350mm
External dimensions	L 1820 W 1400 H 2080mm
Packaging speed	5-30bags/min
Total power	AC220V, 50-60Hz, 4.75KW
Compressed air consumption	6-8kg/m2, 0.3m3/min
Whole machine weight	800Kg

optional devices

1.Continuous or multiple packages with short package cutting function

2. Hook hole function (can be used to drill round holes and various irregular holes)

3. Supporting discharge conveyor

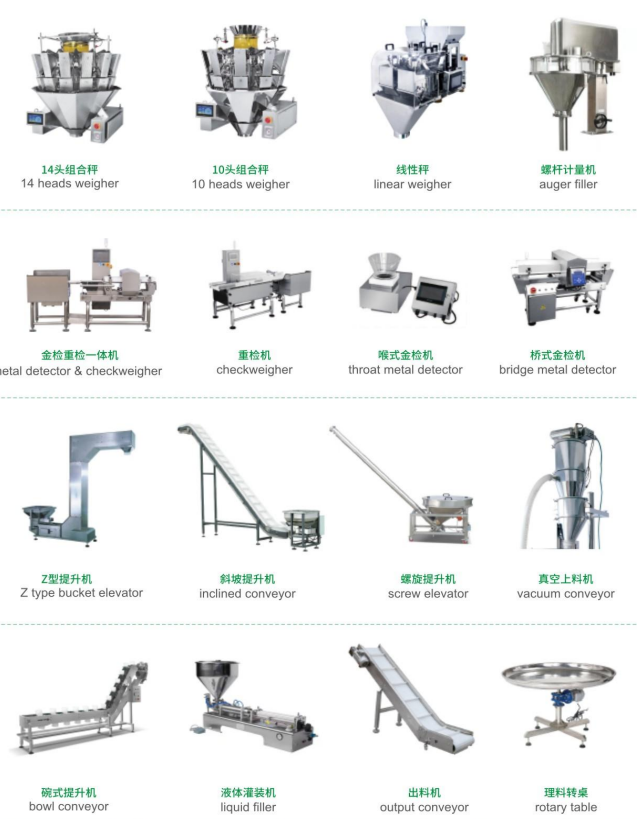

4. Various automatic or semi-automatic measuring and conveying mechanisms

5. Inflation or exhaust function

6. Compressed air system and nitrogen generator

Functional Features

1. Equipped with safety protection that meets the requirements of enterprise safety management 2. Adopting intelligent temperature controller for accurate temperature control; The packaging seal is aesthetically pleasing and smooth 3. Adopting PLC servo system, pneumatic control system, and ultra large display touch screen to form the driving control core; Maximized the control accuracy, reliability, and intelligence of the entire machine 4. This machine and measuring configuration can automatically complete the entire packaging process of measuring, feeding, filling and bag making, date printing, inflation (exhaust), and finished product transportation, and automatically complete counting 5. The touch screen can store various packaging process parameters for different products, and can be used at any time without resetting when changing products 6. Equipped with a fault display system to assist in troubleshooting in a timely manner 7. Pillow shaped bags and hanging hole bags can be made according to customer needs 8. Single belt film transportation, fast and stable, with low friction and minimal loss 9. There are options for both full stainless steel models and carbon steel spray coating models 10. Some parts use imported engineering plastic bearings, which do not require refueling and reduce material pollution
