JS12 Ratio 79:1 Slewing Drive Gearbox Reducer Gear Slew Drive for Crane Aerial Work Truck

JS12 Ratio 79:1 Slewing Drive Gearbox Reducer Gear Slew Drive for Crane Aerial Work TruckProducts DescriptionJS12 Slewing DriveProduct features:1. The horizontal structure allows the product to be installed horizontally, vertically, and obliquely, with the characteristicsof flexible and diverse inst......
Send Inquiry
Product Description

JS12 Ratio 79:1 Slewing Drive Gearbox Reducer Gear Slew Drive for Crane Aerial Work Truck

Products Description

JS12 Slewing Drive

Product features:
1. The horizontal structure allows the product to be installed horizontally, vertically, and obliquely, with the characteristics
of flexible and diverse installation. Compared with other types of reducers, it has the characteristics of small volume, easy
installation and maintenance.
2. The product adopts a blind hole design and a skeleton oil seal structure, with reliable sealing performance. The sealing area can avoid direct sunlight, effectively dust-proof and waterproof, and the protection level can reach IP65, suitable for outdoor use.
3. Use specialized machine tools and equipment to produce toroidal worm gears with multiple teeth in contact, transmitting greater torque and being able to withstand greater axial, radial, and overturning forces.
4. The product design adopts universal dimensions both domestically and internationally, making it convenient for later
replacement.
JS12 Ratio 79:1 Slewing Drive Gearbox Reducer Gear Slew Drive for Crane Aerial Work Truck
JS12 Ratio 79:1 Slewing Drive Gearbox Reducer Gear Slew Drive for Crane Aerial Work Truck
JS12 Ratio 79:1 Slewing Drive Gearbox Reducer Gear Slew Drive for Crane Aerial Work Truck
JS12 Ratio 79:1 Slewing Drive Gearbox Reducer Gear Slew Drive for Crane Aerial Work Truck
JS12 Ratio 79:1 Slewing Drive Gearbox Reducer Gear Slew Drive for Crane Aerial Work Truck
For more details, please click here to contact us！
Basic Parameters
Norminal Torque
7.5KN.m（SF=1 at n=1 rpm）
Maxmium Torque
11.8KN.m
Ratio of Worm Gear
79:1
Backlash
0.15°
Efficiency
about 40%
Temperature
-30--+80℃
Holding Torque
43KN.m
Axial Static Load    Coa
760KN
Radial Static Load    Cor
280KN
Axial Dynamic Load     Ca
190KN
Radial Dynamic Load   Cr
148KN

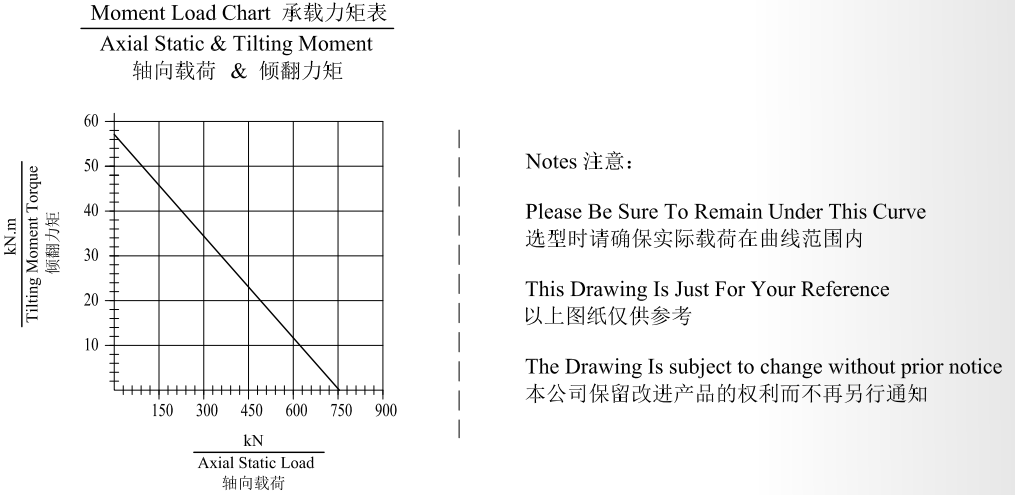

Tilting Moment Torque    Com
57KN.m
Application
JS12 Ratio 79:1 Slewing Drive Gearbox Reducer Gear Slew Drive for Crane Aerial Work Truck
JS12 Ratio 79:1 Slewing Drive Gearbox Reducer Gear Slew Drive for Crane Aerial Work Truck
JS12 Ratio 79:1 Slewing Drive Gearbox Reducer Gear Slew Drive for Crane Aerial Work Truck
