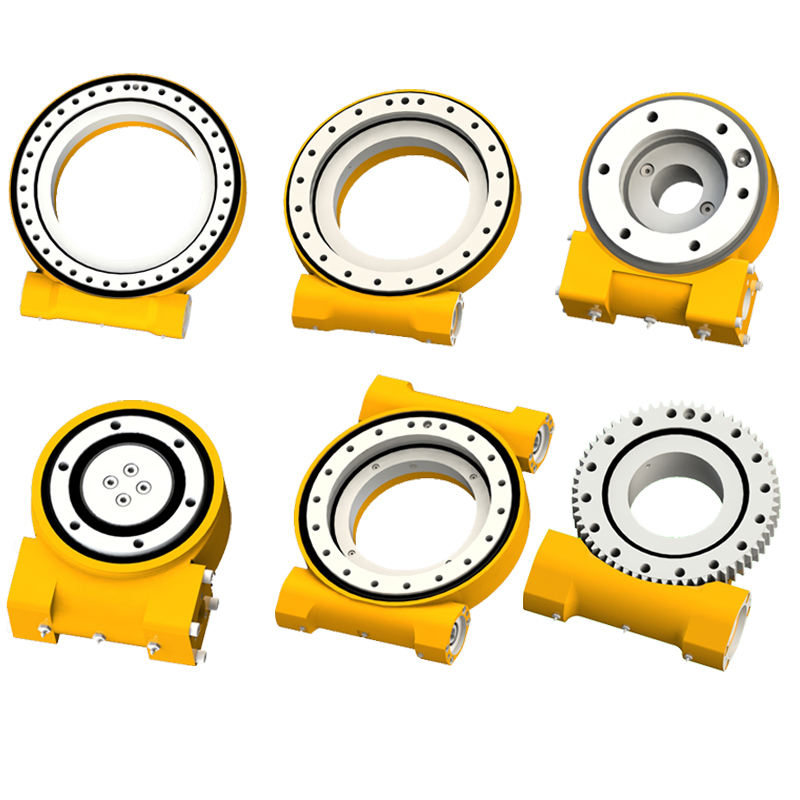

JS3 Ratio 51:1 Slewing Drive Gearbox Reducer Gear Slew Drive for Crane Aerial Work Truck

JS3 Ratio 51:1 Slewing Drive Gearbox Reducer Gear Slew Drive for Crane Aerial Work TruckProducts DescriptionJS3 Slewing DriveProduct features:1. The horizontal structure allows the product to be installed horizontally, vertically, and obliquely, with the characteristicsof flexible and diverse instal......
Send Inquiry
Product Description

JS3 Ratio 51:1 Slewing Drive Gearbox Reducer Gear Slew Drive for Crane Aerial Work Truck

Products Description

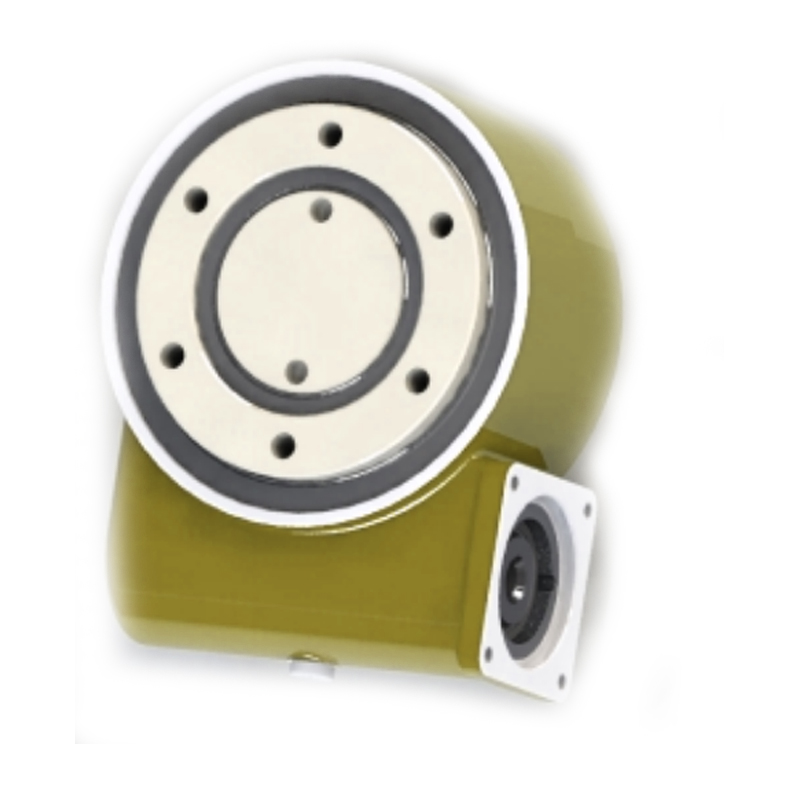

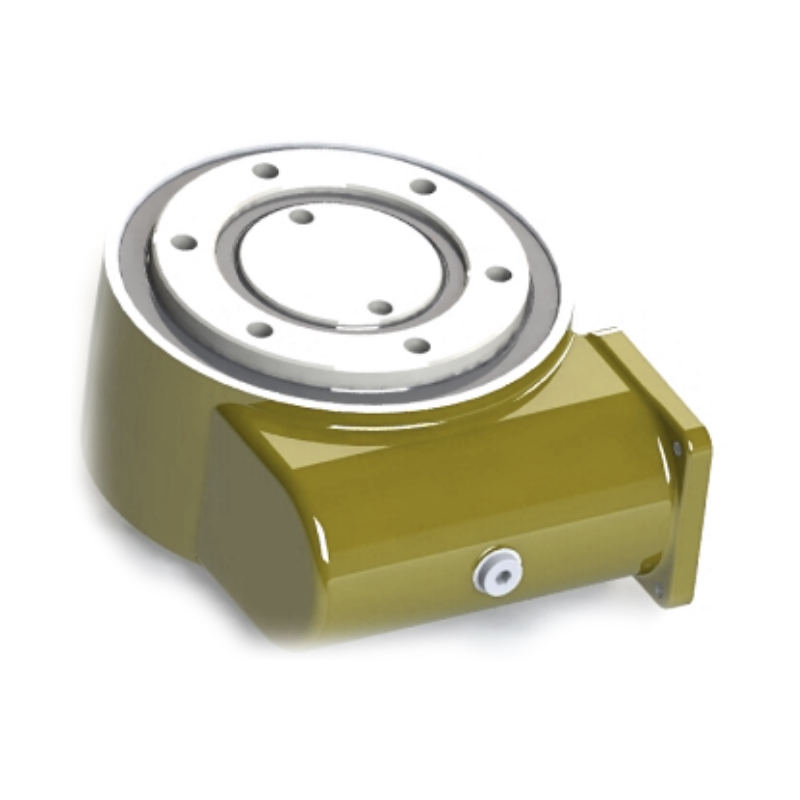

JS3 Slewing Drive

Product features:
1. The horizontal structure allows the product to be installed horizontally, vertically, and obliquely, with the characteristics
of flexible and diverse installation. Compared with other types of reducers, it has the characteristics of small volume, easy
installation and maintenance.
2. The product adopts a blind hole design and a skeleton oil seal structure, with reliable sealing performance. The sealing area can avoid direct sunlight, effectively dust-proof and waterproof, and the protection level can reach IP65, suitable for outdoor use.
3. Use specialized machine tools and equipment to produce toroidal worm gears with multiple teeth in contact, transmitting greater torque and being able to withstand greater axial, radial, and overturning forces.
4. The product design adopts universal dimensions both domestically and internationally, making it convenient for later
replacement.
JS3 Ratio 51:1 Slewing Drive Gearbox Reducer Gear Slew Drive for Crane Aerial Work Truck
JS3 Ratio 51:1 Slewing Drive Gearbox Reducer Gear Slew Drive for Crane Aerial Work Truck
JS3 Ratio 51:1 Slewing Drive Gearbox Reducer Gear Slew Drive for Crane Aerial Work Truck
JS3 Ratio 51:1 Slewing Drive Gearbox Reducer Gear Slew Drive for Crane Aerial Work Truck
JS3 Ratio 51:1 Slewing Drive Gearbox Reducer Gear Slew Drive for Crane Aerial Work Truck
For more details, please click here to contact us！
Basic Parameters
Norminal Torque
0.4KN.m（SF=1 at n=1 rpm）
Maxmium Torque
0.6KN.m
Ratio of Worm Gear
51:1
Backlash
0.2°
Efficiency
about 40%
Temperature
-20--+80℃
Holding Torque
2KN.m
Axial Static Load    Coa
30KN
Radial Static Load    Cor
16.6KN
Axial Dynamic Load     Ca
9.6KN
Radial Dynamic Load   Cr
8.4KN

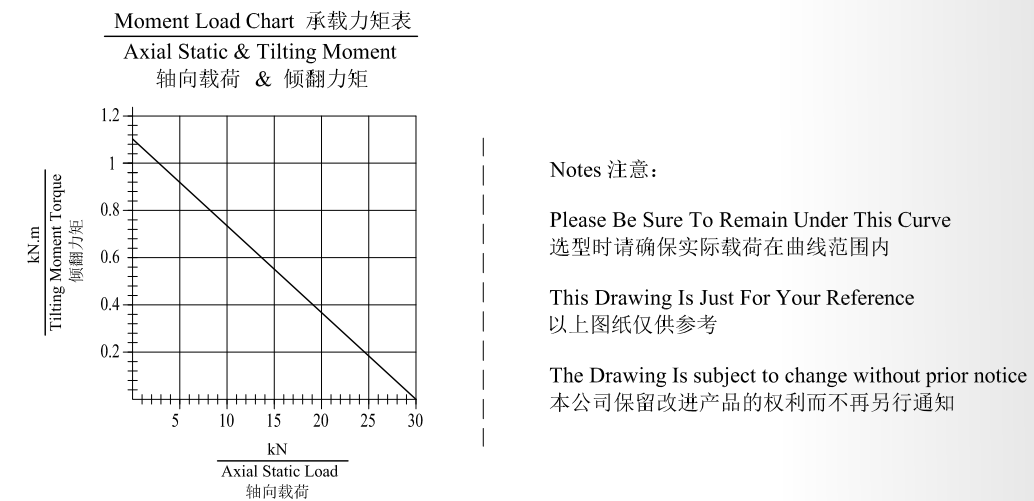

Tilting Moment Torque    Com
1.1KN.m
Application
JS3 Ratio 51:1 Slewing Drive Gearbox Reducer Gear Slew Drive for Crane Aerial Work Truck
JS3 Ratio 51:1 Slewing Drive Gearbox Reducer Gear Slew Drive for Crane Aerial Work Truck
JS3 Ratio 51:1 Slewing Drive Gearbox Reducer Gear Slew Drive for Crane Aerial Work Truck
