JS9 Ratio 61:1 Slewing Drive Gearbox Reducer Gear Slew Drive for Crane Aerial Work Truck

Raydafon Group's JS9 Ratio 61:1 Slewing Drive Gearbox is a high-reliability reducer designed for crane aerial work trucks, offering smooth operation and superior durability to enhance efficiency and safety in demanding applications.
Send Inquiry
Product Description

JS9 Ratio 61:1 Slewing Drive Gearbox Reducer Gear Slew Drive for Crane Aerial Work Truck

Products Description

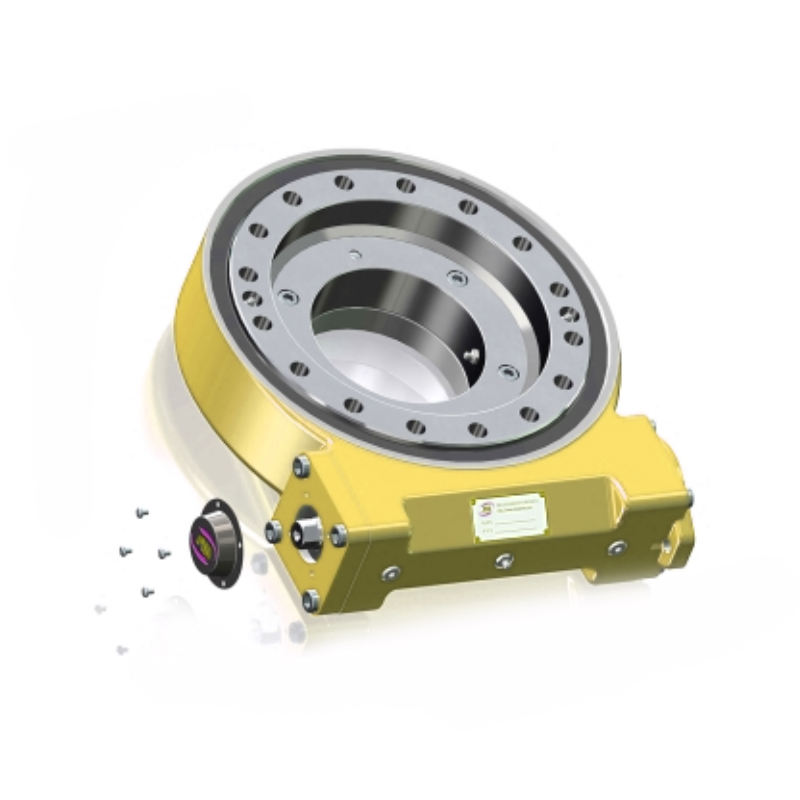

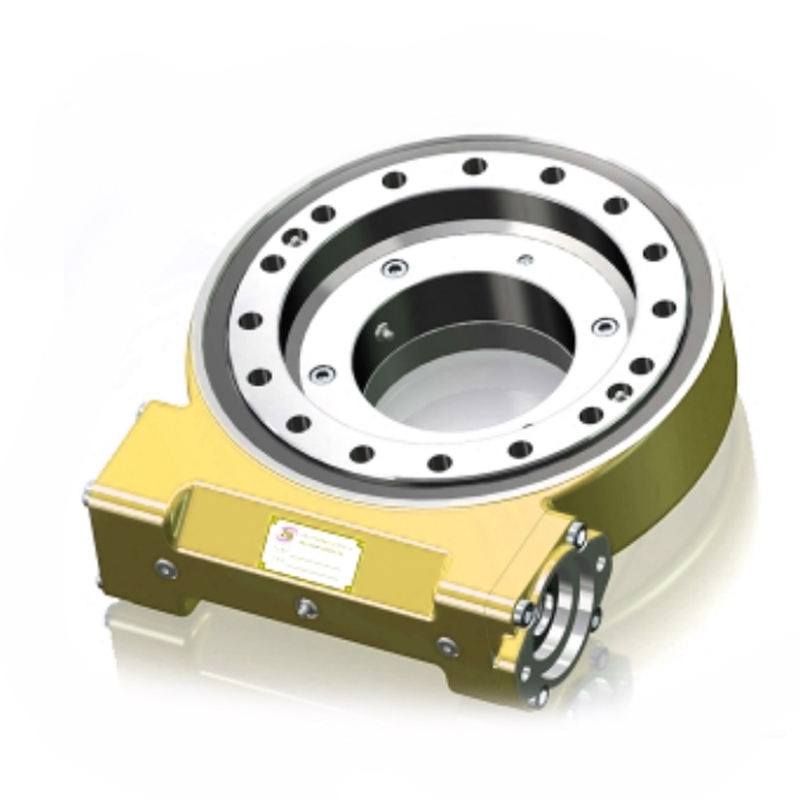

JS9 Slewing Drive

Product features:
1. The horizontal structure allows the product to be installed horizontally, vertically, and obliquely, with the characteristics
of flexible and diverse installation. Compared with other types of reducers, it has the characteristics of small volume, easy
installation and maintenance.
2. The product adopts a blind hole design and a skeleton oil seal structure, with reliable sealing performance. The sealing area can avoid direct sunlight, effectively dust-proof and waterproof, and the protection level can reach IP65, suitable for outdoor use.
3. Use specialized machine tools and equipment to produce toroidal worm gears with multiple teeth in contact, transmitting greater torque and being able to withstand greater axial, radial, and overturning forces.
4. The product design adopts universal dimensions both domestically and internationally, making it convenient for later
replacement.
JS9 Ratio 61:1 Slewing Drive Gearbox Reducer Gear Slew Drive for Crane Aerial Work Truck
JS9 Ratio 61:1 Slewing Drive Gearbox Reducer Gear Slew Drive for Crane Aerial Work Truck
For more details, please click here to contact us！

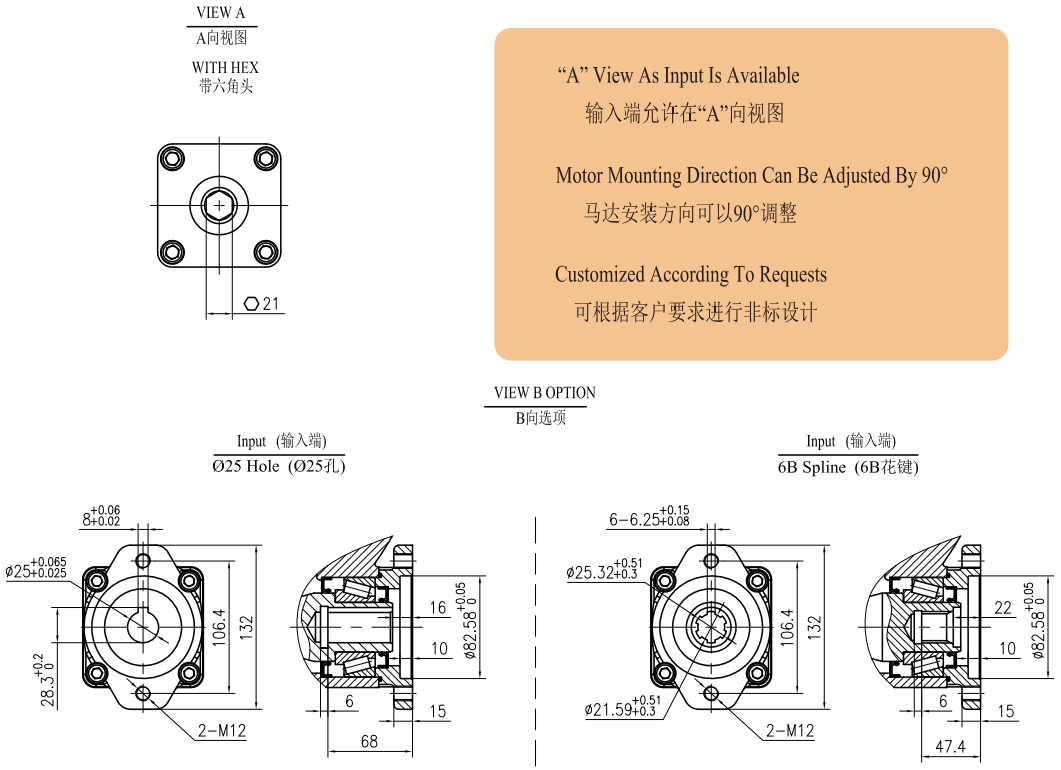

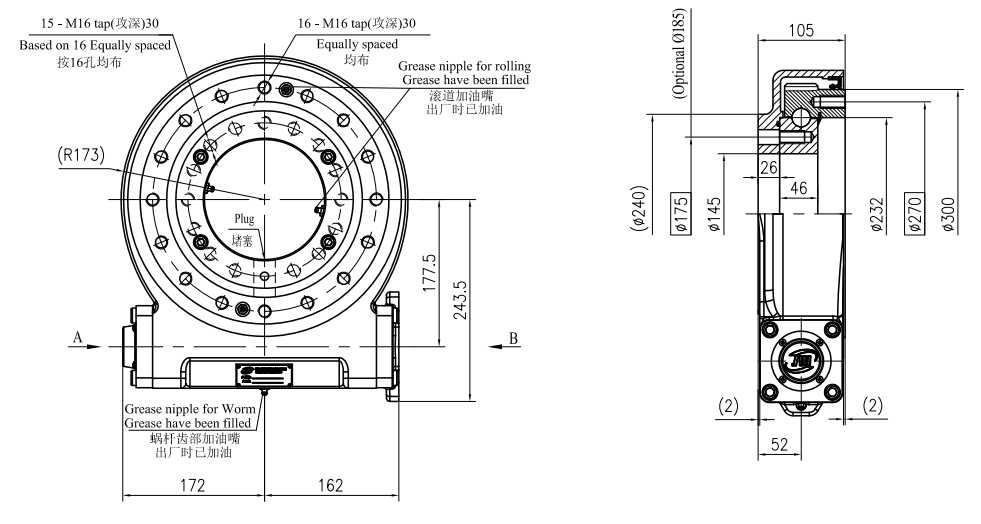

Basic Parameters
JS9 Ratio 61:1 Slewing Drive Gearbox Reducer Gear Slew Drive for Crane Aerial Work Truck
JS9 Ratio 61:1 Slewing Drive Gearbox Reducer Gear Slew Drive for Crane Aerial Work Truck
JS9 Ratio 61:1 Slewing Drive Gearbox Reducer Gear Slew Drive for Crane Aerial Work Truck
Norminal Torque
6.5KN.m（SF=1 at n=1 rpm）
Maxmium Torque
9.5KN.m
Ratio of Worm Gear
61:1
Backlash
0.15°
Efficiency
about 40%
Temperature
-30--+80℃
Holding Torque
38.7KN.m
Axial Static Load    Coa
578KN
Radial Static Load    Cor
215KN
Axial Dynamic Load     Ca
136KN
Radial Dynamic Load   Cr
115KN

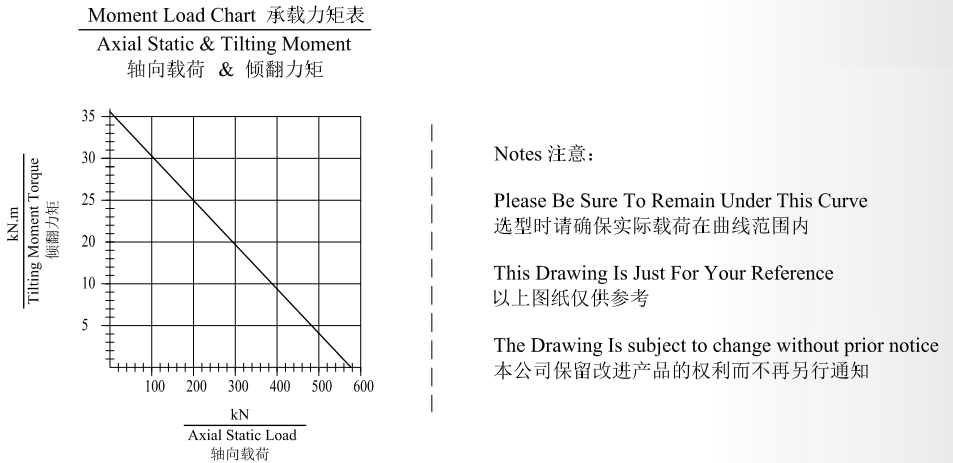

Tilting Moment Torque    Com
35.6KN.m
Application
JS9 Ratio 61:1 Slewing Drive Gearbox Reducer Gear Slew Drive for Crane Aerial Work Truck
JS9 Ratio 61:1 Slewing Drive Gearbox Reducer Gear Slew Drive for Crane Aerial Work Truck
JS9 Ratio 61:1 Slewing Drive Gearbox Reducer Gear Slew Drive for Crane Aerial Work Truck
