Product Description

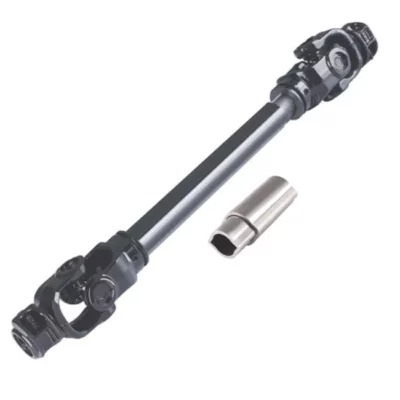

L Series L1 L2 L3 L4 L5 L6 L32 PTO Shaft Spline Tube Lemon Tube

Product Description

Series	540 tr./min					1000 tr./min		MP(NM)
Series		Kw	Pk	Nm	Kw	Pk	Nm	MP(NM)
L1	12	16	210	18	25	172	320
L2	15	21	270	23	31	220	450
L3	22	30	390	35	47	330	640
L4	26	35	460	40	55	380	780
L5	35	47	970	54	74	520	1050
L6	47	64	830	74	100	710	1450
L32	39	53	695	61	83	580	1200

Size Importance
No matter what work you will do with the PTO, it is important that you have the right size. The manufacturer should provide length suggestions to help you get ideas. When measuring the PTO shaft, use a tape measure and measure from the outside of each yoke to obtain the closing length. The size of the series should correspond to the horsepower of the tractor. The tractor PTO shaft usually uses two different speeds, 540 (type 1) and 1000 (type 3) rpm.
Part of PTO Shaft
Internal yokes - two, located at both ends of the PTO shaft - tractor and implement. This is welded to the drive end. Universal joints - there are two, located at both ends of the PTO shaft. Outer yoke - two, located at both ends of the PTO shaft. It has a "Y" shaped connection to the U-shaped joint and a concave hole. Safety chain - the chain is used to secure the PTO shaft to the equipment and tractor. Safety guards - these cones are located at both ends.

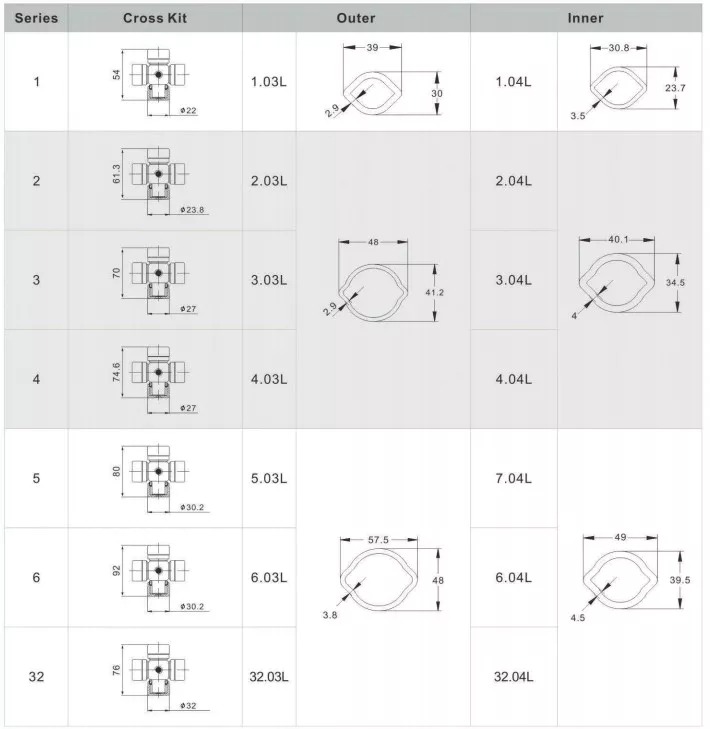

Series	Cross	Joint simple			Splined yoke	Tube yoke			Tube
		Outer	Inner		Outer	Inner	Outer	Inner
	1	2	3	4	5	6	7	8
L1	1.01 (22*54)	1.0505B+1.01+1.06L	1.0505B+1.01+1.07L	1.0505B	1.06L	1.07L	1.03L	1.04L
L2	2.01 (23.8*61.3)	2.0505B+2.01+2.06L	2.0505B+2.01+2.07L	2.0505B	2.06L	2.07L	4.03L	4.04L
L3	3.01 (27*74.6)	3.0505B+3.01+3.06L	3.0505B+3.01+3.07L	3.0505B	3.06L	3.07L
L4	4.01 (27*74.6)	4.0505B+4.01+4.06L	4.0505B+4.01+4.07L	4.0505B	4.06L	4.07L
L5	5.01 (30.2*80)	5.0505B+5.01+5.06L	5.0505B+5.01+5.07L	5.0505B	5.06L	5.07L	6.03L	6.04L
L6	6.01 (30.2*92)	6.0505B+6.01+6.06L	6.0505B+6.01+6.07L	6.0505B	6.06L	6.07L
L32	32.01 (32*76)	32.0505B+32.01+32.06L	32.0505B+32.01+32.07L	32.0505B	32.06L	32.07L

Lemon Tube

Without the PTO, a tractor cannot drive to complete its most basic of functions. Comprehending the different types of PTO shafts,parts, and their respective uses will allow for better practice with farm machinery. After all, you want an investment in the expensive and necessary equipment to last as long as possible.

How Does PTO Shaft Work?

The PTO shaft transmits power from the tractor to the equipment of your choice. The PTO power train is the source of power for all components that require power on the tractor. PTO power trains are often overlooked in routine maintenance inspections, but they should not be ignored because they are crucial in operating farm equipment.
Wear and Tear
When you operate agricultural equipment, there will inevitably be wear and tear. Areas requiring special attention are yoke ears or sides, which may be damaged due to excessive angles. If the angle exceeds 45 degrees, disconnect the PTO. If there is a lack of lubrication at the pipe overlap, the expansion pipe and pipe section may also be excessively worn. Insufficient lubrication can also cause excessive wear of the shield bearings. Without proper lubrication, the friction between these bearings is too great. They should be lubricated every eight hours.
Damaged or Broken Parts
It's important to pay attention to this when things start to go wrong, or when you find your attention focused on the machine that usually runs smoothly. Part damage can occur anywhere from the telescopic tube to the cross bearing arm or yoke joint. Please pay attention to the impact load on the equipment and ensure that the correct type of PTO is used to complete the work you are trying to complete. Heavy equipment may be under great pressure, but it is important that if there is anything wrong, stop before it is damaged, rather than simply repair it.
