LA-M Micro Motor Linear Actuator Push Electric Push Rod

LA-M Micro Motor Linear Actuator Push Electric Push RodProducts DescriptionLA-M Micro motor electric push rod--Small volume --7 load speeds available --Long service life, 50 routine trips, with a service life of 50000 times--it is widely used in home appliances, home furnishings, and automotive indu......

Send Inquiry

Product Description

LA-M Micro Motor Linear Actuator Push Electric Push Rod

Products Description

LA-M Micro motor electric push rod

--Small volume

--7 load speeds available

--Long service life, 50 routine trips, with a service life of 50000 times

--it is widely used in home appliances, home furnishings, and automotive industries

Product model	LA-M-8	LA-M-24	LA-M-40	LA-M-80	LA-M-120	LA-M-160	LA-M-235
input voltage	6/12VDC	6/12VDC	6/12VDC	6/12VDC	6/12VDC	6/12VDC	6/12VDC
Locked rotor load	>8N	>24N	>40N	>80N	>120N	>160N	>235N
self-lock	>8N	>24N	>40N	>80N	>120N	>160N	>235N
Maximum load	6N	8N	32N	64N	96N	128N	188N
No load speed	150mm/s	50mm/s	30mm/s	15mm/s	9.5mm/s	7mm/s	5mm/s

Stroke:10-100mm

Color:blue, black

Limit switch:built in

Working cycle:10%, working for 2 minutes and stopping for 18 minutes

Protection grade: IP54

Operating temperature: -10~+50

Noise below: 55dB

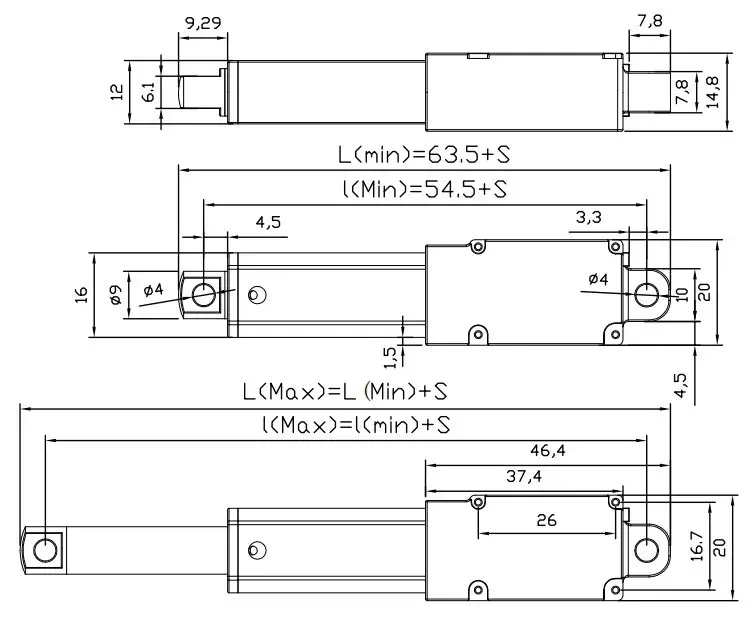

Minimum size: s + 63.5mm

Minimum installation size: S + 545mm

Inner pipe material: aluminum profile

Pull head material: plastic

Executive standard: CE I RoHS

Applications

Automation industry

Electric push rods are widely used in production lines, assembly lines, and automation equipment in the automation industry. They are used to push, pull, or adjust the position of objects, achieving precise linear motion control. For example, they can be used for motion control of robotic arms, handling equipment, automatic doors and windows, automatic packaging machines, etc.

Mechanical Engineering

Electric push rods are used in the field of mechanical engineering for linear motion control of various mechanical systems. They can be used to adjust the position of mechanical devices, achieve precise positioning and adjustment. For example, they can be used to adjust the height of the workbench, control valve switches, adjust the position of mechanical parts, and so on.

Vehicle Engineering

Electric push rods are used for automation and electrification applications in vehicle engineering. For example, in the automotive industry, they can be used for controlling functions such as electric seat adjustment, window lifting, and trunk opening. In the aerospace field, they can be used for motion control of aircraft flaps, landing gears, doors, etc.

Medical equipment:

Electric push rods play an important role in medical equipment, used to achieve precise motion control and adjustment of medical equipment. For example, on an operating table, they can be used to adjust the height, angle, and position of the operating table. In rehabilitation equipment, they can be used for motion control of exercise beds, walking aids, etc.
