Product Description

MX-F Valves Grease & Oil Progressive Piston Distributor for Agricultural Machinery Lubrication

Warning/Disclaimer

This product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.View more

Product Description

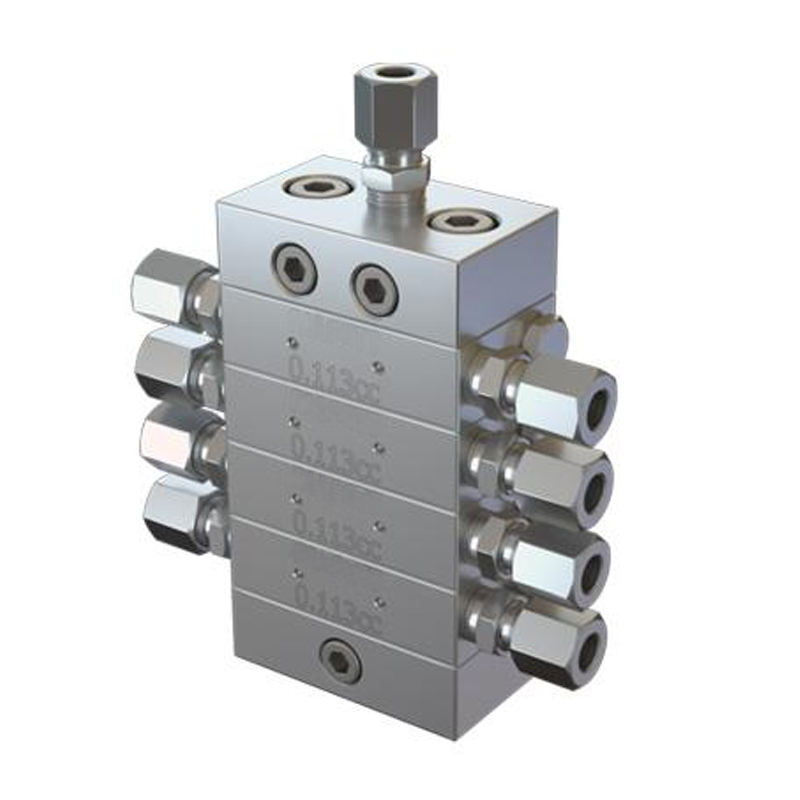

MX-F Valves (Grease & Oil) Progressive distributor MX-F

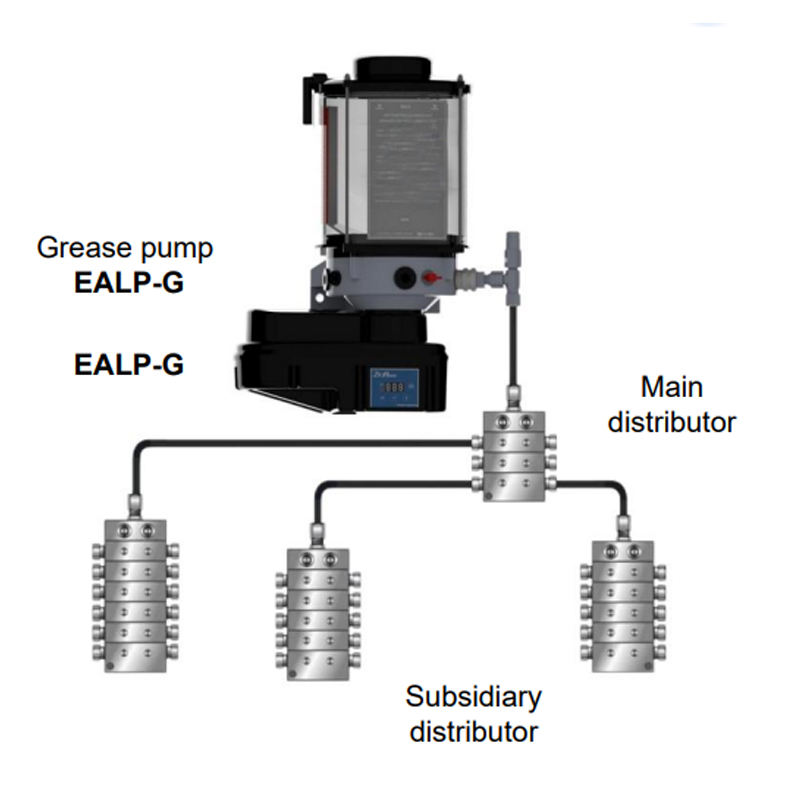

The progressive piston distributors are distributor devices with a hydraulic sequence control, the pistons of which are regulated by the supplied lubricant in a way that the lubricant inevitably and successively escapes at the individual outlets. In the case of malfunction during the flow of lubricant, e. g. clogging of lubricating line or lubricating points, the distributor will block up. This blockage is used for the monitoring of the distributors. In the case of manually operated pumps a virtually insurmountable counter pressure occurs during the blockage. In the case of automatic pumps such as e. g. the electropump EALP-G the lubricant escapes at the excess pressure valve.

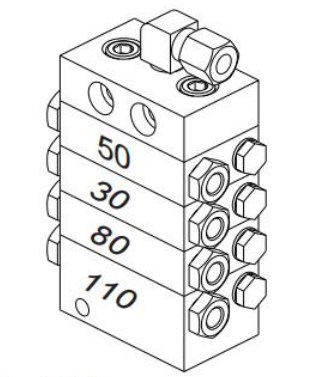

The progressive distributors are manufactured in a variable disk construction, which offers the advantage that the distributor can be extended or shortened at random according to the amount of lubrication points. Due to this disk construction there is also the possibility of constructing an overall progressive distributor from individual distributor disks with different outputs per piston stroke. The difference in output per piston stroke is achieved by different piston diameters. To ensure the proper functioning of a progressive distributor a minimum of three pistons, i. e. a minimum of three output elements is required

Element designation	Delivery quantity			Piston dia.
Element designation		per outlet	per element	Piston dia.
MX-F 30	30 mm³	60 mm³	3 mm
MX-F 50	50 mm³	100 mm³	4 mm
MX-F 80	80 mm³	160 mm³	5 mm
MX-F 110	110 mm³	220 mm³	6 mm

Applications

KRO NE Big M 420 combine

CNH Tractor, 33 lubrication points

JD Sugar Cane Harvester, 71 points

Specification

Operating pressure-Inlet	max. 300bar
Temperature range	-35°C to +80°C
Carrier vehicle	Oil - viscous oil - grease
Material	Steel
Min	MX-F 3/6 (3 piston elements)
Max	MX-F 12/24 (12 piston elements)
