NHS Series Joint Rod End with Left or Right Hand Female Thread With PTFE Composite Material

NHS Series Joint Rod End with Left or Right Hand Female Thread With PTFE Composite MaterialProduct DescriptionNHS Rod End Bearing--Rod body with left or right-hand female thread --Rod body pressed around inner ring --Outer race lined with PTFE composite material--Surface of rod body zinc plated * Ea......

NHS Series Joint Rod End with Left or Right Hand Female Thread With PTFE Composite Material

Product Description
NHS Series Joint Rod End with Left or Right Hand Female Thread With PTFE Composite Material

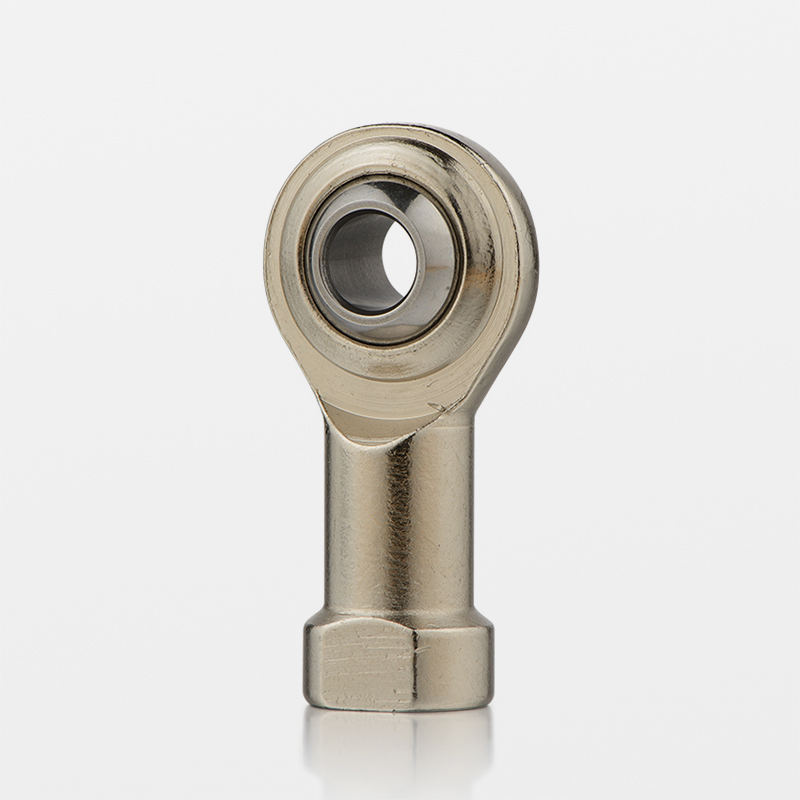

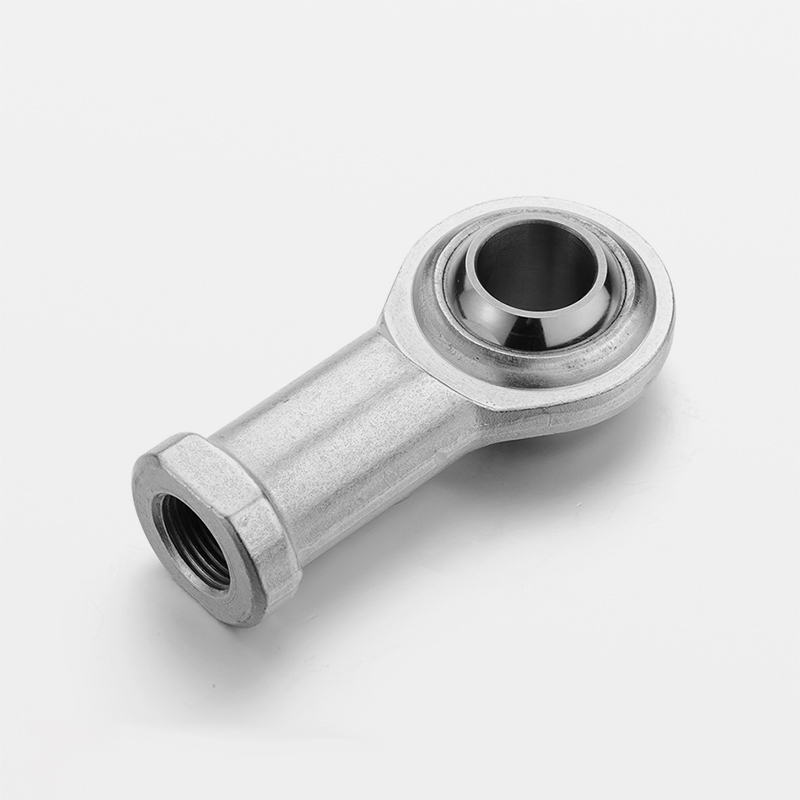

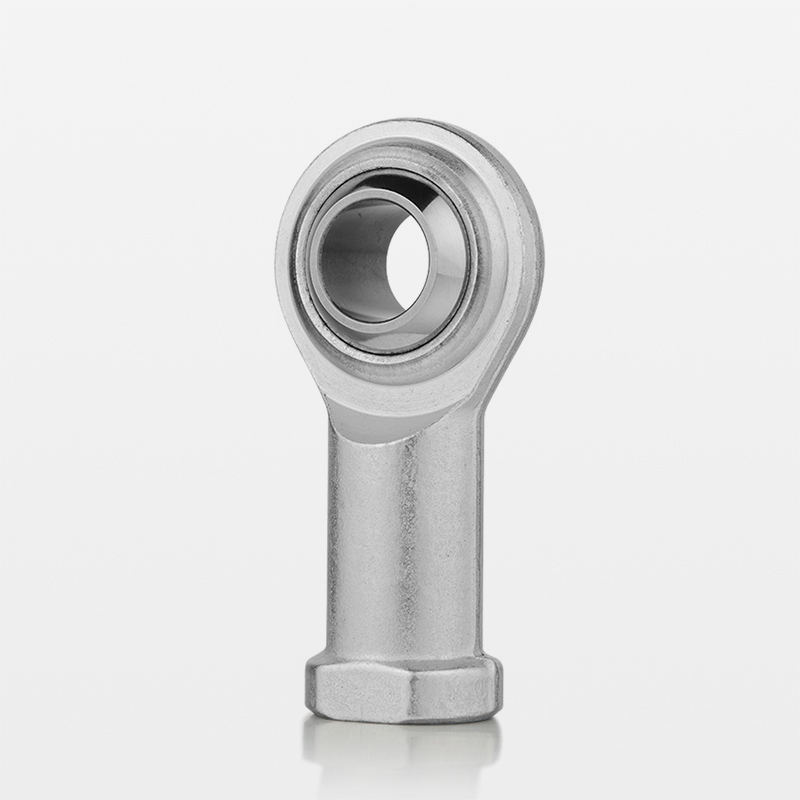

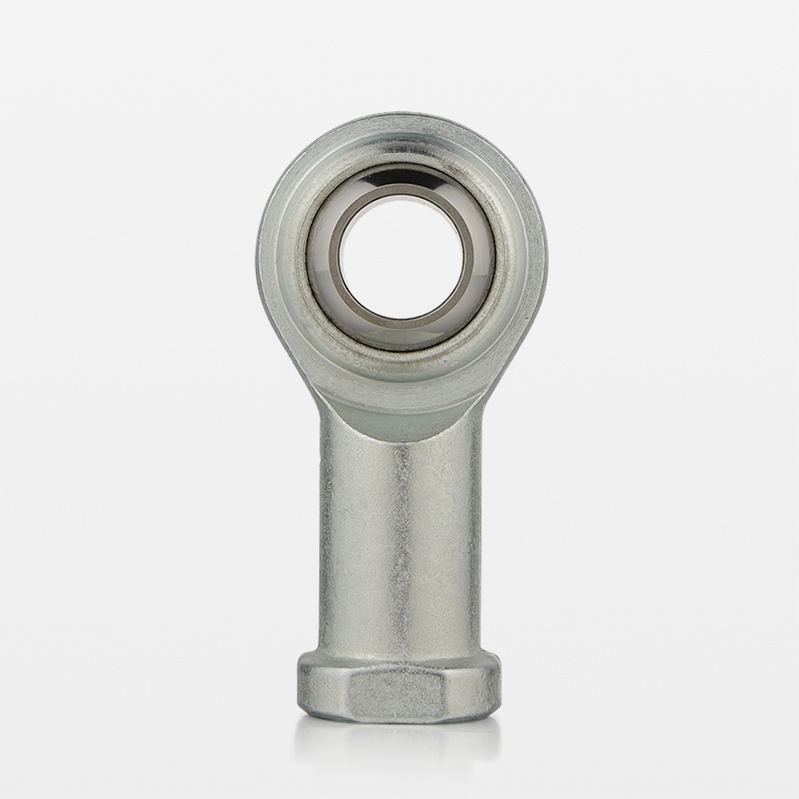

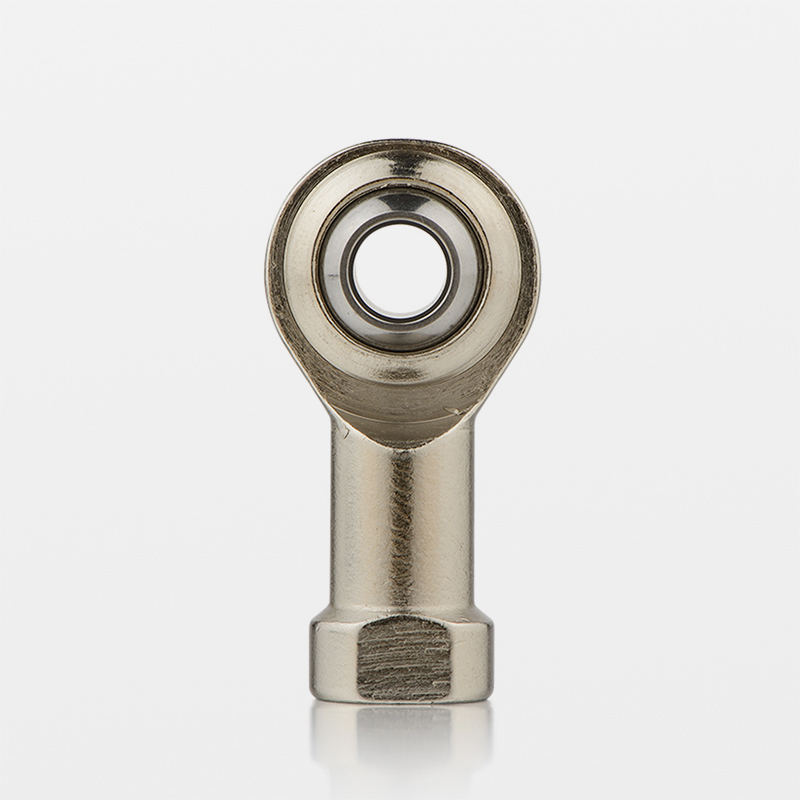

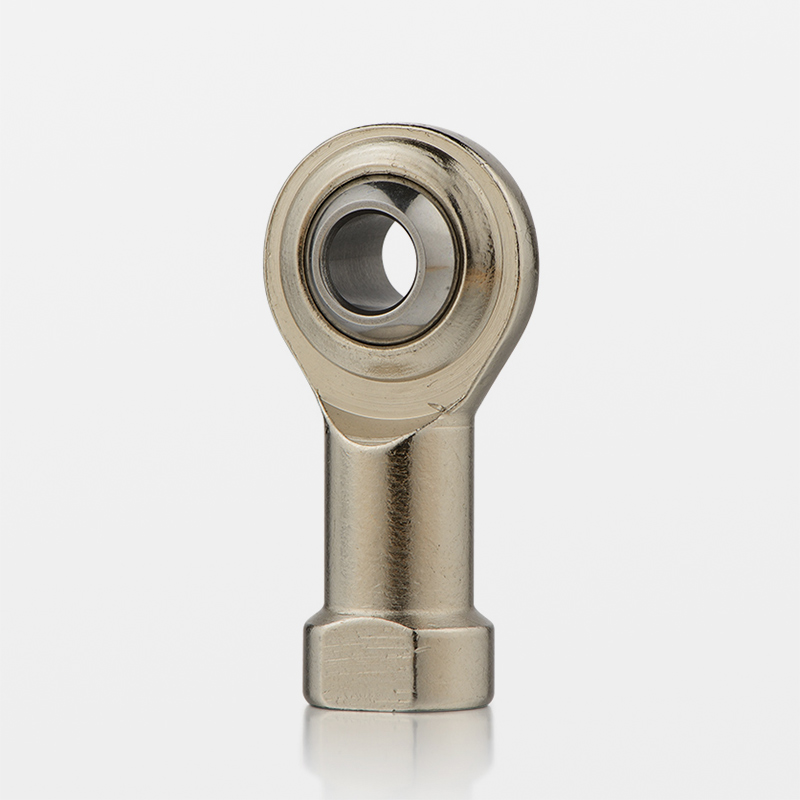

NHS Rod End Bearing
--Rod body with left or right-hand female thread
--Rod body pressed around inner ring
--Outer race lined with PTFE composite material
--Surface of rod body zinc plated

* Easy to use: easy to install and disassemble, the bearing can produce self-lubrication during work, no maintenance required
* Features: The rod end bearing is a spherical sliding bearing, which can rotate and swing at any angle during motion
* Applicable to instrumentation, construction machinery, mining and mineral processing, industrial fans, etc.

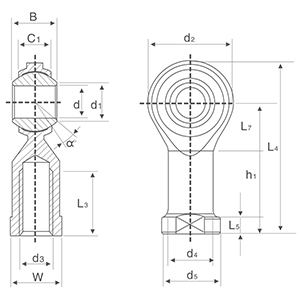

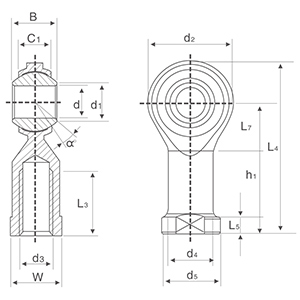

Specification
NHS Series Joint Rod End with Left or Right Hand Female Thread With PTFE Composite Material
NHS Series Joint Rod End with Left or Right Hand Female Thread With PTFE Composite Material
Part Number
Dimensions(mm)
Load ratings(KN)
Weight(g)
d
d3
B
dyn.c
stat.c0
NHS 3
3
M3x0.5
6
1.7
2
10
NHS 4
4
M4x0.7
7
2.5
2.9
12
NHS 5
5
M5x0.8
8
5.7
6
16
NHS 6
6
M6x1.0
9
7.2
7.65
22
NHS 8
8
M8x1.25
12
11.6
12.9
47
NHS 10
10
M10x1.5
14
14.5
18
77
NHS 10-1
10
M10x1.25
14
14.5
18
77
NHS 12
12
M12x1.75
16
17
24
100
NHS 12-1
12
M12x1.25
16
17
24
100
NHS 14
14
M14x2.0
19
24
31
160
NHS 14-1
14
M14x1.5
19
24
31
160
NHS 16
16
M16x2.0
21
28.5
39
220
NHS 16-1
16
M16x1.5
21
28.5
39
220
NHS 18
18
M18x1.5
23
42.5
47.5
320
NHS 20
20
M20x1.5
25
42.5
57
420
NHS 22
22
M22x1.5
28
57
68
540
NHS 25
25
M24x2.0
31
68
85
720
For left-hand thread,please and surffix“L”,e.g. PHSL 8
●If need the stainless steel material please to add “S”in front of the model for example:SPHS 8
NHS Series Joint Rod End with Left or Right Hand Female Thread With PTFE Composite Material

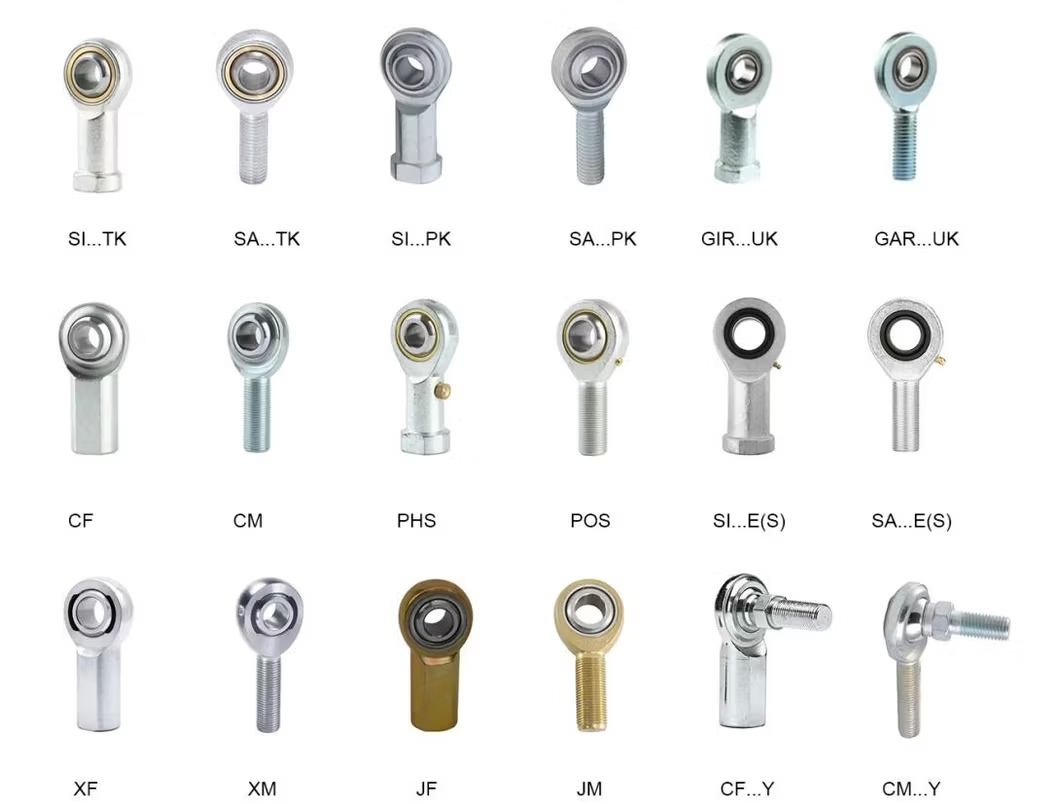

Related Products
NHS Series Joint Rod End with Left or Right Hand Female Thread With PTFE Composite Material
Company Profile
NHS Series Joint Rod End with Left or Right Hand Female Thread With PTFE Composite Material
Ever-power Bearing Industry Co., Ltd. was established in 2003. It is a joint-stock company integrating R&D, manufacturing and import and export trade. The company's main products are rod ends, radial spherical bearings, linear bearings, linear slides, needle rollers, ball screws and linear guide mechanical parts. We not only design and produce various standard bearings, but also customize various non-standard bearings according to customer needs.
