OEM Agricultural ASW Attachments 667K 667KC Steel Pintle Chain And Sprockets For Manure Spreader

OEM Agricultural ASW Attachments 667K 667KC Steel Pintle Chain And Sprockets For Manure SpreaderProduct DescriptionAgricultural ASW Attachments 667K 667KC Steel Pintle Chain And Sprockets For Manure SpreaderWhat is the Manure Spreader chain?The Manure Spreader chain, also known as the apron chain, i......

Send Inquiry

Product Description

OEM Agricultural ASW Attachments 667K 667KC Steel Pintle Chain And Sprockets For Manure Spreader

Product Description

Agricultural ASW Attachments 667K 667KC Steel Pintle Chain And Sprockets For Manure Spreader

What is the Manure Spreader chain?

The Manure Spreader chain, also known as the apron chain, is a critical component in manure spreaders, which are agricultural machines used for spreading animal manure onto fields as fertilizer. The chain is responsible for moving the manure within the spreader and distributing it evenly across the field. Here are some key details about the Manure Spreader chain: Design: The Manure Spreader chain is a heavy-duty chain designed to withstand the demanding conditions of manure spreading. It consists of a series of interlocking steel links that form a continuous loop. Location and Function: The chain is typically located at the bottom of the manure spreader's hopper or box. As the spreader moves forward, the chain is driven by a power source, such as a power take-off (PTO) shaft, hydraulic motor, or gearbox. The chain's movement drags the manure from the hopper to the rear of the spreader, where it is discharged through beaters or paddles. Apron Chain Mechanism: The Manure Spreader chain is often referred to as an apron chain because it acts like an apron or conveyor belt. It moves in a continuous loop, allowing the manure to be carried from the front to the back of the spreader. The chain's design ensures that the manure is evenly distributed for efficient and uniform spreading.

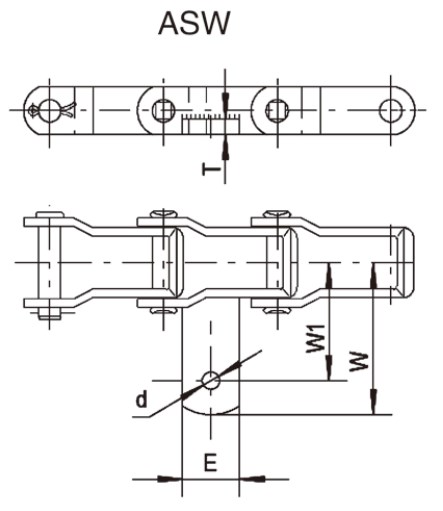

Att. No.	Chain No.	W1	W	d	E	T
ASW	667K	69.85	84.12	9.52	31.75	6.4
ASW		667KC

Contact us: We care about our valued buyers, if you have any questions, our Customer Service staffs will be very glad to help you. We try our best to reply to your emails as soon as possible, however, due to high volume of daily incoming emails and time zone difference, we may not be able to reply your emails immediately. Please allow 24 business hours for us to response.

How to install the Manual Spreader chain？

Installing a Manual Spreader chain, also known as an apron chain, in a manure spreader requires careful attention and following specific steps. While the exact installation process can vary depending on the specific spreader model and manufacturer, here is a general guide to help you with the installation: 1. Preparation: Ensure that you have the correct replacement chain for your manure spreader. Refer to the manufacturer's instructions or consult the spreader's manual to identify the appropriate chain size, type, and length. 2. Safety Precautions: Before starting the installation, make sure the manure spreader is turned off and parked on a level surface. Engage the parking brake and power down any relevant systems to prevent accidental movement or injury. 3. Clear the Area: Remove any excess manure or debris from the spreader's hopper or box. This will allow easier access to the chain installation points. 4. Access Chain Mounting Points: Locate the chain mounting points or attachment areas in the spreader's hopper or box. These are typically located along the sides or bottom of the hopper. 5. Remove Old Chain (if applicable): If you are replacing an existing chain, carefully detach it from the spreader's drive system and remove it from the spreader. This may involve loosening tensioners, releasing any chain tension, or removing connecting links or pins.

6. Align and Attach New Chain: Begin by aligning the new chain with the chain mounting points. Start at one end and feed the chain through the spreader, following the designated path. Ensure that the chain is properly aligned and positioned within the spreader. 7. Connect Chain Ends: Depending on the chain design, you may need to connect the chain ends using connecting links or pins. Follow the manufacturer's instructions for properly connecting the chain ends. Ensure that the connections are secure and properly aligned. 8. Adjust Chain Tension: Once the chain is installed, adjust the tension to ensure proper operation. Many spreaders have tensioners or adjusters that can be used to properly tension the chain. Refer to the manufacturer's instructions for the recommended tensioning procedure. 9. Lubrication: Apply a suitable chain lubricant to the newly installed chain to minimize friction and promote smooth operation. Follow the manufacturer's recommendations for lubrication frequency and the type of lubricant to use. 10. Test Operation: After installation and tensioning, test the manure spreader's operation to ensure that the chain moves smoothly and evenly distributes the manure. Make any necessary adjustments if needed. It's important to note that the above steps provide a general guideline, and the specific installation process may vary depending on the spreader model and manufacturer. Always consult the spreader's manual or reach out to the manufacturer for detailed instructions specific to your equipment.

^{For more types，Please click here！}

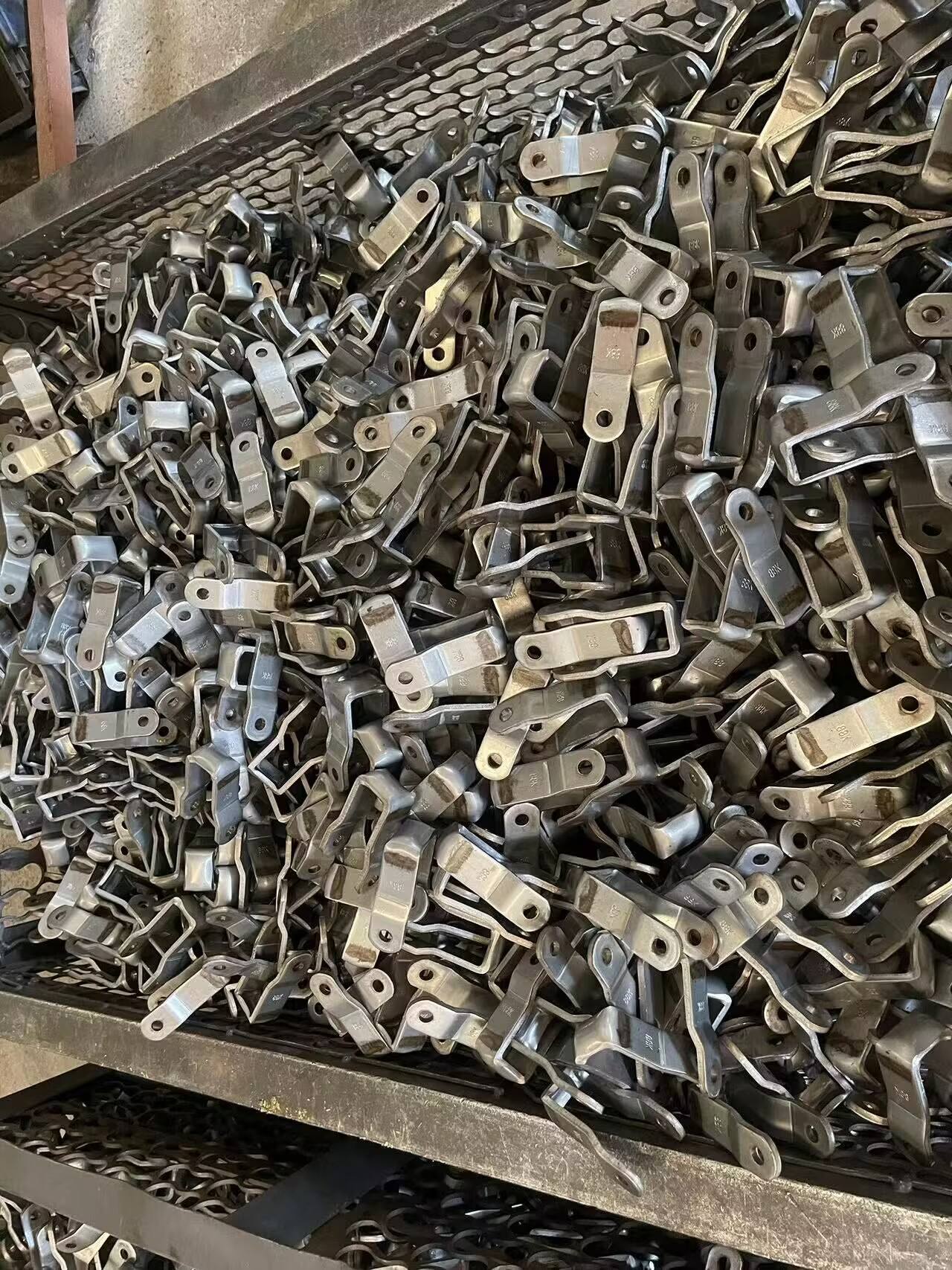

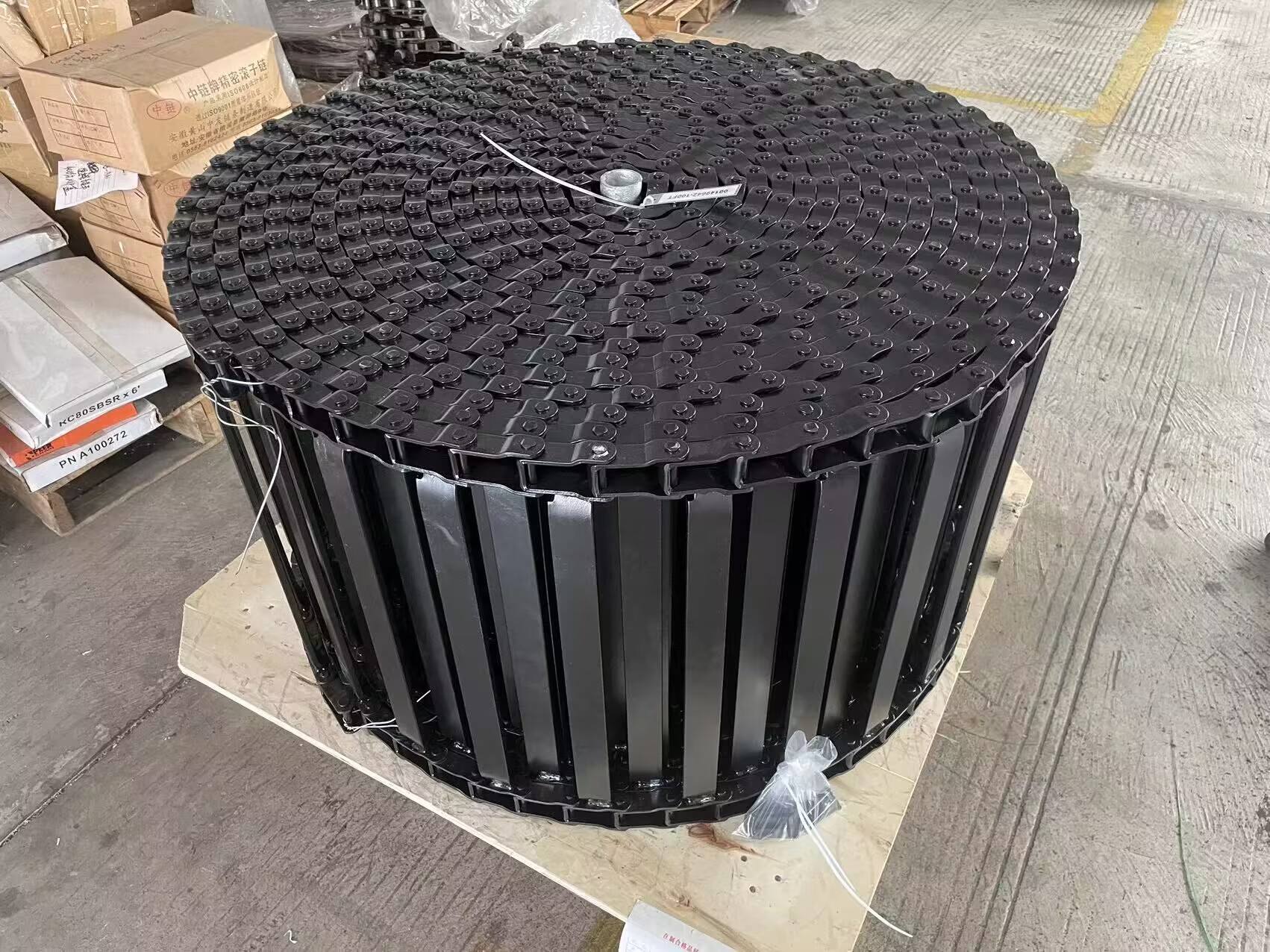

Product Photograph

We also provide sprockets:https://planetary-gearboxes.en.Raydafon.com/productgrouplist-823342095/Sprocket.html?spm=a2700.shop_index.88.65
